1. Продукт закончилсяview
The ASHATA Corded Wall Telephone is a compact and energy-efficient analog phone designed for both desktop and wall-mounted use. It operates via a standard telephone line, requiring no external power source or batteries. This telephone is equipped with essential functions such as flash, call mute, and last number redial, making it suitable for home, office, or hotel environments.
Рисунок 1.1: Болееview of the ASHATA Corded Wall Telephone, showcasing its compact design and standard components.
2. Содержимое упаковки
Пожалуйста, убедитесь, что в вашей посылке присутствуют все перечисленные ниже предметы:
- 1 x ASHATA Corded Wall Telephone Base Unit
- 1 x Трубка
- 1 x Витой шнур для телефонной трубки
- 1 x Telephone Line Cord (straight)

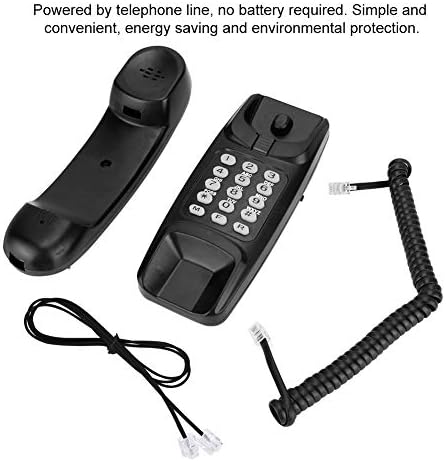

Figure 2.1: All components included in the ASHATA Corded Wall Telephone package, ready for assembly.
3. Настройка
3.1 Подключение телефона
- Connect one end of the coiled handset cord to the handset and the other end to the designated port on the telephone base unit.
- Connect one end of the telephone line cord to the line-in port on the telephone base unit.
- Connect the other end of the telephone line cord to your wall telephone jack. The phone is powered directly by the telephone line and does not require batteries or an external power adapter.
3.2 Варианты размещения
The ASHATA Corded Wall Telephone is designed for versatile placement, allowing it to be used on a desktop or mounted on a wall.
- Размещение на рабочем столе: Simply place the telephone on any flat surface. Ensure the cords are not tangled and the phone is stable.
- Настенный монтаж: The base unit features keyhole slots on the back for easy wall installation. Use appropriate screws (not included) to secure the phone to a wall. Ensure the handset cradle is oriented correctly for wall mounting to prevent the handset from falling.
Figure 3.1: The telephone can be conveniently placed on a desktop or securely mounted on a wall, offering flexible installation options.
4. Инструкция по эксплуатации
4.1 Совершение звонка
- Поднимите трубку.
- Дождитесь гудка.
- Наберите нужный номер телефона с помощью клавиатуры.
4.2 Ответ на вызов
Когда зазвонит телефон, просто поднимите трубку, чтобы ответить на звонок.
4.3 Завершение вызова
To end a call, place the handset back into its cradle on the telephone base unit.
4.4 Функция вспышки
The flash function is used to access network services such as call waiting or three-way calling (if supported by your telephone service provider). Press the ВСПЫШКА button briefly during a call to activate this feature.
4.5 Функция отключения звука
To temporarily mute your microphone during a call, press the MUTE button. The other party will not be able to hear you, but you will still be able to hear them. Press the MUTE Нажмите кнопку еще раз, чтобы включить микрофон.

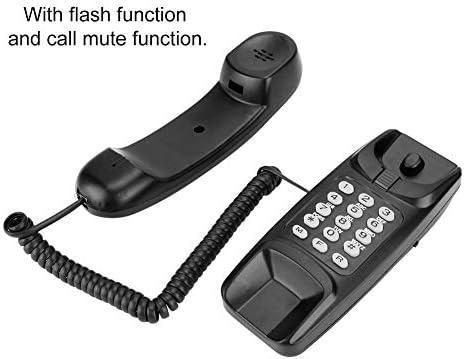

Figure 4.1: The telephone's keypad, highlighting the Flash and Mute functions for enhanced call management.
4.6 Повторный набор последнего номера
Чтобы повторно набрать последний набранный номер, поднимите трубку и нажмите кнопку ПОВТОРНЫЙ НАБОР кнопка.
Figure 4.2: The telephone's keypad, indicating the Redial button for quickly calling the last dialed number.
5. Особенности
- Компактный дизайн: Can be placed on a desktop or mounted on a wall, saving space.
- Энергоэффективность: Powered directly by the telephone line, eliminating the need for batteries or external power.
- Basic Call Functions: Includes flash function for network services and mute function for privacy during calls.
- Повторный набор последнего номера: Conveniently redial the most recently called number.
- Прочная конструкция: Made from plastic material for everyday use.
6. Техническое обслуживание и уход
To ensure the longevity and proper functioning of your ASHATA Corded Wall Telephone, follow these simple maintenance guidelines:
- Уборка: Wipe the telephone's surface with a soft, damp Ткань. Избегайте использования едких химикатов или абразивных чистящих средств, так как они могут повредить покрытие.
- Хранилище: If storing the telephone for an extended period, keep it in a cool, dry place away from direct sunlight and extreme temperatures.
- Управление шнуром: Ensure the coiled handset cord and telephone line cord are not excessively stretched or tangled to prevent damage.
7. Поиск Неисправностей
If you encounter issues with your ASHATA Corded Wall Telephone, please refer to the following troubleshooting steps:
| Проблема | Возможная причина | Решение |
|---|---|---|
| Нет гудка | Телефонный кабель отсоединен или неисправен. | Ensure the telephone line cord is securely connected to both the phone and the wall jack. Test with another phone if available. |
| Не слышу звонящего / Звонящий меня не слышит | Handset cord is loose or faulty; Mute function is active. | Check that the coiled handset cord is securely connected. If the mute function is active, press the MUTE button to deactivate it. |
| Кнопки не отвечают | Временный системный сбой. | Disconnect the telephone line cord from the wall jack for a few minutes, then reconnect it. |
| Handset does not stay in cradle when wall mounted | Improper wall mounting or cradle orientation. | Ensure the phone is securely mounted and the handset cradle is correctly positioned for wall use. Some models have a reversible tab in the cradle. |
8. Технические характеристики
| Особенность | Деталь |
|---|---|
| Номер модели | ASHATAni0d2w8htb-01 |
| Размеры (Д x Ш x В) | 18 x 6 x 7 см (7.1 x 2.4 x 2.8 дюймов) |
| Масса | 283 г (0.62 фунта) |
| Цвет | Черный |
| Материал | Пластик |
| Источник питания | Telephone Line Powered (Corded) |
| Тип набора | Одна клавиатура |
| Совместимые устройства | PSTN (Public Switched Telephone Network) |
Рисунок 8.1: Верх и низ views of the telephone, including the model number label on the underside.
9. Гарантия и поддержка
ASHATA is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, please contact ASHATA customer service for any inquiries regarding product support, troubleshooting beyond this guide, or warranty claims.
For further assistance, please visit the official ASHATA store or contact their support channels. Keep your purchase receipt as proof of purchase.
