1. Введение
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your CGOLDENWALL 1200W Electric Hydraulic Hole Puncher, Model JP-20. Please read this manual thoroughly before operating the tool to ensure proper usage and to prevent injury or damage.
1.1 Информация по технике безопасности
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep the work area clean and well-lit. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away while operating a power tool.
- Используйте соответствующие средства индивидуальной защиты (СИЗ), включая защитные очки, перчатки и средства защиты органов слуха.
- Ensure the tool is properly grounded and connected to a suitable power supply (110V).
- Inspect the tool and power cord for damage before each use. Do not use if damaged.
- Keep hands and fingers clear of the punching area during operation.
- Secure the workpiece firmly before punching.
- Do not overload the tool or attempt to punch materials beyond its specified capacity.
- Disconnect the power supply before performing any maintenance, changing dies, or when the tool is not in use.
2. Продукт закончилсяview и компоненты
The CGOLDENWALL JP-20 is an electric hydraulic hole puncher designed for creating precise holes in various metal plates. It features a powerful 1200W motor for fast and efficient punching.
Figure 2.1: CGOLDENWALL JP-20 Hydraulic Hole Puncher with included dies and examples of punched materials.
2.1 Основные компоненты
Figure 2.2: Key components of the CGOLDENWALL JP-20 Hydraulic Hole Puncher.
- Рабочая ручка: Эргономичный дизайн для удобства управления во время работы.
- Refueling Hole: Used for adding hydraulic oil to the system.
- Unique Safety Valve: Ensures safe operation and pressure release.
- Силовой кабель: Подключает инструмент к электросети.
- Support Base (Removable): Provides stability for stationary work.
- Punching Head: Houses the punch and die mechanism.
- Ключ переключения: Activates the punching mechanism.
2.2 Что в коробке
Figure 2.3: Included items in the CGOLDENWALL JP-20 package.
- CGOLDENWALL JP-20 Punching Machine
- Большой гаечный ключ
- Hex Wrench + Screws
- Molds (Dies): φ6.5mm, φ9mm, φ13mm, φ17mm, φ20.5mm
3. Технические характеристики
Рисунок 3.1: Подробные технические характеристики и размеры.
| Параметр | Ценить |
|---|---|
| Модель | JP-20 |
| Томtage | 110В |
| Ватtage | 1200 Вт |
| Выход | 10Т |
| Punch Speed | 2-3 секунд |
| Deep Throat | 40 мм |
| Iron/Steel Plate Thickness | ≤6mm (0.23 Inch) |
| Copper/Aluminum Plate Thickness | ≤8mm (0.31 Inch) |
| Angle Iron Thickness | ≤6mm (0.23 Inch) |
| Standard Punch Dies | φ6.5 мм, φ9 мм, φ13 мм, φ17 мм, φ20.5 мм |
| Размеры продукта | Приблизительно 19.69 х 7.68 х 3.94 дюйма |
| Вес товара | 12 килограмма (26.46 фунта) |
| Материал | Легированная сталь, алюминий |
4. Настройка
4.1 Attaching the Support Base
For stable operation on a workbench, attach the removable support base to the main unit using the provided screws and hex wrench. Ensure it is securely fastened.
4.2 Installing Punch Dies
Figure 4.1: Standard punch dies included with the tool.
- Выберите правильную матрицу: Choose the punch and die set that matches the desired hole size.
- Убедитесь, что питание выключено: Disconnect the tool from the power supply before changing dies.
- Insert Die: Carefully insert the selected die into the punching head. Refer to the diagram for proper orientation.
- Надежный штамп: Use the provided wrench to tighten and secure the die in place. Ensure it is firmly seated to prevent movement during operation.
5. Инструкция по эксплуатации
The CGOLDENWALL JP-20 offers two working modes: stationary with the base or handheld with the auxiliary handle. Always ensure the workpiece is stable and secured.
Figure 5.1: The hydraulic puncher in operation, demonstrating its speed.
5.1 Punching Procedure
- Подготовка заготовки: Mark the desired punching location on the metal plate. Ensure the material thickness is within the tool's specifications (e.g., Iron/steel plate ≤6mm, Copper/aluminum plate ≤8mm).
- Позиция заготовки: Place the workpiece under the punch, aligning the marked spot with the center of the punch. The tool is designed for accurate positioning without offset.
- Подключите питание: Подключите кабель питания к подходящей электрической розетке на 110 В.
- Initiate Punch: Press the switch key (trigger) to activate the hydraulic punching mechanism. The punch will rapidly descend, create the hole, and retract. The punching speed is approximately 2-3 seconds.
- Отпустите переключатель: Release the switch key once the punch has completed its cycle.
- Извлечение заготовки: Carefully remove the punched workpiece.

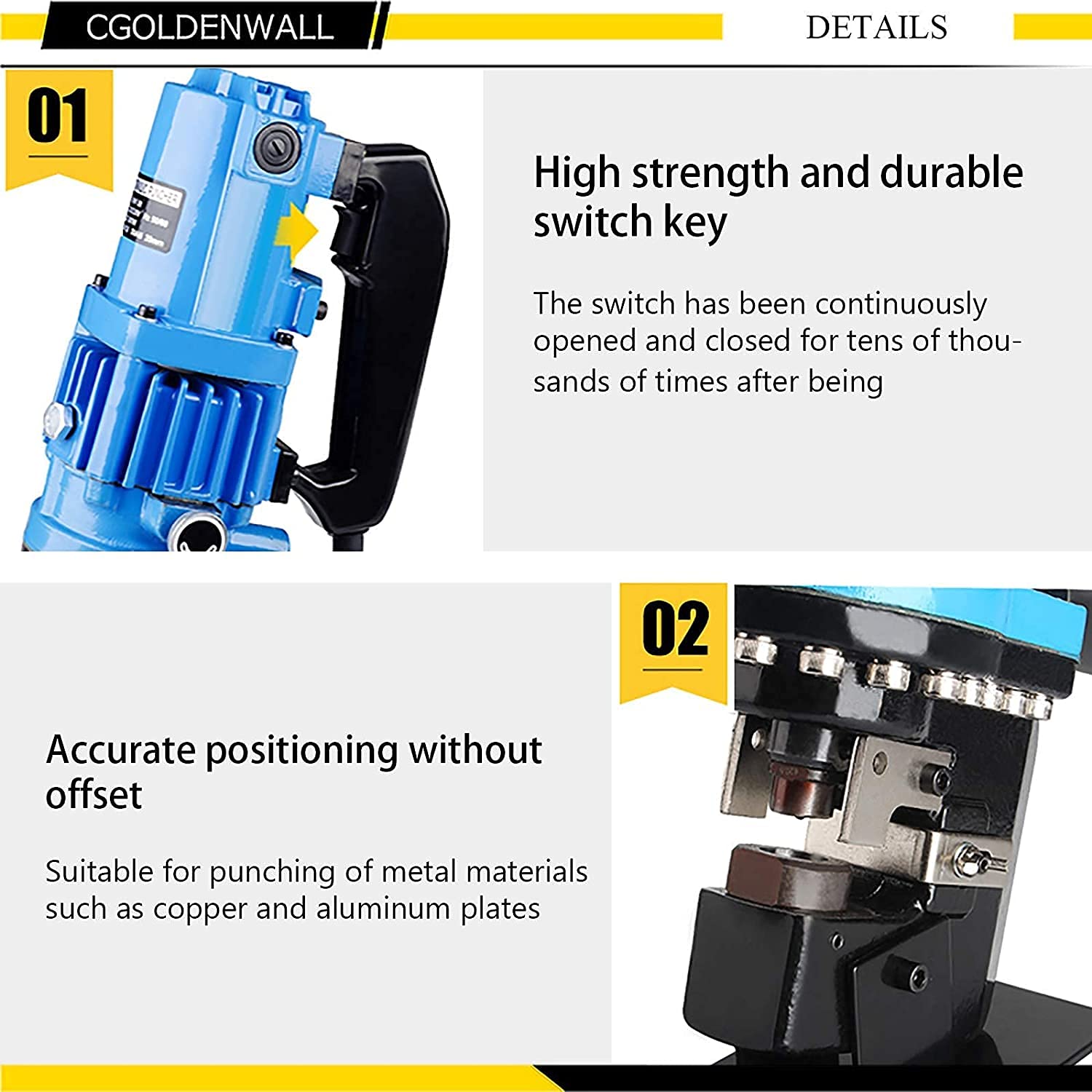

Figure 5.2: Details of the durable switch key and precise punching mechanism.
5.2 Совместимость материалов
The tool is suitable for punching holes in:
- Iron/Steel Plate: Up to 6mm thickness
- Copper/Aluminum Plate: Up to 8mm thickness
- Angle Iron: Up to 6mm thickness
Рисунок 5.3: Пример приложенияample and punching range for various materials.
6. Техническое обслуживание
Regular maintenance ensures the longevity and optimal performance of your hydraulic hole puncher. Always disconnect the power before performing any maintenance.
6.1 Очистка
- After each use, clean the punching head and dies to remove metal shavings and debris.
- Use a dry cloth or soft brush. Do not use harsh chemicals or solvents.
6.2 Hydraulic Oil Level Check and Refueling
Periodically check the hydraulic oil level. If the level is low, refill through the designated refueling hole. Use only recommended hydraulic oil for this tool.
- Locate the refueling hole (refer to Figure 2.2).
- Unscrew the cap and check the oil level.
- If necessary, add hydraulic oil until the appropriate level is reached.
- Плотно закройте крышку.
6.3 Die Inspection
Inspect the punch and die for wear or damage. Worn dies can lead to poor punching quality and increased strain on the tool. Replace worn dies promptly.
7. Поиск Неисправностей
This section addresses common issues you might encounter with your hydraulic hole puncher.
| Проблема | Возможная причина | Решение |
|---|---|---|
| Инструмент не запускается | Нет питания; Поврежден шнур питания; Неисправный выключатель | Проверьте подключение к электросети и розетку; осмотрите шнур питания на наличие повреждений; обратитесь в службу поддержки клиентов, если выключатель неисправен. |
| Punching is slow or weak | Low hydraulic oil level; Air in hydraulic system; Worn punch/die; Material too thick | Check and refill hydraulic oil; Bleed air from the system (refer to advanced maintenance); Replace punch/die; Ensure material is within specifications. |
| Poor hole quality (burrs, uneven edges) | Worn punch/die; Incorrect die size for material; Workpiece not secured | Replace punch/die; Use appropriate die for material and thickness; Secure workpiece firmly. |
| Инструмент перегревается | Continuous operation; Overloading; Insufficient ventilation | Allow tool to cool down; Do not exceed material thickness limits; Ensure proper airflow around the motor. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact CGOLDENWALL customer support.
8. Гарантия и поддержка клиентов
For warranty information, please refer to the documentation provided with your purchase or contact CGOLDENWALL directly. Keep your purchase receipt as proof of purchase.
8.1 Контактная информация
For technical assistance, parts, or service, please contact CGOLDENWALL customer support through their official webсайт или розничный продавец, где был приобретен товар.
Вы можете посетить Магазин CGOLDENWALL на Amazon Для получения дополнительной информации или контактных данных.
