Инструкция по эксплуатации тактического фонаря J5 Tactical Hyper V Ultra Bright Handheld LED Adjustable Taclight

1. Введение

This manual provides comprehensive instructions for the safe and effective use, maintenance, and troubleshooting of your J5 Tactical Hyper V 400 Lumen Tactical LED Flashlight. Designed for durability and high performance, this flashlight is suitable for various applications including hunting, cycling, climbing, camping, and general household tasks.

2. Продукт закончилсяview

The J5 Tactical Hyper V is a compact yet powerful LED flashlight featuring an ultra-bright 400 lumen output. Its robust aluminum alloy construction ensures durability, while its adjustable focus allows for versatile lighting from a wide floodlight to a concentrated spotlight. The flashlight operates on three AAA batteries, providing extended use.

Основные характеристики:

• Ультраяркий: Max 400 Lumens, capable of illuminating objects up to 800 feet away.
• Регулируемый фокус: Zoomable beam for wide-to-narrow light projection.
• Несколько режимов: High, Low, and Strobe settings for various lighting needs.
• Прочная конструкция: Made with a compact aluminum alloy case, designed to withstand drops and temporary water submersion.
• Портативный: Compact size allows for easy carrying in a pocket, backpack, or clipped to a belt.
• Battery Efficient: Operates on 3 x AAA batteries (not included), offering long-lasting performance.

Визуализация продукта:

Figure 2.1: J5 Tactical Hyper V Flashlight and its retail packaging.

Figure 2.2: The J5 Tactical Hyper V flashlight alongside its removable battery holder for AAA batteries.

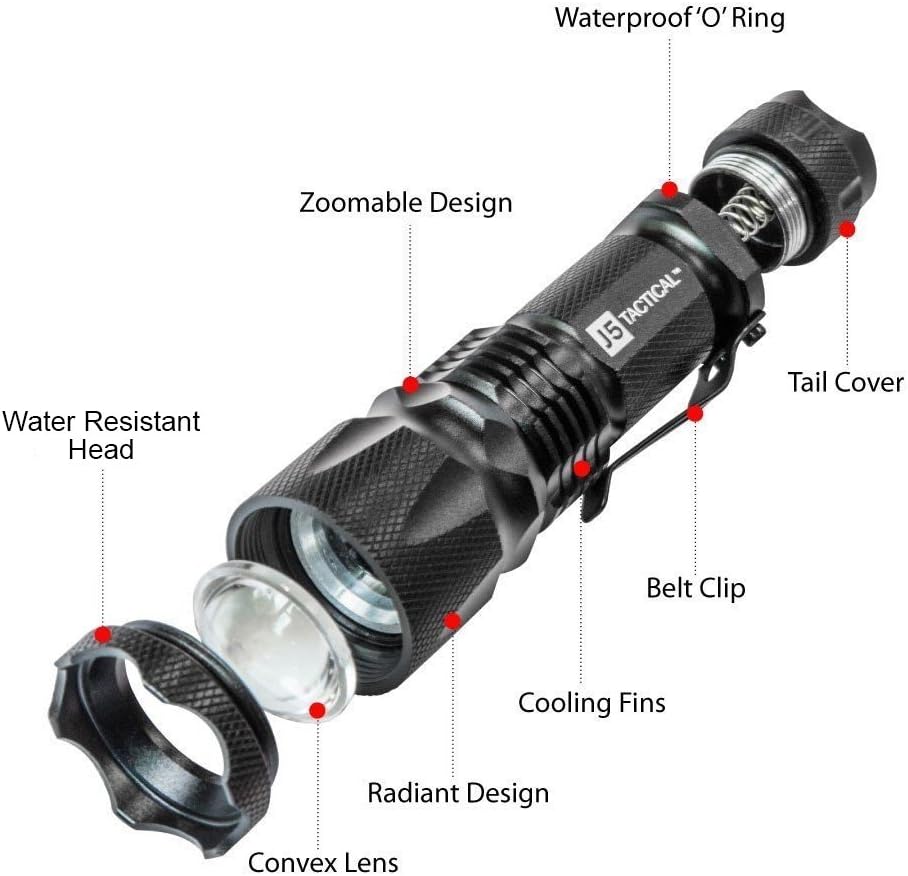

Рисунок 2.3: Детальная схема в разобранном виде. view illustrating the main components of the J5 Tactical Hyper V flashlight, including the convex lens, cooling fins, belt clip, and tail cover with waterproof 'O' ring.

Figure 2.4: Visual representation of the J5 Tactical Hyper V flashlight's dimensions and a summary of its key specifications, including lumen output, materials, and battery type.

Рисунок 2.5: Examples of the J5 Tactical LED Flashlight in different practical applications, such as outdoor activities, campа также аварийное освещение.

3. Настройка

Установка аккумулятора:

1. Открутите заднюю крышку фонарика, повернув ее против часовой стрелки.
2. Insert three AAA batteries into the battery holder, ensuring correct polarity (+/-).
3. Place the battery holder with the installed batteries into the flashlight body.
4. Завинтите заднюю крышку по часовой стрелке до надежного затягивания.

Note: Batteries are not included with the flashlight. Ensure to use fresh, high-quality AAA batteries for optimal performance.

4. Инструкция по эксплуатации

Включение/выключение питания и выбор режима:

• Чтобы включить фонарик ON, press the red rubber button on the tail cap until it clicks. The flashlight will typically start in High mode.
• To cycle through the modes (High, Low, Strobe), lightly press the tail cap button without clicking it off. Each light press will advance to the next mode.
• Чтобы включить фонарик ВЫКЛЮЧЕННЫЙНажмите и удерживайте кнопку на торцевой крышке до щелчка.

Adjusting Focus (Zoom Function):

The J5 Tactical Hyper V features an adjustable focus mechanism. To change the beam width:

• Gently slide the head of the flashlight forward or backward.
• Sliding the head forward will narrow the beam, creating a focused spotlight.
• Sliding the head backward will widen the beam, creating a broad floodlight.

5. Техническое обслуживание

Уборка:

Протрите корпус фонарика мягкой тряпкой.amp Протрите линзу тканью. Не используйте абразивные чистящие средства или растворители. Убедитесь, что линза чистая для оптимальной светоотдачи.

Уход батареи:

• Если фонарик не будет использоваться в течение длительного времени, извлеките батарейки, чтобы предотвратить протечку и повреждение.
• Replace all three AAA batteries simultaneously to ensure consistent performance.

Водостойкость:

The J5 Tactical Hyper V is designed to be water-resistant. Ensure the tail cap is fully tightened to maintain its water resistance. It is not intended for prolonged submersion.

6. Поиск Неисправностей

7. Технические характеристики

8. Гарантия и поддержка

The J5 Tactical Hyper V Flashlight comes with a Гарантия один год.

Удовлетворение гарантировано: If you are not completely satisfied with your J5 Tactical Flashlight or encounter any issues, please contact J5 Tactical customer support for a replacement or refund. Your satisfaction is 100% guaranteed.
