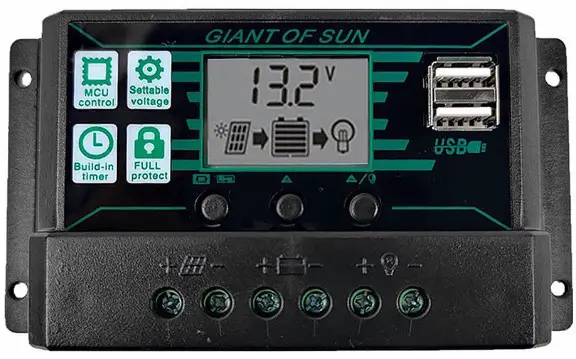

10A Intelligent LCD Solar Controller
Step by Step Installation Guide
- Connect battery firs
- Battery Type Selection
Press this button 5 times then long press for 10 seconds.
Then use the “+” and “-” button select battery type.b01- Lead-acid Battery
b02- Lithium Ion Battery
b03- Lithium Iron Phosphate Battery(LifePo4) - Connect Solar Panel
- Connect DC Load
- Connect inverter
Connect the right solar panel according to your battery.
If you have 12V Battery then you need 12V solar panel.
If you have 24V Battery then you need 24V solar panel.
What is your solar panel voltage?
If your solar panel Voc 20 to 25V. It means your solar panel is 12V.
If your solar panel Voc 40 to 50V. It means your solar panel is 24V.
Solar panel according to Solar charge controller.
Per the 10 amp charge controller, you can connect up to a 130-watt solar panel per 12V solar panel.
Per the 10 amp charge controller, you can connect up to a 260-watt solar panel per 24V solar panel.
Per the 20 amp charge controller, you can connect up to a 260-watt solar panel per 12V solar panel.
Per the 20 amp charge controller, you can connect up to a 520-watt solar panel per 24V solar panel.
Per the 30 amp charge controller, you can connect up to a 390-watt solar panel per 12V solar panel.
Per the 30 amp charge controller, you can connect up to a 780-watt solar panel per 24V solar panel.
If you want to convert DC to AC?
It would be best if you connected the battery to the inverter.
For more information please read the user manual
