Inkbird B0GCMDQ7FF

Inkbird Cordless Electric Lunch Box User Manual

Model: B0GCMDQ7FF

Introducere

Thank you for choosing the Inkbird Cordless Electric Lunch Box. This device is designed to provide warm meals on the go, featuring a 16000mAh rechargeable battery, 1.5L capacity, and 5-sided heating technology. Please read this manual thoroughly before use to ensure proper operation and maintenance.

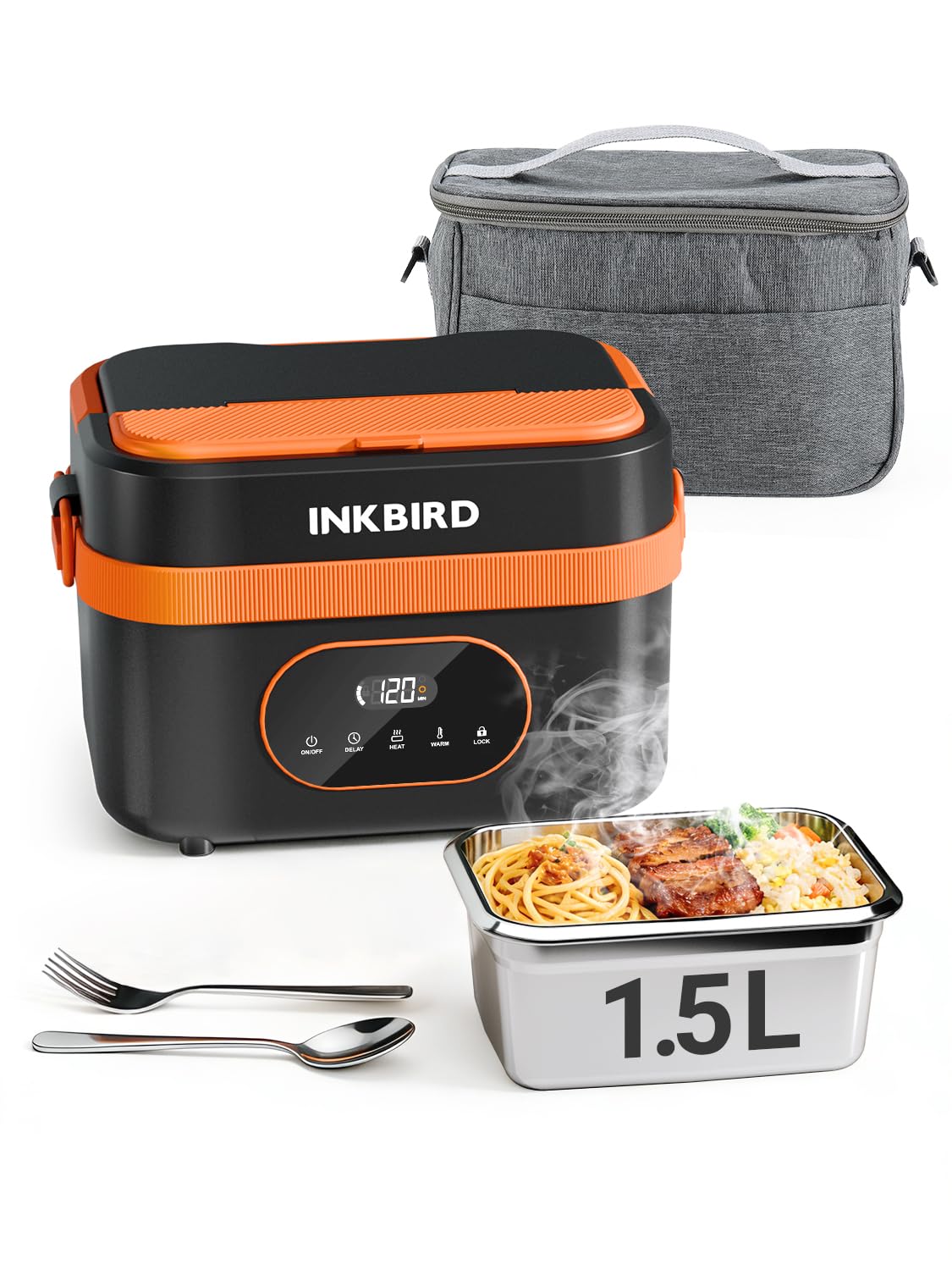

Inkbird Cordless Electric Lunch Box with a meal inside, surrounded by other dishes.

Image: The Inkbird Cordless Electric Lunch Box, showcasing its design and a heated meal.

Produs terminatview

Conținutul pachetului

Pachetul include următoarele articole:

  • Cordless Lunch Box (1)
  • TYPE-C Charging Cable (1)
  • Adaptor (1)
  • Manual de instrucțiuni (1)
  • Lingură de orez (1)
  • Fork (1)
Inkbird Cordless Electric Lunch Box with its components laid out: the lunch box, insulated bag, stainless steel container, lid, charging cable, adapter, spoon, fork, and instruction manual.

Image: All components included in the Inkbird Cordless Electric Lunch Box package.

Caracteristici cheie

  • Funcționare fără fir: Integrated 16000mAh rechargeable battery for heating without an external power source.
  • Încălzire eficientă: 5-sided heating technology ensures even warming of food.
  • Timer inteligent: Programmable heating from 1 to 8 hours.
  • Capacitate generoasă: 1.5L (approximately 6 cups) stainless steel food container.
  • Usor de curatat: Removable, dishwasher-safe stainless steel container.
  • Design rezistent la varsare: Secure lid and leak-proof seal to prevent spills.
  • Funcție portabilă Power Bank: TYPE-C port allows charging of other devices.

Înființat

Încărcare inițială

Before first use, fully charge the lunch box battery. Connect the provided TYPE-C charging cable to the lunch box and the adapter to a power outlet. A full charge typically takes 3-4 hours. The LED display will indicate charging status.

Inkbird Cordless Electric Lunch Box connected to a charger, showing the TYPE-C port and a phone being charged from the lunch box.

Image: The lunch box being charged via its TYPE-C port, also illustrating its ability to charge a mobile phone.

Preparing the Food Container

Wash the stainless steel food container and lid thoroughly before placing food inside. Ensure the leak-proof seal is properly seated on the lid to prevent spills during transport.

Instrucțiuni de operare

Plasarea alimentelor

Place your prepared meal into the stainless steel container. If desired, use the removable divider to separate different food items. Secure the lid firmly onto the container, then place the container into the main heating unit.

Image showing the removable tray divider in the Inkbird lunch box, illustrating how it can be used to separate food or removed for a single large compartment.

Image: The removable tray divider, demonstrating flexible meal storage options.

Moduri de încălzire

The lunch box offers two primary modes: Căldură şi Păstrați-vă cald.

  • Mod încălzire: Designed to actively heat food from room temperature to a hot level. This process requires at least 30 minutes. Heating times can be adjusted (e.g., 30, 40, 50, 60 minutes).
  • Modul Menține cald: Maintains the temperature of already warm food. This mode will not actively heat cold food to a hot level. Keep warm times can be adjusted (e.g., 30, 60, 90, 120 minutes).
Diagram illustrating the Heat and Warm modes with various time settings (30, 40, 50, 60 minutes for Heat; 30, 60, 90, 120 minutes for Warm).

Image: Visual representation of the Heat and Warm modes and their respective time options.

Using the Smart Timer (Delayed Heating)

The smart timer allows you to set a delayed start for heating, ensuring your meal is ready when you need it. You can set the timer for 1 to 8 hours. After setting the delay, the lunch box will automatically begin heating at the programmed time.

Image showing the Inkbird lunch box on a desk with a timer bar indicating delay settings from 1 to 8 hours.

Image: The delay timer function, allowing users to schedule heating up to 8 hours in advance.

Funcția Power Bank

The integrated 16000mAh battery can also be used to charge other devices via the TYPE-C port. Connect your device to the TYPE-C port on the lunch box to begin charging.

Curatenie si intretinere

Curățarea recipientului pentru alimente

The stainless steel food container is removable and dishwasher safe for easy cleaning. The lid should also be washed thoroughly after each use.

A man placing the stainless steel food container into a dishwasher, demonstrating its dishwasher-safe design.

Image: The dishwasher-safe stainless steel container for convenient cleaning.

Curățarea unității principale

The main heating unit is nu este impermeabil. Do not immerse it in water or wash it under running water. Wipe the exterior with a damp cloth and ensure it is completely dry before storage or next use.

Image showing the stainless steel container being rinsed in a sink, with a warning indicating that the main heating unit is not waterproof and should not be immersed.

Image: Cleaning the removable container, with a crucial reminder that the main unit is not waterproof.

Depanare

ProblemăCauza posibilaSoluţie
Mâncarea nu se încălzește suficient.
  • Timp de încălzire insuficient.
  • "Keep Warm" mode selected instead of "Heat" mode for cold food.
  • Încărcare redusă a bateriei.
  • Ensure at least 30 minutes for heating from room temperature. Denser foods may require longer.
  • Select "Heat" mode for cold food. "Keep Warm" mode only maintains temperature.
  • Fully charge the lunch box before use.
Lunch box does not turn on.
  • Bateria este epuizată.
  • Butonul de pornire nu a fost apăsat corect.
  • Charge the lunch box fully.
  • Apăsați și mențineți apăsat butonul de pornire pentru câteva secunde.
Food spills during transport.
  • Capacul nu este etanșat corespunzător.
  • Overfilling the container.
  • Ensure the lid is securely fastened and the silicone seal is correctly in place.
  • Do not overfill the container beyond the maximum fill line.

Specificații

CaracteristicăDetaliu
MarcaPasăre de cerneală
ModelB0GCMDQ7FF
CuloareNegru & Portocaliu
MaterialAcrilonitril Butadien Stiren (ABS)
Capacitate1.5 litri
Baterie16000mAh reîncărcabil
Putere60W
Dimensiuni produs (D x L x H)6.14 cm x 6.14 cm x 6.14 cm
Număr de compartimente1 (with optional divider)
Caracteristica specialăHeat Resistant, Portable Power Bank
Instrucțiuni de îngrijireHand Wash Only (main unit), Dishwasher Safe (stainless steel container)

Informații de siguranță

  • Do not immerse the main heating unit in water or any other liquid.
  • Ensure the lunch box is fully charged before extended use to avoid unexpected power loss during heating.
  • A nu se lăsa la îndemâna copiilor.
  • Do not use if the product appears damaged.
  • Always ensure the lid is securely closed before transport to prevent spills.
  • Heating requires time; plan accordingly. Do not expect instant heating of cold food.
  • Do not place the insulated cover over the lunch box while heating, as this can affect thermal efficiency and potentially cause damage.

Videoclipuri oficiale despre produse

Inkbird Cordless Electric Lunch Box: Operation Guide

Video: A detailed guide on how to operate the Inkbird Cordless Electric Lunch Box, including setting heating modes and timers.

Inkbird Cordless Lunch Box, Portable, Silent & Easy Clean

Video: Demonstrates the portability, quiet operation, and ease of cleaning for the Inkbird Cordless Electric Lunch Box.

Garanție și suport

For warranty information or technical support, please refer to the contact details provided in the included instruction manual or visit the official Inkbird website-ul. Păstrați chitanța de achiziție pentru cererile de garanție.

De asemenea, puteți vizita Magazinul Inkbird pe Amazon pentru mai multe informații despre produs și resurse de asistență.
