SDLANCH SDLLM500 Remote Control Slope Lawn Mower

1. Informații importante privind siguranța

Read and understand all instructions before operating the SDLLM500 Remote Control Slope Lawn Mower. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Responsabilitatea operatorului: Only trained individuals should operate this equipment. Ensure you are familiar with all controls and safety features.
• Zona de lucru: Nu lăsați zona de lucru la îndemâna persoanelor din jur, a copiilor și a animalelor de companie. Operați numai în condiții de iluminare bună.
• Echipament individual de protecție (EIP): Always wear appropriate PPE, including eye protection, hearing protection, sturdy footwear, and long pants.
• Operare cu panta: Exercise extreme caution when operating on slopes. Always mow across the face of slopes, not up and down, to minimize the risk of tipping.
• Siguranța lamei: Never attempt to clear debris or adjust blades while the engine is running or the mower is powered on. Disconnect the battery and ensure blades are stationary before performing any maintenance.
• Siguranța bateriei: Use only the specified 24V 24AH battery system. Do not expose batteries to extreme temperatures or puncture them.
• Telecomanda: Maintain a clear line of sight to the mower at all times. Do not operate the mower if the remote control signal is weak or interrupted.

2. Produs terminatview

The SDLANCH SDLLM500 is a remote-controlled slope lawn mower designed for efficient grass cutting on various terrains, including inclines. It features a robust tracked system, a 500mm cutting width, and a hybrid power system combining a gasoline engine with a 24V battery for propulsion and blade operation.

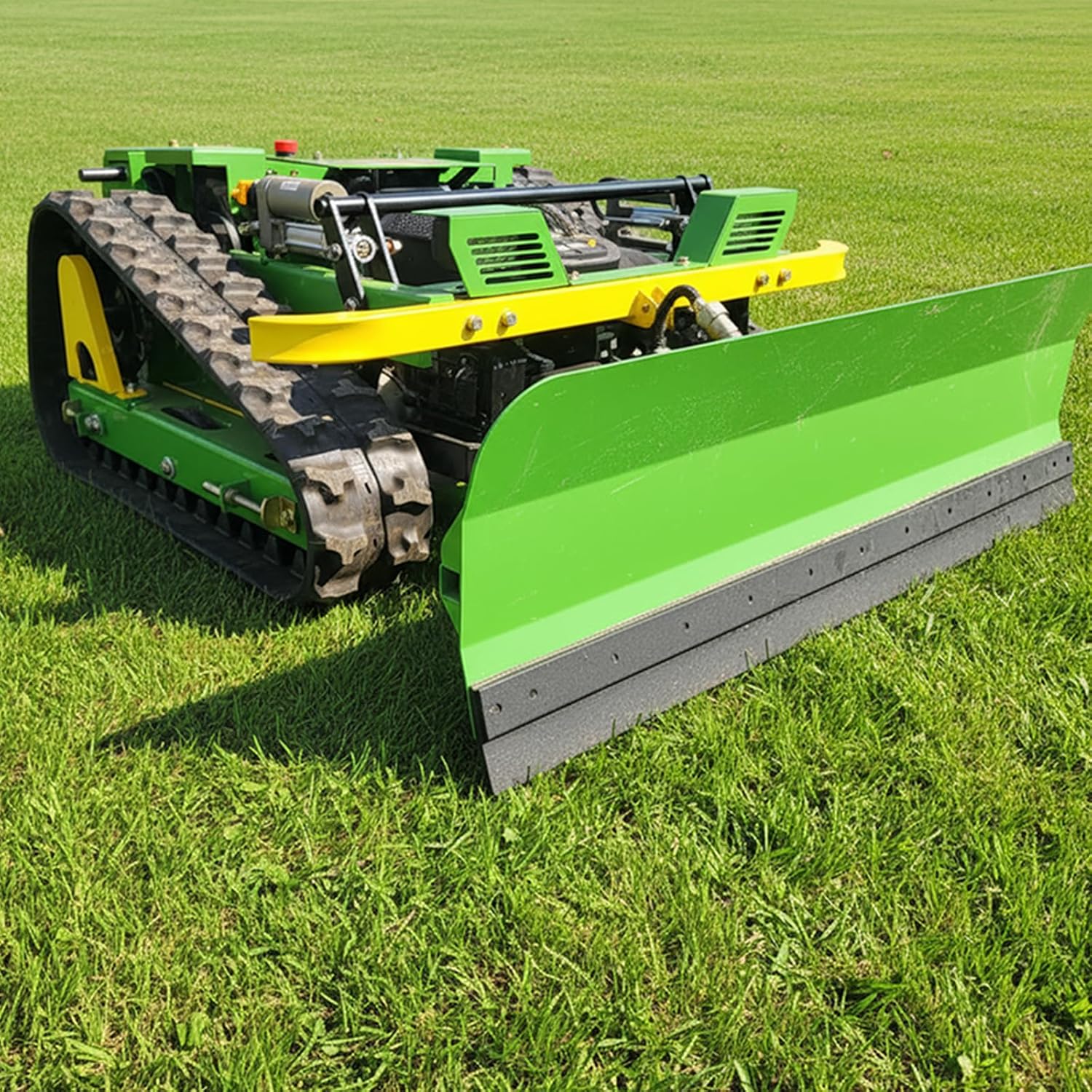

Figure 2.1: SDLLM500 Remote Control Slope Lawn Mower

3. Configurare

3.1 Dezambalarea și asamblarea

1. Scoateți cu grijă toate componentele din ambalaj.
2. Inspect the mower for any signs of shipping damage. Contact your dealer immediately if damage is found.
3. Ensure all included accessories, such as the remote control and charging cable, are present.
4. Attach any components that require assembly according to the diagrams provided in the separate assembly guide (if applicable).

3.2 Încărcarea inițială a bateriei

The mower is equipped with a 24V 24AH battery system. Before first use, ensure the battery is fully charged. The gasoline engine will also charge the battery during operation.

• Locate the charging port on the mower.
• Connect the provided charging cable to the mower and a suitable power outlet.
• Allow the battery to charge until the indicator shows a full charge. Refer to the battery display for charge status.

Figure 3.1: 24V Battery System

3.3 Pregătirea telecomenzii

The remote control requires its own batteries (not specified, assume standard AA/AAA). Install them before use.

• Deschideți compartimentul bateriei de pe spatele telecomenzii.
• Insert the required batteries, observing polarity.
• Închideți bine compartimentul bateriei.
• Power on the remote control. It should automatically pair with the mower when the mower is also powered on.

Figure 3.2: Remote Control in Operation

4. Instrucțiuni de utilizare

4.1 Pornirea mașinii de tuns iarba

1. Ensure the mower is on a level surface and clear of obstacles.
2. Turn on the main power switch on the mower.
3. Start the gasoline engine using the designated control (e.g., pull cord or electric start button).
4. Porniți telecomanda.
5. The mower is now ready for operation.

4.2 Funcții de control de la distanță

The remote control allows for precise maneuvering and speed adjustments.

• Control direcțional: Use the joysticks or directional pads to move the mower forward, backward, left, and right.
• Setări de viteză: The mower features dual speed settings:
  • Slow Gear: Recommended for thick or high grass, providing more torque and control.
  • Fast Gear: Suitable for regular mowing needs and lighter grass, allowing for quicker coverage (up to 4km/h).
• Angrenarea lamei: Use the designated button on the remote to engage and disengage the cutting blades.
• Oprire de urgență: Familiarize yourself with the emergency stop button on the remote control. Pressing this button will immediately halt all mower functions.

4.3 Tehnici de cosit

• Ajustarea înălțimii de tăiere: Adjust the cutting height using the mechanism on the mower (refer to the mower's physical controls for specific adjustment points).
• Slope Mowing: Always operate the mower across the face of slopes, not up and down. Maintain a safe distance and be aware of the mower's stability. The robust tracked system is designed for stable operation on uneven surfaces.
• Cruise Control: Utilize the cruise control feature for consistent speed during long mowing passes, reducing operator fatigue.

Figure 4.1: Mower in operation on a flat surface

4.4 Monitoring Battery and Fuel Levels

Regularly check the battery capacity and voltage display on the mower to ensure sufficient power for operation. Monitor the fuel level of the gasoline engine.

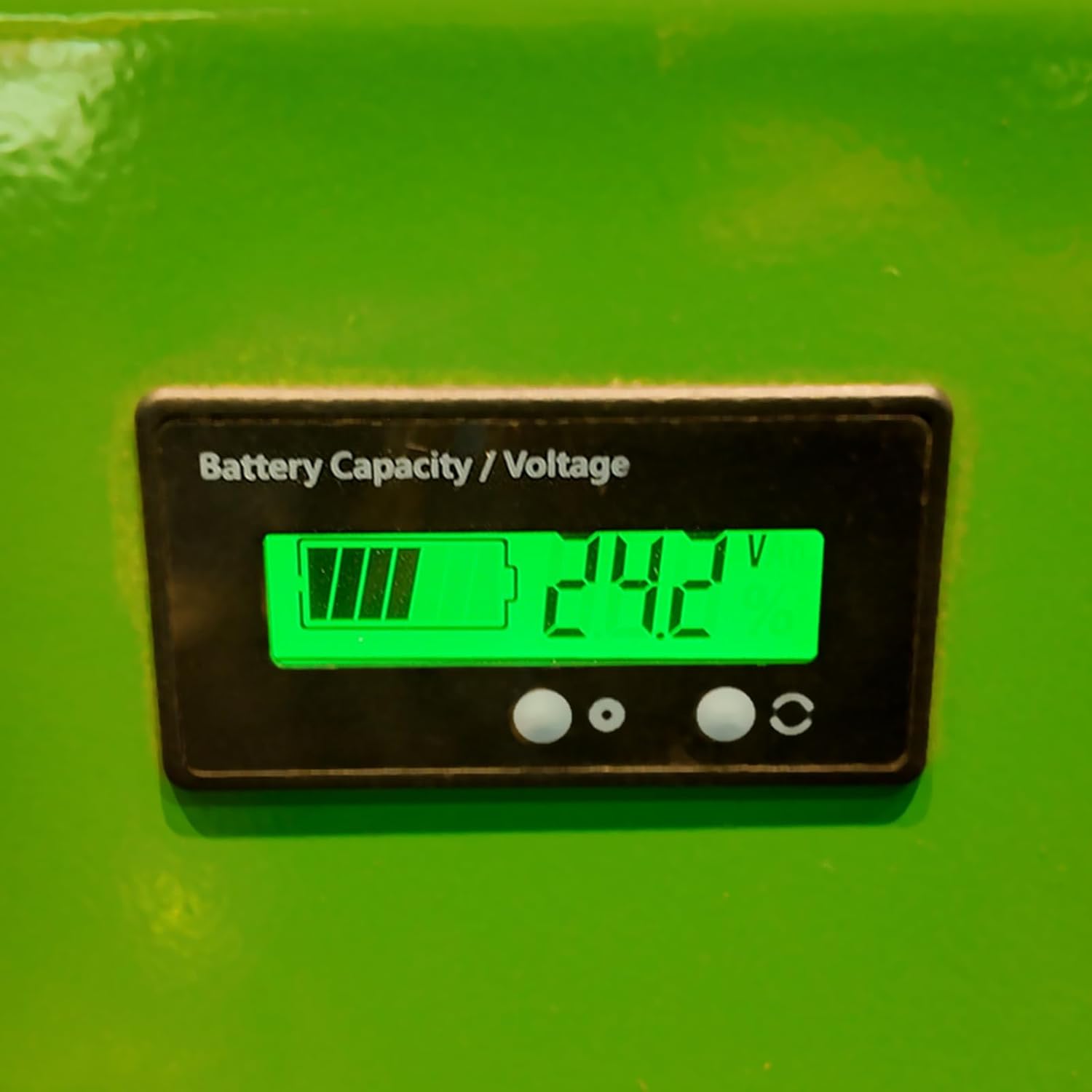

Figure 4.2: Battery Capacity/Voltage Afișaj

5. Întreținere

Regular maintenance ensures the longevity and optimal performance of your SDLLM500 mower. Always turn off the mower, disengage blades, and disconnect the battery before performing any maintenance.

5.1 Curățare

• After each use, clean grass clippings and debris from the cutting deck, blades, and tracks.
• The mower has an IP65 waterproof rating, allowing for cleaning with water, but avoid directing high-pressure water directly at electrical components.
• Ștergeți exteriorul cu reclamăamp pânză.

5.2 Întreținerea motorului

The mower's gasoline engine (e.g., RATO 9.0, RV225 XPro) requires regular checks.

• Nivelul uleiului: Check engine oil level before each use. Add oil if necessary, using the recommended type.
• filtru de aer: Inspectați și curățați sau înlocuiți filtrul de aer în mod regulat, în special în condiții de praf.
• Bujie: Inspect and clean or replace the spark plug as per the engine manufacturer's recommendations.

Figure 5.1: Engine and other key components

5.3 Îngrijirea lamei

• Inspect blades for sharpness and damage before each use.
• Sharpen or replace dull or damaged blades. Always use genuine replacement parts.
• Ensure blades are balanced after sharpening or replacement to prevent vibration.

5.4 Track System Maintenance

• Regularly inspect the rubber tracks for wear, tears, or damage.
• Clean any accumulated mud, grass, or debris from the tracks and drive wheels.
• Check tension of the tracks and adjust if necessary according to the maintenance guide.

Figure 5.2: Rubber Track System

6. Depanare

This section provides solutions to common issues you might encounter with your SDLLM500 mower.

If you encounter a problem not listed here or if the suggested solutions do not resolve the issue, please contact customer support.

7. Specificații

The following table outlines the key specifications for the SDLANCH SDLLM500 Remote Control Slope Lawn Mower.

8. Garanție și asistență

This product is typically covered by a manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions. For technical assistance, parts, or warranty claims, please contact the seller or manufacturer directly.

• Asistență clienți: For assistance, contact SDgrand Equipment Co., Ltd, the seller.
• Returnări: This product may be eligible for 30-day easy returns. Refer to your retailer's return policy.
