Mastela Lullaby Orbit Multimotion Automatic Baby Rocker Instruction Manual

Model: Lullaby Orbit

1. Informații importante privind siguranța

Please read and understand all instructions before assembling and using the Mastela Lullaby Orbit Baby Rocker. Failure to follow these instructions could result in serious injury or death.

  • AVERTIZARE: Never leave your child unattended in the rocker. Always keep your child in view.
  • AVERTIZARE: This product is intended for infants from birth up to 15 kg (approximately 33 lbs). Discontinue use when the child can sit up unaided, push up on hands and knees, or has reached 15 kg, whichever comes first.
  • AVERTIZARE: Always use the restraint system. Adjust the harness snugly around the child.
  • AVERTIZARE: Nu utilizați acest produs dacă este deteriorat sau rupt.
  • AVERTIZARE: Nu utilizați accesorii sau piese de schimb altele decât cele aprobate de producător.
  • AVERTIZARE: Keep the product away from open flames and other sources of strong heat.
  • AVERTIZARE: Do not place the product near cords, blinds, or drapes that could pose a strangulation hazard.
  • Ensure the rocker is placed on a flat, stable, and level surface.
  • Este necesară asamblarea unui adult. Păstrați piesele mici departe de copii în timpul asamblarii.
  • Only use the power adapter provided with the product.

2. Conținutul pachetului

Verificați dacă toate componentele sunt prezente înainte de asamblare:

  • Rocker Base Unit
  • Cadrul scaunului
  • Padded Seat Cover with Head Support
  • Mobile Arm with 2 Hanging Toys
  • Adaptor de alimentare (DC 5V/2A)
  • Telecomanda
  • Manual de instructiuni

3. Asamblare și configurare

Follow these steps to assemble your Mastela Lullaby Orbit Baby Rocker:

  1. Attach Seat Frame to Base: Align the seat frame with the slots on the rocker base unit. Push down firmly until it clicks securely into place.
  2. Install Seat Cover: Drape the padded seat cover over the seat frame, ensuring the harness straps are pulled through the designated openings. Secure the cover to the frame as instructed in the diagrams.
  3. Atașați brațul mobil: Insert the mobile arm into the slot on the back of the seat frame. Ensure it is firmly seated. Hang the two toys from the mobile arm.
  4. Conectare alimentare: Plug the power adapter into the designated port on the rocker base. Plug the other end into a standard electrical outlet.
Assembled Mastela Lullaby Orbit baby rocker with a parent interacting with a baby.

Image 1: Fully assembled Mastela Lullaby Orbit baby rocker.

Parent adjusting the mobile arm over a baby in the Mastela Lullaby Orbit rocker.

Image 2: Attaching or adjusting the mobile arm.

4. Instrucțiuni de utilizare

The Lullaby Orbit rocker offers multiple features for your baby's comfort and entertainment.

4.1 Pornire/Oprire

  • Press the power button on the control panel or remote control to turn the rocker on or off.

4.2 Multimotion Movement

The rocker features a gentle, figure-8 (orbit) motion with three adjustable speeds.

  • Use the speed control buttons on the control panel or remote to select your desired motion speed (1, 2, or 3).
deasupra capului view of the Mastela Lullaby Orbit rocker showing the figure-8 motion path.

Image 3: Illustration of the gentle figure-8 (orbit) motion.

4.3 Funcția de cronometru

Set the rocker to operate for a specific duration:

  • Press the timer button on the control panel or remote control to cycle through available settings: 15 minutes, 30 minutes, 45 minutes, or 60 minutes (default).

4.4 Musical Melodies and Volume Control

The rocker includes 12 pre-programmed melodies.

  • Use the music selection button to cycle through the melodies.
  • Adjust the volume using the volume control buttons (3 levels) on the control panel or remote.

4.5 Conectivitate Bluetooth și control prin aplicație

Connect your smartphone via Bluetooth to play custom playlists and control rocker functions.

  1. Download the official Mastela app from your device's app store.
  2. Enable Bluetooth on your smartphone and open the Mastela app.
  3. Follow the in-app instructions to pair your device with the Lullaby Orbit rocker.
  4. Once connected, you can control movement, speed, sound, and play music from your phone's playlist through the rocker's speakers.

4.6 Utilizarea telecomenzii

The included remote control allows convenient operation of all functions from a distance.

  • Asigurați-vă că telecomanda are bateriile funcționale.
  • Point the remote control towards the rocker's base unit for optimal signal reception.
  • Buttons on the remote correspond to power, speed, timer, music selection, and volume control.

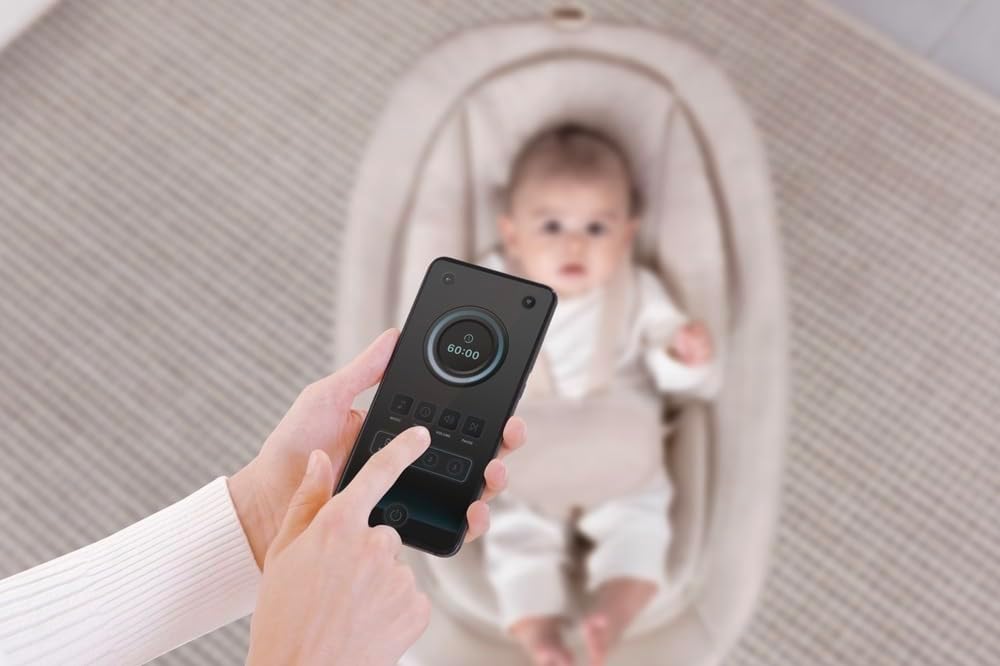

A hand holding the remote control for the Mastela Lullaby Orbit rocker, with a baby in the background.

Image 4: Using the remote control to operate the rocker.

Close-up of a baby looking at the hanging toys on the mobile arm of the Mastela Lullaby Orbit rocker.

Image 5: Close-up of the mobile with hanging toys.

5. Întreținere

Proper maintenance ensures the longevity and hygiene of your baby rocker.

  • Cleaning the Seat Cover: The dense padded seat cover is removable and machine-washable. Refer to the care label on the fabric for specific washing instructions (typically cold water, gentle cycle, air dry).
  • Curățarea cadrului și bazei: Wipe down the plastic and metal parts of the frame and base with a damp cloth and mild soap. Do not immerse any electronic components in water.
  • Depozitare: When not in use, store the rocker in a clean, dry place away from direct sunlight and extreme temperatures.
  • Inspecţie: Regularly check all parts for wear, damage, or loose fasteners. Discontinue use if any damage is found.

6. Depanare

If you encounter issues with your Lullaby Orbit rocker, refer to the following common problems and solutions:

  • Rocker does not turn on:
    • Ensure the power adapter is securely plugged into both the rocker and a working electrical outlet.
    • Verificați dacă priza funcționează conectând un alt aparat.
  • Rocker motion is weak or inconsistent:
    • Verify that the child's weight does not exceed the maximum limit of 15 kg.
    • Ensure the rocker is on a flat, level surface.
    • Verificați dacă există obstacole care împiedică mișcarea lină.
  • No sound from melodies or Bluetooth:
    • Măriți volumul folosind butoanele de control.
    • If using Bluetooth, ensure your device is properly paired and the volume on your device is also turned up.
    • Try restarting the rocker and your Bluetooth device.
  • Telecomanda nu funcționează:
    • Înlocuiți bateriile din telecomandă.
    • Ensure there are no obstructions between the remote and the rocker's base unit.

7. Specificații

  • Marca: Mastela
  • Model: Lullaby Orbit
  • Culoare: Bej
  • Materiale: PP-Polypropylene, TPR-Thermoplastic Rubber, POM-Polyacetal, ABS-Plastic
  • Dimensiunile produsului (A x L x Î): 68 cm x 81 cm x 47 cm (26.8 in x 31.9 in x 18.5 in)
  • Greutate produs: 5.3 kg (11.7 lbs)
  • Greutate maximă recomandată: 15 kg (33 lbs)
  • Interval de vârstă: Sugar
  • Ieșire adaptor de alimentare: DC 5V/2A
  • Asamblare necesară: Da
  • Portabilitate: Da

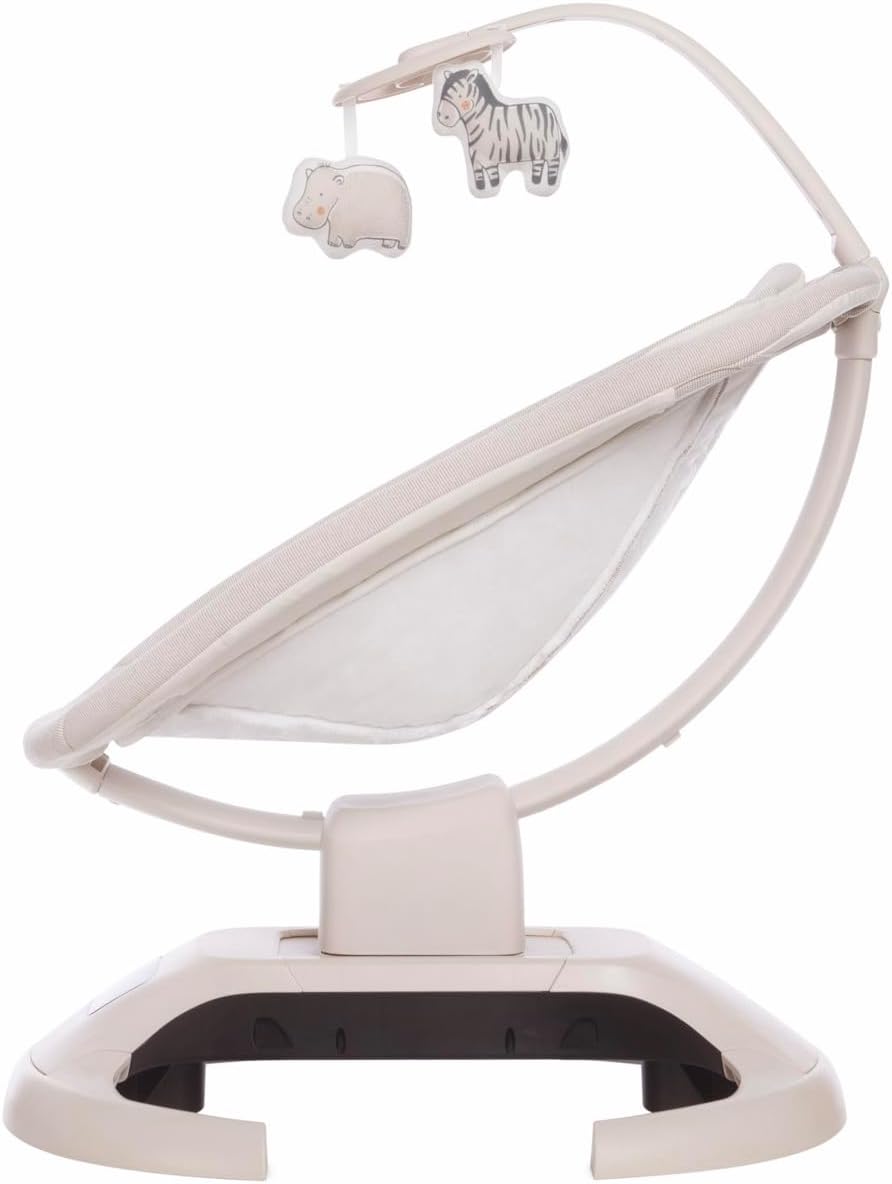

Latura view of the Mastela Lullaby Orbit rocker, showing its structure and recline angle.

Imaginea 6: Laterală view of the Lullaby Orbit rocker.

8. Garanție și asistență

For warranty information or technical support, please contact Mastela customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Mastela website-ul sau contactați distribuitorul local.

© 2023 Mastela. All rights reserved.
