CURSOR FITNESS U17 Treadmill User Manual

Instrucțiuni importante de siguranță

Please read all instructions carefully before using the CURSOR FITNESS U17 Treadmill. Retain this manual for future reference.

Așezați întotdeauna banda de alergare pe o suprafață plană și stabilă.
Țineți copiii și animalele de companie departe de banda de alergare în timpul funcționării.
Ensure adequate space around the treadmill for safe use and emergency stops.
Purtați încălțăminte sportivă adecvată. Nu utilizați banda de alergare desculț sau în șosete.
Dacă simțiți durere, amețeli sau dificultăți de respirație, opriți imediat exercițiile fizice.
Nu folosiți banda de alergare dacă este deteriorată sau funcționează defectuos.
Deconectați banda de alergare de la priză atunci când nu o utilizați sau înainte de curățare/întreținere.
Consultați un medic înainte de a începe orice program nou de exerciții.

Configurare și asamblare

The CURSOR FITNESS U17 Treadmill is designed for minimal assembly. Follow these steps to prepare your treadmill for use.

Despachetarea: Scoateți cu grijă toate componentele din ambalaj. Verificați dacă există deteriorări în timpul transportului.
Plasare: Choose a suitable location with a flat, stable surface. Ensure there is at least 2 meters (6.5 feet) of clear space behind the treadmill and 0.5 meters (1.6 feet) on each side.
Desfășurare: The treadmill comes largely pre-assembled. Gently unfold the handlebars and secure them in place according to the quick start guide included in the box.
Conexiune de alimentare: Plug the power cord into a grounded electrical outlet. Ensure the power switch on the treadmill is in the OFF position before plugging it in.

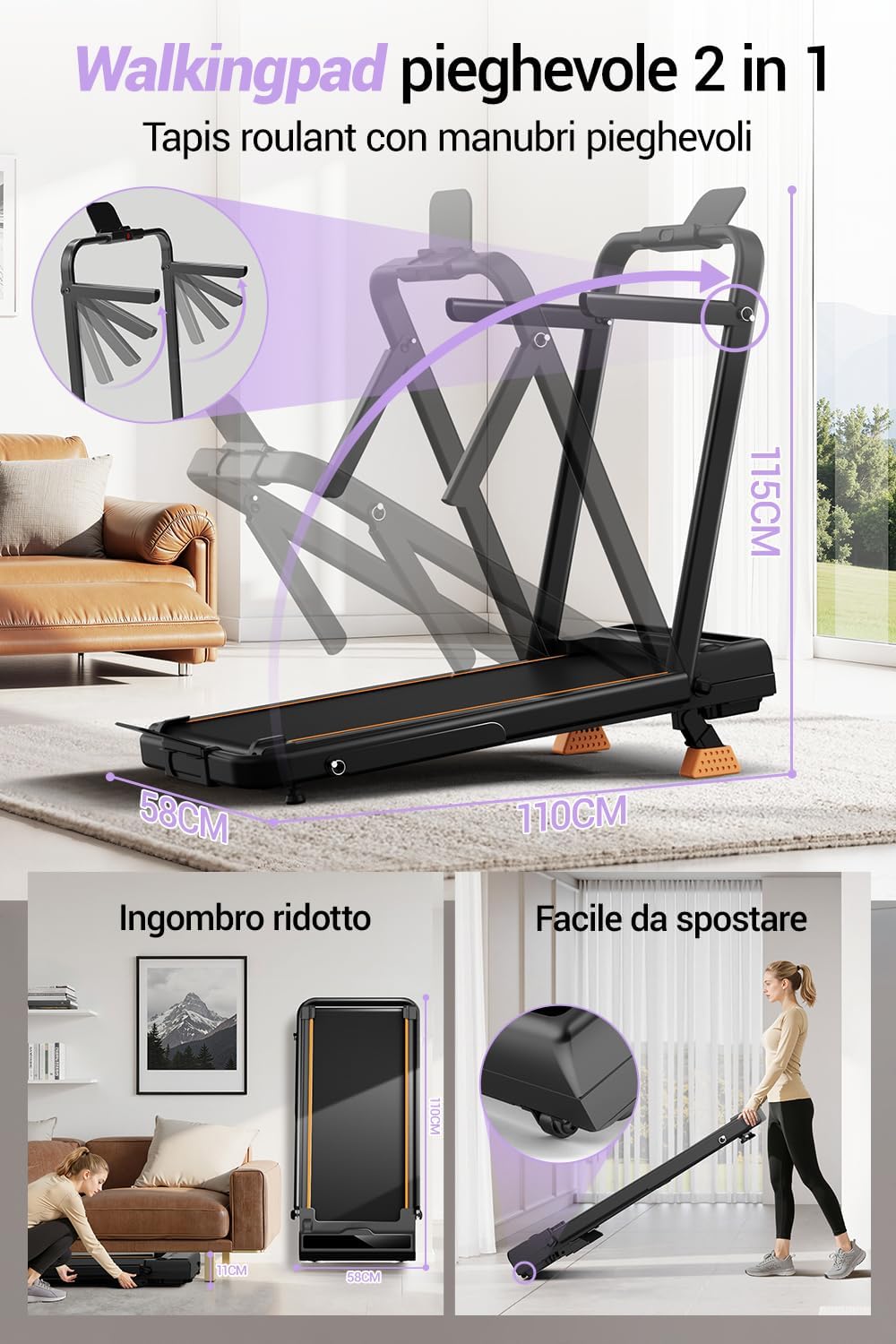

Image showing the CURSOR FITNESS U17 treadmill being folded and moved, highlighting its compact storage and integrated wheels.

Figure 1: The CURSOR FITNESS U17 Treadmill in folded and unfolded positions, demonstrating its space-saving design and portability with integrated wheels.

Instrucțiuni de operare

Familiarize yourself with the control panel and functions of your CURSOR FITNESS U17 Treadmill.

Pornire/Oprire

To power on, ensure the treadmill is plugged in and flip the main power switch to the ON position. The display will illuminate.
To power off, press the STOP button on the console, then flip the main power switch to the OFF position and unplug the unit.

Reglarea vitezei

Press the START button to begin the workout. The belt will start moving at a low speed.
Use the "+" and "-" buttons on the console to increase or decrease the speed. The speed range is 1 to 8 Kilometers per Hour.

Adjusting Incline

The U17 Treadmill features a manual incline adjustment up to 9%.

To adjust the incline, stop the treadmill and step off the running belt.
Locate the manual incline adjustment mechanism at the rear of the treadmill.
Adjust the incline to your desired level (0%, 12%, or 16% as indicated on the mechanism). Ensure it is securely locked in place before resuming your workout.

Image illustrating the manual incline adjustment of the CURSOR FITNESS U17 treadmill, showing 0%, 12%, and 16% incline levels and their impact on calorie burn.

Figure 2: Manual incline settings for the U17 Treadmill, offering varied workout intensity.

Moduri de antrenament

The treadmill supports various workout intensities:

Mod de lucru: 1.0-2.0 KM/H
Mod de mers pe jos: 2.0-4.0 KM/H
Mod de jogging: 4.0-7.0 KM/H
Mod de rulare: 7.0-10.0 KM/H (Note: Maximum speed is 8 KM/H as per specifications. Please adhere to the maximum speed of 8 KM/H.)

Image showing four different usage modes for the CURSOR FITNESS U17 treadmill: working, walking, jogging, and running, with corresponding speed ranges.

Figure 3: Different exercise modes and their recommended speed ranges on the U17 Treadmill.

Conectivitate Bluetooth

Connect your treadmill to a compatible fitness app via Bluetooth to track your progress and access additional courses.

Asigurați-vă că Bluetooth este activat pe dispozitivul dvs. mobil.
Open the recommended fitness app (refer to the quick start guide for app details).
Follow the in-app instructions to pair with your CURSOR FITNESS U17 Treadmill.

Întreţinere

Întreținerea regulată asigură longevitatea și performanța optimă a benzii de alergare.

curatenie: Ștergeți suprafețele benzii de alergare cu reclameamp ștergeți o lavetă după fiecare utilizare. Evitați utilizarea de produse de curățare abrazive sau solvenți.
Lubrifierea curelei: The running belt requires periodic lubrication to reduce friction. Refer to the quick start guide for specific lubrication instructions and recommended lubricant type. Typically, this is needed every 3-6 months depending on usage.
Tensiunea și alinierea curelei: Check the running belt tension and alignment regularly. If the belt feels loose or drifts to one side, adjust it according to the instructions in the quick start guide.
Zona motorului: Periodically vacuum the area around the motor to prevent dust buildup, ensuring proper ventilation. Unplug the treadmill before performing this.

Image detailing the triple cushioning system of the CURSOR FITNESS U17 treadmill, showing the wide belt, honeycomb pads, and silicone shock absorbers.

Figure 4: The U17 Treadmill's wide running belt and triple cushioning system, designed for joint protection and comfort. Regular cleaning and lubrication of the belt are essential for maintaining these features.

Depanare

If you encounter issues with your treadmill, refer to the following common problems and solutions.

Problemă	Cauza posibila	Soluţie
Banda de alergare nu pornește.	Power cord not plugged in, power switch off, circuit breaker tripped.	Ensure power cord is securely plugged in. Check main power switch. Reset household circuit breaker if necessary.
Banda de alergare alunecă sau ezită.	Belt too loose, insufficient lubrication, user weight exceeds limit.	Adjust belt tension (refer to quick start guide). Lubricate the belt. Ensure user weight is within the maximum limit (159 kg).
Zgomot neobișnuit în timpul funcționării.	Componente slăbite, problemă cu motorul, frecare a curelei.	Check all bolts and screws for tightness. Lubricate the belt. If noise persists, contact customer support.
Conexiunea Bluetooth eșuează.	Bluetooth off on device, app not open, treadmill not discoverable.	Ensure Bluetooth is active on your device. Restart the app and treadmill. Try pairing again.

If the problem persists after attempting these solutions, please contact CURSOR FITNESS customer support.

Specificații

Detailed technical specifications for the CURSOR FITNESS U17 Treadmill.

Model: U17
Marca: CURSOR FITNESS
Motor: 2.5 HP Brushless Motor (1865W)
Interval de viteză: 1 - 8 Kilometers per Hour
Înclinație maximă: 9% (Manual)
Dimensiuni suprafață de rulare: 93 cm x 39 cm (36.6" x 15.3")
Dimensiunile produsului (A x L x Î): 114 cm x 55 cm x 13 cm (44.88" lățime x 21.65" lățime x 5.12" înălțime)
Dimensiune pliată: 121 cm x 58 cm x 10 cm (47.6" x 22.8" x 3.9")
Greutatea articolului: 17.6 kilograme (38.8 lbs)
Greutatea maximă a utilizatorului: 159 kilograme (350 lbs)
Material: Oțel carbon
Sursa de alimentare: Electric cu fir
Indicatori măsurați: Calorii arse, Distanță, Viteză, Timp
Caracteristici speciale: Manual Incline, Portable, Shock Absorbent, Wheeled

Image comparing the 2.5 HP brushless motor of the CURSOR FITNESS U17 treadmill with a 1.5 HP brushed motor, highlighting benefits like lower noise, higher load capacity, and longer lifespan.

Figure 5: Comparison of the U17 Treadmill's 2.5 HP brushless motor, emphasizing its powerful, quiet, and energy-efficient operation.

Garanție și suport

For warranty information or technical support, please contact CURSOR FITNESS customer service.

Please have your model number (U17) and purchase date available when contacting support.

Informații de contact: Refer to the contact details provided on the product packaging or the official CURSOR FITNESS website-ul.
