Introducere
This manual provides instructions for the proper installation, operation, and maintenance of your Vistefly Mini Motorized Brush. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Produs terminatview
The Vistefly Mini Motorized Brush is an accessory designed to enhance the cleaning capabilities of your Vistefly V15SMax or V15 Ultra vacuum cleaner. It features a rotating brush bar for effective removal of dirt, dust, and pet hair from various surfaces.
Imaginea 1: Înclinată view of the Vistefly Mini Motorized Brush. This image shows the main body of the brush head with its connection point and the red release button.
Configurare și instalare
- Asigurați-vă că opriți alimentarea: Before attaching or detaching the brush, ensure your Vistefly vacuum cleaner is turned off and disconnected from any power source.
- Localizați punctul de conectare: Identify the connection port on your vacuum cleaner's wand or main unit.
- Aliniere și atașare: Align the connector of the Mini Motorized Brush with the vacuum's connection port. Push firmly until you hear a click, indicating it is securely locked in place.
Imaginea 2: Spate view of the Vistefly Mini Motorized Brush, highlighting the connection mechanism. This shows the specific shape of the port that connects to the vacuum cleaner.
- Verificați conexiunea: Gently pull on the brush head to confirm it is securely attached and does not wobble.
- Detaşare: To detach, press the red release button located on the brush head's connector and pull the brush away from the vacuum.
Imaginea 3: De sus în jos view of the brush head's connection port, showing the red release button. This button must be pressed to disconnect the brush from the vacuum.
Instrucțiuni de operare
Once the Mini Motorized Brush is securely attached, operate your vacuum cleaner as usual. The motorized brush will activate automatically when the vacuum is turned on, providing enhanced cleaning action.
- Compatibilitate cu suprafața: This brush is ideal for cleaning carpets, rugs, upholstery, and pet beds. It effectively lifts embedded dirt and pet hair.
- Evitați lichidele: Do not use the motorized brush to pick up liquids or wet debris.
- Suprafețe delicate: Exercise caution when using on delicate fabrics or surfaces to prevent damage.

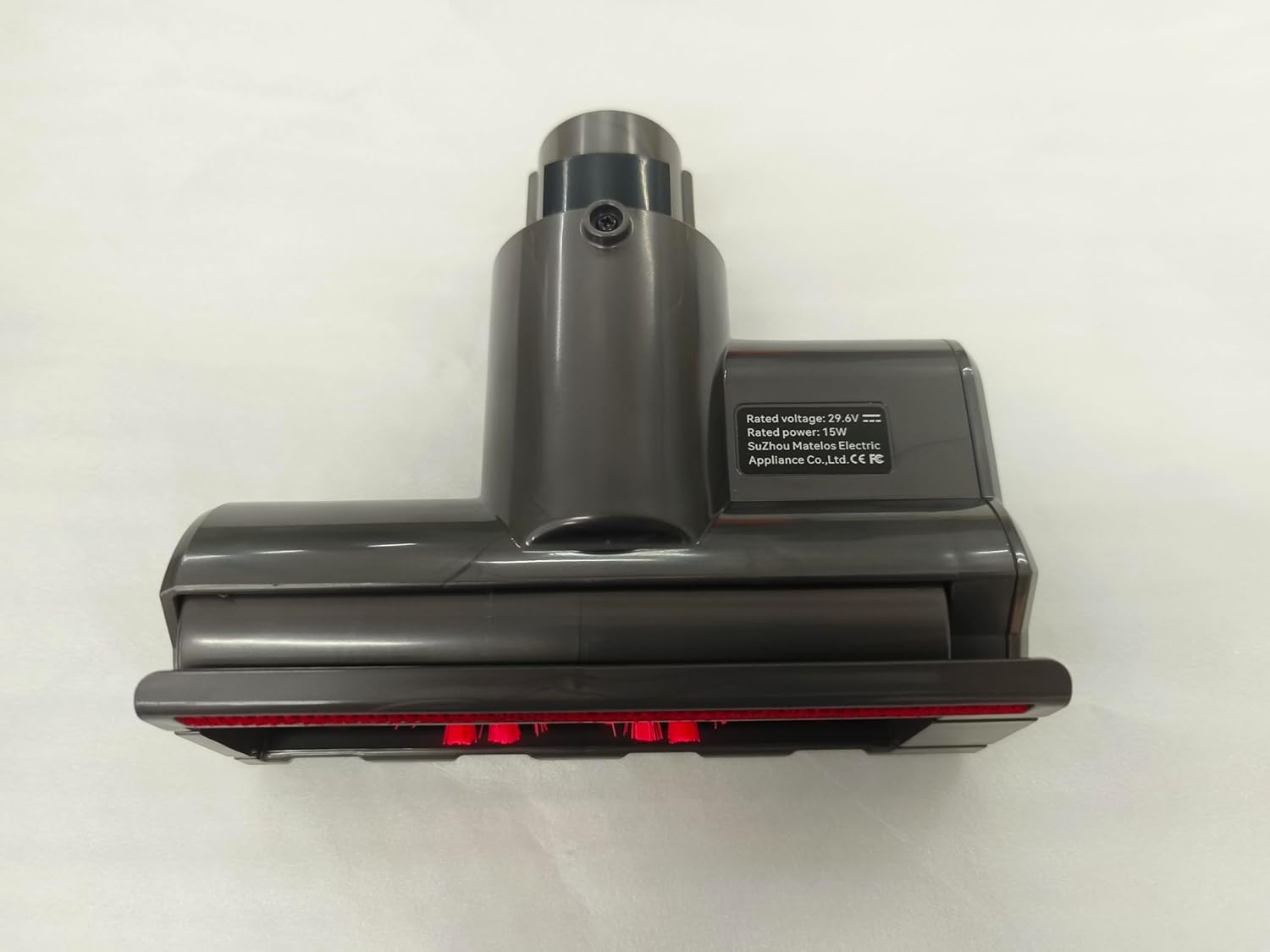

Imaginea 4: Față view of the Vistefly Mini Motorized Brush, showcasing the red bristles. These bristles are designed to agitate and lift dirt from surfaces.
Întreținere și curățare
Regular maintenance ensures the optimal performance and extends the lifespan of your Mini Motorized Brush.
- Oprire: Opriți și deconectați întotdeauna aspiratorul înainte de a efectua orice operațiune de întreținere.
- Remove Brush Bar:
- Locate the release mechanism for the brush bar, usually a latch or screw on the side of the brush head.
- Open the latch or unscrew to access the brush bar.
- Carefully remove the brush bar from its housing.
Imaginea 5: Partea de jos view of the Vistefly Mini Motorized Brush, displaying the removable brush roller. This roller can be accessed for cleaning.
- Curățați bara de perie: Use scissors or a brush cleaning tool to remove tangled hair, threads, and debris from the bristles and ends of the brush bar.
- Locuințe curate: Wipe the inside of the brush head housing with a dry cloth to remove any accumulated dust or debris.
- Reinstall Brush Bar: Insert the clean brush bar back into its housing, ensuring it clicks into place or is secured by the latch/screw.
- Inspecție regulată: Periodically inspect the brush head for any signs of wear or damage.
Depanare
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Bara de perie nu se rotește. | Tangled hair or debris obstructing the brush bar. | Turn off the vacuum, remove the brush bar, and clean it thoroughly as described in the Maintenance section. |
| Reduced suction through the brush head. | Blockage in the brush head's air pathway or vacuum filter needs cleaning. | Check for blockages in the brush head and the vacuum's main unit. Clean or replace vacuum filters as per your vacuum's manual. |
| Brush head not attaching securely. | Incorrect alignment or debris in the connection port. | Ensure proper alignment and clear any debris from both the brush head and vacuum connection ports. Push firmly until a click is heard. |
Specificații
- Dimensiuni produs: 14 x 12 x 4 cm
- Greutate: 300 g
- Compatibilitate: Vistefly V15SMax, V15 Ultra Vacuum Cleaners
- Producător: Vistefly
Asistență și garanție
For technical support, troubleshooting assistance, or warranty inquiries, please contact Vistefly customer service. Refer to your original vacuum cleaner manual or the Vistefly official website pentru informații de contact.
Information regarding return policies can typically be found on the retailer's website where the product was purchased. For Amazon.com.mx, please refer to their POLITICA DE RETURNARE.
