1. Introducere
The Generic ABM200 Video Baby Monitor is designed to provide reliable monitoring of your baby. It features a 4.3-inch HD display, night vision capabilities, two-way audio communication, and a secure wireless signal. This manual provides instructions for setting up, operating, and maintaining your baby monitor.
Figure 1.1: Generic ABM200 Video Baby Monitor System Overview
2. Conținutul pachetului
Vă rugăm să verificați conținutul pachetului pentru a vă asigura că toate articolele sunt prezente:
- Camera Unit (Baby Unit)
- Monitor Unit (Parent Unit)
- Manual de utilizare
- Power Adapters and Cables (for both camera and monitor)
3. Produs terminatview
3.1 Unitatea parentală (monitor)
The parent unit features a 4.3-inch HD display for clear video monitoring. It includes controls for menu navigation, volume, and two-way audio communication.
Figure 3.1: Parent Unit Front View

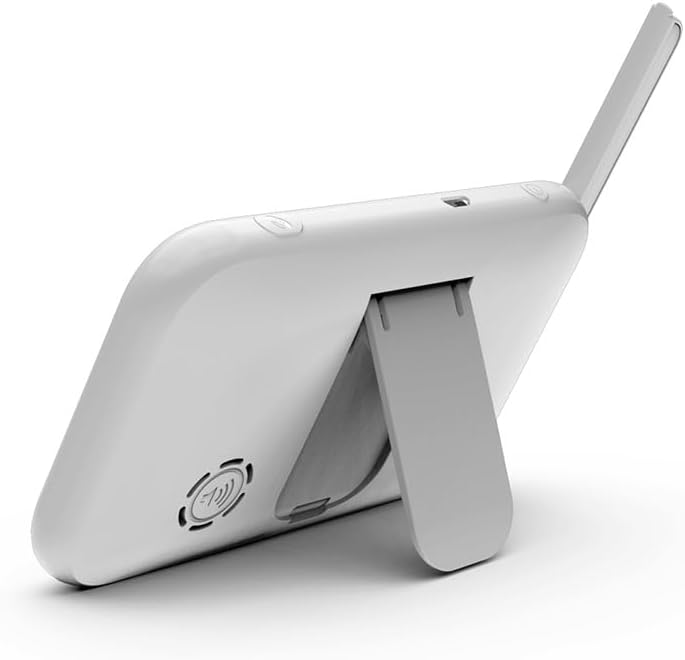

Figure 3.2: Parent Unit Back View cu suport
3.2 Unitate pentru bebeluși (camera foto)
The baby unit is equipped with a camera that offers pan, tilt, and zoom functions. It includes a night lamp, temperature sensor, and a slot for local recording via an SD card.

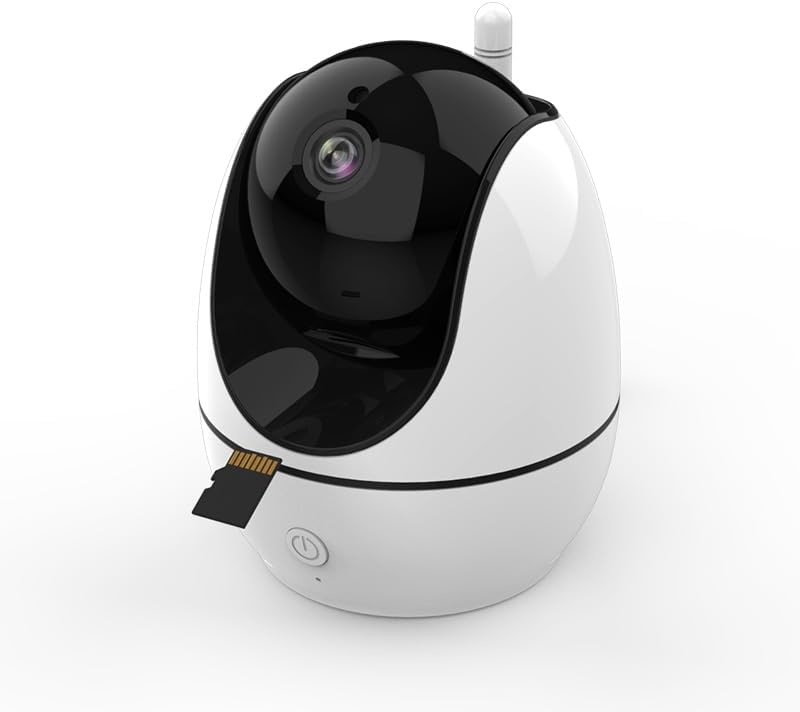

Figure 3.3: Baby Unit (Camera) with SD Card Slot
4. Instrucțiuni de configurare
4.1 Pornire
- Connect the power adapter to the baby unit and plug it into an electrical outlet.
- Connect the power adapter to the parent unit and plug it into an electrical outlet.
- Press and hold the power button on the parent unit to turn it on.
4.2 Plasarea
- Plasați unitatea pentru bebeluș (camera) într-un loc care oferă vizibilitate clară view of your baby, ensuring it is out of reach of the baby.
- Position the parent unit (monitor) in a convenient location where you can easily monitor your baby.
- Ensure both units are within the signal range (up to 400m in open areas) for optimal performance.
5. Instrucțiuni de utilizare
5.1 Controale de bază
- Buton de alimentare: Apăsați și mențineți apăsat pentru a porni/opri unitatea.
- Butoane de volum: Adjust the listening volume on the parent unit.
- Buton de meniu: Access the monitor's settings and features.
- Butoane de navigare: Use up/down/left/right to navigate menus and control camera pan/tilt.
- Buton OK: Confirmați selecțiile.
5.2 Sunet bidirecțional
To speak to your baby, press and hold the talk button on the parent unit. Release the button to hear your baby.
Figura 5.1: Comunicare audio bidirecțională
5.3 Pan, Tilt, and Zoom Camera
Folosiți butoanele de navigare de pe unitatea părintelui pentru a regla de la distanță viewing angle. The camera supports 355° pan and 75° tilt. Digital zoom is also available through the menu.
Figure 5.2: Camera Pan, Tilt, and Zoom Functionality
5.4 Night Vision and Night Lamp
The camera automatically activates infrared night vision in low-light conditions, providing a clear black and white image. The integrated night lamp can be controlled from the parent unit to provide soft illumination.
Figure 5.3: Night Vision in Operation
5.5 Monitorizarea temperaturii
The baby unit includes a temperature sensor that monitors the room temperature. This reading is displayed on the parent unit, and alerts can be set for high or low temperature thresholds.
Figure 5.4: Room Temperature Monitoring
5.6 Cântece de leagăn
The monitor includes 8 pre-programmed lullabies that can be played from the baby unit to soothe your child. Access and control lullaby playback through the parent unit's menu.
5.7 Built-in Recorder (Local Recording)
Insert a compatible SD card (not included) into the baby unit's slot to enable local video recording. Manage recording settings via the parent unit's menu.
5.8 Cry Detection and Sound Activation (VOX)
The monitor features cry detection and VOX (Voice Operated eXchange) functionality. When enabled, the parent unit's screen will activate or alert you when sounds above a set threshold are detected in the baby's room.
5.9 Memento de hrănire
Set feeding reminders through the parent unit's menu to help maintain a consistent feeding schedule for your baby.
6. Întreținere
- curatenie: Use a soft, dry cloth to clean the surfaces of both the parent and baby units. Do not use abrasive cleaners or solvents.
- Putere: Always use the provided power adapters. Disconnect power during extended periods of non-use.
- Mediu: Keep units away from water, direct sunlight, and extreme temperatures.
7. Depanare
- Fără imagine/sunet: Asigurați-vă că ambele unități sunt pornite și se află în raza de acțiune. Verificați conexiunile de alimentare.
- Semnal slab: Move the parent unit closer to the baby unit. Avoid placing units near large metal objects or other electronic devices that may cause interference.
- Ecranul se blochează: Try restarting both units by disconnecting and reconnecting their power.
- Citire inexactă a temperaturii: Ensure the baby unit is not placed in direct sunlight or near heat sources/vents.
8. Specificații
| Numărul de model | ABM200 |
| Dimensiunea afișajului | 4.3 inci |
| Rezoluție captură video | 720p |
| Tehnologia de conectivitate | Wireless (Radio, FHSS protocol) |
| Interval de semnal | Până la 400 m (câmp deschis) |
| Panoramare/Înclinare cameră | Panare 355°, înclinare 75° |
| Caracteristici speciale | 2 Way Audio, Cry Detection, HD Resolution, Local Recording, Motion Sensor, Night Vision, Night Lamp, Temperature Control, Lullabies |
| Utilizare în interior/exterior | De interior |
| Dimensiunile produsului | 16 x 10 x 11 cm |
| Greutate | 607.81 g |
9. Garanție și asistență
9.1 Informații despre garanție
Acest produs vine cu un Garanție locală de 1 an împotriva defectelor de fabricație. Vă rugăm să păstrați dovada achiziției pentru a putea solicita garanția.
9.2 Asistență pentru clienți
For technical assistance or warranty inquiries, please refer to the contact information provided with your purchase documentation or visit the manufacturer's official website-ul.
