Bomcosy 50 FT LED Outdoor String Lights Instruction Manual

Introducere

Thank you for choosing Bomcosy 50 FT LED Outdoor String Lights. This manual provides essential information for the safe and efficient use of your new string lights. Please read these instructions carefully before installation and retain them for future reference.

Informații de siguranță

• Do not disassemble or repair the LED string lights yourself. Refer to qualified personnel for any repairs.
• Keep the product away from high temperatures to prevent damage.
• Always cut off the power supply before installation or maintenance.
• Unplug the power cord to disconnect the power supply after use.
• The bulbs are made of hard anti-drop plastic, designed to be shatterproof.

Conținutul pachetului

Verificați dacă toate componentele sunt prezente în pachet:

• 1 x 50 FT LED Outdoor String Light Strand
• 25 x Vintage LED Bulbs (1W per bulb)
• 1 x Spare LED Bulb
• 25 x Bulb Sockets (E12 Base)
• Spare fuse stored in the male plug

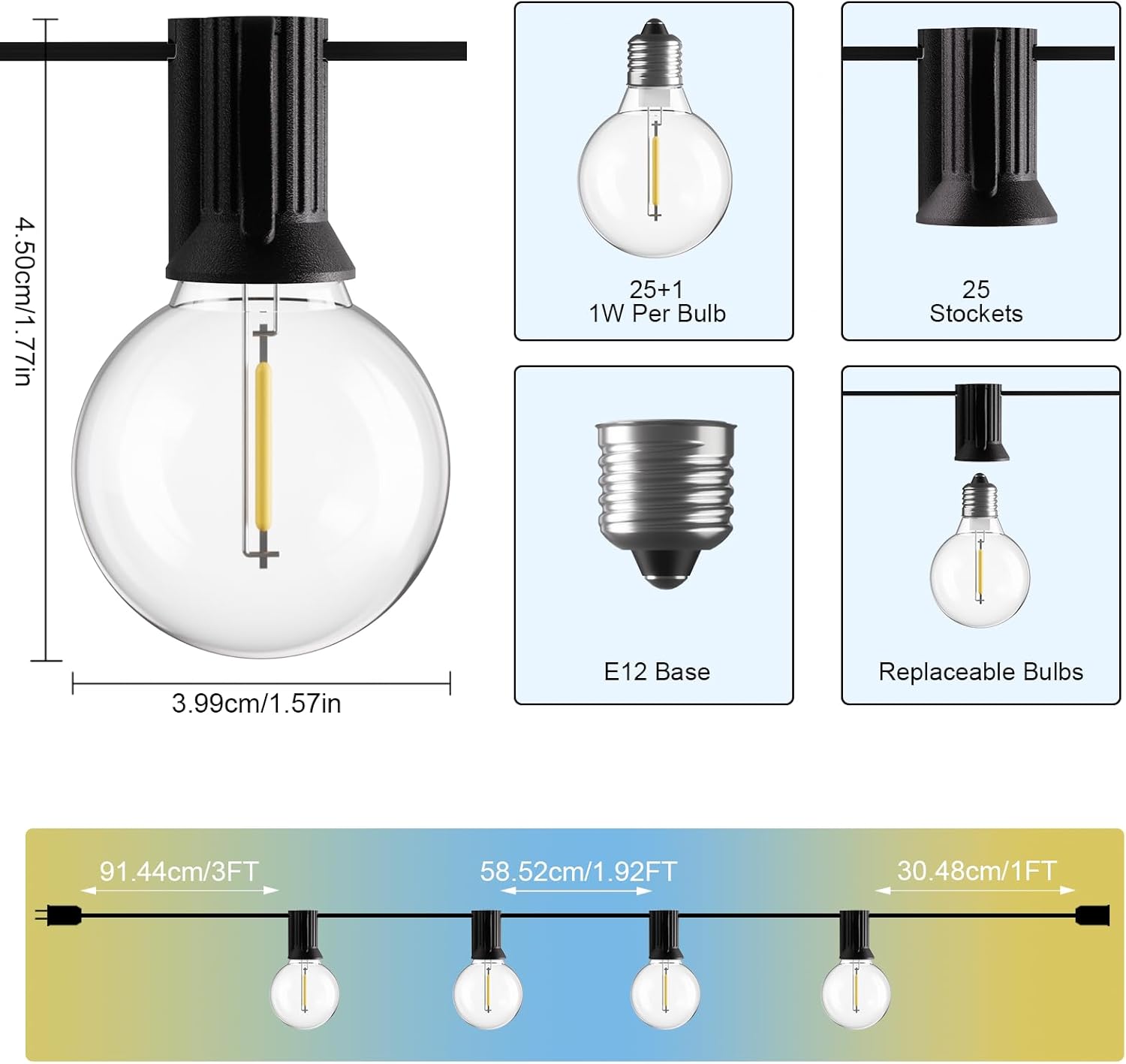

Imagine: Detaliată view of included components and bulb dimensions.

Specificații

Configurare și instalare

1. Despacheta: Carefully remove the string lights and bulbs from the packaging.
2. Inspecta: Verificați toate componentele pentru orice semne de deteriorare. Nu utilizați dacă sunt deteriorate.
3. Instalați becuri: Gently screw each LED bulb into its socket. Ensure they are finger-tight to create a secure connection.
4. Plasarea planului: Determine the desired location for your string lights. The integrated hooks on each socket allow for flexible hanging options, such as using guide wires, nails, or zip ties.
5. Securely Hang: Hang the string lights in your chosen location, ensuring the power plug is within reach of an outdoor-rated power outlet.
6. Connect Multiple Strands (Optional): If connecting multiple strands, ensure the power is off. Align the male plug of one strand with the female connector of another and push them together firmly. You can connect up to 19 strands in total.
7. Pornire: Once securely installed, plug the string lights into a suitable power outlet.

Image: Flexible hanging options for the string lights.

Instrucțiuni de operare

The Bomcosy LED Outdoor String Lights are designed for simple operation.

• Pornire/Oprire: Plug the string lights into a power outlet to turn them on. Unplug to turn them off.
• Funcția de reglare a luminii: These string lights are dimmable. To adjust the brightness (25%, 50%, 75%, 100%), you will need a compatible external dimmer (not included). Connect the string lights to a dimmer switch to control the light intensity according to your preference.

Image: Illustration of dimming levels (dimmer sold separately).

Întreţinere

• curatenie: Ensure the lights are unplugged before cleaning. Wipe the bulbs and cable with a soft, damp pânză. Nu utilizați substanțe chimice dure sau produse de curățare abrazive.
• Înlocuire bec: If a bulb needs replacement, ensure the power is off. Unscrew the old bulb and screw in a new E12 base LED bulb (1W). The product includes one spare bulb.
• Rezistenta la intemperii: The lights have an IP45 rating, making them suitable for outdoor use in various weather conditions including rain, snow, wind, and sun. However, for prolonged periods of extreme weather, consider temporary storage to extend product life.
• Înlocuirea siguranței: A spare fuse is located in the male plug. If the lights stop working, unplug the unit, open the fuse compartment on the male plug, and replace the fuse with a new one of the same rating.

Image: Shatterproof design of the bulbs.

Image: IP45 waterproof rating and all-weather suitability.

Depanare

• Luminile nu se aprind:
  • Ensure the power plug is fully inserted into a working outlet.
  • Verificați dacă priza are curent conectând un alt dispozitiv.
  • Inspect the fuse in the male plug and replace if blown (refer to Maintenance section).
  • Verify that all bulbs are securely screwed into their sockets.
• Some Bulbs Not Lighting Up:
  • Gently tighten the non-working bulbs.
  • Replace the non-working bulb with a new one to test if the bulb itself is faulty.
• Lights Flickering:
  • Ensure all connections are secure, including the main plug and any connected strands.
  • If using a dimmer, ensure it is compatible and functioning correctly.

Garanție și suport

Garantie: The manufacturer states there is no specific warranty description provided for this product.

For any questions, concerns, or technical support regarding your Bomcosy LED Outdoor String Lights, please contact the manufacturer or your retailer. Provide your model number (CMC-O251) and purchase details for efficient assistance.
