Informații importante privind siguranța
Read all instructions before assembly and use of the Mastela Swing H Multi-Motion Baby Cradle. Keep this manual for future reference. Failure to follow these warnings and instructions could result in serious injury or death.
- Utilizați întotdeauna sistemul de reținere.
- Nu lăsați niciodată copilul nesupravegheat.
- Nu utilizați acest produs dacă este deteriorat sau rupt.
- Capacitate maximă de greutate: 15 kg.
- Ensure the cradle is placed on a flat, stable surface.
- A se păstra departe de flăcări deschise și alte surse de căldură.
Produs terminatview
The Mastela Swing H Multi-Motion Baby Cradle is designed to provide a safe and soothing environment for infants and toddlers from birth up to 36 months (or 15 kg). It features multiple swing motions, built-in melodies, and app connectivity for enhanced control.
Figura 1: Față view of the Mastela Swing H Multi-Motion Baby Cradle, showcasing its comfortable seating and five-point harness system.
Configurare și asamblare
The Mastela Swing H Multi-Motion Baby Cradle comes largely pre-assembled. No complex assembly is required.
- Despachetarea: Scoateți cu grijă toate componentele din ambalaj. Păstrați ambalajul pentru depozitare sau transport ulterior.
- Plasare: Place the cradle on a firm, level, and stable surface. Ensure there is sufficient space around the cradle for safe operation.
- Conexiune de alimentare: Connect the power adapter to the cradle's power input port and then plug it into a suitable electrical outlet.
- Canopy and Toy Bar Attachment:

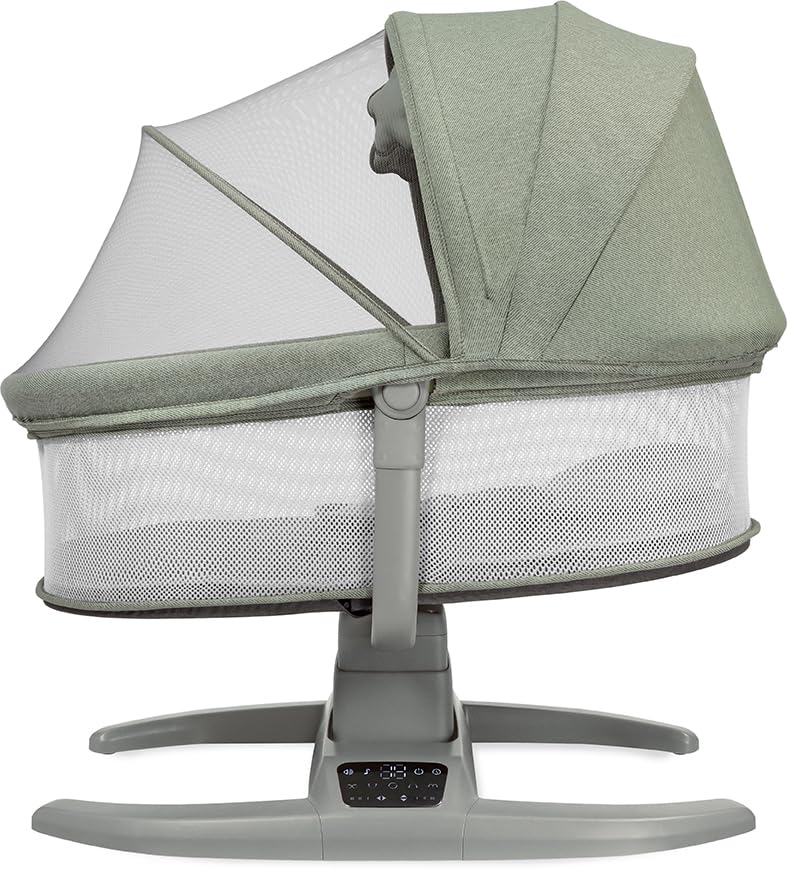

Figure 2: The baby cradle with its canopy and mosquito net fully extended, providing protection and a serene environment.
Attach the canopy by aligning the connectors and pressing firmly until it clicks into place. The mosquito net can be extended from the canopy for added protection.
- Reglarea hamului: Adjust the five-point harness to securely fit your child. Ensure straps are snug but not too tight.
Instrucțiuni de operare
The cradle features a gentle touch control panel and can also be controlled via a mobile application.
Funcțiile panoului de control
- Buton de alimentare: Press to turn the cradle on or off.
- Motion Selection: Choose from five pre-set swing motions: 3 up-to-down and 3 side-to-side. Press the motion button repeatedly to cycle through options.
- Motion Combinations: The cradle supports customizable motion combinations. Refer to the on-screen display for active motion patterns.
- Setări temporizator: Set the operating time to 15, 30, 45 minutes, or a default of 60 minutes. The cradle will automatically stop after the selected duration.
- Selectarea melodiei: Access twelve built-in melodies. Press the music button to cycle through tunes.
- Controlul volumului: Adjust the melody volume using the dedicated volume buttons.
Conectivitate la aplicație
Download the official Mastela app from your device's app store. Once installed, pair your mobile device with the cradle via Bluetooth. The app allows you to:
- Redați muzică de pe dispozitivul dvs.
- Adjust motion types and speed.
- Control melodies and volume.
Converting Modes (Bed Mode / Seat Mode)
The cradle offers convertible modes to adapt to your child's needs.

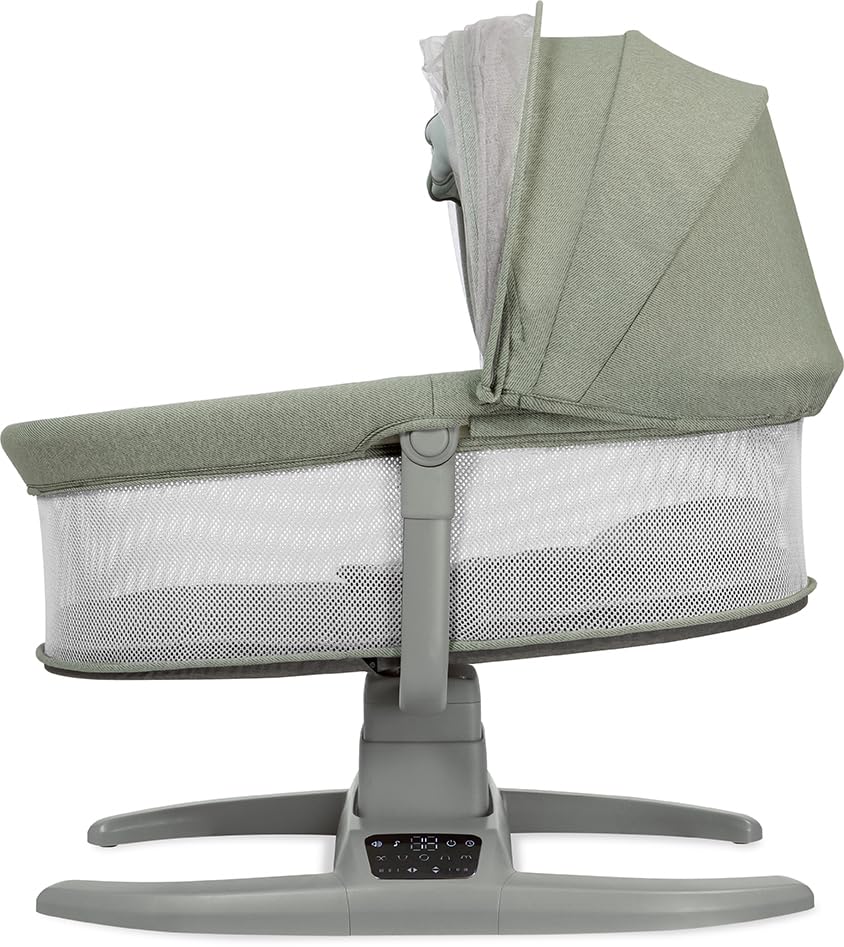

Figure 3: The cradle configured in a reclined bed mode, suitable for newborns and sleeping.
Figure 4: The cradle adjusted to an upright seat mode, ideal for older infants who can sit unassisted.
To switch between bed and seat mode, locate the recline adjustment mechanism, typically on the side or back of the seat. Follow the indicators to adjust the backrest to the desired position. Ensure it locks securely before placing your child in the cradle.
Întreținere și îngrijire
Regular maintenance ensures the longevity and safety of your Mastela Baby Cradle.
- Curățarea părților textile: The dense mattress and other removable fabric parts are machine washable. Use a gentle cycle with cold water and mild detergent. Air dry thoroughly.
- Curățarea cadrului: Wipe the plastic and metal frame components with a damp cârpă și săpun blând. Nu utilizați agenți de curățare abrazivi sau solvenți.
- Inspecţie: Periodically check all parts for wear, damage, or loose fasteners. Discontinue use if any damage is found and contact customer support.
- Depozitare: When not in use, store the cradle in a clean, dry place away from direct sunlight and extreme temperatures.
Depanare
If you encounter issues with your Mastela Swing H Multi-Motion Baby Cradle, refer to the following common solutions:
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Cradle does not power on. | Adaptorul de alimentare nu este conectat sau priza este defectă. | Ensure power adapter is securely plugged into both the cradle and a working electrical outlet. Test the outlet with another device. |
| Swing motion is not working. | Motion setting not activated or obstruction. | Press the motion button on the control panel or via the app. Check for any objects obstructing the swing mechanism. Ensure child's weight does not exceed 15 kg. |
| No sound from melodies. | Volumul este prea mic sau dezactivat. | Increase the volume using the control panel or the app. Ensure no external audio source is overriding the built-in melodies. |
| App cannot connect to cradle. | Bluetooth is off or cradle is out of range. | Ensure Bluetooth is enabled on your mobile device. Move your device closer to the cradle. Restart both the app and the cradle. |
Specificații
| Caracteristică | Detaliu |
|---|---|
| Numărul de model | MM02 |
| Marca | Mastela |
| Culoare | Verde |
| Dimensiuni produs (L x l x H) | 78L x 45.5W x 80H centimetri |
| Greutatea articolului | 4.5 kilograme |
| Material | Metal, Plastic, Poliester |
| Greutate maximă recomandată | 15 kilograme |
| Recomandare de vârstă | Birth to 36 Months |
| Swing Motions | 5 pre-set (3 up-to-down, 3 side-to-side), customizable combinations |
| Setări temporizator | 15, 30, 45, 60 minute |
| Melodii | 12 built-in with volume control |
| Conectivitate | Control aplicație (Bluetooth) |
| Valorifica | Ham cu cinci puncte |
| Instrucțiuni de îngrijire | Machine Washable (removable parts) |
| Asamblare necesară | Nu |
Garanție și suport
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Warranty terms may vary by region and retailer.
Asistență pentru clienți
Dacă aveți nevoie de asistență suplimentară sau aveți întrebări care nu sunt acoperite în acest manual, vă rugăm să contactați:
- Producător: Guangzhou Mastela commodity,Co. Ltd
- Importator (India): TrucareKidz India Pvt Ltd
- Refer to your purchase receipt or the product packaging for specific contact details.
