Haofy Mechanical Bicycle Disc Brake Instruction Manual

Introducere

This manual provides essential information for the proper installation, operation, and maintenance of your Haofy Mechanical Bicycle Disc Brake. Please read these instructions carefully before installation and use to ensure optimal performance and safety. This product is designed for mountain bikes and offers reliable stopping power with adjustable control.

Informații de siguranță

• Always ensure all components are securely fastened before riding.
• Regularly inspect brake pads and rotors for wear and damage. Replace worn parts immediately.
• Brake performance can be affected by weather conditions (e.g., rain, snow). Adjust riding style accordingly.
• If you are unsure about any installation or maintenance steps, consult a professional bicycle mechanic.
• Keep hands and clothing clear of moving parts during operation and maintenance.

Conținutul pachetului

Please verify that all parts are present before beginning installation:

• 1 x Haofy Mechanical Bicycle Disc Brake Device (Model BB8 F180/R160)
• Mounting hardware (bolts, washers)

Note: New and old models of this product may be shipped randomly. Both types are compatible with the specified model.

Image: Comparison of the new and old design types for the Haofy mechanical bicycle disc brake. Both designs function identically for the specified model.

Configurare și instalare

Follow these steps to install the disc brake device on your bicycle. Ensure your bike is stable on a stand before proceeding.

1. Pregătiți zona de montare: Ensure the brake mount on your bicycle frame or fork is clean and free of debris.
2. Position the Brake Device: Align the disc brake device with the mounting holes on your frame (for rear brake) or fork (for front brake). The F180/R160 model indicates a front brake for a 180mm rotor and a rear brake for a 160mm rotor.
3. Secure the Caliper: Insert the mounting bolts through the brake device and into the frame/fork. Hand-tighten the bolts initially.

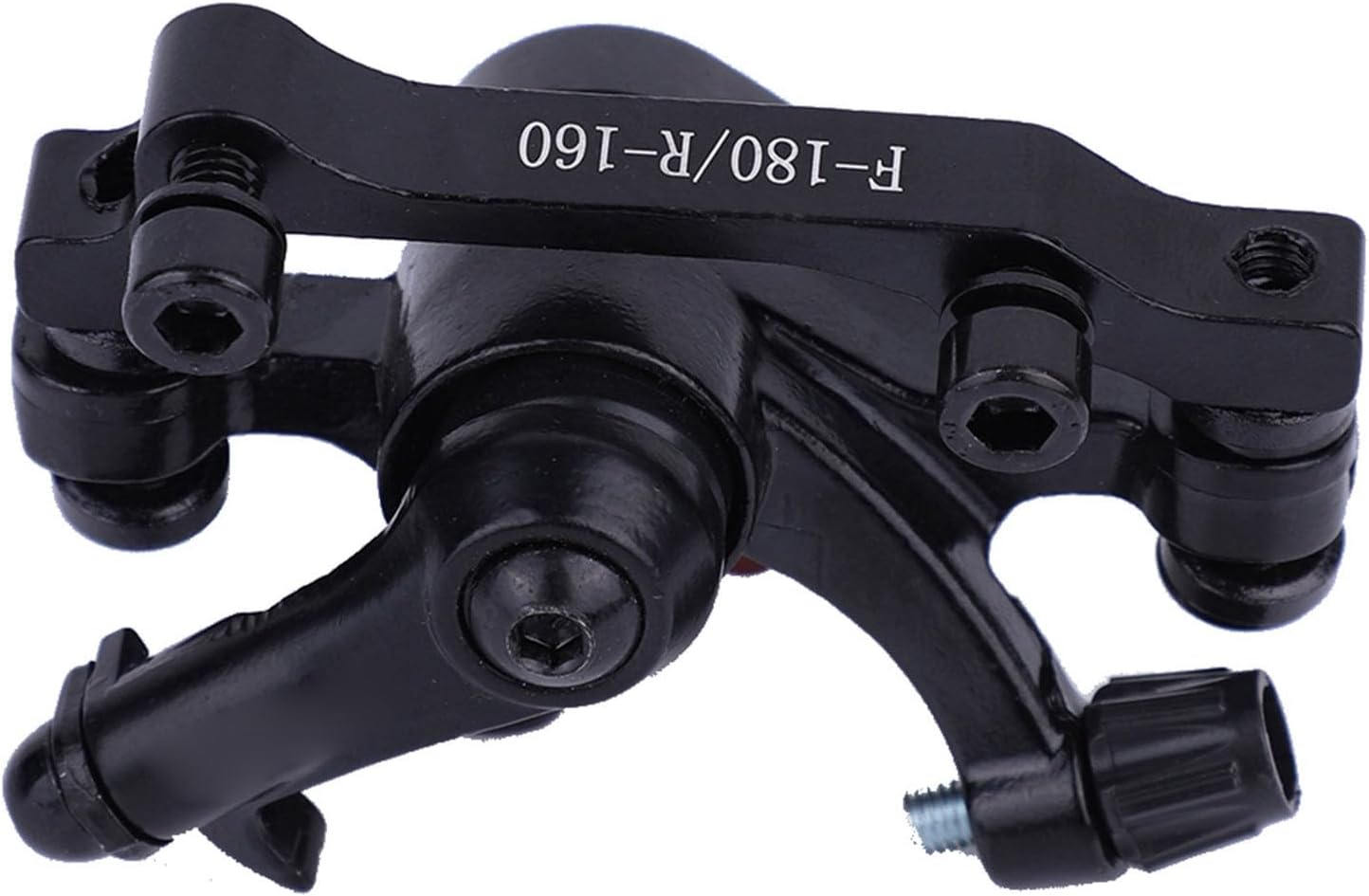

Imagine: față view of the Haofy mechanical bicycle disc brake device, showing the caliper and mounting points.

4. Install the Rotor: If not already installed, attach the disc rotor to your wheel hub according to your wheel manufacturer's instructions.
5. Align the Caliper: Loosen the caliper mounting bolts slightly. Spin the wheel and observe the rotor's position relative to the brake pads. Adjust the caliper position so that the rotor runs centrally between the pads without rubbing.
6. Adjust Pad Clearance: Use the adjustment knobs/screws on the caliper to set the left and right pad width, ensuring a small, even gap between the pads and the rotor when the brake is disengaged.
7. Strângeți șuruburile de montare: Once the caliper is aligned and pad clearance is set, fully tighten the caliper mounting bolts. Refer to your bicycle's specifications for recommended torque values.
8. Conectați cablul de frână: Route the brake cable from your brake lever to the caliper. Secure the cable to the caliper's pinch bolt, ensuring proper tension. Test the brake lever for firm engagement.

Imagine: Spate view of the Haofy mechanical bicycle disc brake, highlighting the brake pads and adjustment mechanism.

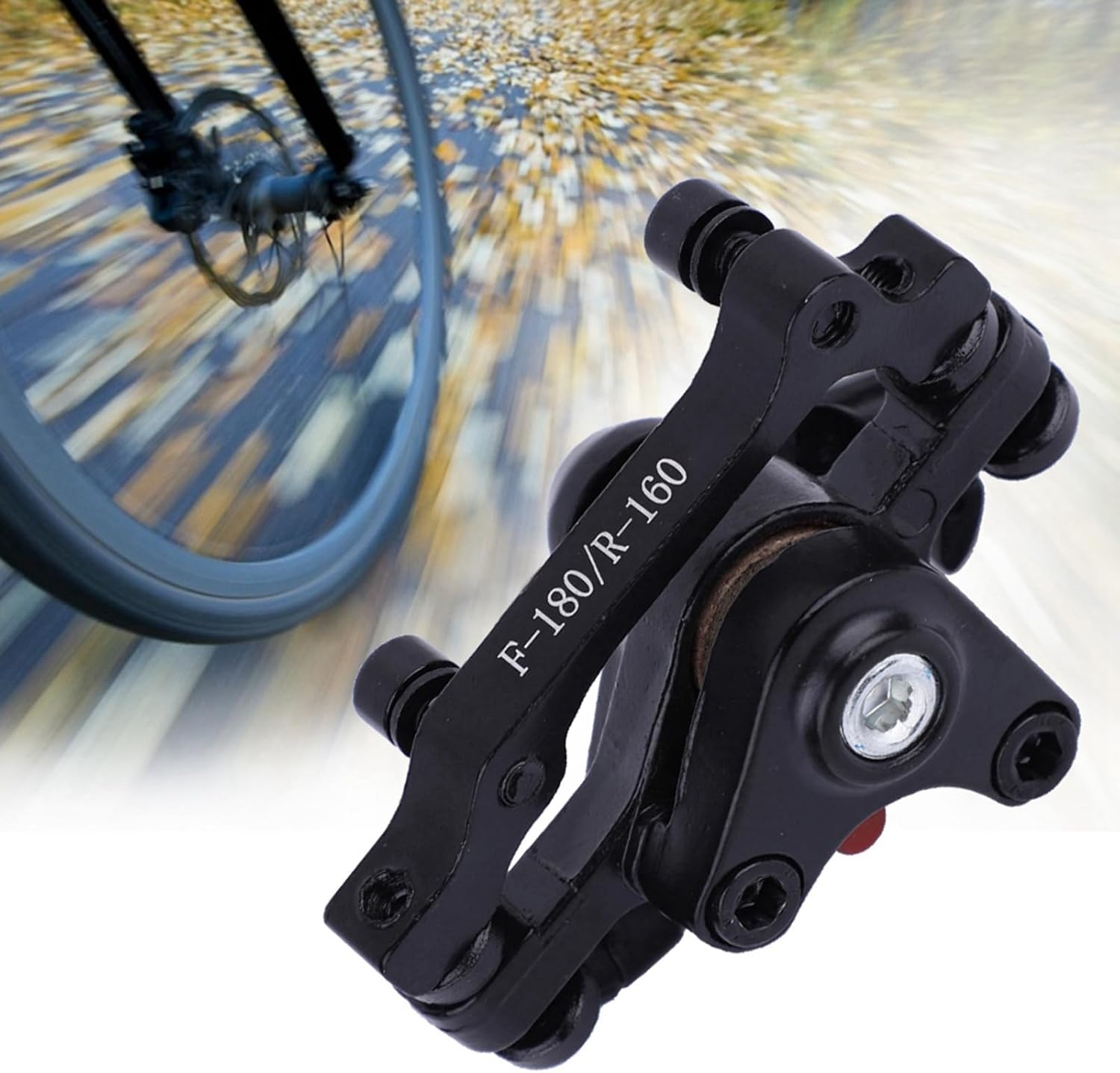

Image: The Haofy mechanical bicycle disc brake installed on a bicycle wheel, demonstrating its position relative to the rotor.

Instrucțiuni de operare

The Haofy Mechanical Bicycle Disc Brake provides strong and stable braking control. To operate:

• Brake Lever Engagement: Squeeze the brake lever on your handlebars to engage the brake. The harder you squeeze, the greater the braking force.
• Modulare: Practice modulating your braking force to achieve smooth and controlled stops. Avoid sudden, hard braking, especially on loose surfaces.
• Disiparea căldurii: The brake system is designed for excellent heat dissipation, which helps maintain consistent performance during prolonged braking. However, continuous heavy braking can still lead to heat buildup.

Image: The Haofy mechanical bicycle disc brake shown with a cyclist in the background, illustrating its use in a riding environment.

Întreţinere

Regular maintenance ensures the longevity and safety of your disc brake system.

• Curăţenie: Keep the brake caliper and rotor clean. Avoid getting oil or grease on the rotor or brake pads, as this can severely reduce braking performance. Use a clean cloth and disc brake cleaner if necessary.
• Uzura plăcuțelor: Periodically check the brake pads for wear. Replace pads when the friction material is worn down to 1mm or less.
• Verificarea cablului: Inspect the brake cable for fraying, rust, or kinks. Replace damaged cables promptly.
• Etanșarea șuruburilor: Regularly check all mounting bolts for proper tightness.
• Starea rotorului: Inspect the rotor for bends, cracks, or excessive wear. Replace if damaged.

Depanare

Specificații

• Marca: Haofy
• Model: BB8 F180/R160
• Material: Metal
• Culoare: Negru
• Dimensiuni produs: Aproximativ 4.72 cm L x 4.72 cm l x 4.72 cm Î
• Numar de piese: 2 (typically refers to the caliper and mounting hardware, or a set for front/rear if purchased as such)
• Bike Type Compatibility: Mountain Bike

Garanție și suport

For warranty information or technical support, please contact Haofy customer service through the retailer where the product was purchased or visit the official Haofy website. Please have your purchase receipt and product model number available when contacting support.
