PNI P15UV Dual Band Radio

Produs terminatview

The PNI P15UV is a versatile dual-band radio designed for communication across VHF and UHF frequencies. It offers extensive customization options to suit various user needs, including selectable transmission power, manual channel programming, and precise frequency scanning. This device operates in the 144-146MHz (VHF) and 430-440MHz (UHF) frequency ranges, supporting multiple operating modes such as UHF-VHF, VHF-VHF, and UHF-UHF. It is equipped with features like SOS alarm, adjustable squelch, and repeater tone selection, providing a comprehensive communication tool.

Faţă view of the PNI P15UV Dual Band Radio, showcasinafișajul și tastatura sa.

Înființat

1. Ce se află în cutie

Upon unboxing your PNI P15UV radio, verify that all components are present:

• PNI P15UV VHF/UHF Portable Radio Station
• Încărcător de birou
• Baterie litiu-ion de 1500mAh
• Suport centura
• Şnur
• Manual de utilizare (acest document)

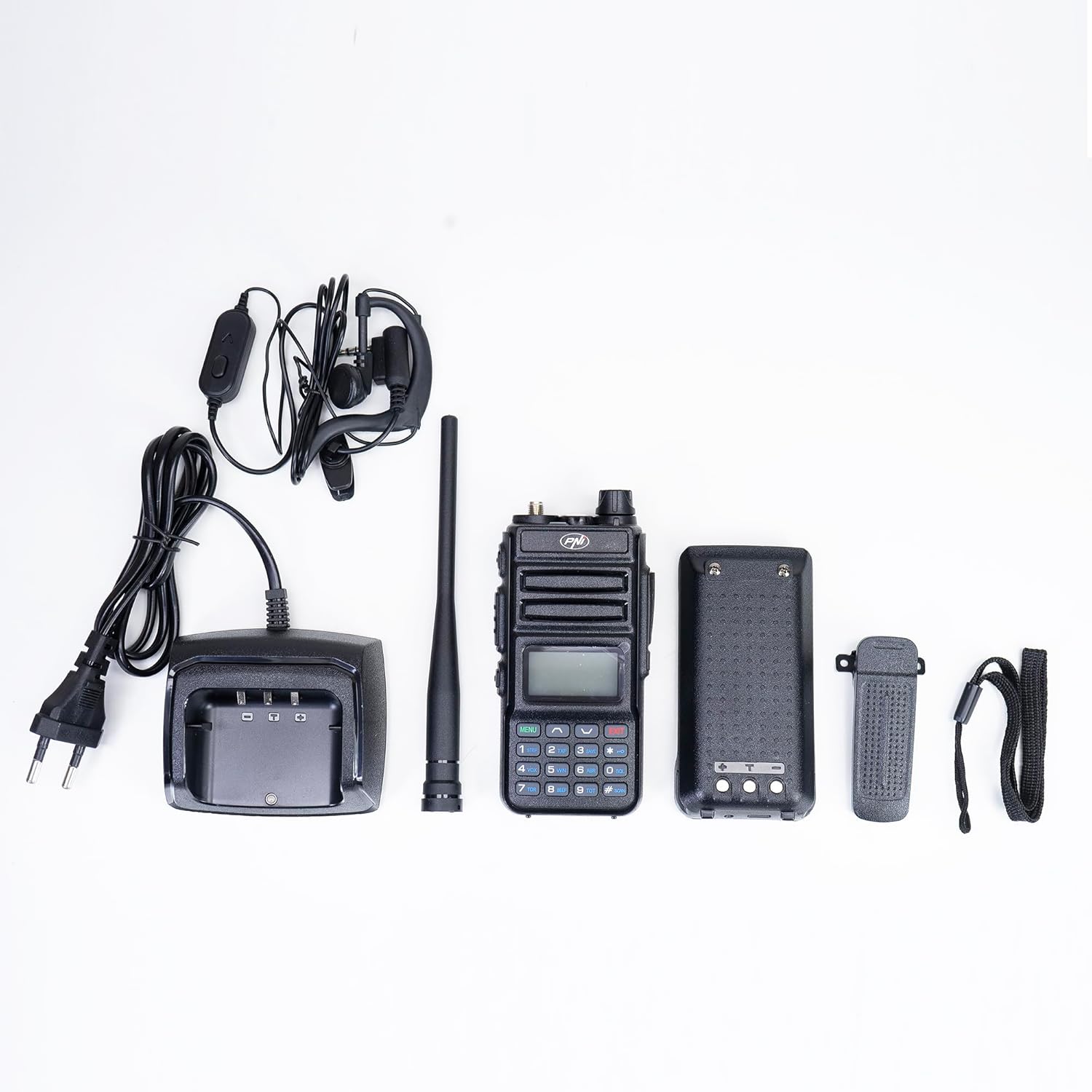

All components included in the PNI P15UV package: radio, battery, charger, belt clip, and antenna.

2. Instalarea bateriei

To install the battery, align the battery pack with the grooves on the back of the radio and slide it upwards until it clicks into place. Ensure it is securely fastened to prevent accidental detachment during use.

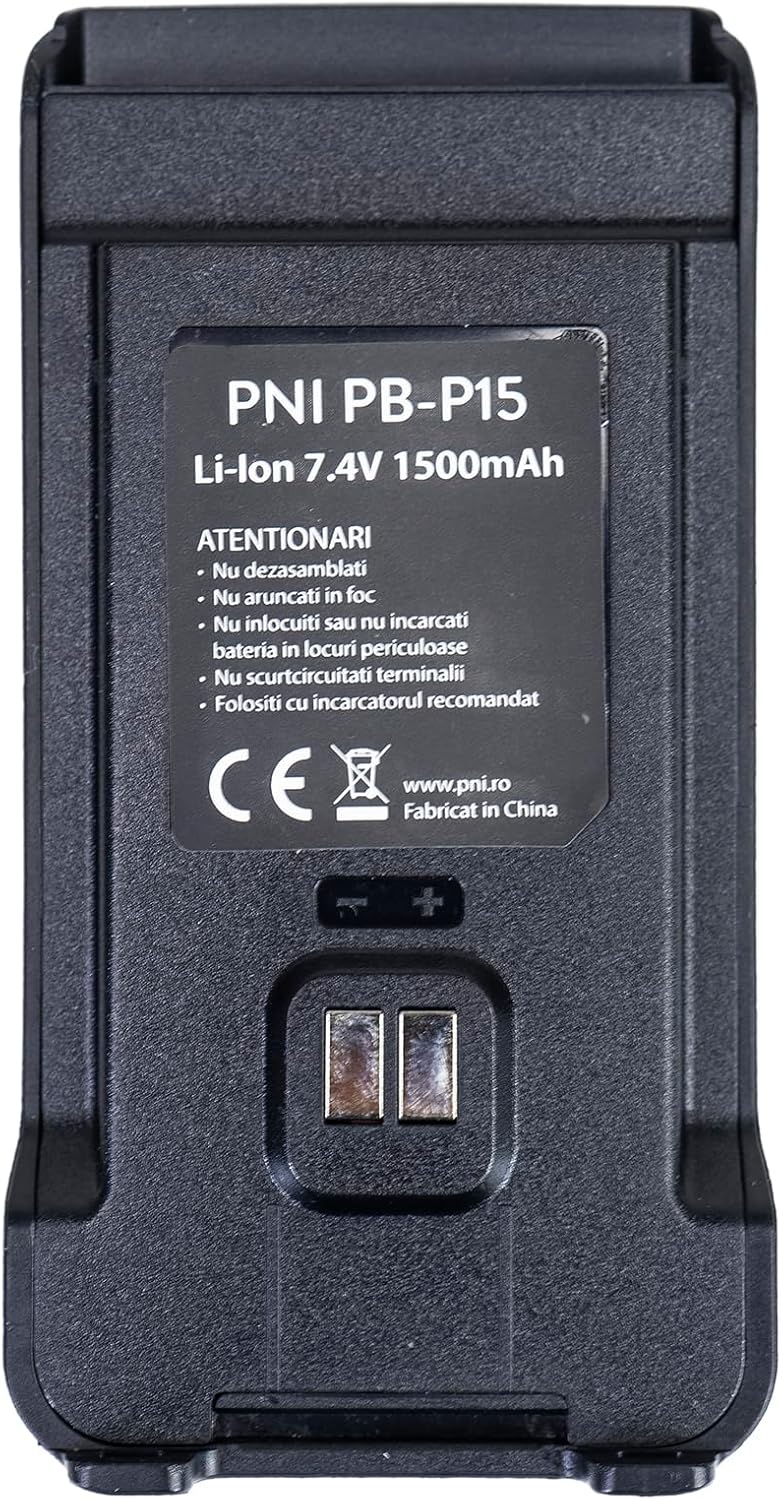

The PNI PB-P15 Lithium-Ion 7.4V 1500mAh battery pack.

Spate view of the PNI P15UV radio, showing the battery compartment and product label.

3. Încărcarea bateriei

Place the radio into the provided desktop charger. Ensure the charging contacts on the radio align with those on the charger. The charger typically has an indicator light that changes color to show charging status (e.g., red for charging, green for fully charged). Alternatively, the radio can be charged directly via its USB port using a compatible USB cable.

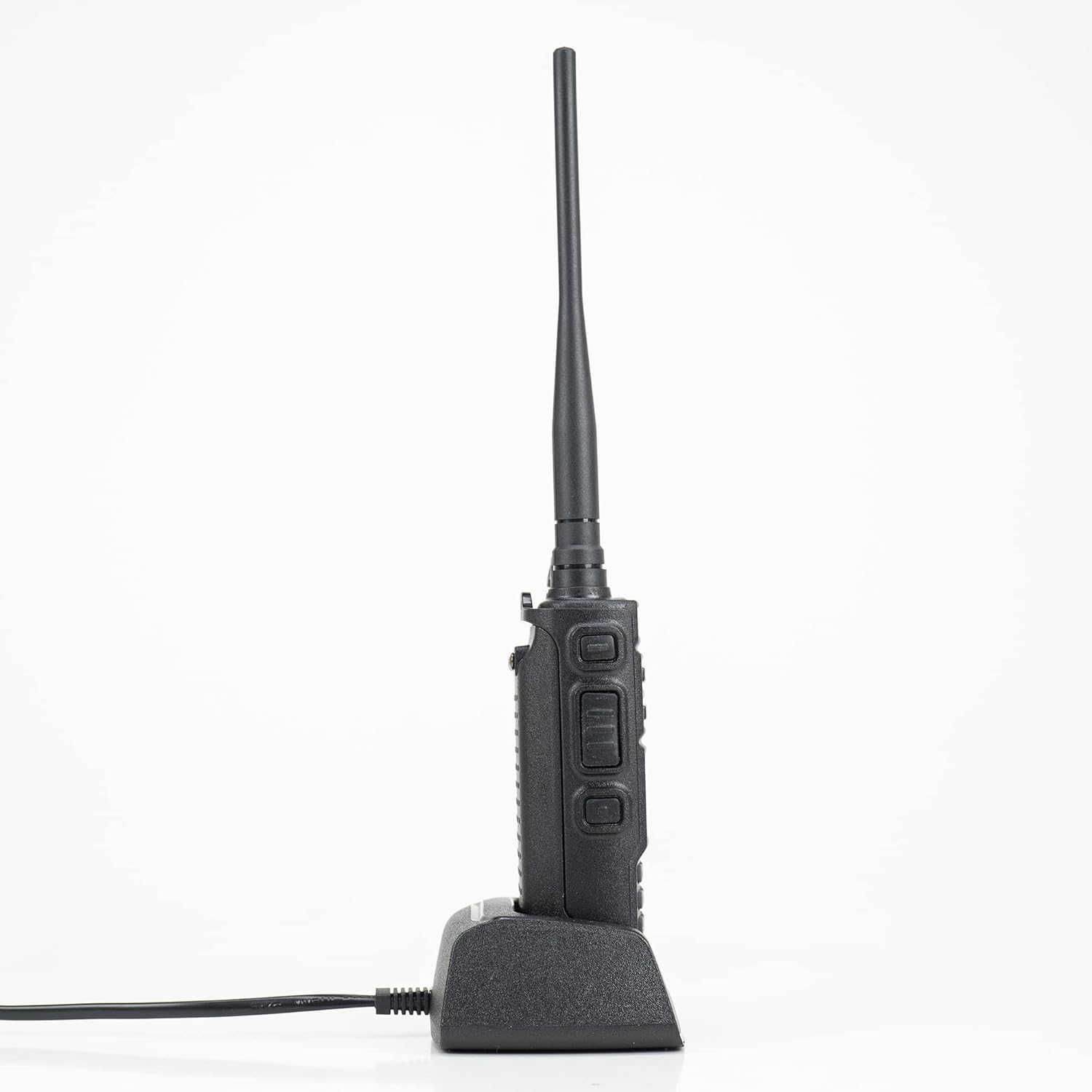

The PNI P15UV radio placed in its desktop charging cradle.

The desktop charger for the PNI P15UV radio, with its power cable.

4. Attaching the Belt Clip and Antenna

Secure the belt clip to the back of the radio using the provided screws. This allows for convenient carrying. Screw the antenna clockwise onto the antenna connector on top of the radio until it is finger-tight. Do not overtighten.

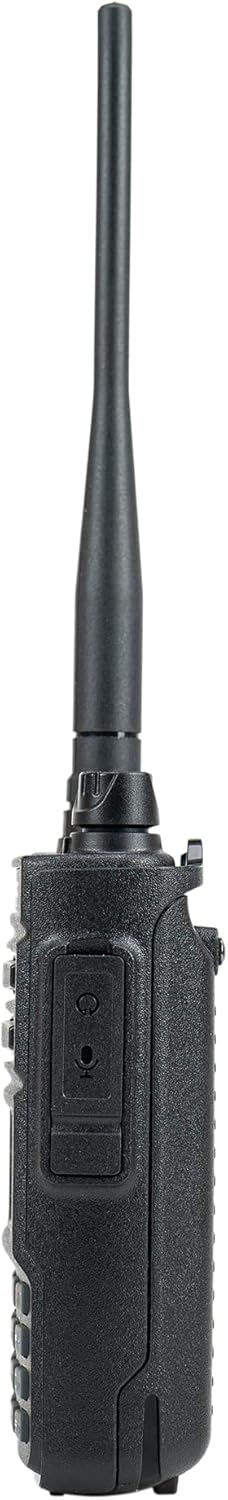

Latura view of the PNI P15UV radio, showing the attached belt clip.

Instrucțiuni de operare

1. Pornire/Oprire și control volum

To power on the radio, rotate the top-right knob clockwise. Continue rotating to increase the volume. Rotate counter-clockwise to decrease volume and power off the device.

2. Frecvență și mod canal

The PNI P15UV supports both frequency mode (VFO) and channel mode (MR). You can switch between these modes to either manually input frequencies or select from pre-programmed channels. The display can show both frequencies or channels simultaneously depending on the selected operating mode.

3. Navigare în meniu și setări

Use the 'MENU' button to access the radio's settings. Navigate through the options using the up/down arrow keys. Press 'MENU' again to select an option and 'EXIT' to go back or exit the menu. Key customizable functions include:

• Selectable Transmission Power: Choose between 5W (High) and 1W (Low) power output.
• Manual Channel Programming: Program new channels directly from the keypad.
• Manual Frequency Input: Enter specific frequencies using the numeric keypad.
• Selectarea modului de scanare: Activate frequency or channel scanning.
• Add/Exclude Channel from Scanning: Customize which channels are included in scans.
• Precise Frequency Scanning: Define a specific frequency range for scanning.
• Encoding and Decoding Calls: Utilize CTCSS/DCS tones for selective calling.
• Alarmă SOS: Activate local, code, or audible emergency alerts.
• Repeater Tone Selection: Configure tones for repeater access.
• Squelch reglabil: Set the squelch level (9 levels) to filter out weak signals and noise.
• Frequency Step Selection: Choose frequency steps (2.5 / 5.0 / 6.25 / 10.0 / 12.5 / 20.0 / 25.0 / 50.0 KHz).

4. Transmiterea și recepționarea

To transmit, press and hold the Push-to-Talk (PTT) button on the side of the radio. Speak clearly into the microphone. Release the PTT button to receive. Ensure you are on an appropriate frequency or channel for communication.

The PNI P15UV radio connected to an external PNI MHS40 microphone for enhanced communication.

Întreţinere

1. Curatenie

Regularly clean the radio's exterior with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners. Ensure the charging contacts and accessory ports are free of dust and debris.

2. Îngrijirea bateriei

To prolong battery life, avoid fully discharging the battery frequently. Charge the battery when the low battery indicator appears. If storing the radio for an extended period, charge the battery to about 50% and remove it from the radio.

3. Depozitare

Store the radio in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. Keep it away from strong magnetic fields.

Depanare

If you encounter issues with your PNI P15UV radio, consider the following common solutions:

• Fără putere: Ensure the battery is properly installed and fully charged. Check the power/volume knob.
• Fără semnal/Recepție slabă: Verify the antenna is securely attached. Check if you are on the correct frequency/channel. Adjust the squelch level. Ensure you are within range of other radios or repeaters.
• Nu se poate transmite: Check if the PTT button is functioning correctly. Ensure the battery has sufficient charge. Verify the transmission power setting.
• Probleme audio: Check volume level. Ensure no external accessories (like headphones) are interfering.

For more detailed troubleshooting or complex issues, please refer to the comprehensive user manual PDF or contact PNI customer support.

Specificații

Informații despre garanție

The PNI P15UV Dual Band Radio comes with a 24 luni garantie from the date of purchase. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official PNI website-ul sau contactați asistența pentru clienți.

Sprijin

For further assistance, detailed information, or technical support, please use the following resources:

• Manual oficial de utilizare (PDF): Manual Descărcare PDF
• PNI Official Website: www.pni.ro
• PNI Store on Amazon: Visit PNI Store
• E-mail de asistență pentru clienți: comenzi@pni.ro
