Patented Focus Adjustable LED Beam Floor Lamp Manual de instructiuni

Produs terminatview

The daylight24 Patented Focus Adjustable LED Beam Floor Lamp is designed to provide bright, natural daylight-quality illumination for various tasks such as reading, crafting, and hobbies. Its unique adjustable beam and flexible gooseneck allow for precise light positioning and intensity control, enhancing clarity and contrast without the yellow tint of incandescent lighting.

Informații de siguranță

• Asigurați-vă că lamp este așezat pe o suprafață stabilă și plană pentru a preveni răsturnarea.
• Nu expuneți lamp la apă sau la umiditate excesivă.
• Deconectați întotdeauna priza lamp de la priză înainte de curățare sau de efectuarea oricărei operațiuni de întreținere.
• The LED bulb is integrated and not user-replaceable. Do not attempt to disassemble the lamp cap.
• Țineți cablul de alimentare departe de surse de căldură, margini ascuțite și obiecte grele.
• Acest lamp este doar pentru uz interior.

Conținutul pachetului

Vă rugăm să verificați dacă toate componentele sunt prezente înainte de a începe asamblarea:

• Unassembled lamp parts (base, pole sections, gooseneck with lamp cap)
• Bec LED integrat (preinstalat)
• Cablu de alimentare AC
• Manual de instrucțiuni (acest document)

Configurare și asamblare

Assembly of the Patented Focus Adjustable LED Beam Floor Lamp este simplu. Urmați acești pași:

1. Despachetați cu grijă toate componentele din ambalaj.
2. Place the heavy lamp baza pe o suprafață plană și stabilă.
3. Thread the lowest pole section into the lamp base, turning clockwise until secure. Ensure the power cord passes freely through the pole.
4. Continue to thread each subsequent pole section into the previous one, ensuring a tight connection.
5. Attach the gooseneck section with the lamp head to the top pole section, twisting until firmly connected.
6. Conectați cablul de alimentare CA la o priză standard de perete.

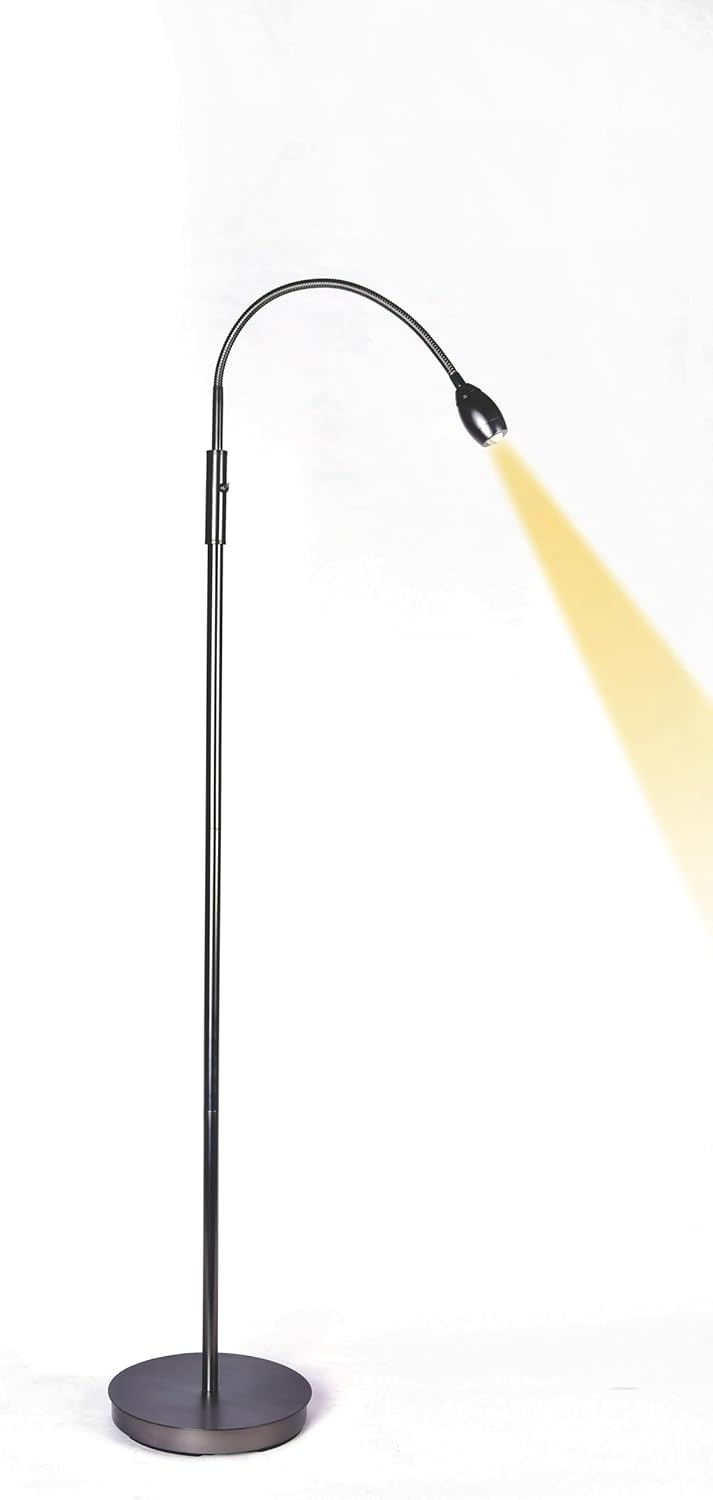

Figure 1: Fully assembled Patented Focus Adjustable LED Beam Floor Lamp.

Instrucțiuni de operare

The Patented Focus Adjustable LED Beam Floor Lamp offers versatile lighting control:

• Pornire/Oprire: Locate the toggle switch on the lamp pole, near the base of the gooseneck. Flip the switch to turn the lamp pornit sau oprit.
• Adjusting the Gooseneck: The flexible 15.5-inch gooseneck allows you to direct the light beam precisely where needed. Gently bend the gooseneck to position the lamp cap.
• Reglarea fasciculului: Lamp features a unique pull shade mechanism to adjust the light beam.
  • To narrow the beam (e.g., for focused reading), gently pull the shade downwards. The beam can narrow from 33-inches down to 3-inches at a distance of 12-inches. As the beam narrows, the light intensity increases.
  • To broaden the beam (e.g., for general illumination), gently push the shade upwards.

Figura 2: Prim-plan view din lamp head, showing the adjustable shade for beam control.

Figura 3: Lamp in use, demonstrating its utility for focused tasks like reading.

Întreţinere

• curatenie: Deconectați lamp from the power source before cleaning. Use a soft, dry cloth to wipe down the lamp's surfaces. Do not use abrasive cleaners or solvents, as they may damage the finish.
• Bec LED: The 5-Watt high output LED bulb is integrated into the lamp head and is designed for long-term use (estimated 20 years life). It is not user-replaceable.

Depanare

Specificații

Garanție și suport

The daylight24 Patented Focus Adjustable LED Beam Floor Lamp vine cu o 3 ani garanție limitată de producător.

For warranty claims, technical support, or additional product information, please visit the official daylight24 store or contact their customer service directly.

Magazin oficial al mărcii: daylight24 Amazon Store
