Introducere
This manual provides instructions for the assembly, operation, and maintenance of your VonHaus Triple Monitor Stand. This stand is designed to support three monitors, ranging from 13 to 32 inches, with VESA compatibility of 75x75mm and 100x100mm. It features gas spring arms for easy adjustment and can be mounted using a desk clamp or grommet base, helping to free up valuable desk space.
Image: The VonHaus Triple Monitor Stand helps to free up desk space, providing a tidier and more organized appearance for your workstation.
Informații de siguranță
WARNING: Read all instructions before assembly and use. Failure to follow these instructions may result in property damage, serious injury, or death.
- Ensure your desk surface is strong enough to support the combined weight of the stand and three monitors.
- Do not exceed the maximum weight capacity of 7kg (15.4 lbs) per arm.
- Țineți copiii și animalele de companie departe în timpul asamblarii.
- Use only the provided hardware. Do not substitute parts.
- Verificați periodic toate conexiunile pentru a vă asigura că rămân sigure.
Conținutul pachetului
Verify all components are present before beginning assembly. If any parts are missing or damaged, contact VonHaus customer service.
- Main Pole and Base
- Brațe pentru monitor (3)
- Plăci VESA (3)
- Birou Clamp Asamblare
- Grommet Base Assembly
- Set de accesorii (șuruburi, șaibe, chei Allen)
- Cleme de gestionare a cablurilor
Configurare și instalare
This monitor stand offers two installation methods: Desk Clamp and Grommet Base. Choose the method best suited for your desk.
Image: The stand offers easy installation with two mounting options: Desk Clamp for desk thicknesses of 10-85mm, and Grommet Base for desk thicknesses of 10-40mm and hole diameters of 10-60mm.
Pasul 1: Alegeți metoda de montare
- Birou Clamp: Atașați clamp to the edge of your desk. Ensure the clamp is securely tightened to a desk thickness between 10-85mm.
- Baza inelului de fixare: If your desk has a pre-drilled hole, secure the grommet base through the hole. This method is suitable for desk thicknesses between 10-40mm and hole diameters between 10-60mm.
Step 2: Assemble the Pole and Arms
- Attach the main pole to your chosen base (desk clamp sau manșon).
- Slide the monitor arms onto the main pole at the desired initial height.
Pasul 3: Atașați plăcile VESA la monitoare
- Secure the VESA plates to the back of each monitor using the appropriate screws from the hardware kit. Ensure your monitor's VESA patterns (75x75mm or 100x100mm) match the plate.
Pasul 4: Montați monitoarele pe brațe
- Carefully slide each monitor (with VESA plate attached) onto the corresponding arm.
- Secure with the provided locking mechanism.
Pasul 5: Managementul cablurilor
- Route monitor cables through the integrated cable management clips on the arms and pole for a tidy setup.
Instrucțiuni de utilizare și ajustări
The VonHaus Triple Monitor Stand allows for flexible positioning of your screens to achieve optimal viewconfort și productivitate.
Image: The monitor stand offers extensive adjustability, including 180° tilt, 360° swivel, and height adjustment up to 40.7 cm, allowing for ergonomic positioning.
- Reglarea înălțimii: Loosen the collar on the main pole to slide the arms up or down to your desired height. Retighten the collar to secure the arms in place.
- Tensiunea arcului cu gaz: Adjust the gas spring tension using the provided Allen key. Turn clockwise to increase tension for heavier monitors, or counter-clockwise to decrease tension for lighter monitors. Adjust until the monitor stays at the desired height when moved freely.
- Înclinare: Each monitor can be tilted +35° to -35° to reduce glare and optimize viewunghiuri de ing.
- pivotare: The arms allow for a 360° swivel, enabling you to share your screen or adjust for different tasks.
- Rotaţie: Rotate monitors 180° for quick switching between landscape and portrait orientation.

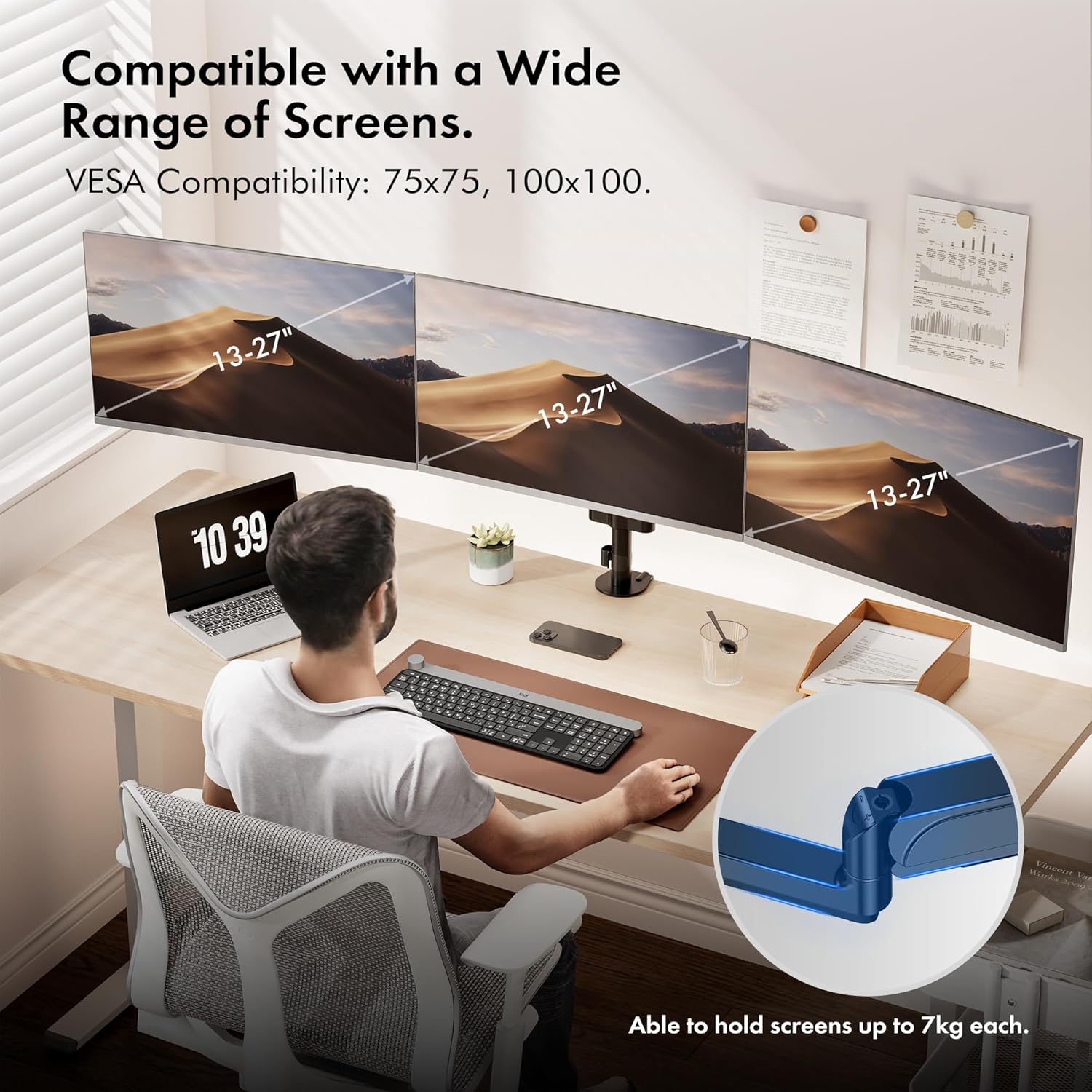

Image: The VonHaus Triple Monitor Stand is compatible with a wide range of screens, typically 13-27 inches, and supports VESA 75x75mm and 100x100mm mounting patterns.
Întreţinere
- Regularly inspect all mounting hardware and connections to ensure they are tight and secure.
- Curățați suportul cu un material moale, damp Evitați utilizarea de produse de curățare abrazive sau solvenți.
- Do not lubricate the gas spring mechanism.
Depanare
- Monitorul se lasă sau nu își menține poziția: Adjust the gas spring tension. Turn the adjustment screw clockwise to increase tension for heavier monitors.
- Monitorul este dificil de mutat: Adjust the gas spring tension. Turn the adjustment screw counter-clockwise to decrease tension for lighter monitors.
- Standul pare instabil: Asigurați-vă că biroul clamp or grommet base is securely tightened to the desk. Verify all arm connections are secure.
- Monitoarele nu sunt la nivel: Fine-tune the height and tilt of individual arms until all screens are aligned.
Specificații
| Marca: | VonHaus |
| Model: | Stand pentru monitor triplu |
| Material: | Aluminiu |
| Tip de montare: | Table Mount (Desk Clamp sau Inel de fixare) |
| Dimensiune ecran compatibilă: | 13-32 inci |
| Compatibilitate VESA: | 75x75mm, 100x100mm |
| Maximum Weight Capacity per Arm: | 7 kg (15.4 lbs) |
| Interval de înclinare: | +35° până la -35° |
| Raza de pivotare: | 360° |
| Rotaţie: | 180° |
| Birou Clamp Grosime: | 10-85 mm |
| Grommet Base Desk Thickness: | 10-40 mm |
| Diametrul orificiului pentru inel de etanșare: | 10-60 mm |
Garanție și suport
This VonHaus Triple Monitor Stand comes with a Garanție de 5 an de la producător. For warranty claims or technical support, please contact VonHaus customer service. Keep your proof of purchase for validation.
Image: The versatile design of the VonHaus Triple Monitor Stand makes it suitable for multiple workstations, whether for work, gaming, or general browsing.
