Aisuo Night Light - 5 in 1 Lamp Manual de utilizare

Introducere

The Aisuo Night Light is a versatile 5-in-1 device combining a night light, Bluetooth speaker, MP3 player, digital alarm clock, and dimmable lamp. It features touch control and offers 48 color options, designed to enhance your environment with light and sound.

Informații de siguranță

• Nu expuneți dispozitivul la apă sau umiditate excesivă.
• A se păstra departe de lumina directă a soarelui și de temperaturi ridicate.
• Nu dezasamblați și nu încercați să reparați singur dispozitivul.
• Folosiți doar cablul de încărcare furnizat sau recomandat.
• A nu se lăsa la îndemâna copiilor mici.

Conținutul pachetului

• Aisuo Night Light Unit
• Cablu de încărcare USB
• Manual de utilizare

Produs terminatview

Familiarize yourself with the main components and controls of your Aisuo Night Light.

Figura 1: Față view of the Aisuo Night Light, highlighting its compact design and integrated clock display.

Figura 2: Pesteview of the device's multi-functional capabilities, including lighting, timekeeping, and audio playback.

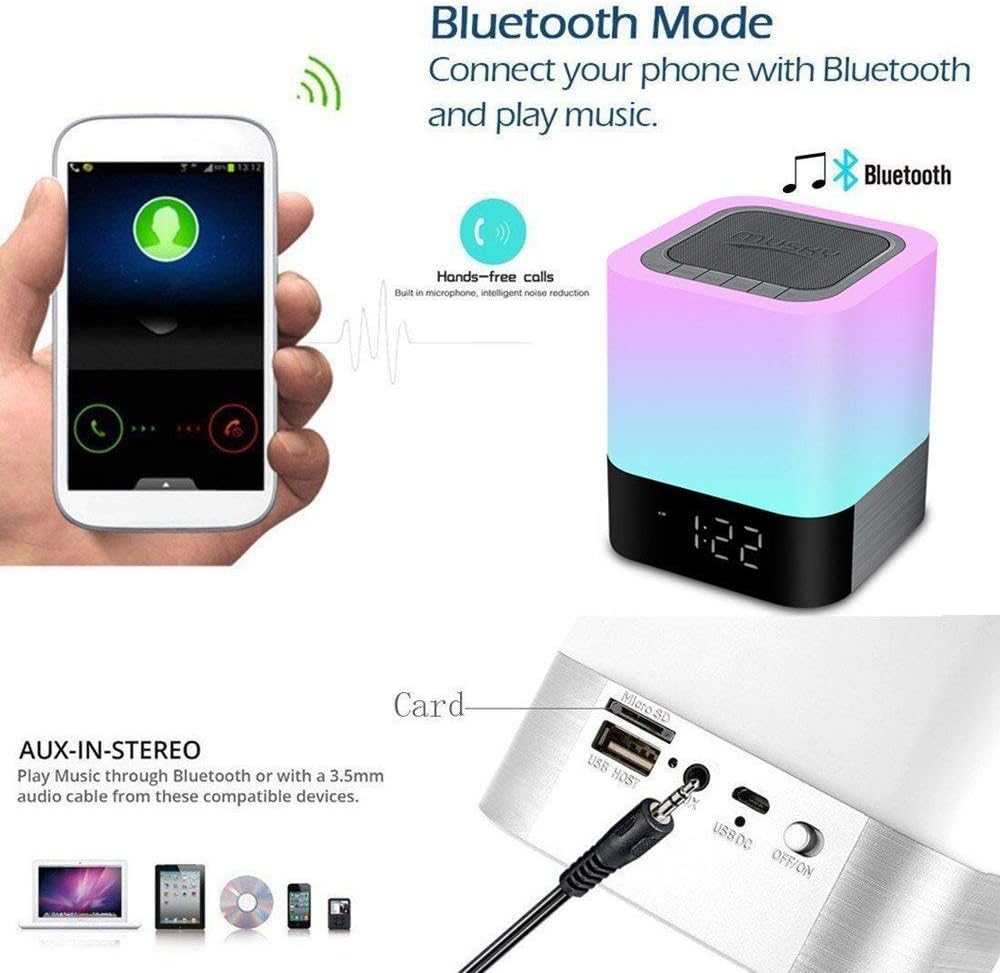

Figura 3: Spate view of the device, illustrating the various input and output ports for connectivity.

Înființat

1. Încărcarea dispozitivului

Before first use, fully charge the Aisuo Night Light. Connect the provided USB charging cable to the "USB DC" port on the back of the unit and plug the other end into a USB power adapter (not included) or a computer USB port. The charging indicator will show the charging status. A full charge typically takes about 6 hours.

2. Pornirea inițială

Locate the ON/OFF switch on the back of the unit and slide it to the "ON" position to power on the device.

3. Setting the Time and Alarm

To set the current time and alarm, follow these steps:

1. Press the "MODE" button twice to enter time setting mode. The hour display will flash.
2. Hold the "MODE" button to begin adjusting the time.
3. Use the forward (>>) and backward (<<) buttons to adjust the hour.
4. Press "MODE" again to switch to minute adjustment, then use the forward (>>) and backward (<<) buttons to set the minutes.
5. Press "MODE" again to confirm the time setting.
6. To set the alarm, repeat the process. After setting the time, press "MODE" again to toggle the alarm ON or OFF. When the alarm is ON, the alarm icon will appear on the display.

Instrucțiuni de operare

1. Funcția de lumină de noapte

The night light offers adjustable brightness and a wide range of colors.

• Pornire/Oprire: Lightly tap the top mesh area to turn the light on or off.
• Reglarea luminozității: In warm white light mode, tap the top mesh area to cycle through 3 brightness levels (low, medium, high).
• Schimbarea culorilor: Hold down the top mesh area to switch to color-changing mode. Tap to cycle through 48 different colors. The light can also change color with music rhythm.

Figure 4: The night light showcasing its diverse color palette, suitable for various settings.

Figure 5: The device providing warm ambient lighting, ideal for a bedroom setting.

2. Funcția de difuzor Bluetooth

Connect your device wirelessly to play audio.

• Asociere: Turn on the Aisuo Night Light. It will automatically enter Bluetooth pairing mode. On your smartphone or other Bluetooth-enabled device, search for "Aisuo" (or similar name) in the Bluetooth settings and connect. A voice prompt will confirm successful pairing.
• Redare audio: Once paired, you can play music or other audio from your connected device. The speaker has a range of up to 33 feet (10 meters).
• Apeluri hands-free: The built-in microphone allows for hands-free calling when connected to a smartphone. Press the call button (usually the play/pause button) to answer or end calls.

Figure 6: Various usage scenarios, including Bluetooth connectivity for audio streaming and hands-free communication.

3. MP3 Player Function

Redați muzică direct de pe un card de memorie sau de pe o unitate USB.

• TF/SD Card Playback: Introduceți un card TF (Micro SD) cu MP3 files into the "Micro SD" slot on the back of the unit. The device will automatically switch to MP3 mode and begin playing.
• Redare USB: Introduceți o unitate flash USB cu MP3 files into the "USB HOST" port. The device will automatically switch to MP3 mode and begin playing.
• AUX-in Stereo: Connect an external audio device (e.g., smartphone, tablet, computer) using a 3.5mm audio cable (not included) to the AUX-in port. The device will switch to AUX mode.

4. Funcție de ceas deșteptător digital

Utilize the integrated alarm clock for daily wake-up calls.

• Setarea alarmei: Refer to the "Setting the Time and Alarm" section under Setup for detailed instructions.
• Funcție de amânare: When the alarm sounds, tap the top mesh area to activate snooze. The alarm will sound again after a few minutes (default snooze time).
• Modul de somn: The device supports a sleep mode where the lamp and speaker can automatically turn off after a set period. Consult the device's specific button functions for activating and setting sleep timer.

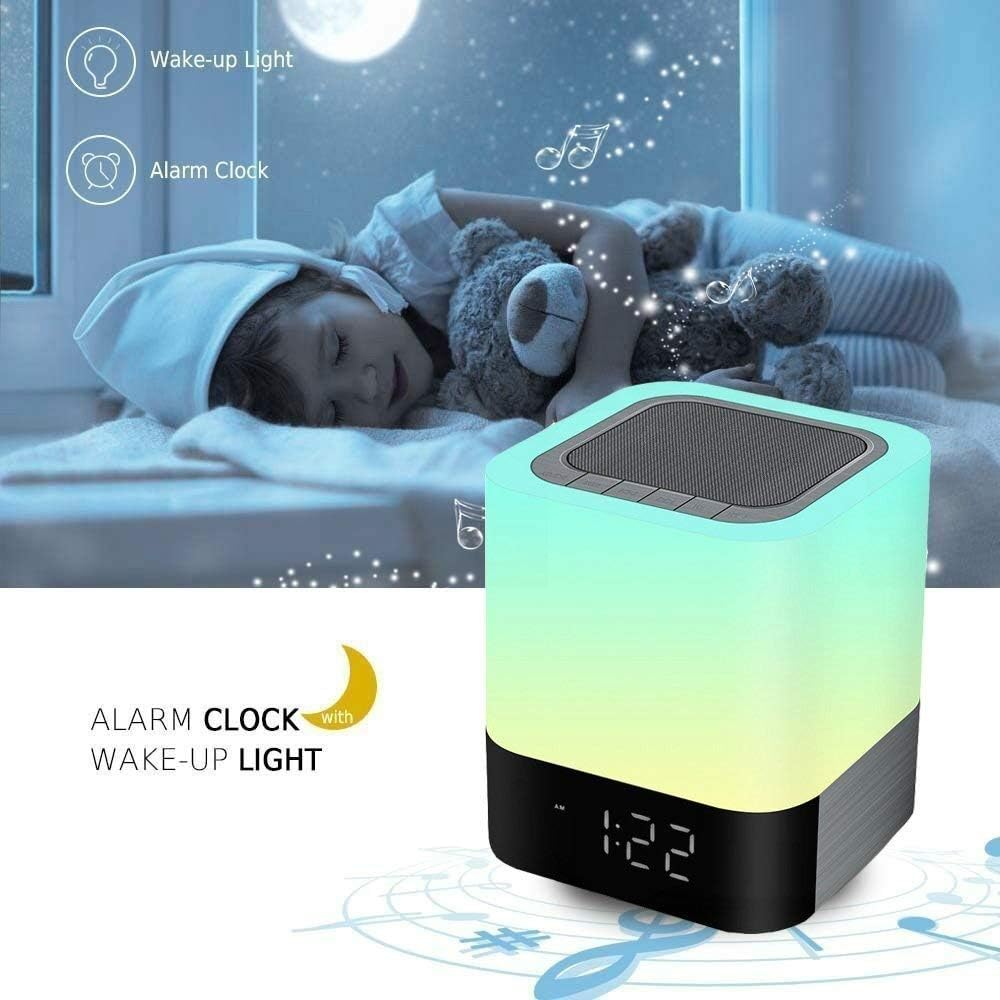

Figure 7: The device functioning as an alarm clock with a gentle wake-up light feature.

Întreţinere

• curatenie: Folosiți o lavetă moale și uscată pentru a curăța suprafața dispozitivului. Nu utilizați substanțe de curățare abrazive sau solvenți.
• Depozitare: Când nu este utilizat pentru perioade lungi de timp, depozitați dispozitivul într-un loc răcoros și uscat.
• Îngrijirea bateriei: Pentru a prelungi durata de viață a bateriei, evitați descărcarea completă frecventă a bateriei. Încărcați dispozitivul în mod regulat, chiar dacă nu este utilizat în mod activ.

Depanare

Specificații

• Dimensiuni produs: 4.5" D x 4.5" L x 4.5" H
• Greutatea articolului: 0.55 kilograme (1.21 de lire sterline)
• Lamp Tip: Lumină de noapte
• Material umbra: Acrilonitril butadienă stiren
• Tip comutator: Atingere
• Tip sursă de lumină: LED
• Sursa de alimentare: Alimentat cu baterie
• Tehnologie de conectivitate: Bluetooth, USB
• Wattage: 5 wați
• Voltage: 4.5 volți
• Tip baterie: Litiu-ion (1 necesar)
• Număr de model: DY28

Garanție și suport

Aisuo is committed to providing quality products. If you encounter any issues or have questions regarding your Aisuo Night Light, please contact Aisuo Customer Service. Refer to your purchase documentation or the seller's information for specific warranty details and contact methods. We aim to respond to inquiries within 12 hours.
