1. Introducere
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your ABAC START L20 air compressor. This 6-liter, 2 HP, oil-lubricated, portable compressor is designed for occasional or intermittent use, suitable for applications such as tire inflation, blowing, and cleaning. Please read this manual thoroughly before initial use and keep it for future reference.
2. Informații de siguranță
Respectați întotdeauna următoarele instrucțiuni de siguranță pentru a preveni vătămările corporale sau deteriorarea echipamentului:
- Echipament individual de protectie: Always wear safety glasses and hearing protection when operating the compressor.
- Siguranta electrica: Asigurați-vă că sursa de alimentare corespunde cu volumul compresoruluitage (230V). Do not operate with damaged cords or in wet conditions. Disconnect power before any maintenance or adjustments.
- Plasare: Position the compressor on a stable, level surface in a well-ventilated area. Keep it away from flammable materials, gases, or liquids.
- Siguranță la presiune: Never exceed the maximum operating pressure of the compressor or the connected tools. Do not tamper with safety valves.
- Întreţinere: Perform all maintenance tasks as described in this manual. Ensure the compressor is depressurized and disconnected from power before servicing.
- Copii și martori: Țineți copiii și persoanele neautorizate departe de compresorul în funcțiune.
3. Produs terminatview
The ABAC START L20 is a compact and portable air compressor featuring a 6-liter tank and a 2 HP motor. It is designed for ease of transport and efficient performance for various DIY and light professional tasks. Key components include the air tank, motor, pump, pressure gauges, and control panel.
Figura 1: Față view of the ABAC START L20 air compressor, showing its compact design and blue tank.

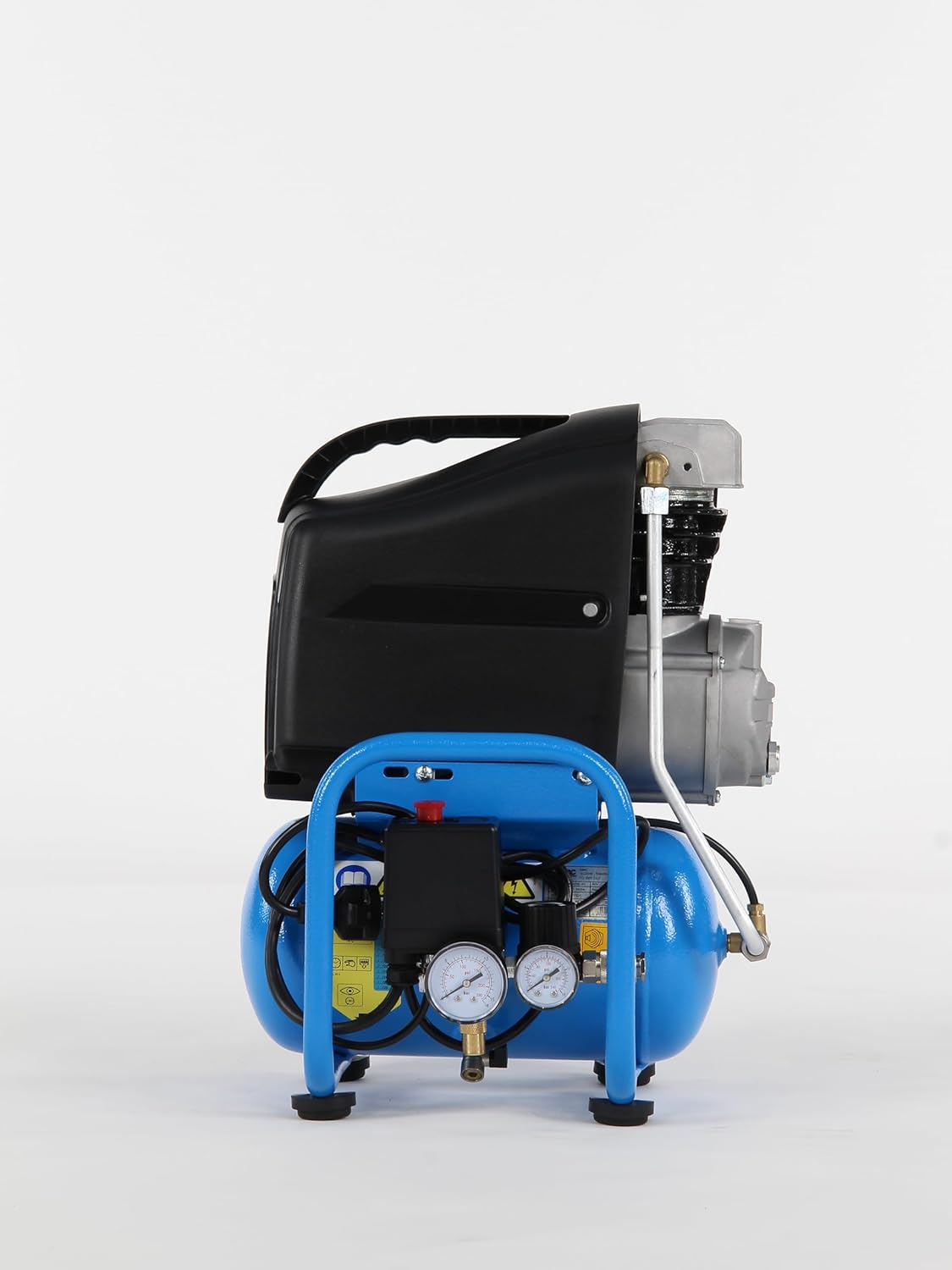

Figura 2: Spate view of the compressor, highlighting the control panel with dual pressure gauges for monitoring tank and output pressure.
4. Configurare
- Despachetarea: Scoateți cu grijă compresorul din ambalaj. Verificați dacă există daune în timpul transportului. Raportați imediat orice daună furnizorului.
- Plasare: Place the compressor on a firm, level, and stable surface. Ensure there is adequate ventilation around the unit to prevent overheating.
- Verificarea nivelului uleiului: As this is an oil-lubricated compressor, verify the oil level before first use. Refer to the oil sight glass or dipstick (if present) and ensure the oil is within the recommended range. Top up with appropriate compressor oil if necessary.
- Conexiune de alimentare: Connect the power cord to a grounded 230V electrical outlet. Ensure the circuit can handle the compressor's power requirements (2 HP).
- Execuție inițială: Before connecting any tools, turn on the compressor and allow it to build pressure to its maximum (10 bar). Check for any unusual noises or air leaks. Once maximum pressure is reached, the motor should stop.
5. Instrucțiuni de utilizare
Urmați acești pași pentru o funcționare sigură și eficientă:
- Pornire: Ensure the compressor is plugged in. Flip the ON/OFF switch to the 'ON' position. The compressor will begin to build pressure.
- Monitorizare presiune: Observe the dual pressure gauges. One gauge indicates the pressure inside the tank, and the other shows the regulated output pressure.
- Reglați presiunea de ieșire: Use the pressure regulator knob (typically located near the output gauge) to set the desired working pressure for your air tool. Turn clockwise to increase pressure, counter-clockwise to decrease.
- Conectați unealta pneumatică: Attach your air tool to the quick-connect coupler on the compressor. Ensure a secure connection.
- Operare: Use your air tool as required. The compressor will cycle on and off automatically to maintain the tank pressure.
- Oprire: When finished, turn the ON/OFF switch to the 'OFF' position.
- Depresurizați: Disconnect the air tool. Open the air outlet valve or use an air blow gun to release any remaining air pressure from the hose and tank until both gauges read zero.
6. Întreținere
Regular maintenance ensures the longevity and optimal performance of your ABAC START L20 compressor. The oil-injected configuration facilitates easy and quick maintenance.
- Zilnic/După fiecare utilizare:
- Condens la scurgere: Open the drain valve located at the bottom of the air tank to release accumulated moisture. This prevents rust and extends tank life.
- Weekly/Every 10-20 Operating Hours:
- Verificați nivelul uleiului: Verify the oil level using the sight glass or dipstick. Top up with ABAC-recommended compressor oil if needed.
- Inspectați filtrul de aer: Check the air filter for dirt and debris. Clean or replace if necessary to ensure proper airflow and prevent damage to the pump.
- Monthly/Every 50 Operating Hours:
- Schimbarea uleiului: Change the compressor oil. Refer to the manufacturer's specifications for the correct type and quantity of oil.
- Inspectați furtunurile și fitingurile: Check all air hoses and connections for wear, cracks, or leaks. Replace any damaged components.
Figura 3: lateral view of the compressor, indicating areas for oil level check and condensation drain valve.
7. Depanare
Această secțiune abordează problemele frecvente pe care le puteți întâmpina cu compresorul dumneavoastră.
| Problemă | Cauza posibila | Soluţie |
|---|---|---|
| Compresorul nu pornește | Fără curent, întrerupător declanșat, comutator defect | Check power connection, reset breaker, contact service if switch is faulty. |
| Presiune scăzută a aerului / Creștere lentă a presiunii | Air leak, clogged air filter, worn piston rings | Check all connections for leaks, clean/replace air filter, contact service for internal issues. |
| Zgomot sau vibrații excesive | Loose components, insufficient oil, compressor not level | Tighten loose parts, check/add oil, ensure compressor is on a stable, level surface. |
| Motorul se supraîncălzește și se oprește | Poor ventilation, prolonged use, low oil level | Ensure adequate ventilation, allow compressor to cool, check oil level. |
8. Specificații
Technical specifications for the ABAC START L20 Air Compressor:
- Marca: ABAC
- Număr de model: 8020119043080
- Voltage: 230 volți
- Sursa de alimentare: Electric cu fir
- Putere maxima: 2 Horsepower (HP)
- Capacitate rezervor: 6 litri
- Capacitatea fluxului de aer: 220 litri pe minut
- Presiune maxima: 10 bar
- Nivel de zgomot: 70 de decibeli
- Greutatea articolului: 15.5 kilograme
- Culoare: Albastru
- Stil: Orizontală
- Material: Aluminiu
- Utilizări recomandate: Tire inflation, Pressure cleaning
Figura 4: Dimensional view of the ABAC START L20 air compressor, showing its height, width, and depth.
9. Garanție și asistență
For warranty information, technical assistance, or to purchase replacement parts, please contact ABAC customer service or visit the official ABAC webPăstrați bonul fiscal ca dovadă a achiziției pentru orice reclamații în garanție.
ABAC is committed to providing durable and high-quality compressed air solutions. For further support, please refer to the contact details provided with your product packaging or on the ABAC official website-ul.
