Sumner Series 2124 Contractor Lift Instruction Manual

1. Introducere

This manual provides essential information for the safe and effective operation, setup, and maintenance of your Sumner Series 2124 Contractor Lift. Please read all instructions carefully before using the equipment to ensure personal safety and proper function.

2. Informații de siguranță

AVERTIZARE: Nerespectarea acestor instrucțiuni de siguranță poate duce la vătămări corporale grave sau deces.

• Always ensure the lift is on a stable, level surface before operation.
• Nu depășiți capacitatea maximă de încărcare a 650 lbs (295 kg).
• Never stand or work directly under a raised load. Observe all warning labels on the equipment, such as "DO NOT STAND UNDER LOAD".
• Keep hands and clothing clear of moving parts, especially the load cable and mast sections.
• Inspect the lift for damage or wear before each use. Do not operate if any components are damaged.
• Ensure all casters are locked when the lift is in position and under load.
• Folosiți echipament individual de protecție (EIP) adecvat, cum ar fi ochelari de protecție și mănuși.

Image: A worker safely operating the Sumner 2124 Contractor Lift. Always wear appropriate safety gear and follow operating procedures.

3. Produs terminatview

The Sumner Series 2124 Contractor Lift is designed for material handling, offering a maximum lift height of 24 feet and a load capacity of 650 lbs. Its compact design allows it to roll through standard doorways and tailgates. Key features include:

• Depozitare compactă: Features plunger pins for quick readjustment and compact storage, requiring no tools.
• Manevrabilitate: Equipped with large 5-inch polyurethane casters, which are lockable for stability.
• Load Cable: A 7/32-inch (5.5mm) load cable feeds inside the mast, eliminating exposed cables near the operator.
• Reversible Forks: The forks can be reversed for versatile load handling.
• Design robust: Features a stronger mast design for enhanced durability.

Image: The Sumner 2124 Contractor Lift, illustrating its main components including the mast, winch, and stable base with casters.

4. Configurare

The Sumner 2124 Contractor Lift is designed for quick setup with no tools required and no loose parts. Follow these steps for initial deployment:

1. Despacheta: Carefully remove the lift from its packaging.
2. Baza poziției: Place the lift on a firm, level surface.
3. Extindeți picioarele: Release the plunger pins and extend the outrigger legs to their fully open position. Ensure the pins securely engage.
4. Lock Casters: Engage the locks on all 5-inch polyurethane casters to prevent unintended movement.
5. Inspect Forks: Ensure the reversible forks are correctly installed and secured for your intended load.

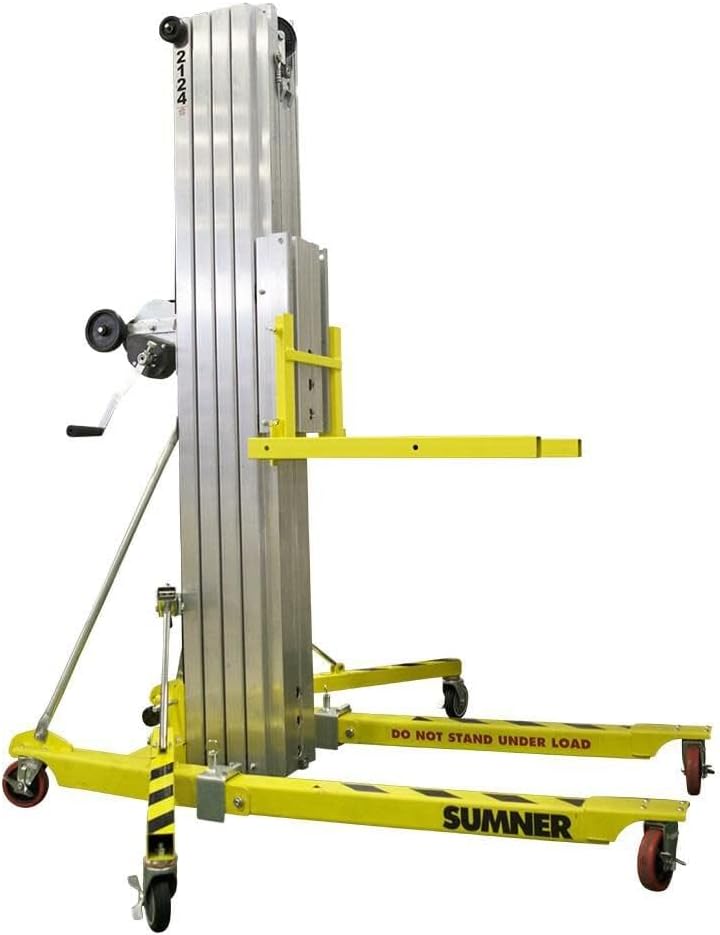

Image: The Sumner 2124 Contractor Lift with its base and forks deployed, illustrating a ready-for-use configuration.

5. Instrucțiuni de utilizare

Before operating, ensure the lift is set up correctly and all safety precautions are observed.

1. Plasarea încărcăturii: Carefully place the load onto the forks, ensuring it is centered and stable. Do not exceed the 650 lbs capacity.
2. Ridicarea sarcinii: Use the hand crank to slowly raise the load. Turn the crank clockwise to lift and counter-clockwise to lower. The internal load cable system ensures smooth operation.
3. Pozitionare: Once the load is at the desired height, ensure the lift is stable. If repositioning is needed, unlock the casters, move the lift, and then re-lock the casters before lowering or raising further.
4. Reducerea încărcăturii: Slowly turn the hand crank counter-clockwise to lower the load. Maintain control throughout the lowering process.
5. Depozitare: For compact storage, remove the load, retract the mast sections, and fold the outrigger legs using the plunger pins. Lock the casters for transport or storage.

6. Întreținere

Regular maintenance ensures the longevity and safe operation of your Sumner 2124 Contractor Lift.

• Inspecție înainte de utilizare: Before each use, visually inspect the entire lift for any signs of damage, wear, or loose components. Pay close attention to the load cable, mast sections, casters, and fork attachments.
• Verificarea cablului: Regularly check the 7/32-inch load cable for fraying, kinks, or corrosion. Replace the cable immediately if any damage is observed.
• Întreținerea roților: Keep the polyurethane casters clean and free of debris. Lubricate caster swivel points and wheel bearings periodically with a suitable grease.
• curatenie: Clean the lift regularly to remove dirt, dust, and grime. Use a mild detergent and water, then dry thoroughly. Avoid using harsh chemicals that could damage finishes or components.
• Depozitare: Store the lift in a dry, protected area when not in use to prevent corrosion and damage.

7. Depanare

This section addresses common issues you might encounter with your Sumner 2124 Contractor Lift.

• Lift Not Raising/Lowering Smoothly:
  Cauza posibila: Debris in mast sections, worn cable, or insufficient lubrication.
  Soluţie: Inspect mast for obstructions, check cable for damage, and ensure moving parts are clean and lubricated.
• Casters Not Locking/Rolling Freely:
  Cauza posibila: Debris in caster mechanism, damaged caster, or worn lock.
  Soluţie: Clean casters thoroughly. If damage is present, replace the affected caster.
• Funcționare instabilă:
  Cauza posibila: Uneven surface, outrigger legs not fully extended/locked, or overloaded.
  Soluţie: Ensure lift is on a level surface, verify outrigger legs are fully engaged with plunger pins, and confirm load does not exceed 650 lbs capacity.

8. Specificații

9. Garanție și asistență

The Sumner Series 2124 Contractor Lift comes with a garanție limitată pe viață. For warranty claims, technical support, or to order replacement parts, please contact Sumner customer service.

Asistență clienți: Please refer to the contact information provided with your purchase documentation or visit the official Sumner website pentru asistență.
