Revell 23823 Remote Control Mini Quadcopter Fizz

FEATURES

PACKAGE CONTENT

REPLACING SPARE PARTS

The toy is only to be connected to Class Il equipment bearing the symbol:

OVERVIEW

REMOTE CONTROL & MODEL

• Batteries for the transmitter:
  • Power supply: DC 4,5 V
  • Batteries: 3 x 1.5 V “AAA” (not included)
• GB Frequency range: 2400 – 2483.5 MHZ
• Maximum frequency performance: < 10 dBm

MODEL

• Batteries for the model:
  • Power supply: Rated output: DC 3.7 V / 180 mAh / 0,66 Wh rechargeable LiPo battery (included)
• USB Charger:
  • Power supply: DC 5 V
  • Max. 500 mA via USB port

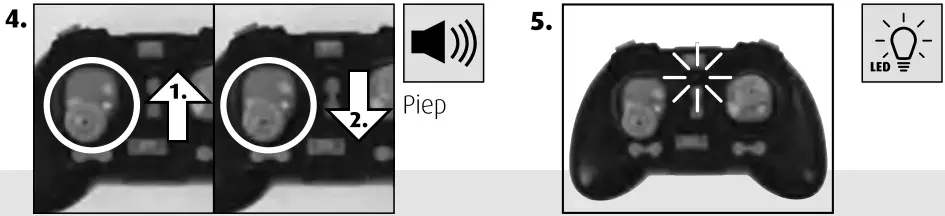

START

• Insert battery plug into the battery socket. LEDs flash.

FLIGHT CONTROL

HEADLESS MODE

• To activate the headless mode, hold down the 2E button for 2 seconds (quadrocopter flashes).
• The quadrocopter and the remote control must be pointing in the same direction.

CONTACT

You can get spare parts in the online shop

• www.revell-shop.de

QR Code

Simply scan the QR code and you will be taken to the service support page with helpful tips and information about your product.

Spare part orders from other countries are processed by the local distributors. Please contact your dealer or responsible distributor.

• www.revell-control.de

© 2020 Revell GmbH, Henschelstr. 20-30, D-32257 Bünde.
REVELL IS THE REGISTERED TRADEMARK OF REVELL GMBH, GERMANY. Made in China.
