Intex 26690GS QS1600 Plus Krystal Klear Saltwater System User Manual

1. Produto acabadoview

The Intex 26690GS QS1600 Plus Krystal Klear Saltwater System is designed to provide a convenient and efficient way to maintain your pool water. This system features wireless connectivity for enhanced ease of use, anti-scaling technology through automatic self-cleaning cycles, and an improved titanium conversion cell. It is suitable for pools up to 68.0 m³ (18,000 gallons).

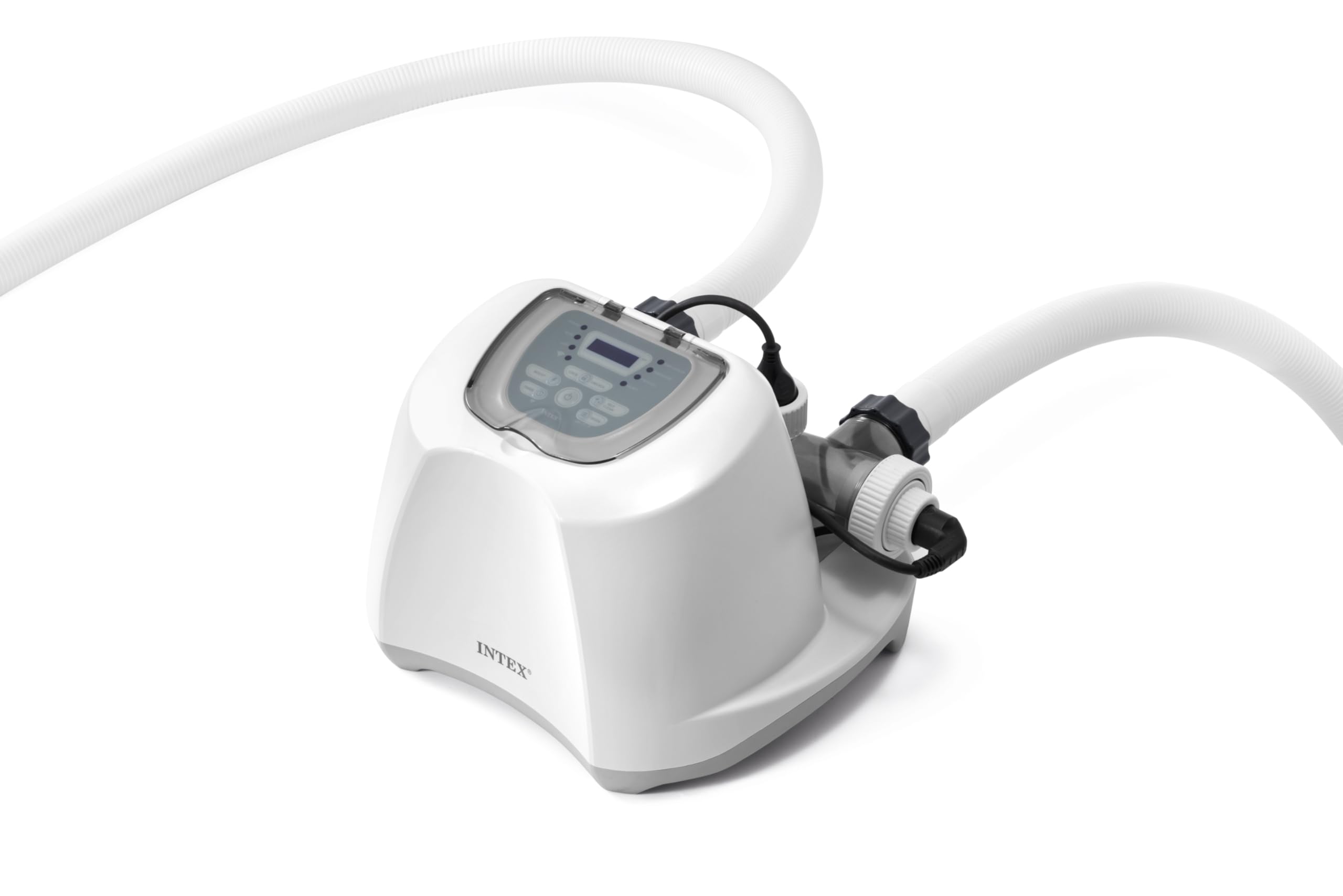

Figure 1: The Intex QS1600 Plus Krystal Klear Saltwater System.

2. Instruções de configuração

Proper setup is crucial for the optimal performance of your saltwater system. Please follow these steps carefully:

1. Ensure your pool is filled with water and your filter pump is operational. This saltwater system requires a filter pump with a flow rate between 2650-12112 L/h (700-3200 gal/h).
2. Connect the saltwater system to your pool's filtration system using the provided hoses and connectors. Ensure all connections are secure to prevent leaks.
3. Add the appropriate amount of fresh water salt to your pool. The ideal salt level is 950 ppm, and it should never exceed 1800 ppm. Refer to your pool's volume for precise salt quantity.
4. Plug the system into a 12V power outlet.

Figure 2: Saltwater system with hoses connected for installation.

3. Instruções de operação

The Intex QS1600 Plus Krystal Klear Saltwater System features a compact control panel with LED buttons for easy operation. The system includes automatic self-cleaning cycles to prevent scaling and maintain efficiency.

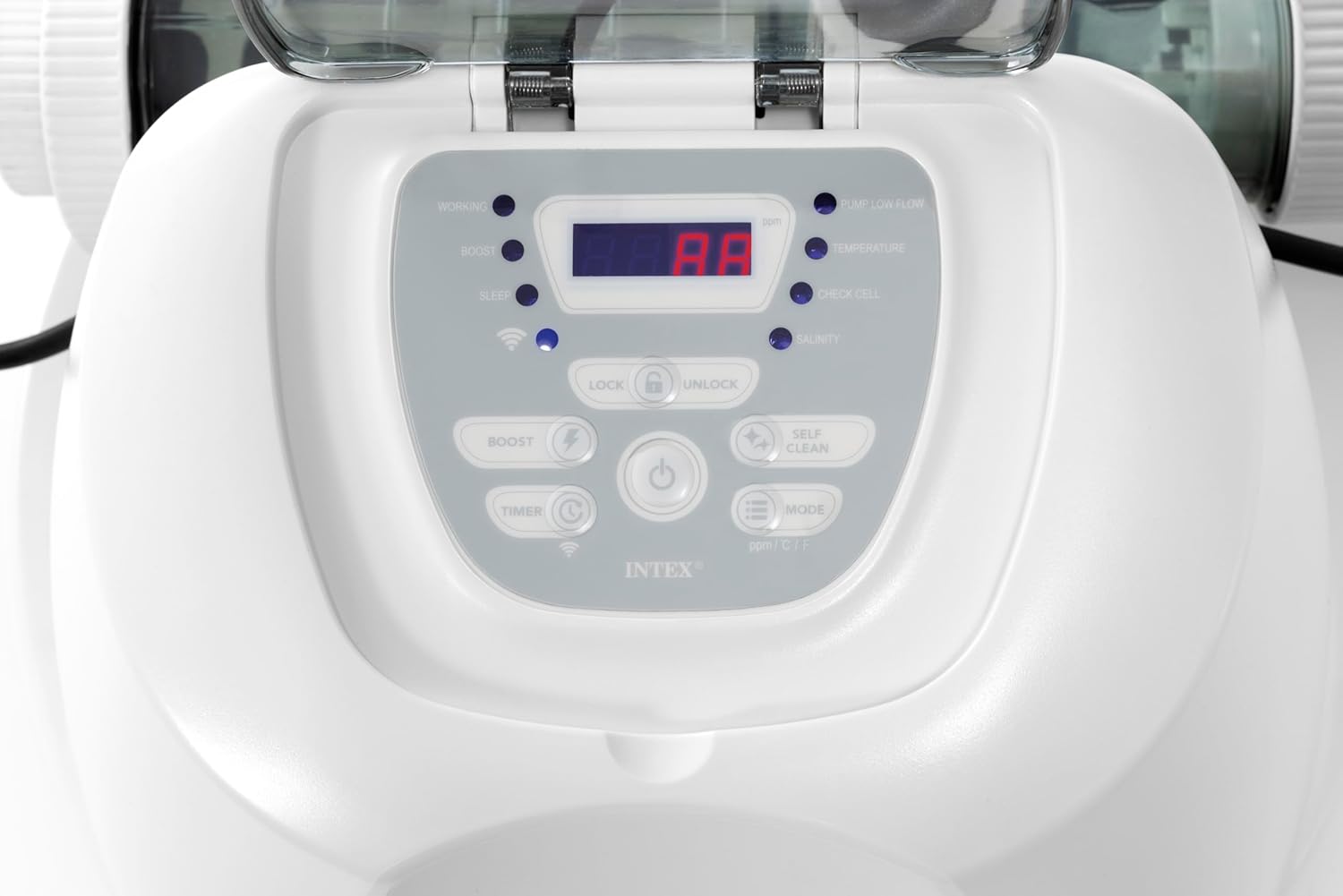

Figura 3: Close view of the control panel with LED indicators and buttons.

Funções do painel de controle:

• Botão de energia: Liga ou desliga o sistema.
• Botão do temporizador: Sets the operating duration for the system (12-hour programmable function).
• Bloquear/Desbloquear: Secures or releases the control panel settings.
• Impulsionar: Activates a temporary boost in chlorine production.
• Auto limpeza: Initiates the automatic self-cleaning cycle for the titanium conversion cell.
• Indicadores LED: Display status such as Working, Sleep, Pump Low Flow, Low Salt, High Salt, Temperature, Check Cell, and Service.

For detailed programming of the 12-hour timer function, please refer to the specific instructions in the full product manual.

4. Manutenção

The Intex QS1600 Plus Krystal Klear Saltwater System is designed with anti-scaling technology and automatic self-cleaning cycles for its titanium conversion cell. This significantly reduces the need for manual cleaning.

• Regularly check the LED indicators on the control panel for any service alerts.
• Ensure the salt level in your pool remains within the recommended range of 950-1800 ppm.
• Periodically inspect the hoses and connections for any signs of wear or leaks.

5. Solução De Problemas

This section provides general guidance for common issues. For specific error codes or complex problems, please consult the comprehensive troubleshooting guide in the full product manual or contact customer support.

• "Pump Low Flow" Indicator: Check your filter pump for proper operation and ensure there are no blockages in the hoses or filter.
• "Low Salt" Indicator: Test your pool's salt level and add more salt if necessary, ensuring it does not exceed 1800 ppm.
• "Check Cell" Indicator: The titanium conversion cell may require inspection or cleaning. Although the system has self-cleaning cycles, manual inspection might be needed.

6. Especificações

7. Garantia e Suporte

For information regarding product warranty, returns, or technical support, please refer to the warranty card included with your product or visit the official Intex webGuarde o comprovante de compra como prova de aquisição.
