Baseus Nomos 245W Charging Station User Manual

1. Produto acabadoview

The Baseus Nomos 245W Charging Station is a versatile 6-in-1 desktop power solution designed to efficiently charge multiple devices simultaneously. It features dual retractable USB-C cables, multiple USB-C and USB-A ports, and a Qi2 certified magnetic wireless charger. Powered by advanced GaN technology and BPS3.0 smart power allocation, this station provides high-speed charging while maintaining a compact form factor and ensuring device safety.

Image 1.1: The Baseus Nomos 245W Charging Station showcasing its various ports and the integrated wireless charging pad.

2. O que está na caixa

• 1 x Baseus Nomos Charging Station 245W
• 1 x 245W Power Adapter with 5ft Power Cord
• 1 x Manual do Usuário

3. Recursos do Produto

• Potência total de saída de 245 W: Delivers a combined 245W across all ports for simultaneous charging of up to 6 devices.
• Dual Retractable USB-C Cables: Two built-in 80 cm (31.5 inches) braided USB-C cables with 100W max output each, designed for neat cable management and durability.
• Qi2 Certified 15W Magnetic Wireless Charger: Provides 15W fast wireless charging for compatible devices, ensuring precise alignment.
• Múltiplas portas: Includes 4 USB-C ports (two retractable, two fixed) and 1 USB-A port for broad device compatibility.
• BPS3.0 Smart Power Allocation: Intelligently distributes power to connected devices for optimal charging speed and safety.
• GaN Chip Technology: Utilizes advanced Gallium Nitride (GaN) technology for a compact and efficient design.
• Visualized LCD Display: A 3-inch LCD screen shows real-time charging data, including total output, individual port power, and overall performance.
• Proteções de segurança: Features protection against short circuits, over-voltage, and overheating, with a modular internal design for enhanced heat dissipation.

Image 3.1: Illustration of the BPS3.0 Smart Power Allocation system distributing power to various devices.

4. Instruções de configuração

1. Desembale o dispositivo: Carefully remove the charging station, power adapter, and power cord from the packaging.
2. Conecte a energia: Insert the 245W power adapter into the designated power input port on the charging station. Connect the power cord to the adapter and then plug it into a standard wall outlet.
3. Colocação: Place the charging station on a stable, flat surface, ensuring adequate ventilation around the unit. The hollow base design aids in passive cooling.
4. Inicialização: The LCD display will automatically activate when powered on, showing real-time charging data.

5. Instruções de operação

5.1 Carregamento com fio

1. Using Retractable USB-C Cables: Gently pull the braided USB-C cables from their slots to extend them. Connect the USB-C end to your device. To retract, press the button next to the cable and guide it back into the station. Avoid forcing the cables.
2. Using Fixed USB-C/USB-A Ports: Connect your device's charging cable to the appropriate USB-C (C3/C4) or USB-A port on the charging station.
3. Fornecimento de energia: The USB-C3/C4 ports can deliver up to 140W individually. The station's BPS3.0 system will automatically adjust power output based on the number and type of connected devices.

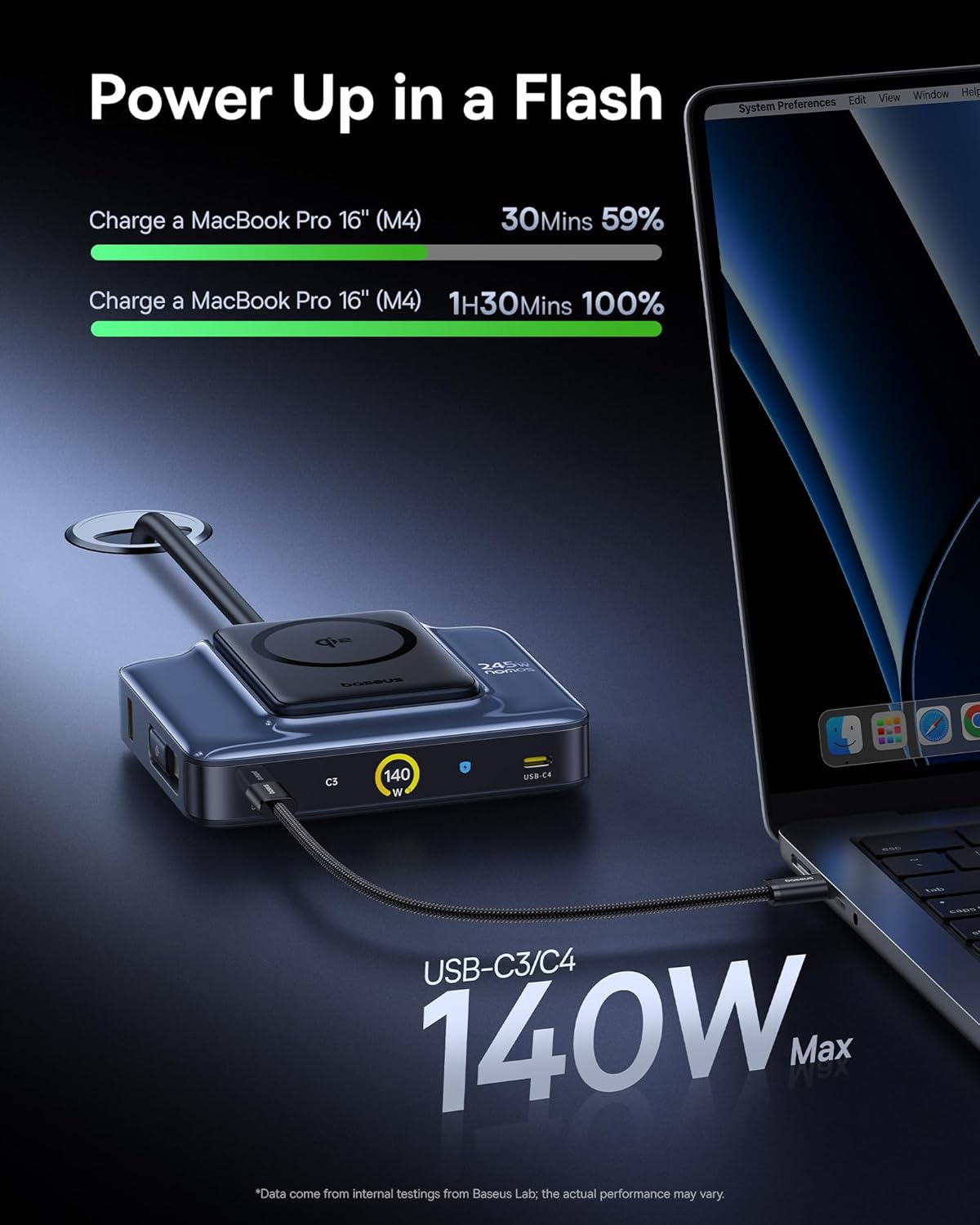

Image 5.1: The charging station providing 140W fast charging to a MacBook Pro 16 inch via a USB-C port.

5.2 Wireless Charging (Qi2)

1. Posicionamento: Place your Qi2-compatible device (e.g., iPhone 12-17 series) onto the magnetic wireless charging pad. The magnets will ensure proper alignment.
2. Status de carregamento: The LCD display will show the wireless charging status and power output (up to 15W).
3. Compatibilidade do caso: The wireless charger supports charging through cases up to 3mm thick.

Image 5.2: An iPhone 17 Pro being wirelessly charged on the Qi2 magnetic pad of the Baseus Nomos station.

Display LCD 5.3

The 3-inch LCD digital display provides real-time charging information. Press the button on the station to toggle between different display modes:

• Produção total: Shows the combined wattage being delivered by the station.
• Individual Port Power: Exibe o wattage for each active port.
• Desempenho geral: May indicate charging modes (e.g., Balanced, High Performance, Smart Cooling).

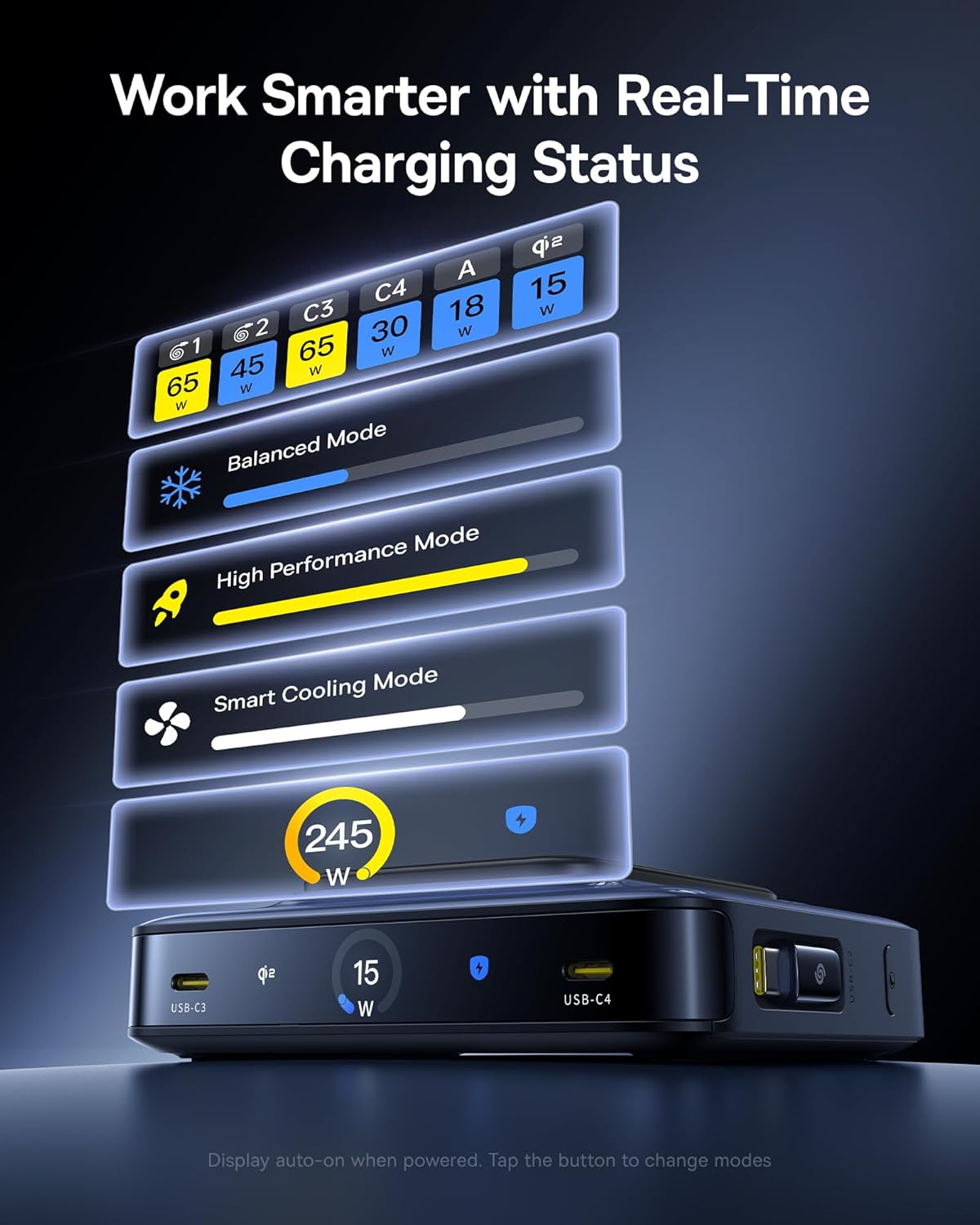

Image 5.3: The LCD display on the charging station showing real-time power output for each port and various operational modes.

6. Especificações

7. Solução De Problemas

7.1 O dispositivo não está carregando

• Verifique a conexão de energia: Ensure the charging station is securely plugged into a working wall outlet.
• Conexão à cabo: Verify that the charging cables are firmly connected to both the charging station and your device.
• Integridade do cabo: Inspect cables for any visible damage. Try a different cable if available.
• Wireless Charging Alignment: For wireless charging, ensure your device is correctly centered on the magnetic pad. Remove thick cases if necessary.
• Compatibilidade do dispositivo: Confirm your device is compatible with the charging station's output specifications (USB-C PD, Qi2, etc.).

7.2 Carregamento lento

• Qualidade do cabo: Use high-quality, certified charging cables that support fast charging protocols.
• Alocação de energia: When multiple devices are connected, the BPS3.0 system distributes power. Charging speeds may vary depending on the total load. Refer to the LCD display for individual port output.
• Device Input Limits: Ensure your device supports the higher wattage output from the charging station. Some devices have maximum input limits.
• Aplicativos em segundo plano: Close power-intensive applications on your device during charging.

7.3 Superaquecimento

• Ventilação: Ensure the charging station is placed in a well-ventilated area and its vents are not obstructed.
• Temperatura Ambiental: Avoid using the charger in excessively hot environments.
• Reduza a carga: If the station feels excessively hot, temporarily disconnect some devices to reduce the load. The smart cooling mode will activate to manage temperature.

8. Informações de segurança

• Não exponha o dispositivo à água, umidade ou temperaturas extremas.
• Evite deixar cair, desmontar ou tentar reparar o dispositivo por conta própria.
• Mantenha fora do alcance de crianças.
• Utilize apenas o adaptador de energia e o cabo fornecidos.
• Garanta ventilação adequada para evitar superaquecimento.
• Disconnect the power when not in use for extended periods.

9. Manutenção

• Clean the charging station with a soft, dry cloth. Do not use liquid cleaners or aerosols.
• Regularly check cables for wear and tear. Replace damaged cables immediately.
• Mantenha as portas livres de poeira e detritos.

10. Garantia e Suporte

The Baseus Nomos 245W Charging Station comes with a Garantia de 2 ano from the date of purchase, covering manufacturing defects. For warranty claims, technical support, or further assistance, please contact Baseus customer service through their official website ou o varejista onde o produto foi comprado.
