ALSO GO 21V Electric Weed Eater User Manual

Introdução

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your ALSO GO 21V Electric Weed Eater. Please read this manual thoroughly before using the product and retain it for future reference.

Informações de segurança

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or property damage.

• Leia todas as instruções: Familiarize-se com os controles e o uso correto da ferramenta.
• Use proteção ocular: Always wear safety glasses or goggles when operating the weed eater.
• Vista roupas apropriadas: Long pants, sturdy footwear, and gloves are recommended. Avoid loose clothing that could get caught in moving parts.
• Mantenha a área limpa: Ensure no bystanders, children, or pets are within the operating area.
• Inspecione antes de usar: Verifique se há peças danificadas, fixadores soltos ou qualquer outra condição que possa afetar a operação segura.
• Remova a bateria quando não estiver em uso: Always remove the battery pack when making adjustments, changing accessories, or storing the tool.
• Evite condições úmidas: Do not operate the weed eater in rain or damp condições.
• Use Correct Blades: Only use blades specified for this product.

Conteúdo da embalagem

Verifique se todos os itens listados abaixo estão incluídos em seu pacote. Caso algum item esteja faltando ou danificado, entre em contato com o suporte ao cliente.

Descrição da imagem: A complete set of the ALSO GO 21V Electric Weed Eater components, including the main unit with wheels, two 21V batteries, a charger, various blades (nylon, saw disc, metal), protective cover, anti-collision bar, wrench, and safety gloves.

• ALSO GO 21V Electric Weed Eater Main Unit
• 2 baterias de lítio 21V 2000mAh
• Carregador de bateria
• 5 x Nylon Blades (for weeds)
• 2 x Round Saw Blades (for thick grass)
• 2 x Metal Blades (for shrubs)
• Capa protetora
• Anti-collision Bar
• Stabilizer Wheel Attachment
• Chave inglesa
• Luvas de segurança
• Manual de instruções

Produto acimaview e Componentes

Understand the different parts of your weed eater for proper assembly and operation.

Descrição da imagem: A detailed diagram illustrating the main components of the weed eater, including the Work Button, Black Handle, 21V 2000mAh Lithium Battery, Stainless Steel Telescopic Tube, Adjust Telescoping Knob, Motor, Protective Cover, and Saw Blade Work Head.

• Work Button: Ativa o motor.
• Black Handle: Cabo ergonômico para maior controle.
• Bateria de lítio de 21 V e 2000 mAh: Fornece energia à unidade.
• Stainless Steel Telescopic Tube: Permite ajuste de comprimento.
• Adjust Telescoping Knob: Used to lock the telescopic tube at the desired length.
• Motor: Drives the cutting head.
• Capa protetora: Shields the user from debris.
• Saw Blade Work Head: The attachment point for various blades.

Descrição da imagem: An illustration showing the three types of blades included: plastic blades for light weeds, a saw disc for thicker branches, and metal blades for dense grass and shrubs.

The weed eater comes with a 3-in-1 blade system for various cutting needs:

• Lâminas de plástico: Ideal for light grass and weeds.
• Saw Disc: Suitable for thicker brush and small branches.
• Metal Blades: Best for dense grass and tougher weeds.

Configuração e montagem

Follow these steps to assemble your ALSO GO Electric Weed Eater.

Descrição da imagem: An 8-step visual guide demonstrating the assembly process of the weed wacker, from removing the nut and shim to installing blades and adjusting the machine head.

1. Step 1: Remove Nut and Shim. Use the provided wrench to remove the nut and shim counterclockwise from the work head.
2. Step 2: Remove the Lid. Carefully remove the lid covering the blade attachment area.
3. Step 3: Install Protection Cover. Install the protection cover and rotate it to the correct position, ensuring it is securely fastened.
4. Step 4: Install Anti-Collision Bar. Attach the anti-collision bar to the designated slots on the protective cover.
5. Step 5: Install the Lid. Reinstall the lid, ensuring it clicks into place.
6. Step 6: Install Blade and Shim. Place the desired blade onto the work head, followed by the shim.
7. Step 7: Tighten Nut. Install the nut and use the wrench to tighten it clockwise until secure.
8. Step 8: Adjust Machine Head. Adjust the machine head to your preferred working angle and height. Ensure all connections are tight before starting operation.

Carregamento da bateria

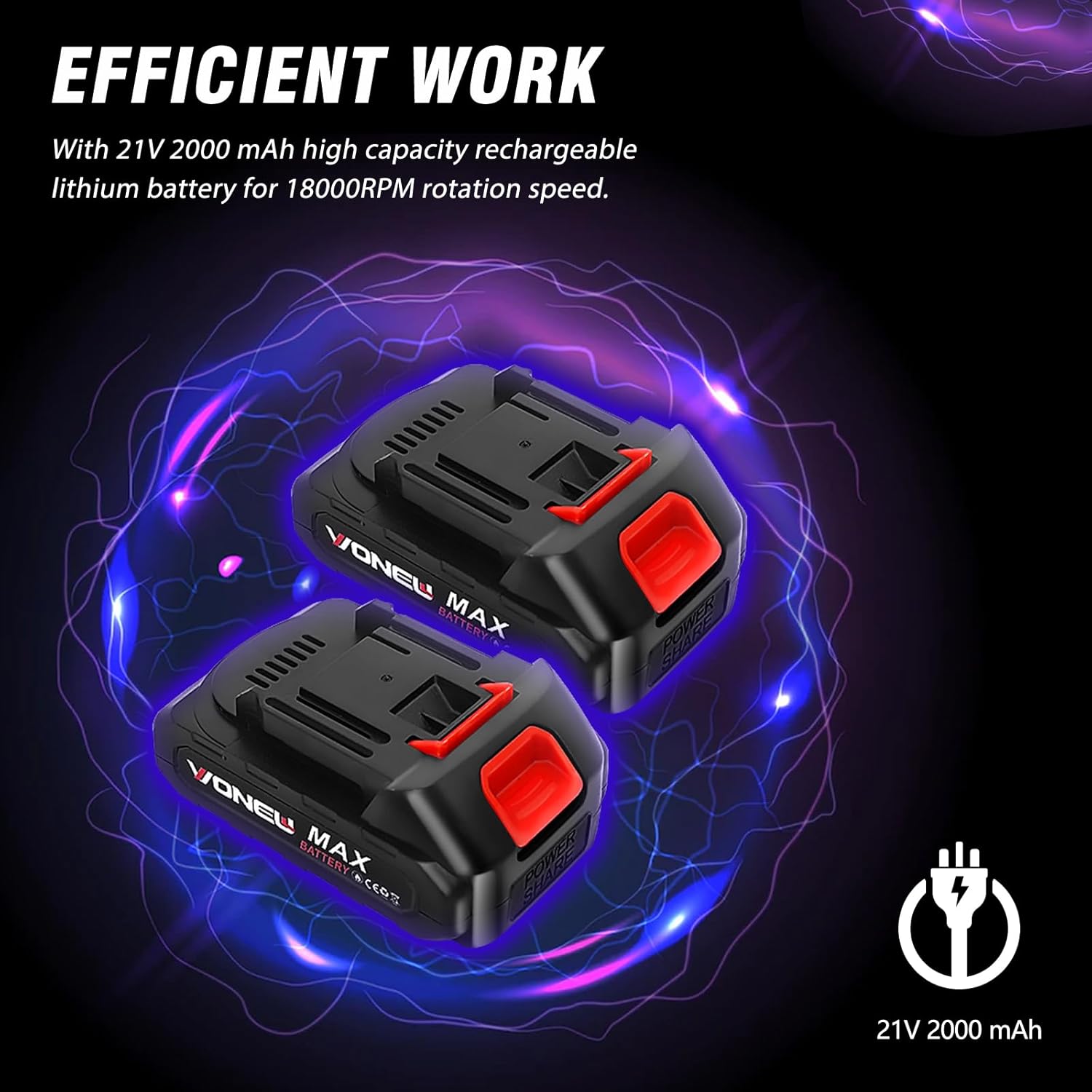

Descrição da imagem: Two 21V 2000mAh lithium batteries, highlighting their capacity for efficient operation.

• Insira a bateria no carregador.
• Conecte o carregador em uma tomada elétrica padrão.
• A luz indicadora no carregador mostrará o status do carregamento (normalmente vermelha para carregando, verde para totalmente carregado).
• Allow approximately 1 hour for each battery to fully charge.
• Do not overcharge batteries. Remove them once fully charged.

Instruções de operação

Follow these guidelines for safe and effective operation of your weed eater.

Antes de começar

• Ensure the battery is fully charged and securely inserted into the tool.
• Select the appropriate blade for the task (nylon for light grass, metal for dense grass, saw disc for brush).
• Adjust the telescopic pole length and handle angle for comfortable operation.
• Clear the work area of any obstacles, rocks, or debris that could be thrown by the blade.

Iniciando e Parando

• To start: Press the safety lock button (if present) and then squeeze the work button.
• To stop: Release the work button. The blade will stop rotating.

Técnicas de poda

Descrição da imagem: A woman demonstrating the ergonomic use of the cordless weed eater, highlighting its lightweight design and ease of maneuverability for comfortable operation.

• Movimento de varredura: Use a side-to-side sweeping motion to cut grass and weeds.
• Borda: For precise edging, tilt the head of the trimmer to a vertical position and guide the wheels along the edge of your lawn or pathway.
• Under Bushes/Fences: The adjustable telescopic pole allows you to reach difficult areas without excessive bending.
• Stabilizer Wheel: Utilize the stabilizer wheel for consistent cutting height and reduced fatigue, especially on even surfaces or for edging.

Descrição da imagem: A woman using the weed eater to trim hedges, demonstrating its versatility for various garden tasks beyond just grass trimming.

Manutenção

Regular maintenance ensures the longevity and optimal performance of your weed eater.

• Limpeza: After each use, remove the battery and clean the tool with a damp cloth. Remove any grass, dirt, or debris from the protective cover and blade area.
• Inspeção da lâmina: Regularly inspect blades for wear, damage, or dullness. Replace worn or damaged blades immediately.
• Cuidados com a bateria: Armazene as baterias em local fresco e seco. Não armazene baterias totalmente descarregadas por longos períodos.
• Armazenar: Store the weed eater in a dry, secure location out of reach of children.

Solução de problemas

Consulte esta seção para obter informações sobre problemas comuns e suas soluções.

Especificações

Technical details of the ALSO GO 21V Electric Weed Eater.

Descrição da imagem: A diagram showing the product dimensions, including a 129cm (approx. 50.8 inches) overall length when extended and 93cm (approx. 36.6 inches) when retracted, with a 36cm (approx. 14.2 inches) handle length and a 15.24cm (6 inches) cutting width.

• Número do modelo: HG0192
• Fonte de energia: Alimentado por bateria
• Tipo de Bateria: 21V 2000mAh Lithium Ion (2 included)
• Largura de corte: 6 polegadas (15.24 cm)
• Dimensões do produto (estendidas): Approximately 56"L x 6"W (142cm L x 15.24cm W)
• Peso do item: 0.38 quilogramas (aproximadamente 13.4 onças)
• Montagem necessária: Sim
• Estilo: Alta tecnologia
• Usos recomendados: Aparar e cortar bordas

Garantia e Suporte

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official ALSO GO website. Guarde o comprovante de compra para solicitações de garantia.

Fabricante: ALSO GO

ASIN: B0DZ2C53RT
