1. Introdução
Thank you for choosing the Midea MDRS681FGE02 Side-by-Side Refrigerator/Freezer. This appliance is designed to provide efficient and reliable food storage with advanced features such as NoFrost technology, an Inverter Compressor, and a convenient water and ice dispenser. This manual provides essential information for the safe installation, operation, and maintenance of your new refrigerator. Please read it thoroughly before use and keep it for future reference.
Figura 1.1: Frente view of the Midea MDRS681FGE02 Side-by-Side Refrigerator/Freezer, showcasing its stainless steel finish and integrated water and ice dispenser.
2. Informações de segurança
Your safety and the safety of others are paramount. Please read and follow all safety instructions provided in this manual to prevent potential hazards. Keep this appliance away from heat sources and direct sunlight. Ensure proper ventilation around the unit. Do not allow children to play with or inside the appliance.
- Desligue sempre o aparelho da tomada antes de limpá-lo ou realizar qualquer manutenção.
- Não danifique o circuito refrigerante.
- Certifique-se de que o cabo de alimentação não esteja comprimido ou danificado.
- Este aparelho deve ser devidamente aterrado.
3. Configuração e instalação
A instalação correta é crucial para o desempenho ideal e a longevidade do seu refrigerador.
3.1 Desembalagem
Remove all packaging materials, including tape and protective films. Dispose of packaging responsibly.
3.2 Posicionamento
Place the refrigerator on a firm, level floor capable of supporting its weight (approximately 112 kg). Allow adequate space around the unit for proper air circulation (at least 10 cm on sides and back). Avoid placing it near heat sources like ovens, radiators, or in direct sunlight. The dimensions of the appliance are approximately 176.5 cm (Height) x 89.7 cm (Width) x 76.1 cm (Depth).
3.3 Nivelamento
Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. This helps prevent vibrations and ensures proper door sealing.
3.4 Conexão de Energia
Connect the refrigerator to a dedicated, grounded electrical outlet with the correct voltage as specified on the rating label. Do not use extension cords or adapter plugs.
3.5 Conexão da linha de água
This model features a water and ice dispenser requiring a fixed water connection. Connect the appliance to a potable water supply using the provided water line kit. Ensure all connections are secure and leak-free. Refer to the detailed plumbing instructions included with the water line kit for specific steps.
4. Instruções de operação
Familiarize yourself with the controls and features of your Midea refrigerator.
Figura 4.1: Interior view of the refrigerator and freezer compartments, showing ample storage space and organized shelving.
4.1 Controls and LED Display
The refrigerator is equipped with an intuitive LED display on the front door, allowing you to monitor and adjust settings. Use the touch controls to set temperatures, activate special functions, and operate the dispenser.
4.2 Temperature Settings (Twin Control)
The Twin Control system allows for independent temperature management of the refrigerator and freezer compartments. The refrigerator compartment typically operates between 2°C and 8°C, while the freezer compartment can be set from -16°C to -24°C. Adjust temperatures as needed for optimal food preservation.
Figure 4.2: Illustration of the dual temperature control system, showing separate temperature ranges for the freezer (left) and refrigerator (right) compartments.
4.3 NoFrost Technology
The NoFrost system prevents ice buildup in both the freezer and refrigerator compartments, eliminating the need for manual defrosting. This ensures consistent cooling and better food preservation.
Figure 4.3: Visual representation of the NoFrost technology, demonstrating the absence of ice accumulation compared to traditional freezers.
4.4 Compressor Inverter
The Inverter Compressor provides energy-efficient operation, maintains stable temperatures, reduces noise levels, and contributes to a longer lifespan for the appliance. It adjusts its speed based on cooling demand, leading to more consistent performance.
Figure 4.4: Diagram illustrating the benefits of the Inverter Compressor, including energy efficiency, stable temperature, low noise, and extended durability.
4.5 Water and Ice Dispenser Usage
To dispense water or ice, place a glass under the dispenser spout and press the appropriate lever. You can select between chilled water, crushed ice, or ice cubes using the controls on the LED display.

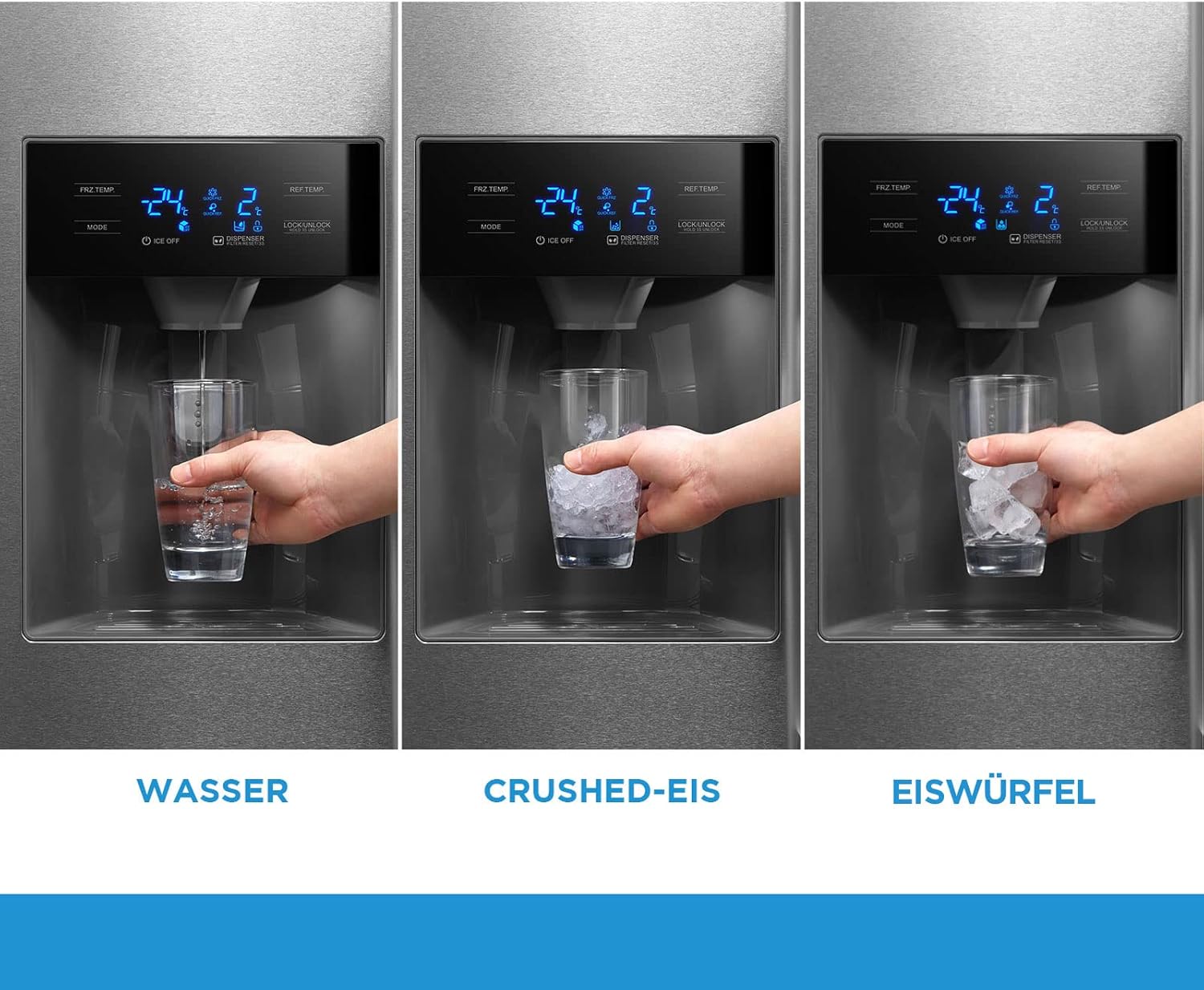

Figura 4.5: Close view of the dispenser in action, showing options for water, crushed ice, and ice cubes.
5. Manutenção e Cuidados
A manutenção regular garante a eficiência e a longevidade do seu aparelho.
5.1 Limpeza do interior
Unplug the refrigerator before cleaning. Clean the interior regularly with a mild detergent and warm water. Wipe dry with a soft cloth. Do not use abrasive cleaners or solvents.
5.2 Limpeza do Exterior
Limpe as superfícies exteriores com um pano macio, damp cloth. For stainless steel surfaces, use a specialized stainless steel cleaner. Keep the door seals clean to ensure a tight seal.
5.3 Descongelamento
Thanks to the NoFrost system, manual defrosting of the freezer compartment is not required. However, ensure that the air vents inside the refrigerator are not blocked to maintain proper air circulation.
5.4 Water Filter Replacement (If Applicable)
If your model includes an internal water filter, replace it periodically as recommended by the manufacturer to ensure clean water and ice. Refer to the filter replacement instructions provided with your appliance.
6. Solução De Problemas
Antes de entrar em contato com o serviço de assistência técnica, verifique os seguintes problemas comuns e suas soluções:
| Problema | Possível causa | Solução |
|---|---|---|
| Geladeira não está resfriando | No power; thermostat set too high; door not closed properly. | Verifique a alimentação elétrica; ajuste o termostato; certifique-se de que a porta esteja completamente fechada. |
| Ruído excessivo | Aparelho desnivelado; objetos vibrando contra a unidade. | Level the appliance; remove any vibrating objects. |
| Water/Ice dispenser not working | Abastecimento de água interrompido; filtro de água entupido; dispensador travado. | Verifique a válvula de abastecimento de água; troque o filtro de água; destrave o dispensador. |
| Vazamento de água | Water line connection loose; clogged drain pan. | Tighten water line connections; clean drain pan. |
7. Especificações
Detailed technical specifications for the Midea MDRS681FGE02 refrigerator:
| Recurso | Especificação |
|---|---|
| Número do modelo | MDRS681FGE02 |
| Volume Líquido Total | 516 litros |
| Volume líquido do refrigerador | 334 litros |
| Volume líquido do congelador | 182 litros |
| Classe de Eficiência Energética | E |
| Consumo anual de energia | 317 kWh/ano |
| Dimensões (A x L x P) | 176.5 x 89.7 x 76.1 cm |
| Nível de ruído | 41 dB |
| Sistema de degelo | Sem geada |
| Tipo de compressor | Compressor Inversor |
| Características especiais | Water/Ice Dispenser (fixed water connection), LED Display, Twin Control |
| Cor | Aço inoxidável |
Figure 7.1: European Energy Label for Midea MDRS681FGE02, indicating its energy efficiency class E and annual energy consumption of 317 kWh. For more details, visit the Banco de dados EPREL.
8. Garantia e Suporte
Midea products are manufactured to high-quality standards. For information regarding warranty coverage, returns, or technical support, please refer to the documentation provided at the time of purchase or visit the official Midea website. If you encounter any issues not covered in the troubleshooting section, please contact Midea customer service for assistance.
