Arofa Kitchen Faucet with Pull Down Sprayer (Chrome, Model E02Y11-02-02CP) Instruction Manual

Introdução

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your Arofa Kitchen Faucet with Pull Down Sprayer. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

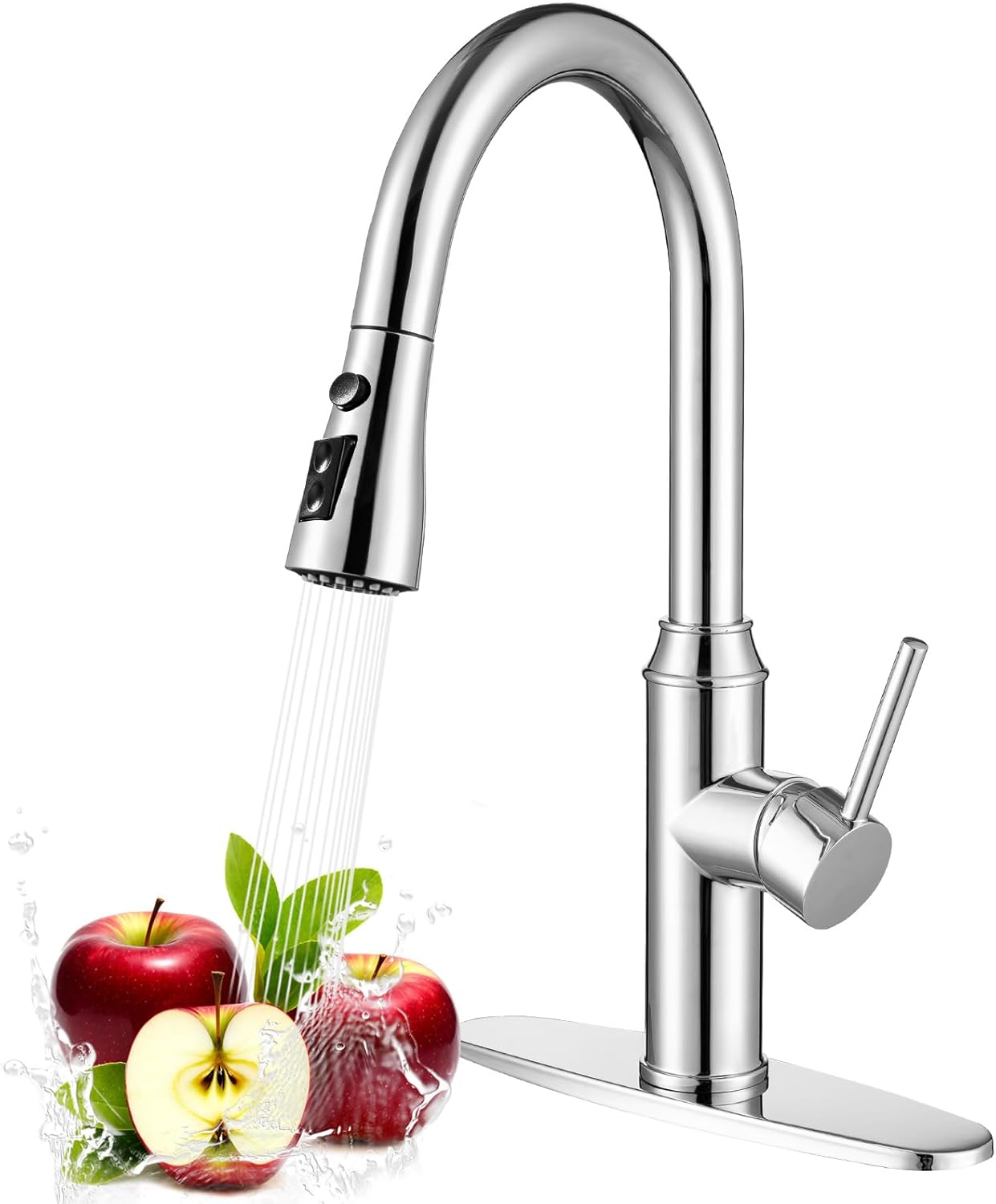

Figure 1: Arofa Kitchen Faucet with Pull Down Sprayer, Chrome finish, shown with water flowing from the sprayer head.

Especificações

Figure 2: Detailed dimensions and compatibility for 1 or 3-hole kitchen sink installations.

Instruções de instalação

Before beginning installation, ensure you have all necessary tools and components. Turn off the main water supply before proceeding.

Lista de componentes:

• Faucet body with pull-down sprayer
• Deck plate (for 3-hole installation)
• Mounting nut and washer
• Hot and cold water supply lines (pre-attached)
• Gravity ball weight
• Manual do usuário (este documento)

Instalação passo a passo:

1. Prepare o buraco para a dolina: If installing on a 3-hole sink, place the deck plate over the holes. For a 1-hole sink, the deck plate is optional. Ensure the mounting surface is clean and dry.
2. Torneira de encaixe: Feed the faucet's supply lines and sprayer hose through the sink hole (and deck plate, if used). Position the faucet body securely on the sink or deck plate.
3. Fixe a torneira: From underneath the sink, slide the rubber washer and metal washer onto the threaded shank. Hand-tighten the mounting nut. Ensure the faucet is aligned correctly before fully tightening the nut with a basin wrench or appropriate tool.
4. Conectar as linhas de abastecimento de água: Connect the hot and cold water supply lines from the faucet to your home's hot and cold water valves. Ensure connections are tight to prevent leaks.
5. Instalar a Bola de Gravidade: Attach the gravity ball weight to the pull-down sprayer hose underneath the sink. Position it approximately 6-8 inches from the end of the hose to ensure proper retraction of the sprayer head.
6. Teste de vazamentos: Once all connections are secure, slowly turn on the main water supply and check for any leaks around the connections. Operate the faucet to ensure proper water flow and sprayer function.

Figure 3: Visual representation of the 4-step installation process, including securing the faucet and attaching the gravity ball.

Figure 4: An illustration of the faucet's under-sink components, including the supply lines and gravity ball weight for hose retraction.

Instruções de operação

Operação com uma única alavanca:

The single lever handle controls both water flow and temperature. Lift the handle to turn on the water and adjust the flow rate. Move the handle left for hot water and right for cold water.

Figure 5: The single handle allows for precise control of water temperature and flow. Hot and cold indicators are present.

Pull-Down Sprayer with 3 Modes:

The faucet features a pull-down sprayer with an extended 20-inch reach and 360-degree swivel capability for enhanced flexibility. The sprayer head offers three distinct water modes:

• Modo de transmissão: Provides a steady, aerated flow for filling pots and general washing.
• Modo de pulverização: Delivers a powerful, wide spray for rinsing dishes and cleaning the sink.
• Modo de pausa: Temporarily stops water flow from the sprayer head, useful for avoiding splashes when moving the sprayer between tasks or outside the sink.

Switch between modes using the buttons located on the sprayer head. The gravity ball ensures smooth retraction and secure docking of the sprayer after use.

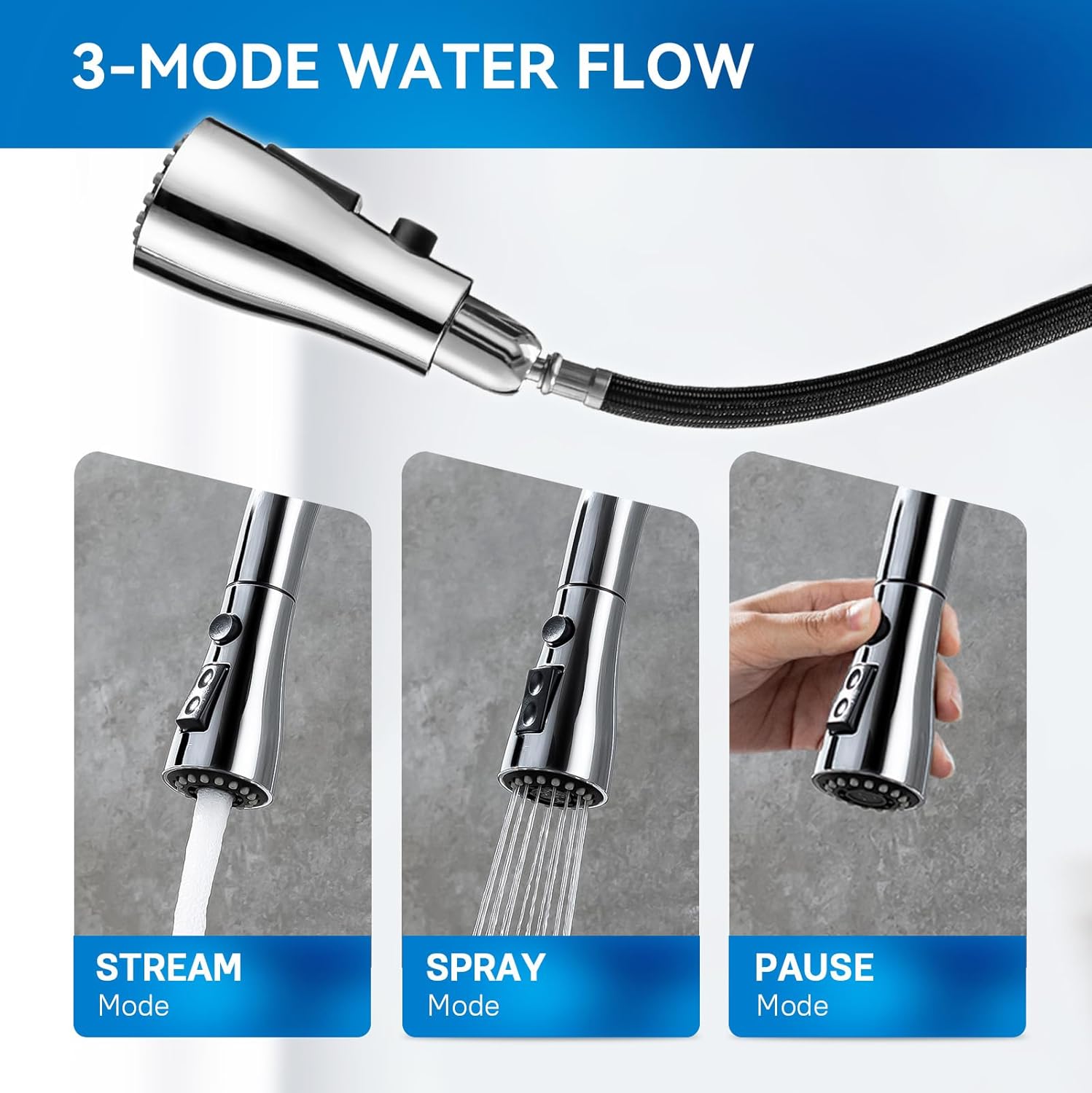

Figure 6: The sprayer head offers Stream, Spray, and Pause modes, selectable via buttons.

Figure 7: The pull-down sprayer extends up to 20 inches, features 360-degree rotation, and automatically docks back into place.

Cuidados e Manutenção

Proper care and maintenance will ensure the longevity and optimal performance of your Arofa kitchen faucet.

Limpeza da torneira:

• Use um pano macio e sabão neutro ou um produto de limpeza não abrasivo específico para acabamentos cromados.
• Evite produtos de limpeza abrasivos, produtos químicos agressivos ou esponjas de aço, pois podem danificar o acabamento.
• Enxágue bem com água limpa e seque com um pano macio para evitar manchas de água.

Cleaning the Sprayer Nozzle:

The sprayer nozzle features soft rubber holes that allow for easy removal of mineral build-up. Simply rub the rubber nozzles with your finger or a soft brush to dislodge any deposits and maintain a consistent spray pattern.

Figure 8: The soft rubber nozzles on the sprayer head can be easily cleaned by hand to remove mineral deposits.

Componentes internos:

The faucet is equipped with a high-quality ceramic cartridge, tested for 500,000 cycles to ensure leak-proof performance. The PEX hose is designed for high temperature and pressure resistance. These components generally require no user maintenance.

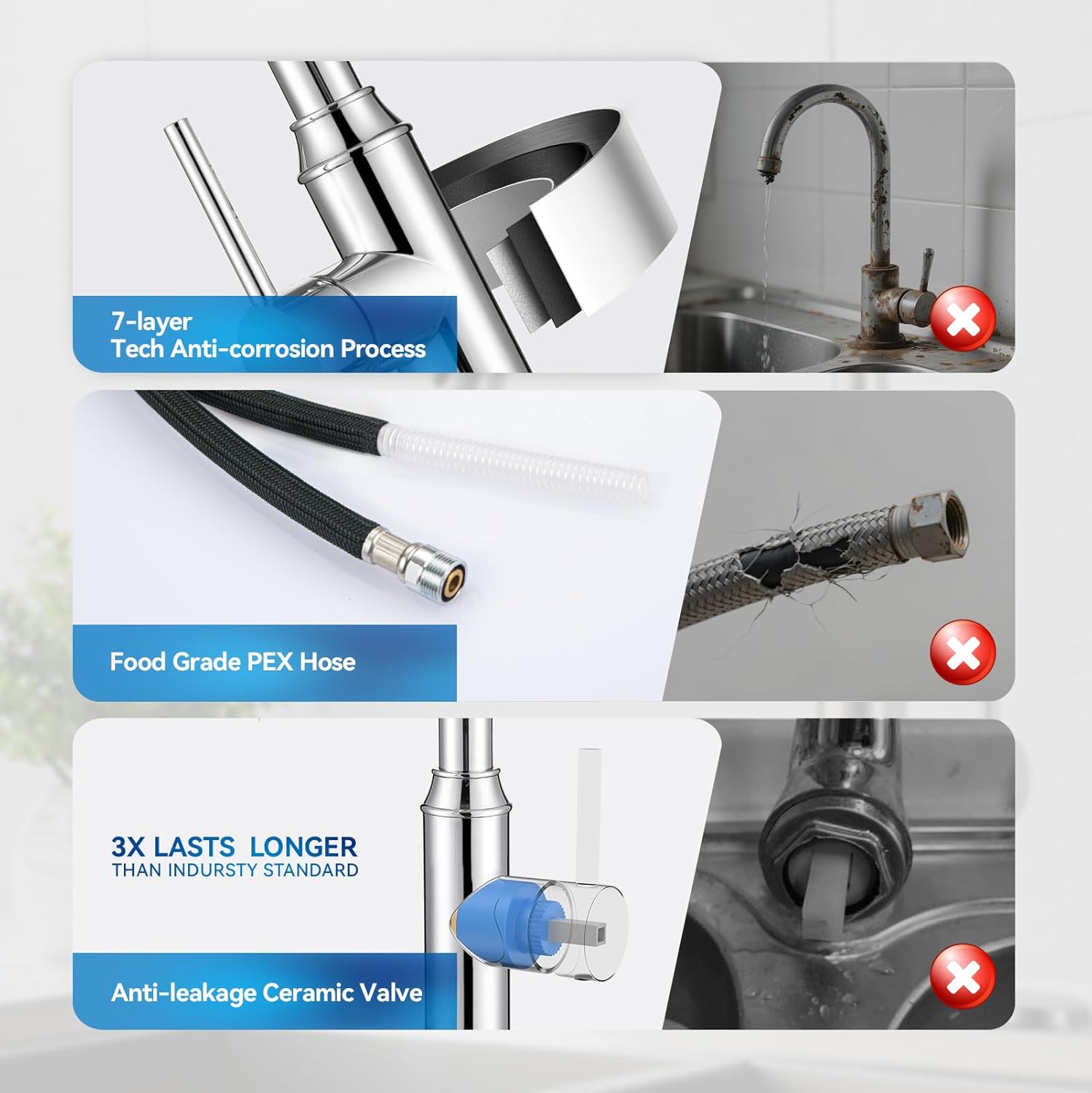

Figure 9: Illustration of the faucet's durable construction, including a 7-layer anti-corrosion finish, food-grade PEX hose, and a ceramic valve for leak prevention.

Guia de solução de problemas

This section addresses common issues you might encounter with your faucet. For problems not listed here, please contact customer support.

Informações de garantia

The Arofa Kitchen Faucet (Model E02Y11-02-02CP) comes with a Garantia limitada de 5 ano from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, accident, or normal wear and tear.

Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, please contact Arofa customer service.

Suporte ao cliente

If you have any questions, require assistance with installation, or need to make a warranty claim, please contact our customer support team. We are committed to providing 24-hour customer service.

• Suporte online: Visit the official Arofa webSite com perguntas frequentes e recursos de suporte.
• Suporte por e-mail: [Insert Customer Service Email Here, if available]
• Suporte por telefone: [Insert Customer Service Phone Number Here, if available]

Figure 10: Arofa offers 24-hour customer service, a 5-year warranty, and a 30-day return policy.
