Manual de Instruções da Panela de Arroz Midea Série 4000 de 20 Xícaras

Instruções importantes de segurança

Leia atentamente todas as instruções antes de usar este aparelho para garantir um funcionamento seguro e eficiente. Guarde este manual para futuras consultas.

• Não toque em superfícies quentes. Use alças ou botões.
• Para evitar choque elétrico, não mergulhe o cabo, os plugues ou a unidade principal em água ou qualquer outro líquido.
• É necessária supervisão rigorosa quando qualquer aparelho for usado por crianças ou perto delas.
• Desligue da tomada quando não estiver em uso e antes de limpar. Deixe esfriar antes de colocar ou retirar peças.
• Não opere nenhum aparelho com o cabo ou plugue danificado ou após o aparelho apresentar mau funcionamento ou ter sido danificado de qualquer forma.
• O uso de acessórios não recomendados pelo fabricante do aparelho pode causar ferimentos.
• Não utilize ao ar livre.
• Não deixe o cabo pendurado na borda da mesa ou do balcão, nem toque em superfícies quentes.
• Não coloque sobre ou perto de um queimador a gás ou elétrico quente, nem em um forno aquecido.
• Deve-se ter extremo cuidado ao mover um aparelho que contenha óleo quente ou outros líquidos quentes.
• Sempre conecte primeiro o plugue ao aparelho e, em seguida, ligue o cabo na tomada. Para desconectar, gire qualquer controle para a posição "desligado" e, em seguida, retire o plugue da tomada.
• Não utilize o aparelho para outro fim que não o pretendido.
• Este aparelho é somente para uso doméstico.
• Cuidado: To prevent damage or shock hazard, do not cook directly in the main unit. Cook only in the provided inner pot.
• Aviso: Do not obstruct the steam vent on the lid.

Refer to the image below for the steam vent location.

Imagem: Topo view of the Midea 4000 Series Rice Cooker lid, highlighting the steam vent. The vent is a small, slotted opening on the top surface of the lid, designed to release steam during cooking. It is crucial not to block this vent during operation.

Produto acimaview

The Midea 4000 Series 20 Cup Rice Cooker (Model MB-M25) is a versatile kitchen appliance designed for efficient and convenient cooking of various dishes, including rice, oatmeal, soup, stew, and more. It features a digital control panel with multiple preset programs and an automatic keep warm function.

Imagem: Explodida view of the Midea Rice Cooker showing its main components. From top to bottom: the steam basket, the non-stick inner pot, and the main unit with an LED digital display and labels indicating 12 pre-programmed functions. This illustrates how the parts fit together for cooking and steaming.

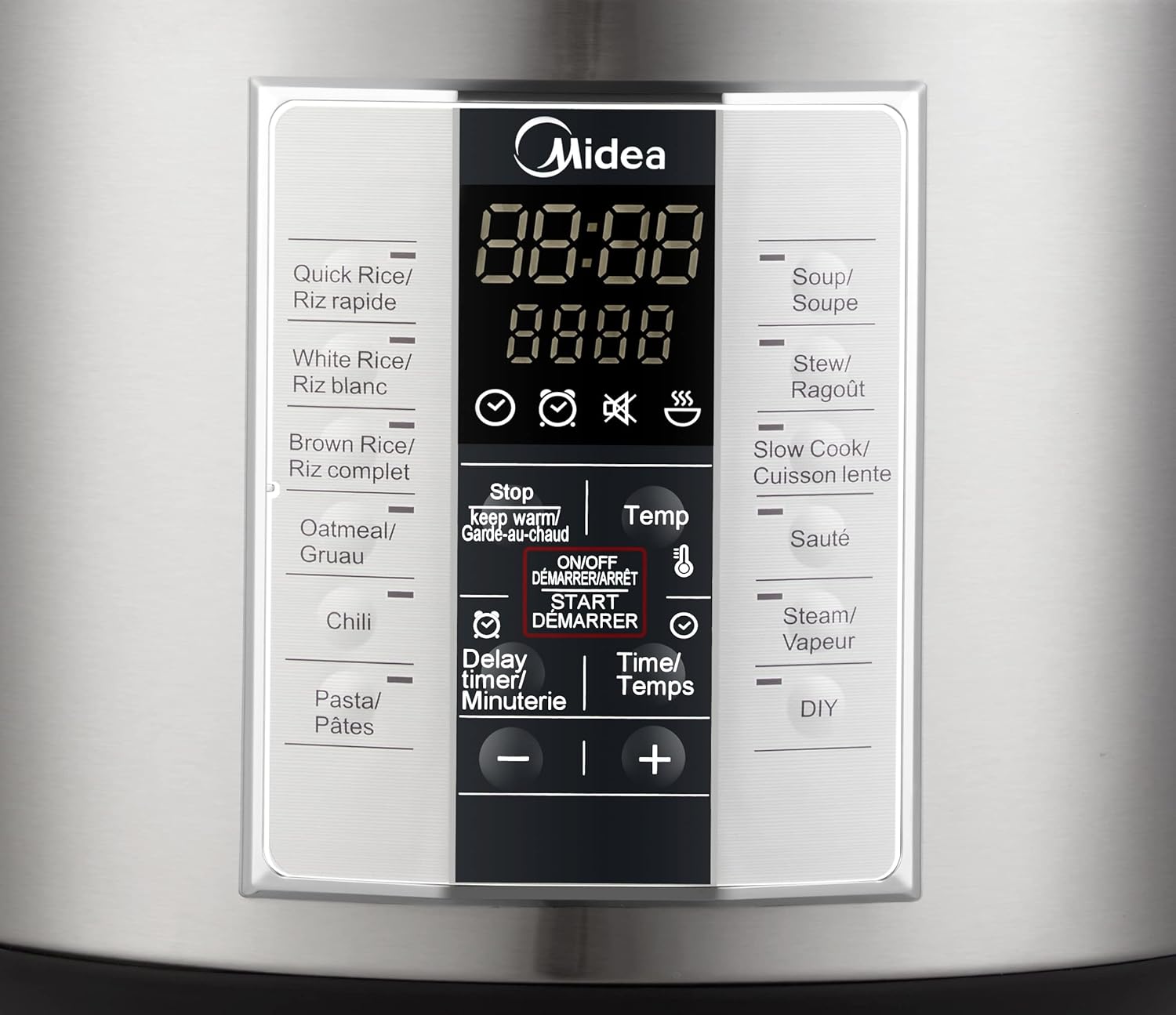

Image: Close-up of the Midea Rice Cooker's digital control panel. It displays an LED screen for time and status, along with buttons for functions like Quick Rice, White Rice, Brown Rice, Oatmeal, Chili, Pasta, Soup, Stew, Slow Cook, Sauté, Steam, DIY, Delay Timer, and Keep Warm/Stop. This panel allows users to select cooking modes and adjust settings.

Configuração e primeiro uso

1. Desembalagem: Carefully remove all packaging materials, including any protective films or stickers.
2. Limpeza Inicial: Before first use, wash the inner pot, steam basket, and any included accessories (rice paddle, measuring cup) with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp pano. Não mergulhe a unidade principal em água.
3. Colocação: Place the rice cooker on a stable, level, heat-resistant surface, away from walls or cabinets to allow for proper ventilation. Ensure there is sufficient space around the unit for steam to escape.
4. Conexão de energia: Garantir o volumetage da sua tomada corresponde ao voltage specified on the appliance (100 Volts). Plug the power cord into the rice cooker and then into a grounded electrical outlet.

Instruções de operação

Operação geral

1. Meça os ingredientes: Use the provided measuring cup to measure rice. Rinse rice thoroughly until water runs clear.
2. Adicione água: Add the appropriate amount of water to the inner pot. Refer to the water level markings inside the inner pot or a recipe for guidance. For brown rice, a common ratio is 1 cup rice to 2 1/4 cups water.
3. Coloque o vaso interno: Coloque a panela interna na unidade principal, certificando-se de que esteja encaixada corretamente.
4. Fechar tampa: Feche bem a tampa.
5. Selecione a função: Plug in the appliance. The display will light up. Press the desired function button (e.g., "White Rice", "Brown Rice", "Oatmeal", "Soup", "Stew").
6. Comece a Cozinhar: Press the "START" button to begin the cooking cycle. The indicator light for the selected function will illuminate.
7. Mantenha-se aquecido: Once cooking is complete, the appliance will automatically switch to "Keep Warm" mode. The "Keep Warm" indicator will light up.
8. Servir: Open the lid carefully, allowing steam to escape away from your face. Use the provided rice paddle to stir and serve.
9. Desligar: To turn off the appliance, press the "Stop" button or unplug it from the power outlet.

Funções Específicas

• Arroz rápido: For faster cooking of white rice.
• Arroz Branco: Standard program for white rice.
• Arroz castanho: Optimized for cooking brown rice, which typically requires more water and longer cooking time.
• Aveia: For preparing various types of oatmeal.
• Pimenta: Program for cooking chili.
• Massa: For cooking pasta.
• Sopa: For preparing soups.
• Ensopado: For slow-cooking stews.
• Cozimento lento: A general slow-cooking function.
• Pulou para cima: Allows for sautéing ingredients before cooking.
• Vapor: Use with the steam basket for steaming vegetables, fish, etc. Add water to the inner pot below the steam basket.
• Faça você mesmo: Manual setting for custom cooking times.

Funções do temporizador

• Temporizador de atraso: Allows you to set a delayed start time for cooking. Press "Delay Timer", then use "+" and "-" to adjust the delay time. Press "START" to confirm.
• Tempo: For adjusting cooking time on certain programs or the DIY function. Use "+" and "-" to adjust.

Image: Diagram illustrating the multi-function capabilities of the Midea Rice Cooker. It shows the rice cooker at the center surrounded by various dishes it can prepare, such as yogurt, meatballs, spaghetti, shrimp, pumpkin soup, and stew meat, highlighting its versatility beyond just cooking rice.

Cuidados e Manutenção

Proper care and maintenance will extend the life of your Midea Rice Cooker.

1. Desligue antes de limpar: Desligue sempre o aparelho da tomada e deixe-o arrefecer completamente antes de o limpar.
2. Inner Pot and Steam Basket: The non-stick inner pot and steam basket should be hand washed with warm, soapy water. Use a soft sponge or cloth to avoid scratching the non-stick coating. Rinse thoroughly and dry completely. Do not use abrasive cleaners or metal scouring pads.
3. Lid and Main Unit: Wipe the exterior of the main unit and the inside of the lid with a damp cloth. For stubborn stains, use a mild detergent. Ensure no water enters the electrical components. Do not immerse the main unit in water.
4. Coletor de condensação: If your model has a condensation collector, remove it, empty any collected water, and wash it with warm, soapy water. Rinse and dry before reattaching.
5. Armazenar: Store the rice cooker in a clean, dry place when not in use. Ensure all parts are dry before storage.

The inner pot is designed for easy cleaning.

Image: The Midea Rice Cooker with its lid open, revealing the non-stick inner pot. The inner pot has measurement markings on its side for precise water levels. This image emphasizes the non-stick surface, which facilitates easy cleaning after use.

Solução de problemas

Especificações

• Marca: Midea
• Número do modelo: MB-M25
• Capacidade: 10 Cups (dry rice), yields up to 20 cups cooked rice
• O quetage: 650 watts
• Volumetage: 100 Volts
• Dimensões do produto: 10.75 x 10.75 x 11.02 polegadas
• Peso do item: 5.94 libras
• Características especiais: Timer, Non-Stick Inner Pot, Automatic Keep Warm, 12 Pre-Programmed Functions
• Componentes incluídos: Power cord, Inner Pot, Instruction Manual, Measuring Cup, Rice Paddle
• Código UPC: 839724012422

Garantia e Suporte

For warranty information, product support, or to purchase replacement parts, please contact Midea Customer Service. Keep your purchase receipt as proof of purchase.

Serviço de Atendimento ao Cliente da Midea:

• Website: www.midea.com/us/support
• Telefone: Refer to the Midea webSite para os números de contato mais atualizados.

Please have your model number (MB-M25) and serial number (if applicable) ready when contacting support.
