Multilaser RE058 150Mbps Wireless Router

1. Introdução

This manual provides detailed instructions for the installation, configuration, and operation of your Multilaser RE058 150Mbps Wireless Router. Please read this manual carefully before using the device to ensure proper setup and optimal performance. This router offers wireless connectivity at 150Mbps, features a detachable antenna, and includes four LAN ports for wired connections.

2. Conteúdo da embalagem

Verifique se todos os itens estão presentes no seu pacote:

• 1x Multilaser RE058 150Mbps Wireless Router
• 1x Power Adapter (Bivolt)
• 1 cabo Ethernet RJ45
• 1x Detachable Antenna (5 dBi)
• 1x Guia de Instalação Rápida

3. Produto acabadoview

Familiarize-se com as portas e os indicadores do roteador.

Imagem 3.1: Traseira view of the Multilaser RE058 router, highlighting the WAN port (blue), four LAN ports (yellow/orange), and the power input. The detachable antenna is connected on the left side.

3.1. Indicadores do painel frontal

• Potência: Indicador de energia. Acende quando o dispositivo está ligado.
• WAN: Wide Area Network indicator. Lit when connected to the internet. Blinks during data transmission.
• LAN1-LAN4: Local Area Network indicators. Lit when a device is connected to the corresponding LAN port. Blinks during data transmission.

3.2. Portas do painel traseiro

• Porta WAN (Azul): Conecta-se ao seu modem ou à rede do seu provedor de serviços de internet.
• Portas LAN (1-4): Conecta-se a dispositivos com fio, como computadores, consoles de jogos ou smart TVs.
• Entrada de energia: Conecta-se ao adaptador de energia fornecido.
• Conector de antena: For attaching the detachable antenna.
• Botão de reinicialização: Used to restore factory default settings. Press and hold for approximately 5-10 seconds while the router is powered on.

4. Configuração

Follow these steps to set up your Multilaser RE058 router:

1. Conecte a antena: Screw the detachable antenna clockwise onto the antenna connector at the back of the router until it is secure.
2. Conectar ao modem: Use the provided RJ45 Ethernet cable to connect your modem's LAN port to the porta WAN azul no roteador.
3. Ligar: Connect the power adapter to the router's power input and then plug the adapter into an electrical outlet. The PWR indicator should light up.
4. Connect Devices (Optional Wired): For wired connections, use additional Ethernet cables to connect your computers or other devices to the yellow LAN ports (1-4) no roteador.
5. Aguarde a inicialização: Allow a few minutes for the router to power on and initialize. The WAN indicator should light up, indicating an internet connection.
6. Interface do roteador de acesso: Abra um web browser on a connected computer or device. In the address bar, type the router's default IP address (usually 192.168.0.1 or 192.168.1.1) and press Enter. Refer to the Quick Installation Guide for the exact default IP and login credentials.
7. Configuração inicial: Follow the on-screen instructions in the router's web interface to set up your internet connection type (DHCP, Static IP, PPPoE, etc.) and configure your wireless network (SSID and password). The router software is available in Portuguese for easier setup.

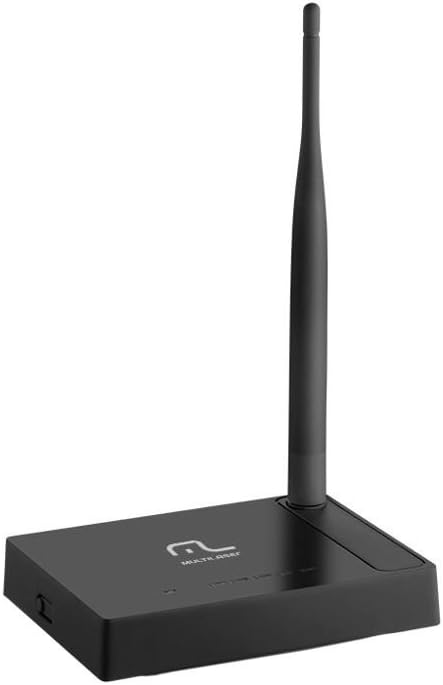

Imagem 4.1: Lateral view of the Multilaser RE058 router, showing the detachable antenna securely connected and standing upright.

5. Operação

This section covers the basic operation and features of your router.

5.1. Wireless Network (Wi-Fi)

After initial setup, your wireless network will be active. To connect devices:

1. No seu dispositivo (smartphone, laptop, tablet), procure por redes Wi-Fi disponíveis.
2. Selecione o nome da rede (SSID) que você configurou durante a instalação.
3. Digite a senha do Wi-Fi (chave de segurança) quando solicitado.

5.2. Rede com fios

Devices connected to the LAN ports will automatically obtain an IP address from the router and gain internet access (if the WAN connection is active).

5.3. Repeater Function

The Multilaser RE058 can function as a wireless repeater to extend the range of an existing Wi-Fi signal. This mode needs to be configured via the router's web interface. Consult the full user manual or the router's online help for detailed steps on configuring repeater mode.

5.4. Recursos avançados

do roteador web interface provides access to advanced settings, including:

• Tipo WAN: DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP.
• Virtual Servers, Port Triggering, UPnP, DMZ: For advanced network configurations and port forwarding.
• Controle de acesso: IP/MAC/Domain Filtering to manage network access.
• Passagem VPN: PPTP, L2TP, IPSec for VPN connections.
• Dynamic DNS, Static Routing, WOL (Wake-on-LAN): Additional network utilities.
• Atualização de Firmware: Keep your router's software up-to-date for improved performance and security.

6. Manutenção

To ensure the longevity and optimal performance of your router:

• Keep the router in a cool, dry place, away from direct sunlight and heat sources.
• Garanta ventilação adequada ao redor do dispositivo.
• Limpe a parte externa com um pano macio e seco. Não use produtos de limpeza líquidos.
• Regularly check for and install firmware updates from the Multilaser website to enhance security and features.
• Periodically restart the router (unplug and replug the power adapter) to refresh its connection and clear temporary issues.

7. Solução De Problemas

Se você encontrar problemas, tente estas soluções comuns:

7.1. Sem acesso à Internet

• Check all cable connections (WAN, LAN, Power). Ensure they are securely plugged in.
• Verifique se o seu modem está funcionando corretamente e se possui uma conexão ativa com a internet.
• Restart both your modem and router. Unplug their power adapters, wait 30 seconds, then plug the modem back in. Once the modem is fully online, plug the router back in.
• Faça login no roteador web interface and check the WAN status. Ensure your internet connection type (DHCP, PPPoE, etc.) is correctly configured.

7.2. Não é possível conectar-se ao Wi-Fi

• Ensure the router is powered on and the wireless indicator is active.
• Verifique se você selecionou a rede Wi-Fi (SSID) correta e se está inserindo a senha correta.
• Move closer to the router to rule out range issues.
• Tente reiniciar o roteador.

7.3. Velocidade lenta da internet

• Ensure your router is placed in a central location, away from obstructions and interference sources (e.g., microwaves, cordless phones).
• Check if multiple devices are heavily using the network.
• Atualize o firmware do seu roteador.
• Contact your Internet Service Provider (ISP) to check your internet line speed.

7.4. Forgot Router Login Password

If you forget the router's login password, you can perform a factory reset. Locate the Reset button on the rear panel. With the router powered on, use a paperclip or similar pointed object to press and hold the Reset button for approximately 5-10 seconds until the indicators flash. The router will restart with factory default settings, and you can then log in using the default credentials (usually found on a sticker on the router or in the Quick Installation Guide).

8. Especificações

9. Garantia e Suporte

This Multilaser RE058 Wireless Router comes with a Garantia de 7 ano Fornecido pelo fabricante. Guarde seu comprovante de compra para eventuais solicitações de garantia.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Multilaser customer service. Refer to the official Multilaser website or the Quick Installation Guide for up-to-date contact information.
