1. Introdução
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your BONTEC Table Top Desk Pedestal TV Stand Mount. Please read this manual thoroughly before installation to ensure correct setup and safe operation. Keep this manual for future reference.
2. Informações de segurança
- Capacidade de peso: Do not exceed the maximum weight capacity of 50kg (110 lbs). This stand is designed for TVs between 32 and 60 inches.
- Compatibilidade VESA: Ensure your TV's VESA mounting pattern is compatible with this stand (refer to specifications).
- Instalação segura: Always ensure all screws and bolts are securely tightened before placing the TV on the stand.
- Estabilidade de superfície: Place the stand on a stable, level, and sturdy surface that can support the combined weight of the stand and your television.
- Crianças e animais de estimação: Mantenha crianças e animais de estimação afastados da área de montagem. Peças pequenas podem causar asfixia.
- Assistência profissional: Se tiver dúvidas sobre qualquer parte do processo de instalação, consulte um profissional qualificado.
3. Conteúdo da embalagem
Please verify that all components are present and undamaged before assembly. If any parts are missing or damaged, contact BONTEC customer support.
- Base Plate
- Upright Support Column
- Suportes de montagem para TV (2 peças)
- Hardware Kit (various screws, washers, spacers, Allen wrench, spanner)
- Almofadas antiderrapantes
4. Configuração e montagem
Follow these steps carefully to assemble your TV stand.
Step 4.1: Attach Anti-slip Pads to the Base
Peel and stick the provided anti-slip pads to the bottom of the base plate. This prevents scratching your furniture and provides stability.
Step 4.2: Assemble the Upright Support Column to the Base
Secure the upright support column to the base plate using the designated screws and tools from the hardware kit. Ensure it is firmly attached and stable.
Step 4.3: Attach TV Mounting Brackets to Your TV
Identify the VESA mounting holes on the back of your television. Select the appropriate screws, washers, and spacers from the hardware kit that fit your TV's specific VESA pattern. Attach the two TV mounting brackets to the back of your TV. Ensure they are level and securely fastened.
Figura 4.3.1: This image illustrates the VESA compatibility (50x50mm to 800x400mm) and screen size range (22-65 inches) supported by the stand, with a maximum capacity of 50kg. It helps in selecting the correct mounting hardware for your TV.
Figura 4.3.2: This image displays two installation options for the TV mounting brackets: one for larger TVs (Max VESA: 800x400mm) and another for smaller TVs (Max VESA: 400x200mm). It also provides detailed dimensions of the stand, including height and width, to aid in proper setup.
Passo 4.4: Monte a TV no suporte.
Carefully lift your TV with the attached brackets and hook them onto the upright support column. Ensure the brackets are properly seated and secured. The stand offers multiple height adjustment levels.
Figura 4.4.1: This image demonstrates the three adjustable height levels of the TV stand: Maximum (700mm), Mid (640mm), and Minimum (580mm). This allows users to customize the TV's viewaltura.
Figura 4.4.2: This image compares the stability of the BONTEC stand, showing a TV securely upright, against another stand that appears unstable. It highlights the design's focus on keeping your TV safely in position.

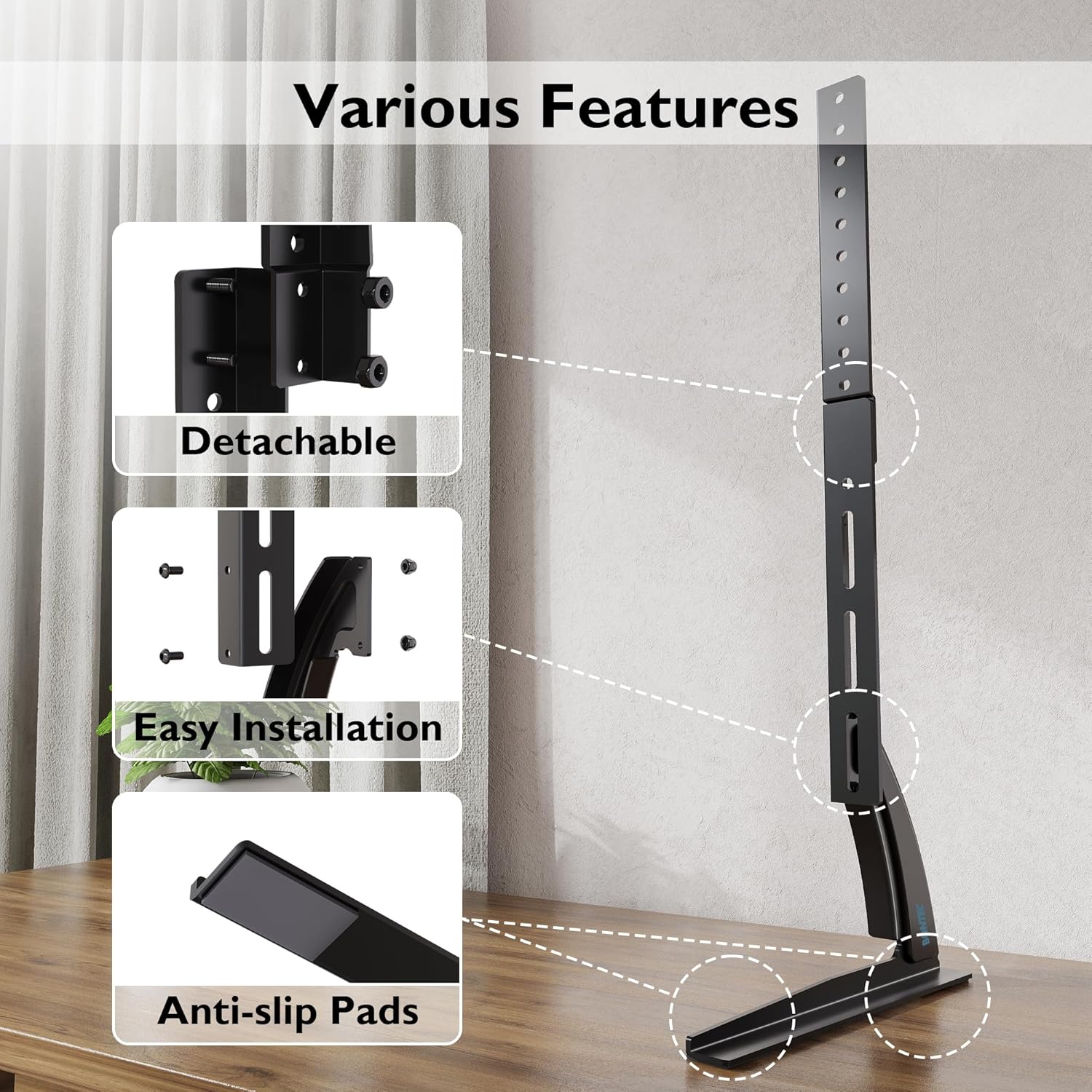

Figura 4.4.3: This image details key features of the stand, including its detachable components for easier assembly, the straightforward installation process, and the inclusion of anti-slip pads on the base for enhanced stability and surface protection.
5. Instruções de operação
Once assembled, the BONTEC TV stand is designed for fixed placement. The primary operation involves adjusting the TV's height during initial setup.
5.1 Ajuste de Altura
The stand offers three distinct height levels. To adjust the height:
- Carefully remove the TV from the mounting brackets.
- Adjust the position of the mounting brackets on the upright support column to your desired height level (Max, Mid, or Min).
- Re-mount the TV onto the adjusted brackets, ensuring it is securely locked in place.
Always ensure the TV is balanced and stable after any height adjustment.
6. Manutenção
Regular maintenance ensures the longevity and safety of your TV stand.
- Limpeza: Limpe o suporte com um pano macio e seco. Evite produtos de limpeza abrasivos ou solventes que possam danificar o acabamento.
- Verifique as conexões: Verifique periodicamente todos os parafusos e porcas para garantir que permaneçam apertados. Reaperte-os, se necessário.
- Inspecione quanto a danos: Regularly inspect the stand for any signs of wear, damage, or instability. If damage is found, discontinue use and contact customer support.
7. Solução De Problemas
Se você tiver problemas com o suporte da sua TV, consulte os problemas comuns e suas soluções a seguir:
| Problema | Possível causa | Solução |
|---|---|---|
| TV is unstable or wobbles | Loose screws; uneven surface; TV too heavy; incorrect assembly | Ensure all screws are tightened. Place stand on a level surface. Verify TV weight is within limits. Review etapas de montagem. |
| TV does not fit the stand | Incorrect VESA pattern; TV size outside range | Check your TV's VESA pattern against the stand's specifications. Confirm TV size is between 32-60 inches. |
| Partes faltantes | Erro de embalagem | Entre em contato com o suporte ao cliente da BONTEC e informe os detalhes da sua compra. |
8. Especificações
- Marca: BONTEC
- Modelo: B01ESPNXJW
- Tipo de montagem: Suporte de mesa
- Tipo de movimento: Fixed (Height adjustable during assembly)
- Dispositivos compatíveis: Televisão
- Minimum Supported Screen Size: 32 polegadas
- Maximum Supported Screen Size: 60 Inches (Note: Some users report compatibility with up to 65 inches, but official specification is 60 inches)
- Capacidade Máxima de Peso: 50 kg (110 libras)
- Peso do item: 1.9 quilos
- Compatibilidade VESA: 50x50mm, 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x400mm, 800x400mm
- Níveis de altura ajustáveis: 3 levels (Max 700mm, Mid 640mm, Min 580mm from base to top of bracket)
9. Garantia e Suporte
BONTEC products are manufactured to high-quality standards. For warranty information, technical support, or to report missing/damaged parts, please contact BONTEC customer service through the retailer where the product was purchased or visit the official BONTEC website. Please have your model number (B01ESPNXJW) and purchase date ready.
