Generic Carburetor Instruction Manual

1. محصول ختم شوview

This Generic Carburetor, model PHUOCVY2972, is designed as a direct replacement component for various Briggs & Stratton engine models. Its primary function is to mix air and fuel in the correct proportions for combustion, ensuring efficient engine operation and consistent performance. The carburetor is supplied with a mounting kit to facilitate installation.

کلیدي ځانګړتیاوې عبارت دي له:

• Ensures optimal fuel flow for consistent engine operation.
• Designed for reliable fuel efficiency during heavy-duty use.
• Direct replacement for compatible carburetors, ensuring a secure fit.
• Includes a mounting kit for simplified installation.

2. مطابقت

This carburetor is compatible with the following Briggs & Stratton engine models:

• 696065
• 697422
• 698860
• 275160
• 126402

3. د بسته محتويات

په کڅوړه کې عموما شامل دي:

• 1 x Generic Carburetor Unit (Model PHUOCVY2972)
• Mounting Gaskets (as shown in product images)

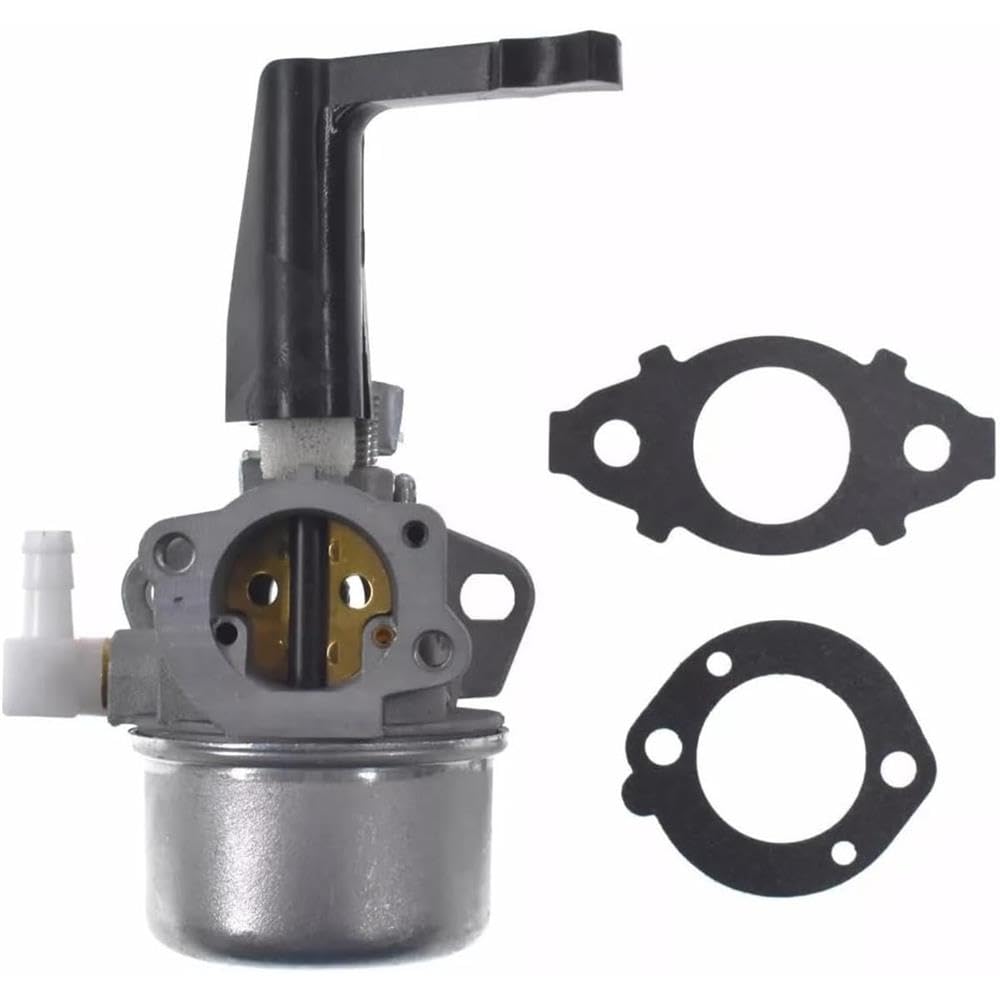

انځور 1: مخکی view of the Generic Carburetor with included mounting gaskets.

4. ترتیب او نصب کول

د خوندیتوب احتیاطونه: Before beginning any installation or maintenance, ensure the engine is turned off, cool, and the spark plug wire is disconnected to prevent accidental starting. Wear appropriate personal protective equipment, such as gloves and eye protection.

1. انجن چمتو کړئ: Disconnect the fuel line from the old carburetor. Drain any remaining fuel from the fuel tank if necessary.
2. زوړ کاربوریټر لرې کړئ: Carefully unbolt and remove the old carburetor from the engine. Note the position of any linkages, springs, or hoses for reinstallation.
3. د نصب کولو سطحه پاکه کړئ: Ensure the engine's mounting surface is clean and free of old gasket material. This is crucial for a proper seal.
4. نوي ګازکیټونه نصب کړئ: Place the new mounting gaskets (included in the kit) onto the engine's mounting studs or surface as per the original configuration.
5. نوی کاربوریټر نصب کړئ: Position the new Generic Carburetor onto the mounting studs, aligning it with the gaskets. Secure it with the original bolts, tightening them evenly to prevent warping.
6. اجزا بیا وصل کړئ: Reattach all fuel lines, linkages, and hoses to the new carburetor. Ensure all connections are secure and free of leaks.
7. د سونګ توکو بیا ډکول: Refill the fuel tank with fresh, appropriate fuel for your engine.
8. Test Engine: Reconnect the spark plug wire and attempt to start the engine. Check for proper operation and any fuel leaks.

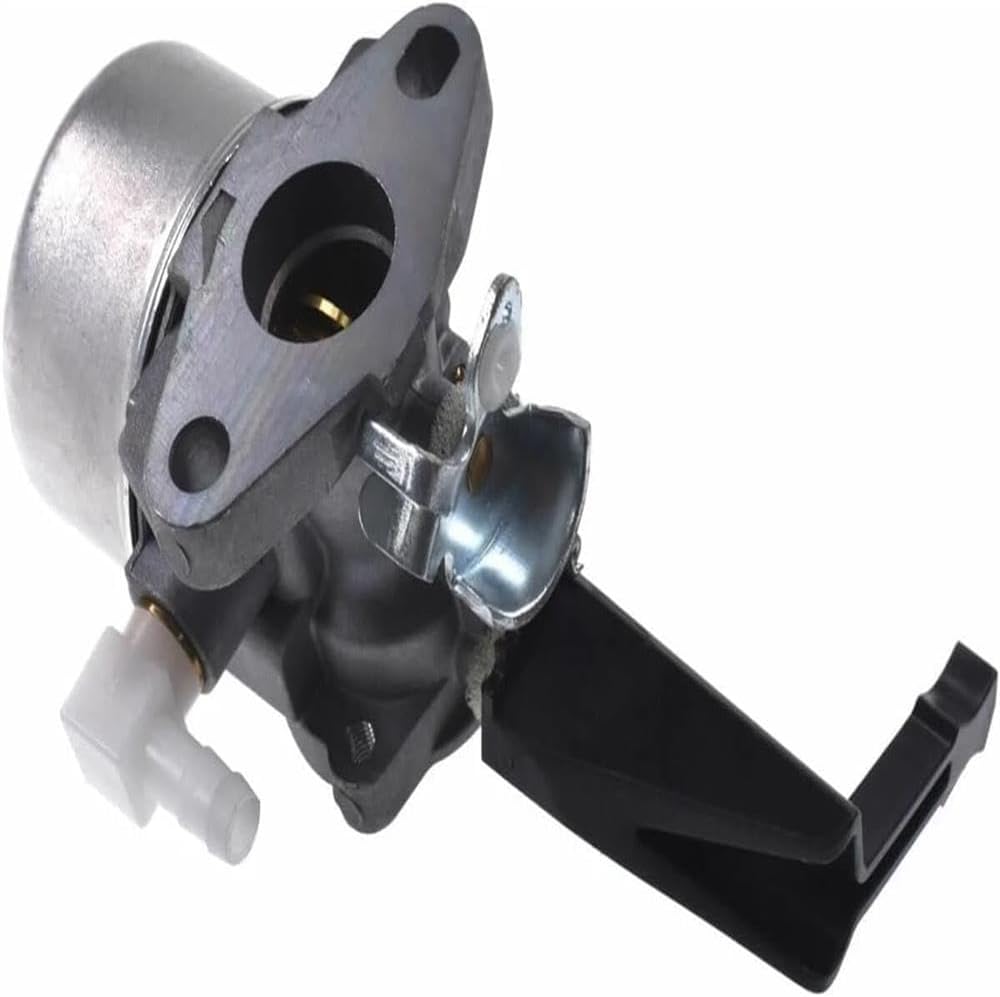

انځور ۵.۱: اړخ view of the Generic Carburetor, showing fuel inlet and choke lever.

۳. عملیاتي ملاحظات

Once installed, the carburetor functions automatically to regulate the air-fuel mixture. Proper engine operation relies on a correctly functioning carburetor. Ensure that the engine's air filter is clean and the fuel supply is fresh and free of contaminants. If your engine has a manual choke, operate it according to your engine's specific starting procedure.

6. ساتنه

Regular maintenance of your carburetor and fuel system can extend engine life and ensure optimal performance.

• د تیلو کیفیت: Always use fresh, clean fuel. Stale fuel or fuel containing ethanol can cause deposits and corrosion within the carburetor. Consider using a fuel stabilizer if the engine will be stored for extended periods.
• د تیلو فلټر: Regularly inspect and replace the fuel filter (if present) to prevent debris from reaching the carburetor.
• د هوا فلټر: A clogged air filter can restrict airflow, leading to a rich fuel mixture and poor engine performance. Clean or replace the air filter as recommended by your engine manufacturer.
• د کاربوریټر پاکول: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with appropriate mechanical knowledge.

انځور ۲: پورته څخه ښکته view of the Generic Carburetor, highlighting the air intake and fuel bowl.

7. ستونزه حل کول

If your engine experiences issues after carburetor installation or during operation, consider the following common troubleshooting steps:

• انجن نه پیل کیږي:
  • Check for fuel in the tank and ensure the fuel valve is open.
  • Verify the spark plug is clean and firing.
  • Ensure the choke is set correctly for starting.
  • Inspect fuel lines for kinks or blockages.
• بې کاره یا ځنډول:
  • Check for vacuum leaks around the carburetor mounting gaskets.
  • ډاډ ترلاسه کړئ چې د هوا فلټر پاک دی.
  • Consider if the carburetor jets might be partially clogged (requires cleaning).
• Lack of Power or Poor Performance:
  • Verify the fuel filter is not clogged.
  • Check for proper throttle linkage operation.
  • Ensure the engine is receiving adequate fuel flow.
• د سونګ موادو لیک:
  • Inspect all fuel line connections for tightness.
  • Check the carburetor bowl gasket and mounting gaskets for proper sealing.

For persistent issues, consult a qualified engine technician.

انځور ۱.۱: زاویه لرونکی view of the Generic Carburetor, showing various ports and the fuel bowl.

8. مشخصات

9. تضمین او ملاتړ

No specific manufacturer warranty information is provided for this product. For any product-related inquiries or technical assistance, please refer to the retailer or your engine's service manual for general carburetor maintenance guidelines.
