Brilluxa XB150-2 Digital Depth Gauge Instruction Manual

1. پیژندنه

Thank you for choosing the Brilluxa XB150-2 Digital Depth Gauge. This electronic measuring instrument is designed for precise depth measurements in various applications, including woodworking. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your device. Please read this manual thoroughly before use and keep it for future reference.

2. محصول ختم شوview

The Brilluxa XB150-2 is a high-precision digital depth gauge featuring a clear LCD display and robust construction.

2.1 کلیدي ځانګړتیاوې

• اوږدمهاله ډیزاین: Powered by a cell battery (not included), offering extended service life for various applications.
• څو اړخیز غوښتنلیک: Suitable for professionals in diverse fields requiring electronic depth measurement.
• د معلوماتو د لیږد وړتیا: Equipped with a USB port for seamless data transfer to a computer, simplifying data collection and analysis.
• قوي ساختمان: Base made from alloy steel and hardened stainless steel, ensuring a flat base for accurate readings and long-term durability.
• ډیجیټل ښکاره کول: LCD screen provides easy and accurate readings, enhancing visibility of measurement results.

2.2 مشخصات

• د توکو ډول: ډیجیټل ژوروالی ګیج
• مواد: Alloy Steel and Stainless Steel
• بیټرۍ: 1 x Cell Battery (not included)
• د اندازه کولو لړۍ: 0 ~ 150mm / 0 ~ 6 inches
• دقت: 0.01mm / 0.0005 انچه
• د اندازه کولو سرعت: ۶۰ متره/ ثانیه
• جوړونکی: Brilluxa
• د ماډل شمیره: Brilluxan9gqogbait (XB150-2)
• د اصلي هیواد: چین

2.3 د بسته محتويات

• 1 x Digital Depth Gauge
• ۱ x د کارونکي لارښود (دا سند)
• 1 x د ذخیره کولو بکس

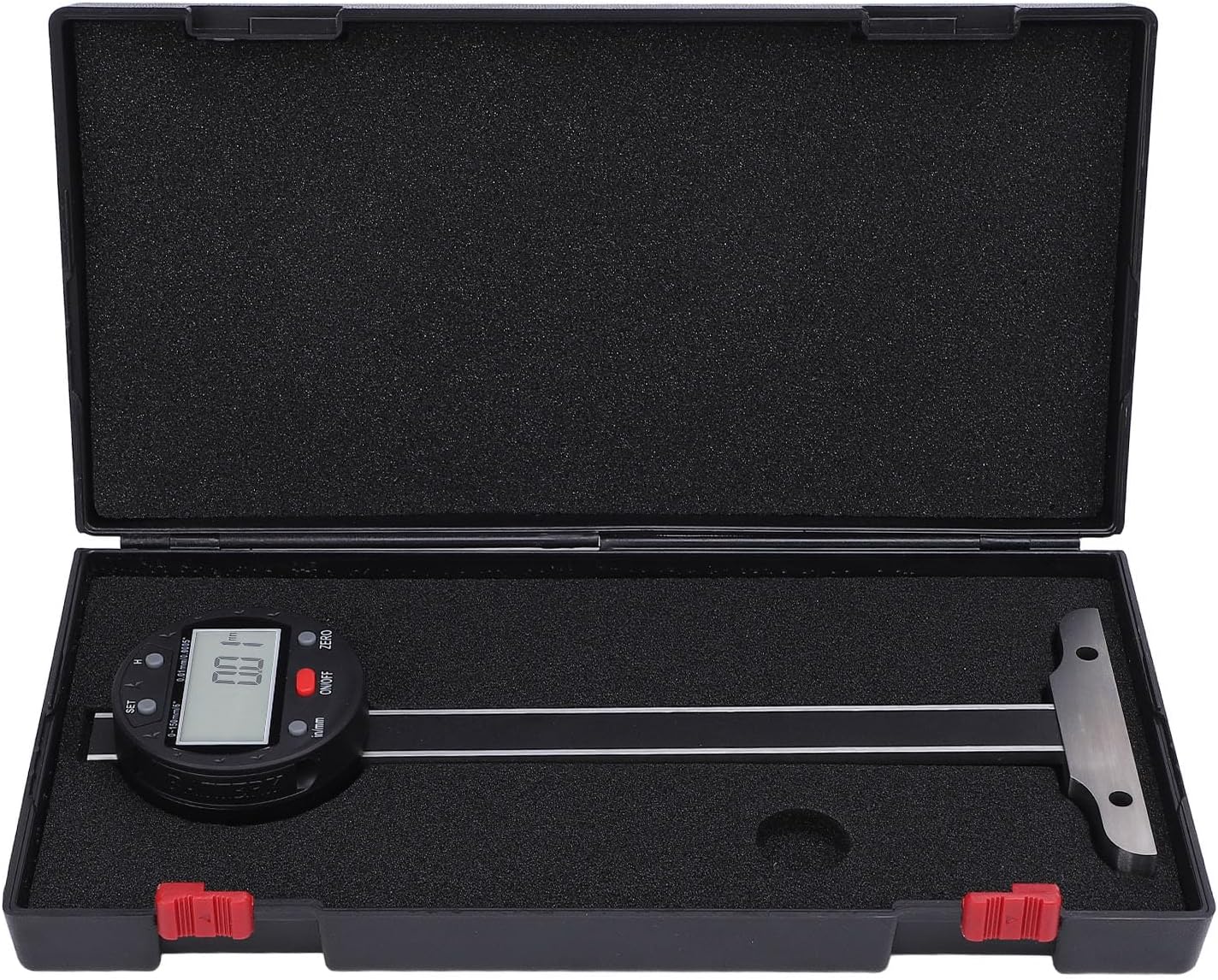

Figure 1: The Brilluxa XB150-2 Digital Depth Gauge stored in its protective case, ready for transport or storage.

شکل ۳: یو زاویه لرونکی view of the digital depth gauge, highlighting its clear LCD display and compact design.

3. ترتیب کول

3.1 د بیټرۍ نصب کول

1. د ډیجیټل ښودنې واحد په شا کې د بیټرۍ د برخې پوښ ومومئ.
2. په احتیاط سره پوښ ​​لرې کړئ.
3. Insert one cell battery (not included) into the compartment, ensuring correct polarity (+/-).
4. د بیټرۍ کمپارټ پوښ په خوندي ډول بدل کړئ.

3.2 ابتدايي پاور آن

د بیټرۍ نصبولو وروسته، فشار ورکړئ آن/بند button to power on the device. The LCD display should illuminate and show a reading.

شکل 3: شاته view of the depth gauge, indicating the location of the battery compartment for installation.

4. عملیاتي لارښوونې

4.1 پاور آن/بند

• فشار ورکړئ آن/بند د وسیلې د فعالولو لپاره تڼۍ.
• فشار ورکړئ او ونیسئ آن/بند د څو ثانیو لپاره تڼۍ کېکاږئ ترڅو وسیله بنده کړئ.

۵.۲ د ګیج صفر کول

1. Place the base of the depth gauge firmly on a flat, stable reference surface.
2. Ensure the measuring probe is fully retracted or at the desired zero point.
3. فشار ورکړئ صفر button. The display will show "0.00" or "0.000" (depending on units), indicating that the gauge is now zeroed at this position.

4.3 Unit Conversion (mm/inch)

فشار ورکړئ په/mm کې button to switch between millimeter (mm) and inch (in) measurement units.

4.4 اندازه کول

1. Zero the gauge on a suitable reference surface (see Section 4.2).
2. Place the base of the depth gauge firmly on the surface from which you want to measure the depth.
3. Extend the measuring probe into the hole, groove, or step until it reaches the bottom.
4. اندازه کول په مستقیم ډول د LCD نندارې څخه ولولئ.

شکل 4: مخکی view of the depth gauge, illustrating the LCD display and the ON/OFF, ZERO, and in/mm buttons.

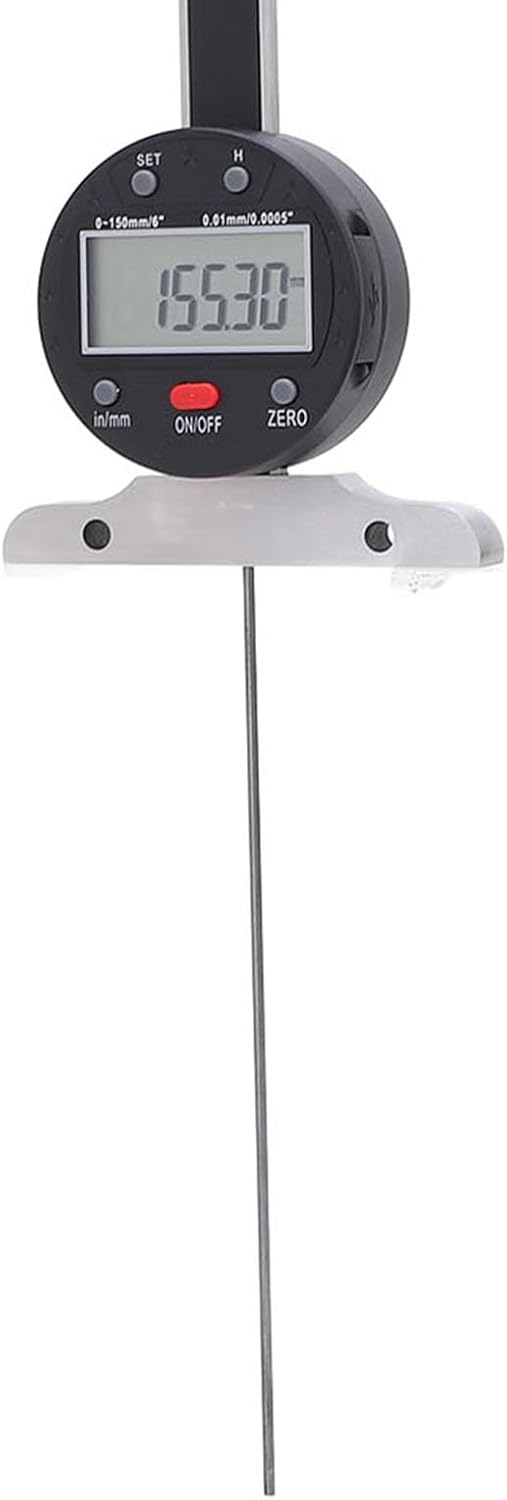

شکل 5: اړخ view of the depth gauge in operation, with the probe extended to measure depth and a reading visible on the display.

Figure 6: The digital depth gauge in use, demonstrating its application for measuring depth on a wooden workpiece.

Figure 7: A close-up of the gauge's measuring probe and its stable base, designed for accurate contact with surfaces.

4.5 د معلوماتو لیږد

The digital depth gauge features a USB port for connecting to a computer. This allows for seamless transfer of measurement data, facilitating data collection and analysis. Refer to your computer's operating system instructions for connecting USB devices and accessing data.

5. ساتنه

5.1 پاکول

• Wipe the gauge with a clean, dry, soft cloth.
• Avoid wetting the protective film with water, oil, or other liquid substances to prevent damage to the circuit.

5.2 ذخیره کول

• When not in use for an extended period, turn off the device using the آن/بند تڼۍ
• If storing for more than one month, remove the battery to prevent leakage and damage to the device.
• Store the depth gauge in its protective storage box in a dry, clean environment, away from direct sunlight and extreme temperatures.

۲.۱ عمومي اداره کول

This product is a precision measuring instrument. Handle it with care to prevent impact or damage, which could lead to loss of accuracy.

6. ستونزه حل کول

۹.۳ ښودنه کار نه کوي

• وګورئ چې آیا بیټرۍ په سمه توګه نصب شوې او سمه قطبي ده.
• Replace the battery with a new one if the current battery is depleted.
• ډاډ ترلاسه کړئ آن/بند تڼۍ فشار شوې ده.

۷.۲ ناسم لوستل

• Ensure the gauge is properly zeroed on a flat, stable surface before taking measurements.
• Clean the measuring surfaces and probe to remove any dust or debris.
• Verify that the base is firmly seated on the measurement surface and the probe is making proper contact.
• Avoid applying excessive force or impact to the gauge, as this can affect accuracy.

7. د خوندیتوب معلومات

• Handle the depth gauge with care. It is a precision instrument; impact can affect its accuracy.
• Avoid exposing the protective film to water, oil, or other liquid substances to prevent damage to the internal circuitry.
• د والیت غوښتنه مه کوئtage to the ruler or any part of the device, as this can cause severe damage to the electronics.
• د ماشومانو د لاسرسي څخه لرې وساتئ.

8. تضمین او ملاتړ

د تضمین معلوماتو او د پیرودونکو ملاتړ لپاره، مهرباني وکړئ د پیرودلو په وخت کې چمتو شوي اسنادو ته مراجعه وکړئ یا خپل پرچون پلورونکي سره اړیکه ونیسئ. د پیرود ثبوت په توګه د پیرود رسید وساتئ.
