Baofeng UV-5R Dual Band Two Way Radio Instruction Manual

پیژندنه

د پیرودلو لپاره مننهasing the BAOFENG UV-5R 8W Radio. This device is a dual-band, dual-display, and dual-watch two-way radio designed to provide secure, instant, and reliable communications. It is suitable for various activities including hiking, camping, skiing, and general outdoor use.

The BAOFENG UV-5R radio, a versatile communication tool.

په بکس کې څه دي؟

• 4 x BAOFENG UV-5R 8W radio with antenna
• 4 x 3800mAh battery pack
• 4 x د غوږ تلیفون مایک / هیډسیټ
• 4 x چارجر
• 4 x بیلټ کلپ
• ۱ x لاسي تسمه
• 1 x انګلیسي لارښود

All components included in the BAOFENG UV-5R package.

د تنظیم کولو لارښود

د اجزاوو پیژندنه

Detailed diagram identifying all external components of the UV-5R radio.

Familiarize yourself with the radio's components as shown in the diagram above. Key parts include the antenna, PTT (Push-to-Talk) button, VFO/MR button for mode selection, and the keyboard for input.

د بیټرۍ نصب او چارج کول

To install the 3800mAh battery pack, align it with the battery compartment on the back of the radio and slide it into place until it clicks securely. To charge, connect the radio with the installed battery to the provided charger. Ensure the charger is plugged into a standard power outlet. The charging indicator will show the charging status.

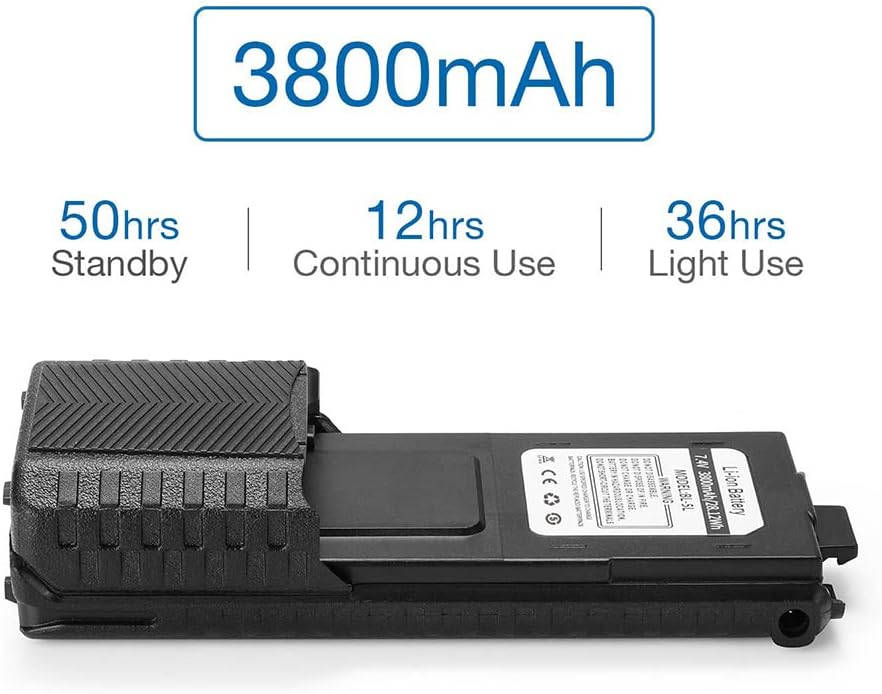

The 3800mAh battery provides extended usage times: up to 50 hours standby, 12 hours continuous use, and 36 hours light use.

Antenna and Belt Clip Attachment

Screw the antenna clockwise onto the connector at the top of the radio until it is finger-tight. Attach the belt clip to the designated slot on the back of the radio by sliding it down until it locks into place. This allows for convenient carrying.

تړل views of the radio's top, side, and front, illustrating key attachment points and controls.

عملیاتي لارښوونې

بنسټیز عملیات

To power on the radio, rotate the top knob clockwise. Continue rotating to adjust the volume. To power off, rotate the knob counter-clockwise until it clicks. The LCD display will show the current frequency or channel name.

Frequency and Channel Mode

فشار ورکړئ VFO/MR button to switch between Frequency (VFO) mode and Channel (MR) mode. In VFO mode, you can manually input frequencies. In MR mode, you can select from up to 128 pre-programmed memory channels.

لیږدول او ترلاسه کول

د لیږدولو لپاره، فشار ورکړئ او ونیسئ PTT (Push-to-Talk) button on the side of the radio and speak into the microphone. Release the PTT button to receive. Ensure you are on an appropriate frequency or channel for communication.

کلیدي ځانګړتیاوې پای ته ورسیدېview

• د فریکونسی بانډ: VHF/UHF
• ښکاره کول: د VHF او UHF بینډونه او د چینل نوم ښودل شوی
• د حافظې چینلونه: تر 128 پورې
• خندا: په 9 کچو کې د تنظیم وړ
• Tones/Codes: 50 CTCSS ټونونه او 210 DCS کوډونه
• بیړنۍ دنده: د SOS بیړني حالت
• د LCD نندارې: Backlight adjustable in 3 colors
• دندې: VOX, Scan, Dual Watch
• غږ: Vocal indication of the function selected
• د بریښنا سپما: هو
• TOT: د وخت ختمولو ټایمر
• د DTMF دنده: هو
• د ریورس فعالیت: هو
• د الارم فعالیت: هو
• Codes Research: د CTCSS او DCS کوډونو څیړنه
• د چینل نومونه: د چینل نومونو ترتیب او ذخیره کول
• BCL: Busy Channel Lockout function
• د تکرار بدلون: هو

ساتنه

To ensure the longevity and optimal performance of your BAOFENG UV-5R radio, follow these maintenance guidelines:

• پاکول: یو نرم استعمال کړئ، دamp cloth to wipe the radio's surface. Avoid using harsh chemicals or abrasive cleaners.
• ذخیره کول: Store the radio in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.
• د بیټرۍ پاملرنه: Do not overcharge or deep discharge the battery. Charge the battery fully before first use and periodically if not in use.
• انتن: انتن په احتیاط سره سمبال کړئ ترڅو د خمیدو یا زیان مخه ونیول شي.

د ستونزو حل کول

If you encounter issues with your BAOFENG UV-5R radio, refer to the common problems and solutions below:

تخنیکي مشخصات

تضمین او ملاتړ

Your BAOFENG UV-5R radio comes with a د 12 میاشتو تضمینموږ هم وړاندیز کوو a 30-day return and exchange policy. For any questions, concerns, or support needs, please feel free to contact us via Amazon's messaging system. Our team is ready to assist you.

تنظیمي معلومات

پاملرنه: This radio operates on radio frequencies that are regulated by the Federal Communications Commission (FCC). To transmit on these frequencies, you are required to have a license issued by the FCC.

When programming the radio, it is recommended to first read the factory software data, and then rewrite this data with your desired frequency settings. This helps prevent potential errors. You can use a programming cable with a PC to program the frequency, power, and other settings. All programming must comply with your FCC (or other country) license certification.

Regulatory labels and information located on the back of the radio.
