Chuboor PJ01 Air Purifier Instruction Manual

1. پیژندنه

Thank you for choosing the Chuboor PJ01 Air Purifier. This device is designed to improve your indoor air quality by effectively capturing airborne pollutants. Please read this manual thoroughly before operation to ensure safe and efficient use.

Figure 1: Chuboor PJ01 Air Purifier in a home setting.

۱.۱. د خوندیتوب مهم معلومات

د اور، بریښنا شاک، یا ټپي کیدو خطر کمولو لپاره، مهرباني وکړئ لاندې خوندیتوب احتیاطي تدابیر په پام کې ونیسئ:

• تل د هوا پاکونکی د حرکت کولو، ګریل خلاصولو، فلټرونو بدلولو، یا کوم بل ډول ساتنې ترسره کولو دمخه خلاص کړئ.
• وسیله مه کاروئ که چیرې د بریښنا تار یا پلګ خراب شوی وي.
• د هوا پاکونکی د اوبو یا نورو مایعاتو څخه لرې وساتئ.
• د هوا داخلې یا بهر مه بندوئ.
• دا وسیله د افرادو (د ماشومانو په شمول) د فزیکي ، حسي یا ذهني وړتیاو کمښت ، یا د تجربې او پوهې نشتوالي سره د کارولو لپاره ندي ، پرته لدې چې دوی ته د دوی د خوندیتوب مسؤلیت لرونکي شخص لخوا د وسیلې کارولو په اړه نظارت یا لارښوونې ورکړل شوي وي.
• The Child Lock feature can be activated to prevent accidental operation by children. Press and hold the Child Lock button for 3 seconds to activate/deactivate.
• The Chuboor PJ01 Air Purifier is fully certified by FCC, CARB, CE, PSE, and UKCA for safe and reliable performance.

3. محصول ختم شوview

The Chuboor PJ01 Air Purifier is designed for large rooms, covering up to 1,200 ft² and refreshing the air in a 120ft² bedroom every 7 minutes. It features a 3-stage high-efficiency filtration system and 360° air intake.

3.1. کلیدي ځانګړتیاوې:

• د لوړ موثریت فلټریشن: Equipped with a True H13 HEPA filter, pre-filter, and activated carbon filter, capturing 99.97% of airborne particles as small as 0.3 microns.
• پراخ پوښښ: Suitable for bedrooms, living rooms, offices, kitchens, RVs, and basements.
• څو طریقې: Includes 5 purification modes (I, II, III, IV, Auto Mode, Sleep Mode) and an air quality light indicator.
• خاموش عملیات: Operates as quietly as 25dB in Sleep Mode.
• سمارټ ځانګړتیاوې: Customizable timer options (2H, 4H, 8H) and a Child Lock feature.

شکل ۲: ۳-Stagد فلټر کولو سیسټم.

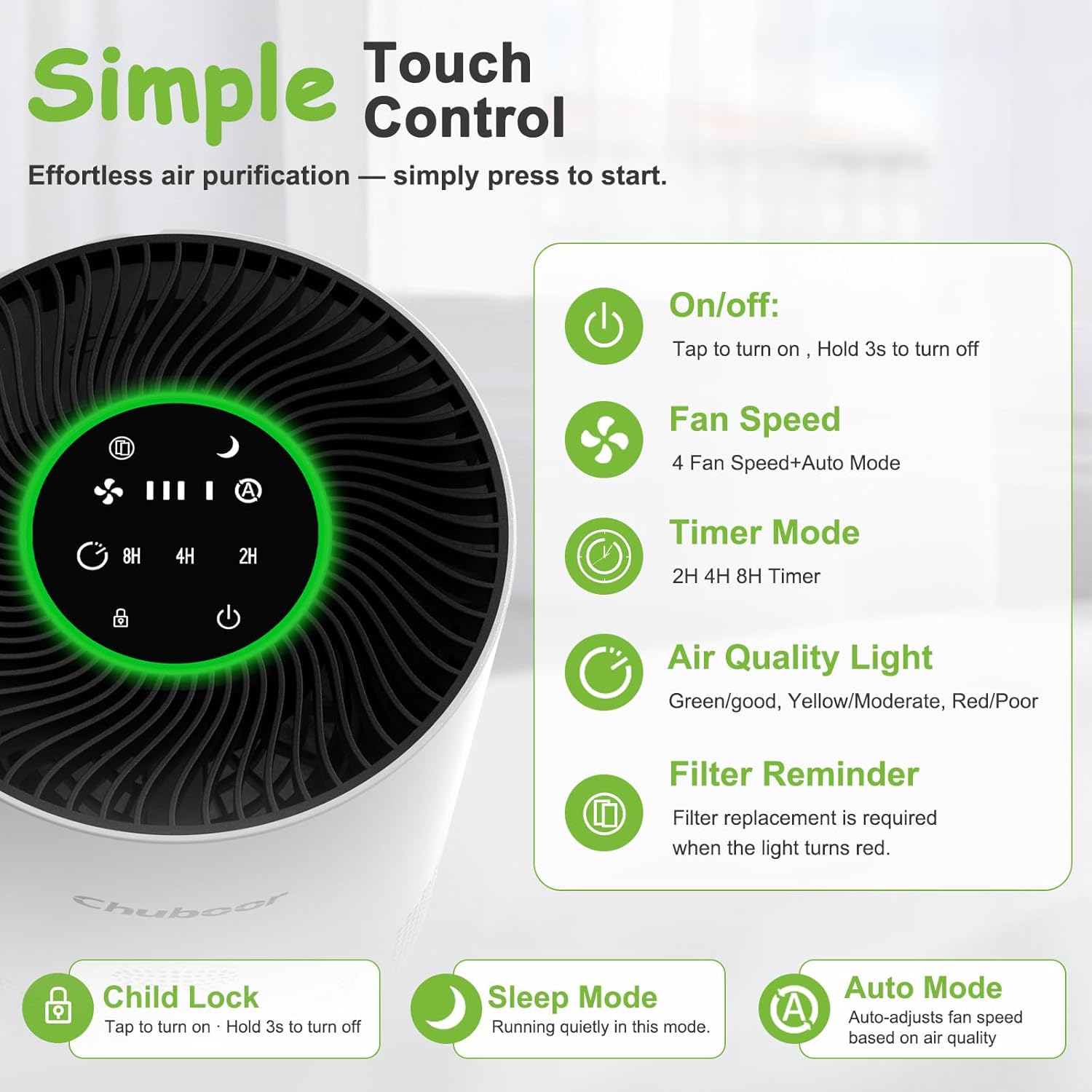

Figure 3: Simple Touch Control Panel.

۴. د تنظیم لارښوونې

Before first use, the HEPA filter must be installed correctly. Follow these steps:

1. یونټ پورته ښکته کړئ.
2. Rotate the base cover counter-clockwise to open it.
3. Remove the plastic bag from the new HEPA filter.
4. Insert the filter into the unit.
5. Twist the base cover clockwise to lock it in place.
6. Connect the power adapter to the air purifier and then plug it into a power outlet.

Figure 4: 4 Steps to Change Filter. This diagram visually guides you through the filter installation process.

5. عملیاتي لارښوونې

The Chuboor PJ01 Air Purifier features an intuitive touch control panel. Here’s how to operate it:

• پاور آن/بند: Tap the power button to turn on. Hold for 3 seconds to turn off.
• د فین سرعت: Cycle through 4 fan speeds (I, II, III, IV) or select Auto Mode.
• د موټرو حالت: The purifier intelligently detects air quality and automatically adjusts fan speed for efficient cleaning.
• د خوب حالت: Activates quiet operation (as low as 25dB) for undisturbed sleep.
• د ټایمر حالت: Set the purifier to operate for 2H, 4H, or 8H before automatically shutting off.
• Air Quality Light: The indicator light changes color to reflect current air quality (Green/Good, Yellow/Moderate, Red/Poor).
• د ماشوم قفل: Press and hold the Child Lock button for 3 seconds to lock the control panel, preventing accidental changes. Repeat to unlock.

Figure 5: Air Quality Light and Fan Speed Indicators.

Figure 6: Kid-Friendly Design with Child Lock and Timer.

شکل 7: مفصل view of the PJ01 Air Purifier's control panel and air quality indicators.

شکل 8: پایview of purification modes and fan speed options.

6. ساتنه

منظم ساتنه غوره فعالیت تضمینوي او ستاسو د هوا پاکونکي عمر اوږدوي.

6.1. د فلټر بدلول

The Chuboor PJ01 is equipped with a filter replacement indicator. A red light signals that filter replacement is required. For optimal purification, it is recommended to replace the filter every 3 to 4 months, depending on usage and environment.

1. د هوا پاکونکی خلاص کړئ.
2. Turn the unit upside down and rotate the base cover counter-clockwise to open.
3. Remove the old HEPA filter.
4. Insert a new genuine Chuboor replacement filter (search on Amazon: B0F82VHQPS).
5. Twist the base cover clockwise to lock it in place.
6. Press and hold the "Filter" icon on the control panel for 5 seconds to reset the filter life indicator.

Figure 9: Filter Life Indicator and Replacement Steps.

6.2. پاکول

Regularly dust the exterior of the air purifier with a soft, dry cloth. Do not use water or any liquid cleaners on the unit.

7. ستونزه حل کول

If you encounter any issues with your Chuboor PJ01 Air Purifier, please refer to the following common solutions:

• واحد نه فعالیږي: ډاډ ترلاسه کړئ چې د بریښنا تار په خوندي ډول د واحد او کار کونکي بریښنایی سایټ دواړو سره وصل شوی دی.
• د هوا ضعیف تصفیه: Check if the filter needs replacement (red indicator light). Ensure air inlets and outlets are not blocked.
• غیر معمولي شور: Verify that the unit is placed on a stable, flat surface. Check if the filter is installed correctly and securely.
• Control panel unresponsive: Check if the Child Lock feature is activated. Deactivate it by pressing and holding the Child Lock button for 3 seconds.

For further assistance, please contact Chuboor customer support.

8. مشخصات

9. تضمین او ملاتړ

Chuboor is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, for any questions, concerns, or support needs regarding your PJ01 Air Purifier, please contact Chuboor-US customer service. We are ready to assist you.

For optimal purification performance, we strongly recommend using genuine Chuboor replacement filters. Search on Amazon for: B0F82VHQPS to buy Original Filter.
