PWR+ AC Adapter Instruction Manual for Booster PAC Jump Starters

1. پیژندنه

This manual provides instructions for the safe and effective use of the PWR+ AC Adapter, model PWR-TAH19012N. This adapter is designed to provide power and charge compatible Booster PAC and CarStart jump starter models.

Image 1: The PWR+ AC Adapter with its integrated power cord.

۱.۱. د خوندیتوب مهم معلومات

Read all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• UL لیست شوی: This PWR+ AC Adapter is Tested, Approved, and Certified by UL/ULC (Underwriters Laboratories). The unique E475124 number is verifiable on the UL website, ensuring compliance with safety standards.
• یوازې د کور دننه کارول: Use this adapter in dry, indoor environments only. Do not expose to rain or moisture.
• مناسب وینټیلیشن: Ensure adequate ventilation around the adapter during use. Do not cover the adapter or place it in an enclosed space.
• د زیانونو مخنیوی: Do not use the adapter if the cord or plug is damaged. Do not attempt to open or repair the adapter.
• جوړ شوي محافظتونه: The adapter features Short Circuit Protection (SCP), Over Current Protection (OCP), Over Voltage Protection (OVP), and Over Temperature Protection (OTP) for enhanced safety.

Image 2: UL certification logo and a visual comparison highlighting the safety certification of the PWR+ adapter.

3. د بسته محتويات

په کڅوړه کې لاندې توکي شامل دي:

• 1 x PWR+ AC Adapter (Model: PWR-TAH19012N)

Image 3: The PWR+ AC Adapter shown with its packaging.

۴. د تنظیم لارښوونې

1. اډاپټر معاینه کړئ: Before first use, visually inspect the AC adapter and its cord for any signs of damage. Do not use if damaged.
2. وسیله سره وصل کړئ: Locate the charging port on your compatible Booster PAC or CarStart jump starter. Insert the barrel connector of the PWR+ AC Adapter firmly into the device's charging port.
3. د بریښنا آوټ لیټ سره وصل کړئ: Plug the AC adapter's two-prong plug into a standard 110-240V wall outlet. Ensure the outlet is easily accessible.

The adapter features an extra-long 6.7 ft cord for flexible placement.

5. عملیاتي لارښوونې

Once connected, the PWR+ AC Adapter will begin charging your Booster PAC or CarStart jump starter. The charging indicator on your jump starter will typically illuminate or change state to indicate charging status. Refer to your jump starter's manual for specific charging indicators.

• د چارج کولو وخت: Charging time varies depending on the jump starter model and its current battery level.
• قطع کول: Once your device is fully charged, disconnect the adapter from the wall outlet first, then from your jump starter.
• دوامداره اړیکه: While the adapter has built-in safety features, it is generally recommended to disconnect the charger once the device is fully charged to prolong battery life.

6. مطابقت

This PWR+ AC Adapter is compatible with a wide range of Booster PAC and CarStart jump starter models, including but not limited to:

• Booster PAC ES6000, ES5000, ES5000C, ES2500, ES2500C, ES2500KE, ES1224
• Booster PAC J850, J900, J1000, J2000 Truck Pac Charger
• Booster PAC P/N: ESA214, ESA217, ESA218, ESA22, 141-003-000, 141-004-000, 141-337-000, DC1500500, GPU48180500WDOO, GPU481801000WD00
• CarStart CS1000, CS1200 Power Battery Booster
• Solar ES6000, ES6000KE, ES5000SOL, ES5000ESP5500, TCB-ESA217, ESA22, ES2500KE, ES2500SOL, ES2500KE, ESA217, ES5000ESP5500, J900-SOL, ESA-22, J850 Truck Pac Battery Booster Jump Starter

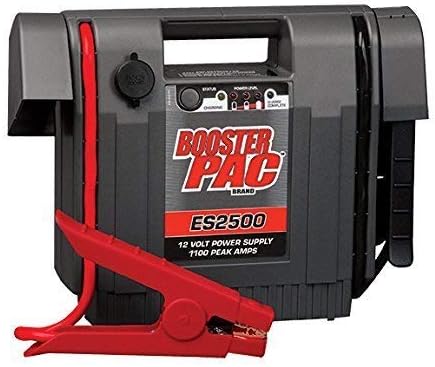

انځور ۲.۲: یو پخوانیample of a compatible device, the Booster PAC ES2500 jump starter.

7. مشخصات

انځور ۲: تفصیلي view of the adapter's internal cable structure and built-in safety protections.

8. ستونزه حل کول

• وسیله نه چارج کیږي:
  • Ensure the adapter is securely plugged into both the jump starter and the wall outlet.
  • د بل وسیلې په لګولو سره تایید کړئ چې د دیوال آوټ لیټ فعال دی.
  • Check if your jump starter model is listed in the compatibility section.
  • Inspect the adapter cord and connector for any visible damage.
• د اډاپټر ډیر ګرم کول:
  • Ensure the adapter is in a well-ventilated area and not covered.
  • که چیرې ډیر تودوخه دوام وکړي، نو کارول یې بند کړئ او د پیرودونکو ملاتړ سره اړیکه ونیسئ.

9. پاملرنه او ساتنه

• پاکول: Disconnect the adapter from power before cleaning. Use a dry, soft cloth to wipe the adapter. Do not use liquid cleaners.
• ذخیره کول: Store the adapter in a cool, dry place away from direct sunlight and moisture when not in use. Avoid wrapping the cord too tightly around the adapter to prevent damage.
• سمبالول: د اډاپټر له غورځولو یا د قوي اغیزو سره مخ کیدو څخه ډډه وکړئ.

10. تضمین او ملاتړ

This PWR+ AC Adapter comes with a د ۳۰ ورځو د بیرته ورکولو پالیسي او a د ۱۲ میاشتو تبادلې تضمین. PWR+ is a company based in Washington, USA, committed to customer satisfaction.

For warranty claims, technical support, or any inquiries, please contact PWR+ customer service through the retailer where the product was purchased or visit the official PWR+ webسایټ
