Godox AD600BM Bowens Mount 600Ws HSS Outdoor Flash Strobe Light User Manual

1. محصول ختم شوview

The Godox AD600BM is a powerful and portable outdoor flash strobe light designed for professional photography. It features a robust design with integrated battery power and advanced wireless capabilities.

• د لوړ بریښنا تولید: 600Ws with a Guide Number (GN) of 87, offering 9 steps of power adjustment from 1/1 to 1/256.
• ثابت رنګ حرارت: Maintains a consistent 5600±200K across the entire power range.
• د پرمختللي همغږۍ ځانګړتیاوې: Full support for High-Speed Sync (up to 1/8000 seconds), First-Curtain Sync, and Second-Curtain Sync.
• Integrated Wireless System: Built-in 2.4G Wireless X System for stable output and 80M wireless control with precision.
• اوږدمهاله بیټرۍ: Equipped with an 11.1V/8700mAh large capacity lithium battery pack, providing approximately 500 full power flashes with a recycle time of 0.01-2.5 seconds. DC/AC power options are available (AC module sold separately).
• ماډلینګ Lamp: Features a 10W LED modeling lamp with three adjustable brightness steps.
• د کاروونکي دوستانه انٹرفیس: Large and clear dot-matrix LCD panel for convenient operation.
• انعطاف منونکي موقعیت: Includes a handle to adjust different shooting directions of the flash.
• د فرم ویئر اپ گریڈ: USB port for firmware upgrades to ensure compatibility with the latest technology.

2. د تنظیم کولو لارښود

۲.۱ د بسته بندۍ او اجزاو خلاصول

Carefully unpack all items from the product box. The standard package includes:

• 1x Godox AD600BM Flash Unit
• 1x Godox Reflector
• 1x Lithium Battery Pack (WB87B)
• 1x Charger for Battery Pack
• 1x بریښنا کیبل
• 1x د پاکولو جامې

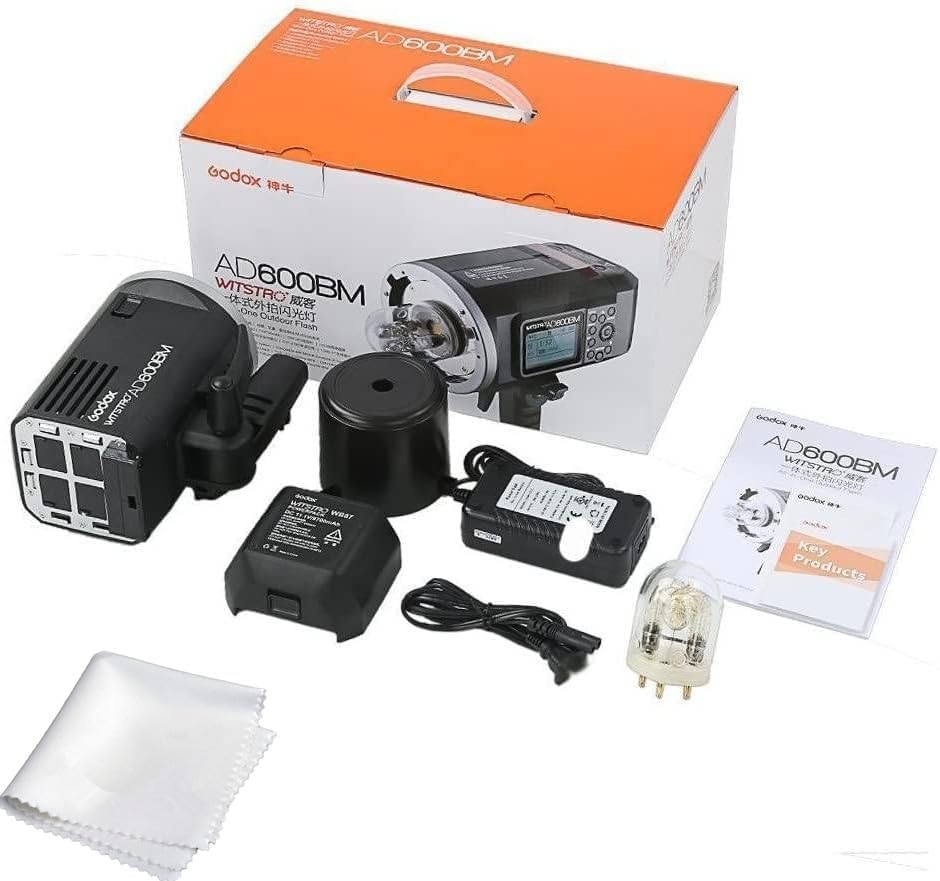

Figure 2.1: Contents of the Godox AD600BM kit, featuring the flash unit, battery, charger, and other included accessories.

2.2 د بیټرۍ نصب کول

To install the lithium battery pack (WB87B) into the AD600BM flash unit:

1. Align the battery pack with the battery compartment on the rear of the flash unit.
2. Gently slide the battery into place until it clicks securely. Ensure the release lever is engaged.

شکل 2.2: شاته view of the Godox AD600BM, highlighting the control panel and the integrated battery pack.

Figure 2.3: The removable lithium-ion battery pack (WB87B) for the Godox AD600BM, detached from the main unit.

۵.۳ د رڼا ترمیم کونکي ضمیمه کول (د بوونز ماونټ)

The AD600BM features a Bowens mount for compatibility with a wide range of light modifiers such as reflectors, softboxes, and beauty dishes.

1. To attach a modifier, align the modifier's mounting pins with the slots on the flash unit's Bowens mount.
2. Twist the modifier clockwise until it locks into place.
3. To remove, press the release button on the flash unit's mount and twist the modifier counter-clockwise.

شکل ۳: د اړخ پروfile of the Godox AD600BM, illustrating the robust adjustable bracket for mounting on light stands and the Bowens mount.

3. عملیاتي لارښوونې

۸ پاور آن/بند

فشار ورکړئ او ونیسئ آن/بند button located on the control panel to power the unit on or off. The LCD screen will illuminate upon activation.

۴.۳ د فلش بریښنا تنظیمول

Use the control dial (typically a rotary knob) on the control panel to adjust the flash power output. The power can be set from 1/1 (full power) down to 1/256 in 1/3rd stop increments.

3.3 عملیاتي طریقې

The AD600BM supports various operating modes. Press the موډ د شته حالتونو له لارې د سایکل کولو تڼۍ:

• لارښود (M): Allows precise manual control over flash power output.
• څو (سټروبوسکوپي): Fires a rapid series of flashes for capturing multiple movements in a single exposure.
• د لوړ سرعت همغږي (HSS): Enables flash synchronization with shutter speeds up to 1/8000 seconds, useful for overpowering ambient light.

3.4 Wireless Operation (2.4G X System)

The built-in 2.4G Wireless X System allows for remote control and triggering of the flash unit. This system supports multiple channels and groups for flexible lighting setups.

1. Activate the wireless function on the flash unit via the control panel.
2. Set the desired channel and group using the GR/CH button and control dial.
3. Use a compatible Godox X-series transmitter (e.g., XPro, X1) mounted on your camera's hot shoe to control the flash remotely.

3.5 ماډلینګ Lamp

د 10W LED ماډلینګ lamp assists in visualizing the light's effect before firing the flash. Press the dedicated modeling lamp button to turn it on and cycle through its three brightness levels.

4. ساتنه

4.1 د بیټرۍ چارج کول

To charge the lithium battery pack:

1. Remove the battery pack from the flash unit.
2. Connect the battery charger to the battery pack and plug the charger into a power outlet.
3. The charger's indicator lights will show the charging status. Ensure the battery is fully charged before extensive use.

4.2 پاکول

Regularly clean the flash unit and accessories with the provided cleaning cloth. Avoid using harsh chemicals or abrasive materials that could damage the unit.

4.3 Flash Tube Longevity

The flash tube of the Godox AD600BM is designed for exceptional durability and long life under normal operating conditions. Users have reported extensive use without needing replacement.

5. ستونزه حل کول

If you encounter any issues with your Godox AD600BM, please refer to the following general advice:

• واحد فعال نه دی: ډاډ ترلاسه کړئ چې بیټرۍ په بشپړه توګه چارج شوې او په سمه توګه نصب شوې ده.
• فلش نه غږېږي: Check wireless settings (channel, group) on both the flash and the transmitter. Verify the flash is in the correct operating mode (Manual, Multi, HSS).
• متضاد محصول: Ensure the flash tube is clean and free from obstructions. Check battery level.

For more detailed troubleshooting or persistent issues, please contact Godox customer support or consult the official product webسایټ

6. تخنیکي مشخصات

7. تضمین او ملاتړ

7.1 د تضمین معلومات

The Godox AD600BM comes with a 1 کلن تضمین د پیرود نیټې څخه. مهرباني وکړئ د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.

7.2 د پیرودونکي ملاتړ

For technical assistance, service, or further inquiries, please visit the official GODOX store or contact their customer support directly.
