Generic Fuel Pump Assembly Instruction Manual

1. Wprowadzenie

This manual provides essential information for the installation, operation, and maintenance of your new Generic Fuel Pump Assembly. Designed as a direct replacement part, this assembly ensures reliable fuel delivery to your Johnson 30 HP Outboard engine. Please read this manual thoroughly before proceeding with installation or use to ensure safety and proper function.

2. Koniec produktuview

The Generic Fuel Pump Assembly is engineered to restore the fuel delivery function in compatible Johnson 30 HP Outboard engines. It is a critical component for maintaining optimal engine performance by ensuring a consistent and adequate supply of fuel from the tank to the carburetor or fuel injection system.

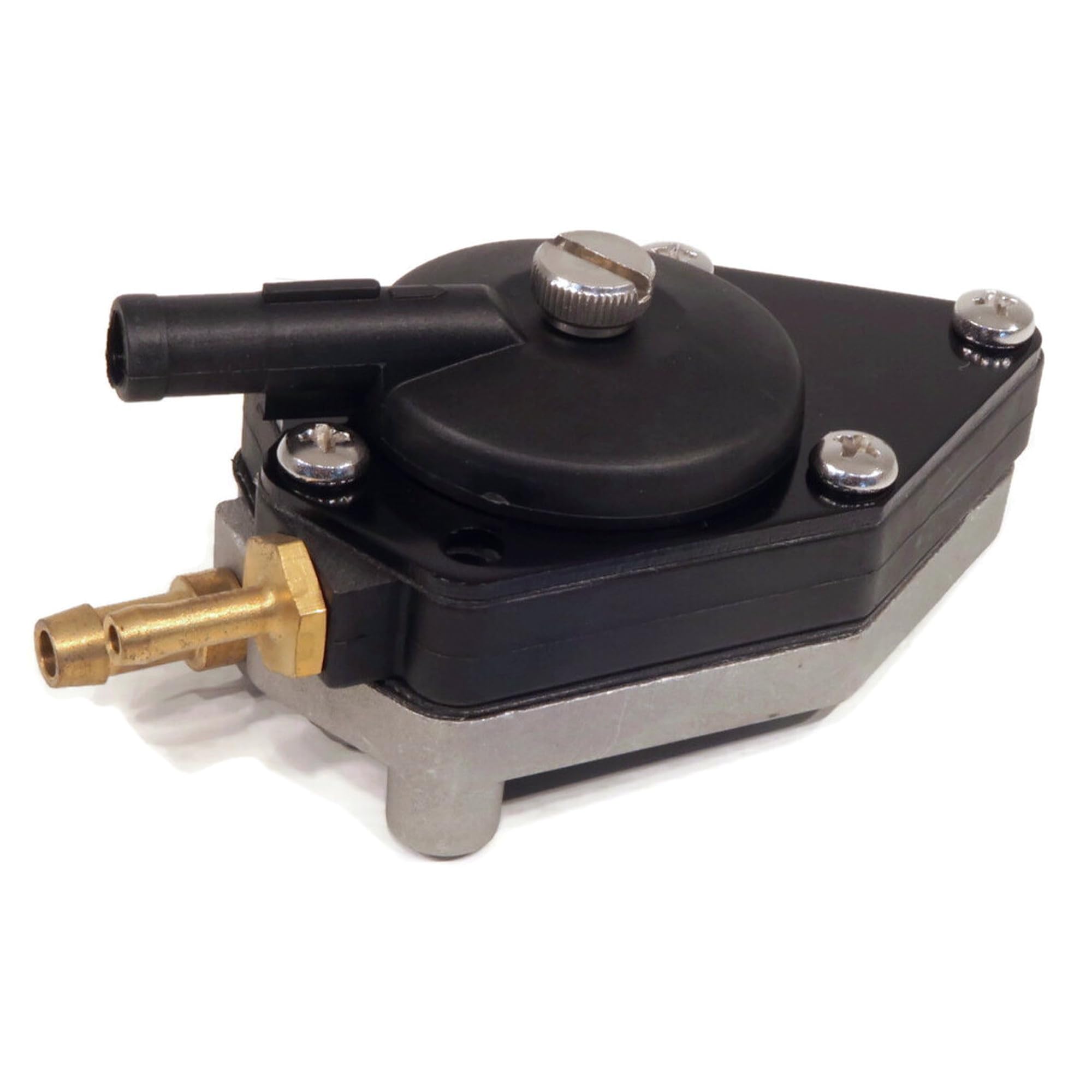

Obraz 2.1: Bok view of the Generic Fuel Pump Assembly. This image shows the main body of the fuel pump with its inlet and outlet ports.

3. Zawartość opakowania

Po otwarciu opakowania należy sprawdzić, czy wszystkie elementy są obecne i nieuszkodzone:

• 1 x Fuel Pump Assembly
• 1 x Mounting Gasket

Image 3.1: The included mounting gasket. This gasket is essential for creating a proper seal during installation.

4. Zgodność

This fuel pump assembly is compatible with the following Johnson 30 HP Outboard models from 1990:

• J30RESS
• J30ELESS
• J30EESS
• VJ30ELESS

Ważny: Always verify your engine's model, configuration, and original part layout before purchasing and installing any replacement parts to ensure correct fitment.

5. Informacje dotyczące bezpieczeństwa

WARNING: Working with fuel systems and internal combustion engines can be dangerous. Failure to follow safety precautions may result in serious injury, fire, or property damage.

• Always disconnect the battery before working on the engine to prevent accidental starting or electrical shorts.
• Ensure adequate ventilation when working with fuel to prevent the buildup of flammable vapors.
• Miej pod ręką gaśnicę.
• Należy nosić odpowiedni sprzęt ochrony osobistej (PPE), w tym okulary ochronne i rękawice.
• Handle fuel with extreme care. Avoid spills and clean up any spills immediately.
• Do not smoke or use open flames near the engine or fuel system.
• If you are unsure about any step, consult a qualified marine mechanic.

6. Konfiguracja i instalacja

This section provides general guidelines for replacing the fuel pump assembly. Refer to your specific Johnson 30 HP Outboard service manual for detailed, model-specific instructions and torque specifications.

1. Przygotowanie:
   • Ensure the engine is cool and the boat is in a well-ventilated area.
   • Odłącz ujemny zacisk akumulatora.
   • Close the fuel tank vent and fuel valve.
   • Have rags and a suitable container ready to catch any spilled fuel.
2. Remove Old Fuel Pump:
   • Carefully disconnect the fuel lines from the existing fuel pump. Note their positions for reinstallation.
   • Remove the mounting bolts securing the old fuel pump to the engine block.
   • Remove the old fuel pump and its gasket. Dispose of the old gasket properly.
3. Install New Fuel Pump:
   • Clean the mounting surface on the engine block thoroughly, ensuring it is free of old gasket material and debris.
   • Place the new mounting gasket onto the engine block, aligning the bolt holes.
   • Position the new fuel pump assembly over the gasket, aligning it with the bolt holes.
   • Włóż i dokręć ręcznie śruby mocujące.
   • Tighten the bolts evenly to the manufacturer's specified torque. (Refer to your engine's service manual for exact torque specifications.)
   • Reconnect the fuel lines to the appropriate ports on the new fuel pump. Ensure all connections are secure and free of leaks.
4. Kontrole końcowe:
   • Double-check all fuel line connections and mounting bolts for tightness.
   • Reconnect the battery's negative terminal.
   • Open the fuel tank vent and fuel valve.

Obraz 6.1: Inny view of the fuel pump assembly, highlighting the brass fuel line fittings. Ensure these are securely connected.

7. Instrukcja obsługi

After installation, perform the following steps before operating your engine:

1. Zalać układ paliwowy:
   • Squeeze the primer bulb (if equipped) until it becomes firm. This fills the fuel lines and carburetor with fuel.
   • Check for any visible fuel leaks around the new fuel pump and fuel line connections. Address any leaks immediately before proceeding.
2. Rozruch silnika:
   • Start the engine according to your outboard's manufacturer instructions.
   • Monitor the engine's performance and listen for any unusual noises or signs of fuel starvation.
   • Visually inspect the fuel pump area for leaks while the engine is running.

If the engine runs smoothly and no leaks are detected, the installation is successful.

8. Konserwacja

Regular maintenance helps ensure the longevity and reliable performance of your fuel pump assembly:

• Przeglądy okresowe: Regularly inspect the fuel pump and all fuel lines for signs of wear, cracks, leaks, or corrosion.
• Filtr paliwa: Ensure your engine's fuel filter is replaced according to the manufacturer's recommendations. A clogged fuel filter can put undue strain on the fuel pump.
• Jakość paliwa: Use clean, fresh fuel. Contaminated fuel can damage the internal components of the fuel pump.
• Zimowanie: Follow your engine manufacturer's guidelines for winterizing the fuel system if the outboard will be stored for an extended period.

9. Rozwiązywanie Problemów

If you experience issues after installing the new fuel pump, consider the following common problems and solutions:

Jeśli wykonanie czynności rozwiązywania problemów nie pomoże, należy skonsultować się z wykwalifikowanym mechanikiem okrętowym.

10. Specyfikacje

11. Gwarancja i wsparcie

This product is offered with a return policy of 30 days from the date of purchase. For any issues or support inquiries regarding this fuel pump assembly, please contact the seller, FIDES, through the platform where the purchase was made. Ensure you have your purchase details and model number (MC_FD_493) available when contacting support.

For detailed return instructions, please refer to the return policy provided by the retailer at the time of purchase.
