Whirlpool WH4FFA14BN6X Dishwasher User Manual

Wstęp

This manual provides essential information for the safe and efficient operation of your Whirlpool WH4FFA14BN6X freestanding dishwasher. Please read these instructions carefully before using the appliance and keep them for future reference.

The Whirlpool WH4FFA14BN6X is a 14 place setting dishwasher designed for modern kitchens. It features advanced technologies such as 6th Sense, Natural Dry, and Multizone washing, ensuring optimal cleaning results with efficient energy and water consumption.

Obraz: Przód view of the Whirlpool WH4FFA14BN6X freestanding dishwasher in stainless steel finish.

Konfiguracja i instalacja

Your Whirlpool WH4FFA14BN6X is a freestanding dishwasher. Proper installation is crucial for its performance and safety.

Rozpakowywanie

Carefully remove all packaging materials. Inspect the dishwasher for any damage incurred during transit. Report any damage to your retailer immediately.

Pozycjonowanie

Place the dishwasher on a level, stable floor. Ensure there is adequate space for opening the door and for water and electrical connections. The dimensions are 59P x 60l x 85H cm (Depth x Width x Height).

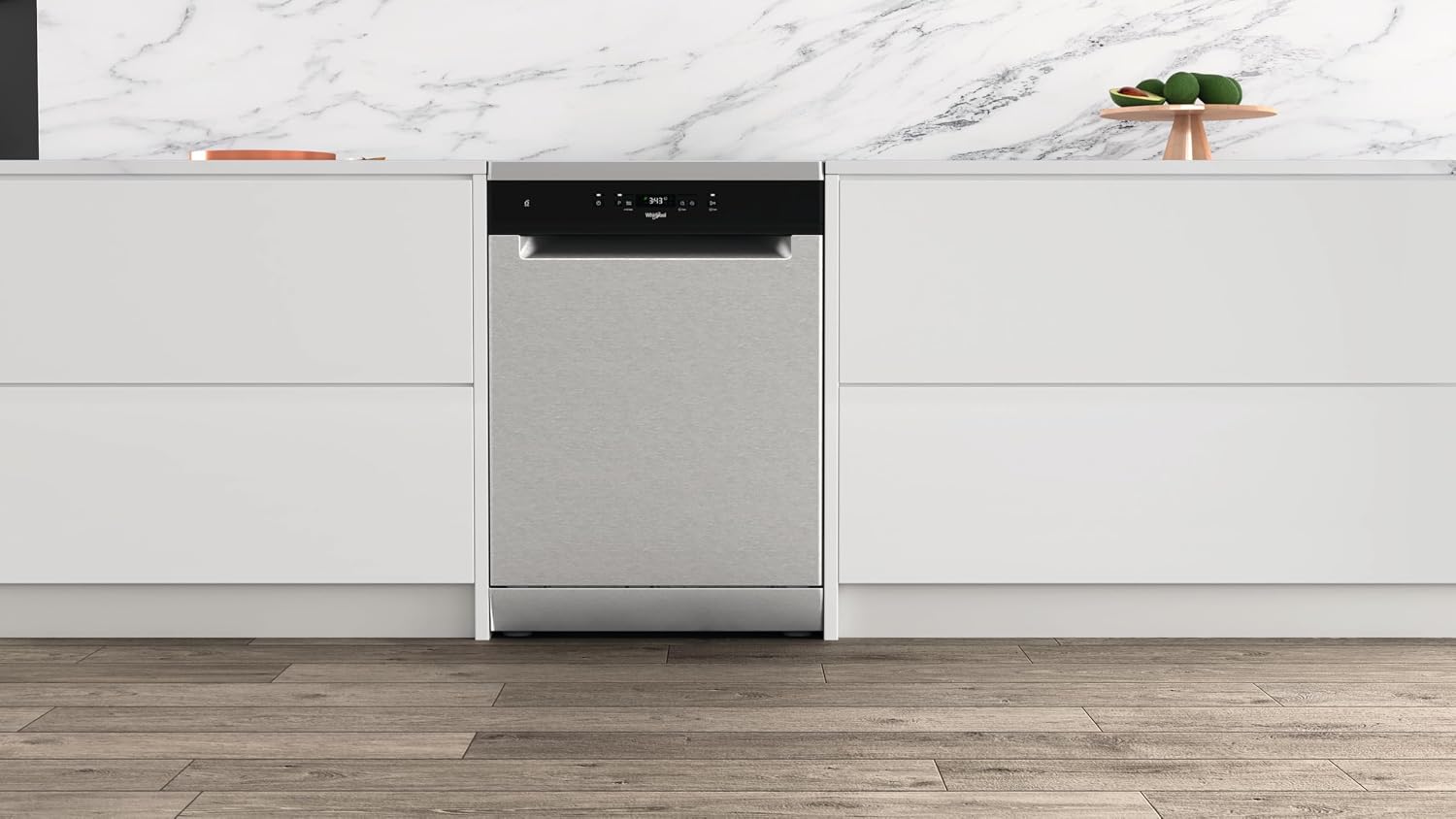

Image: Whirlpool WH4FFA14BN6X dishwasher seamlessly integrated into a modern kitchen setting.

Podłączenie wody

Connect the water inlet hose to a cold water supply tap. Ensure the connection is secure to prevent leaks. Connect the drain hose to a suitable drain pipe, ensuring it is properly secured and allows for free drainage.

Połączenie elektryczne

Connect the power cable (included) to a grounded electrical outlet. The dishwasher operates on 230 Volts. Ensure the electrical supply meets the requirements specified on the appliance rating plate.

Pierwsze użycie

Before the first wash cycle, ensure the salt dispenser is filled (if applicable to your model) and the rinse aid dispenser is topped up. Run an empty cycle to clean the interior.

Instrukcja obsługi

The Whirlpool WH4FFA14BN6X dishwasher features intuitive button controls and several advanced functions for optimal washing performance.

Obraz: Szczegółowy view of the control panel with buttons and digital display, showing program selection and time.

Ładowanie zmywarki

Arrange dishes to allow water to reach all surfaces. Utilize the flexible space features, including the adjustable upper basket and third basket, for various item sizes like pots, pans, and long utensils.

Obraz: Wnętrze view of the dishwasher with dishes loaded in both upper and lower baskets, demonstrating flexible loading options.

Wybór programu prania

Your dishwasher offers various wash programs, including intensive, rapid, and eco options. Refer to the control panel for specific program indicators.

• Technologia Szóstego Zmysłu: Intelligent sensors automatically adjust wash time, temperature, and water consumption based on soil level, ensuring optimal results with zero waste.
• Wielostrefowy: When you have a partial load, select specific baskets to wash, saving water and energy without compromising wash quality.
• Opóźniony start: Allows you to set the dishwasher to start at a more convenient time, up to 24 hours later.

Rozpoczęcie cyklu

Zamknij dokładnie drzwi zmywarki. Naciśnij przycisk zasilania, a następnie wybierz żądany program. Naciśnij przycisk Start, aby rozpocząć cykl.

Natural Dry Function

At the end of the cycle, the door automatically opens, improving drying performance by up to 99% and reducing energy consumption by up to 40%.

Konserwacja

Regularna konserwacja zapewnia długowieczność i optymalną wydajność zmywarki.

Czyszczenie filtrów

Periodically check and clean the filter assembly at the bottom of the dishwasher. Remove food particles and rinse under running water. Reassemble correctly to prevent blockages and ensure efficient cleaning.

Czyszczenie ramion natryskowych

Ensure the spray arm nozzles are not blocked. If necessary, remove the spray arms and clean any debris from the holes.

Czyszczenie zewnętrzne

Wipe the exterior surfaces, especially the stainless steel finish, with a soft, damp cloth. Avoid abrasive cleaners that could damage the surface.

Sól i nabłyszczacz

Regularly check and refill the salt and rinse aid dispensers as indicated by the appliance. These are essential for preventing limescale and ensuring streak-free drying.

Rozwiązywanie problemów

Before contacting customer service, refer to the following common issues and solutions. For more detailed troubleshooting, consult the full product manual.

• Zmywarka nie uruchamia się: Check if the door is fully closed, the power cable is connected, and the circuit breaker has not tripped.
• Naczynia nie są czyste: Ensure spray arms are not blocked, filters are clean, and dishes are loaded correctly. Check detergent dispenser.
• Woda nie odpływa: Sprawdź wąż spustowy pod kątem zagięć lub zatorów. Wyczyść zespół filtra.
• Nadmierny hałas: Upewnij się, że naczynia nie blokują ramion spryskiwacza. Sprawdź, czy w obszarze pompy nie ma obcych przedmiotów.

Specyfikacje

Informacje o gwarancji

This Whirlpool WH4FFA14BN6X dishwasher comes with a 2-letnia gwarancja producentaProsimy zachować dowód zakupu na wypadek roszczeń gwarancyjnych. Gwarancja obejmuje wady materiałowe i wykonawcze powstałe w wyniku normalnego użytkowania.

For full terms and conditions of the warranty, please refer to the documentation provided with your appliance or contact Whirlpool customer support.

Obsługa klienta

If you require assistance with your Whirlpool WH4FFA14BN6X dishwasher, have questions about its operation, or need to arrange service, please contact Whirlpool customer support.

You can also visit the official Whirlpool store for more information and resources:

Visit the Whirlpool Store

When contacting support, please have your model number (WH4FFA14BN6X) and serial number ready.
