Tomofree K7 PRO 3-Wheel Foldable Electric Mobility Scooter

1. Wytyczne bezpieczeństwa

Please read and understand all safety instructions before operating the Tomofree K7 PRO scooter. Failure to follow these instructions may result in injury or damage to the product.

• Cargo Weight Distribution: Always maintain cargo weight within ±15cm of the centerline to prevent lateral instability.
• Cornering Speed: The recommended maximum cornering speed is ≤8mph. Reduce speed significantly when turning.
• Kontrola przed jazdą: Before each use, ensure all components are securely fastened, tires are properly inflated, and brakes are functioning correctly.
• Sprzęt ochronny: Always wear a helmet and other appropriate protective gear (e.g., knee pads, elbow pads) when operating the scooter.
• Warunki środowiskowe: Avoid riding in heavy rain, snow, or on icy surfaces. The scooter is designed for urban and light off-road use.
• Limit wagowy: Nie należy przekraczać maksymalnej zalecanej wagi wynoszącej 220 funtów.

2. Koniec produktuview

The Tomofree K7 PRO is a 3-wheel foldable electric mobility scooter designed for adults, offering a blend of portability, stability, and comfort. It features a lightweight aluminum alloy frame, a powerful 400W brushless motor, and a long-lasting lithium-ion battery.

Główne cechy:

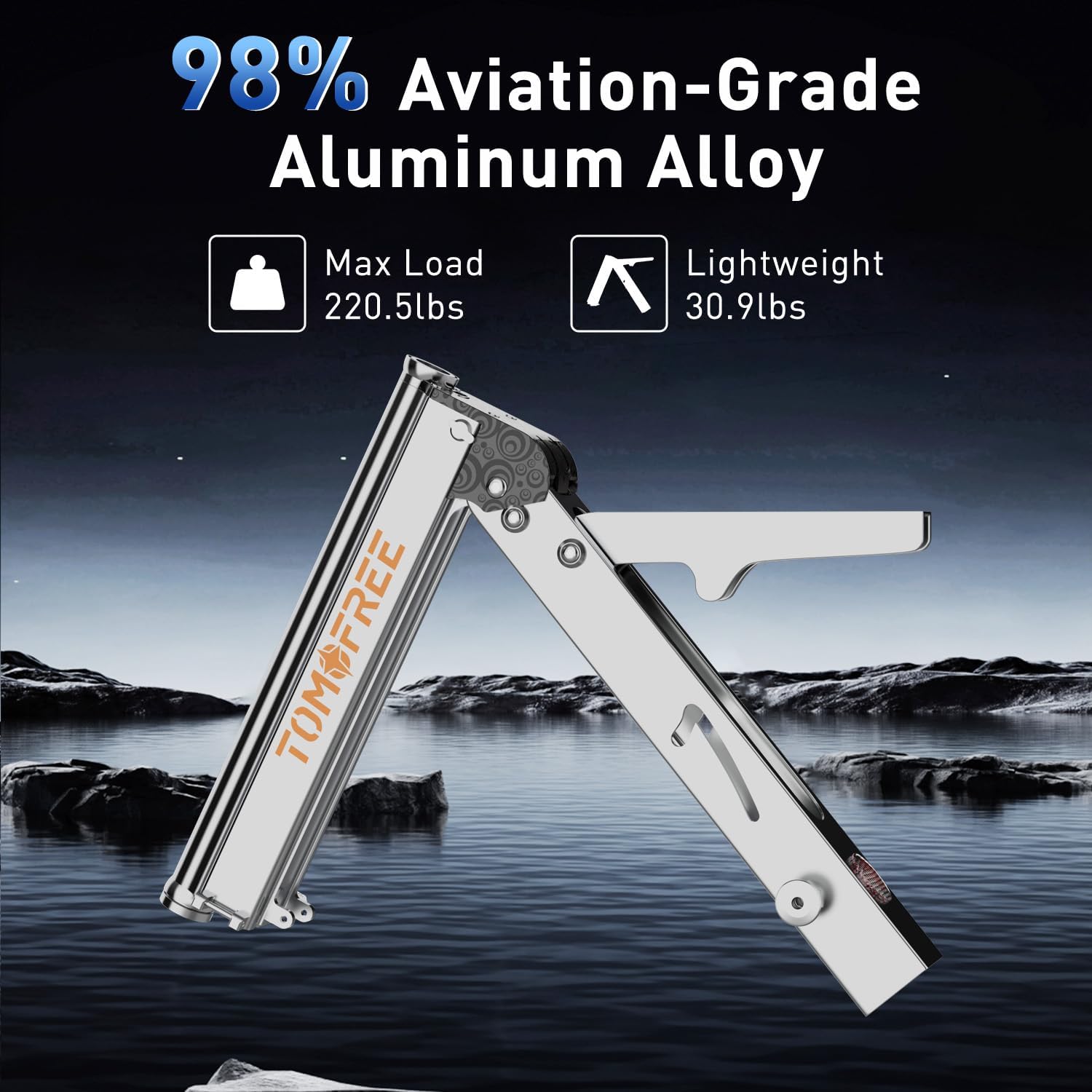

• Ultraprzenośna konstrukcja: Crafted from aviation-grade aluminum alloy, weighing approximately 42 lbs, and folds to a compact size (32"x18"x22") in 10 seconds.
• Stable Trio-Wheel System: Features a scratch-resistant triangular frame for enhanced stability.
• Mocny silnik: Peak 400W Brushless Motor for efficient performance and a top speed of 15 mph.
• Akumulator dalekiego zasięgu: 270Wh (36V 7.5Ah) lithium-ion battery providing a tested range of 15.5 miles on a single charge, with 3-4.5 hours fast charging.
• Komfortowa jazda: Equipped with 3 premium 10-inch city tires, an ergonomic dual-spring suspension system, and thick, cushioned seat padding for shock absorption.
• Intuicyjne sterowanie: Smart handlebar system with an HD display showing real-time battery level, speed, and mileage data, plus forward/reverse buttons and gear shift.

Rysunek 2.1: Ogólne view of the Tomofree K7 PRO scooter.

Rysunek 2.2: Eksplodowany view illustrating the 400W Rear Motor, capable of speeds up to 15 MPH.

Figure 2.3: Transparent view of the scooter frame highlighting the integrated 36V 7.5Ah Lithium Battery, offering 3-4.5 hours fast charging and 12-19 miles range.

Figure 2.4: Transparent view detailing the 5-fold shock absorption system, including damping seat, seat package spring, YDS spring damping, and shock-absorbing tires.

Rysunek 2.5: Zbliżenie view of the 10-inch Off-Road Tires, designed for various terrains.

3. Konfiguracja

The Tomofree K7 PRO electric scooter ships fully assembled. Follow these steps for initial preparation:

1. Rozpakowywanie: Ostrożnie wyjmij hulajnogę z opakowania.
2. Rozwijanie: The scooter features a 3-step folding system. Unfold the scooter by following the sequence indicated in the diagram below until it locks into its riding position. Ensure all locking mechanisms are engaged before use.
3. Opłata początkowa: Before first use, fully charge the battery. Connect the charger to the scooter's charging port and then to a power outlet. The indicator light on the charger will change when charging is complete.

Figure 3.1: Visual guide for the 3-Step Folding System, demonstrating how to unfold the scooter for use.

4. Instrukcja obsługi

Przed jazdą zapoznaj się ze sterowaniem.

4.1 Włączanie/wyłączanie zasilania

• Włączanie: Insert the key into the ignition and turn it to the 'ON' position. The HD display will illuminate.
• Aby wyłączyć: Turn the key to the 'OFF' position and remove it.

4.2 tryby prędkości

The scooter offers three-speed versatility, adjustable via buttons on the left handlebar:

• Tryb I (niska prędkość): Approximately 2 mph (6 km/h), suitable for turning and crowded areas.
• Tryb II (średnia prędkość): Approximately 6 mph (12 km/h), ideal for daily driving.
• Tryb III (wysoka prędkość): Approximately 15 mph (15.5 mph / 25 km/h), for open areas. Exercise caution at high speeds.

4.3 Funkcja odwrotna

To engage reverse, simply hold the designated button on the handlebar. Release the button to return to forward motion.

Wyświetlacz HD 4.4

The HD display on the handlebar provides essential real-time information:

• Poziom naładowania baterii
• Aktualna prędkość
• Całkowity przebieg (ODO)
• Dystans podróży (TRIP)

4.5 Przepustnica i hamowanie

• Przepustnica: The full-twist throttle on the right handlebar controls acceleration. Twist gently to increase speed.
• Hamowanie: The scooter is equipped with a front drum brake. Apply the brake lever on the handlebar smoothly to slow down or stop.

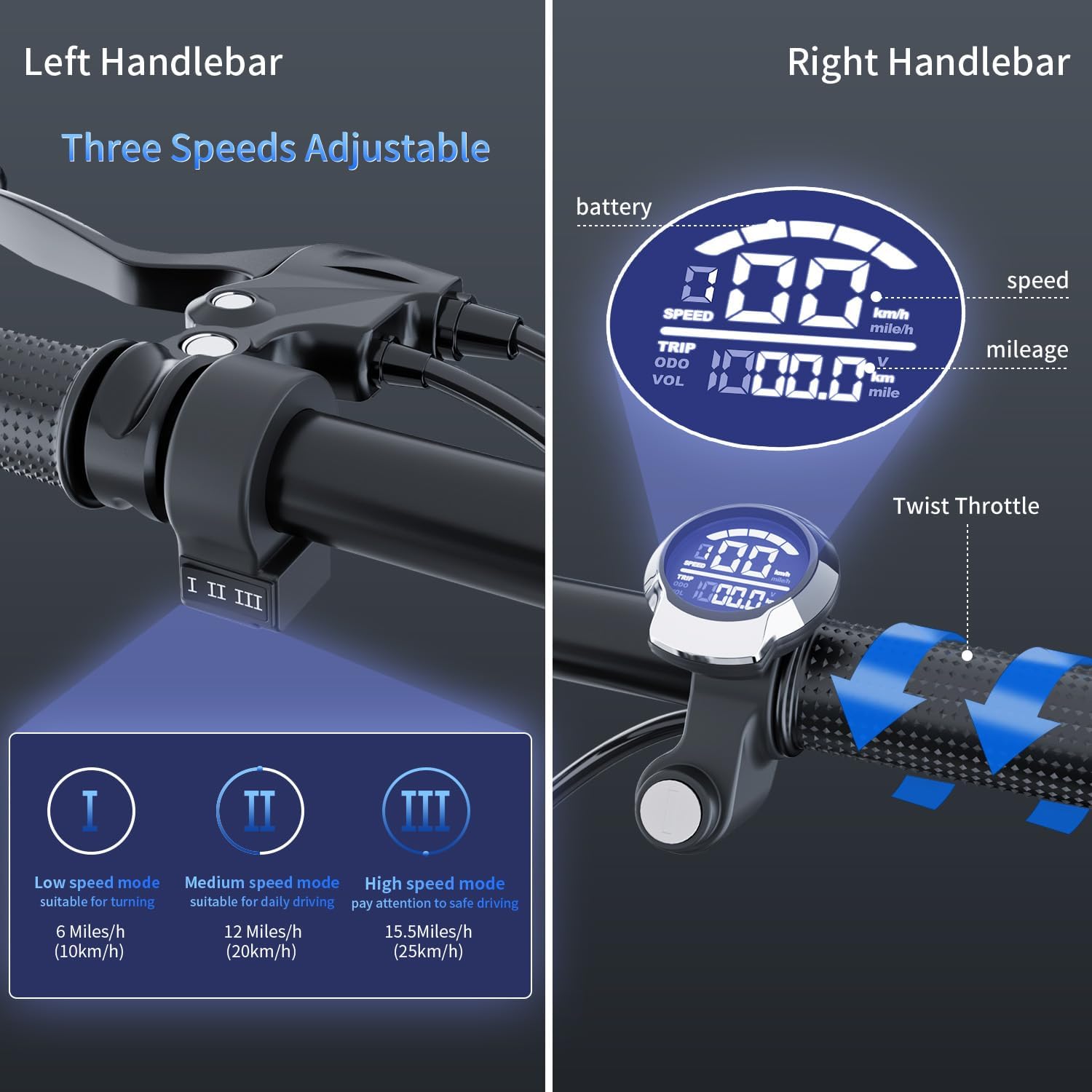

Figure 4.1: Left Handlebar controls, showing the three-speed adjustment buttons (I, II, III).

Figure 4.2: Right Handlebar featuring the HD display for battery, speed, and mileage, along with the twist throttle.

5. Konserwacja

Regular maintenance ensures the longevity and optimal performance of your Tomofree K7 PRO scooter.

• Pielęgnacja baterii: Perform a monthly full discharge/charge cycle for battery calibration to extend battery life and maintain performance. Avoid completely draining the battery for extended periods.
• Czyszczenie: Wytrzyj skuter reklamąamp cloth. Avoid using high-pressure water jets or harsh chemicals, which can damage electrical components.
• Kontrola opon: Regularly check tire pressure and for any signs of wear or damage. Ensure tires are properly inflated for a safe and comfortable ride.
• Kontrola elementów złącznych: Periodically inspect all bolts and fasteners to ensure they are tight.

6. Rozwiązywanie Problemów

If you encounter any issues with your Tomofree K7 PRO scooter, please refer to the following general troubleshooting tips. For more complex problems, contact customer support.

• Hulajnoga się nie włącza: Check if the battery is charged and the key is fully inserted and turned to the 'ON' position.
• Utrata mocy/zmniejszony zasięg: Ensure the battery is fully charged. Extreme temperatures can affect battery performance.
• Nietypowe dźwięki: Inspect for loose parts or obstructions around the wheels and motor.
• Problemy z hamulcami: Check brake lever tension and ensure the brake mechanism is free of debris.

7. Specyfikacje

8. Gwarancja i wsparcie

Tomofree is committed to providing quality products and excellent customer service.

8.1 Informacje o gwarancji

The Tomofree K7 PRO scooter comes with a 1-letnia gwarancja on core components. This warranty covers manufacturing defects under normal use. It excludes accidents, misuse, and normal wear and tear.

To Claim Warranty: Contact Tomofree customer support with your order number, a detailed description of the issue, and supporting photos or videos of the defect. This warranty does not affect your statutory rights.

8.2 Obsługa klienta

W razie pytań, chęci uzyskania pomocy technicznej lub złożenia reklamacji prosimy o kontakt z naszym zespołem obsługi klienta:

• Telefon: +1-518-614-6355
• E-mail: Service@tomofree.com
• Our customer support is available 24/7.
