AZZUNO WP-17V LIFT TIG Welding Torch User Manual

Wstęp

This manual provides essential instructions for the safe and effective use of your AZZUNO WP-17V Air-Cooled LIFT TIG Welding Torch. Please read this manual thoroughly before operation to ensure proper setup, usage, and maintenance. This torch is designed for precise TIG welding applications and is compatible with specific AZZUNO MIG welding machines.

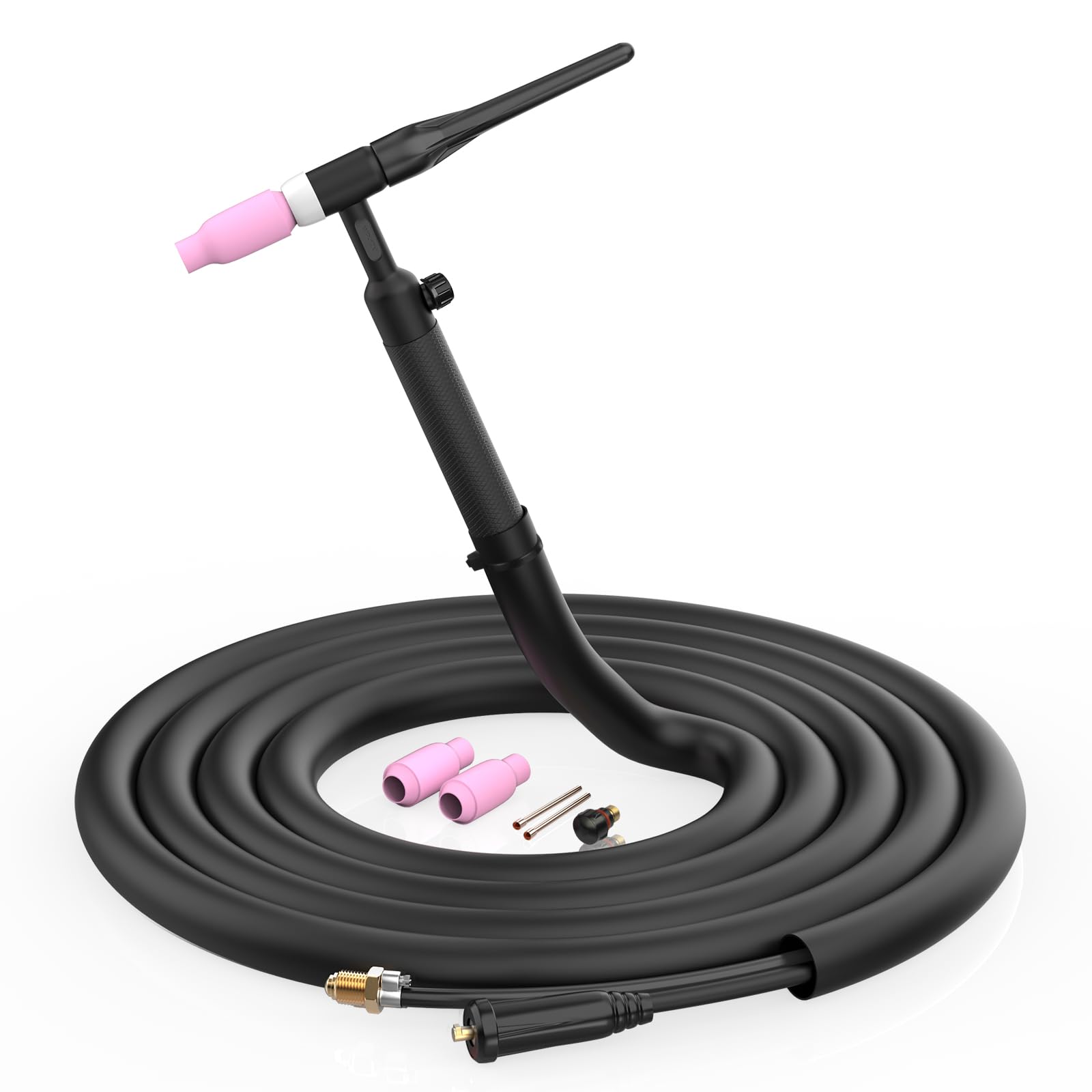

Image: The AZZUNO WP-17V LIFT TIG Welding Torch, showcasing its ergonomic design and components.

Zawartość opakowania

Upon unpacking, verify that all the following items are included in your package:

• 1 x WP-17V TIG Torch with 13-ft Cable and Gas Hose
• 3 x Ceramic Cups (various sizes)
• 3 x Collets (various sizes)
• 1 x Collet Body
• 1 x Long Back Cap
• 1 x Short Back Cap

Obraz: szczegółowy view of the WP-17V TIG torch accessories, including ceramic cups, collets, collet body, and back caps.

Image: Diagram illustrating the dimensions and sizes of the ceramic cups, collets, collet body, and back caps for the WP-17V TIG torch.

Instrukcje konfiguracji

1. Connect the Quick Connector: Attach the 10-25mm² quick connector of the TIG torch cable to the corresponding output terminal on your compatible AZZUNO welding machine. Ensure a secure connection.
2. Connect the Gas Hose: Connect the 5/8"-18 gas hose connector to the gas outlet on your welding machine. Ensure the gas hose is properly tightened to prevent leaks.
3. Zainstaluj materiały eksploatacyjne:
   • Insert the appropriate collet and collet body into the torch head.
   • Place the tungsten electrode into the collet and tighten the back cap to secure it.
   • Screw on the ceramic cup (nozzle) to the torch head.
4. Dostawa gazu: Connect your argon gas cylinder to the welding machine's gas inlet and ensure the regulator is set to the recommended flow rate for TIG welding.

Obraz: Zbliżenie view of the 13-ft cable, 10-25mm² quick connector, and 5/8" external thread gas hose connector for the TIG torch.

Instrukcja obsługi

Lift TIG Start

The AZZUNO WP-17V TIG torch features a reliable Lift TIG start mechanism. This method allows for arc initiation without high-frequency interference, providing a smooth and stable start for precise welding. To initiate the arc:

1. Ensure your welding machine is set to TIG mode and appropriate welding parameters (current, gas flow) are selected.
2. Lightly touch the tungsten electrode to the workpiece.
3. Slowly lift the torch from the workpiece. The arc will initiate as the torch is lifted, providing a controlled start.
4. Utrzymuj stałą długość łuku i prędkość spawania, aby uzyskać optymalną jakość spoiny.

Ergonomiczna konstrukcja

The WP-17V TIG torch is designed with an ultra-lightweight body and a non-slip rhombus-patterned handle. This ergonomic design ensures a comfortable grip, reducing operator fatigue during extended welding sessions and enhancing control for precise work.

Konserwacja

Regular maintenance ensures the longevity and optimal performance of your TIG welding torch:

• Czyste materiały eksploatacyjne: Regularly inspect and clean the ceramic cups, collets, and collet body. Replace them if they show signs of wear, cracking, or damage.
• Elektroda wolframowa: Keep the tungsten electrode sharp and free from contamination. Re-grind or replace as needed.
• Kontrola kabli i węży: Periodically check the 13-ft cable and gas hose for any cuts, abrasions, or leaks. Ensure all connections remain tight.
• Składowanie: Przechowuj latarkę w czystym i suchym miejscu, z dala od kurzu i wilgoci, gdy nie jest używana.

Rozwiązywanie problemów

This section addresses common issues you might encounter with your TIG torch. For more complex problems, consult your welding machine's manual or contact AZZUNO customer support.

• Poor Arc Start:
  • Check tungsten electrode condition (sharpness, contamination).
  • Verify proper gas flow and connection.
  • Ensure correct welding parameters are set on the machine.
• Niespójny łuk:
  • Inspect collet and collet body for wear or damage.
  • Check for gas leaks in the hose or connections.
  • Ensure the tungsten is securely tightened.
• Wycieki gazu:
  • Tighten all gas hose connections.
  • Inspect the gas hose for visible damage and replace if necessary.

Specyfikacje

Zgodność

The AZZUNO WP-17V TIG Welding Torch (with 10-25mm² connector) is specifically designed for compatibility with the following AZZUNO welding machines:

• AZZUNO MIG-135F
• AZZUNO MIG-155F
• AZZUNO MIG-135PRO
• AZZUNO MIG-135L
• AZZUNO MIG-145L
• AZZUNO MIG-155L
• And other compatible models with 10-25mm² quick connectors and 5/8" gas hose connections.

Image: The WP-17V TIG torch shown alongside compatible AZZUNO MIG welding machines, illustrating the connection.

Gwarancja i wsparcie

For warranty information, technical support, or any inquiries regarding your AZZUNO WP-17V LIFT TIG Welding Torch, please contact AZZUNO customer service directly. You can often find contact details on the official AZZUNO webna stronie internetowej lub za pośrednictwem sprzedawcy, u którego produkt został zakupiony.
