Rocketek CAC Card Reader User Manual

1. Wprowadzenie

Thank you for choosing the Rocketek CAC Card Reader. This device is a versatile 2-in-1 USB/Type C dual connector smart card reader designed for secure access and data transfer. It is compatible with a wide range of smart cards, including DOD Military Common Access Cards (CAC), Government IDs, National IDs, and various banking cards. This manual provides essential information for setting up, operating, and maintaining your card reader.

2. Zawartość opakowania

• 1 x Rocketek CAC Card Reader (Model: FBA_RT-CR7)
• 1 x Instrukcja obsługi (ten dokument)

3. Funkcje produktu

• Podwójna łączność: Equipped with both USB-A and Type-C connectors for broad device compatibility.
• Podłącz i graj: Automatic driver installation for Windows systems.
• Szeroka kompatybilność: Supports ISO7816 Class A, B, and C (5V/3V/1.8V) Smart Cards, including CAC, Government ID, National ID, ActivClient, AKO, OWA, DKO, JKO, NKO, BOL, GKO, Marinenet, AF Portal, Pure Edge Viewer, ApproveIt, DCO, DTS, LPS, Disa Enterprise Email.
• Zwiększone bezpieczeństwo: Ideal for high-security federal government applications, online banking, Windows authentication, and Single Sign-On (SSO).
• Przenośna konstrukcja: Mini foldable design, thumb-sized, and convenient for travel without external power cords.
• Trwałość: Built to withstand extensive use.

4. Przewodnik konfiguracji

4.1 Connecting the Card Reader

The Rocketek CAC Card Reader features a 2-in-1 design with both USB-A and Type-C connectors. Choose the appropriate connector for your device.

1. Identify the available USB-A or Type-C port on your computer, laptop, or compatible Android device.
2. Plug the corresponding connector of the card reader firmly into the port.

Image: The Rocketek CAC Card Reader connected to a laptop, demonstrating its compact design and dual USB-A/Type-C connectivity. A smart card is shown inserted into the reader.

Obraz: szczegółowy view of the card reader's integrated USB-A and Type-C connectors, highlighting their design and indicating that Lightning and Micro USB ports are not compatible.

4.2 Instalacja sterownika

The card reader is designed for ease of use with plug-and-play functionality.

• Systemy Windows: The driver will automatically install upon connecting the device. No manual installation is typically required.
• Użytkownicy systemu Mac OS: Java is necessary for the card reader to function correctly. Please install Java from Java's official webStrona (www.java.com) before using the reader.
• DOD and USG Users: A third-party CAC Enabler program is required for full functionality with military and government cards.

For additional driver downloads and support, please visit the Rocketek webstrona: www.rocketek.hk.

Image: An illustration emphasizing the ease of driver installation and directing users to the Rocketek webwitryna z pomocą techniczną i plikami do pobrania.

5. Instrukcja obsługi

5.1 Wkładanie karty inteligentnej

1. Ensure the card reader is connected to your device.
2. Locate the smart card slot on the reader.
3. Insert your smart card (e.g., CAC card, ID card, bank card) into the slot with the chip facing upwards and towards the reader. Push gently until it is fully seated.

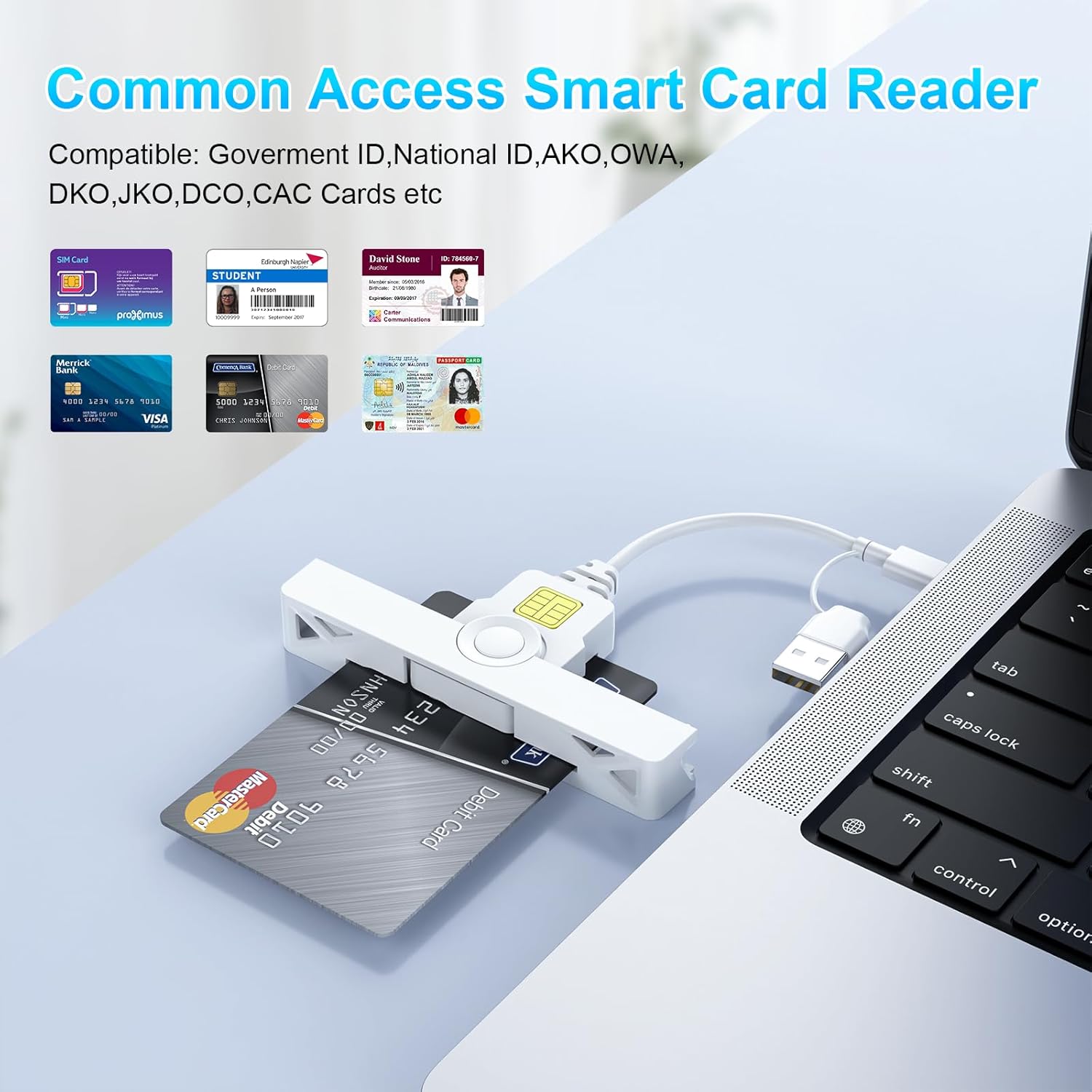

Image: The card reader shown with various types of smart cards, including government IDs and bank cards, demonstrating its broad compatibility for common access.

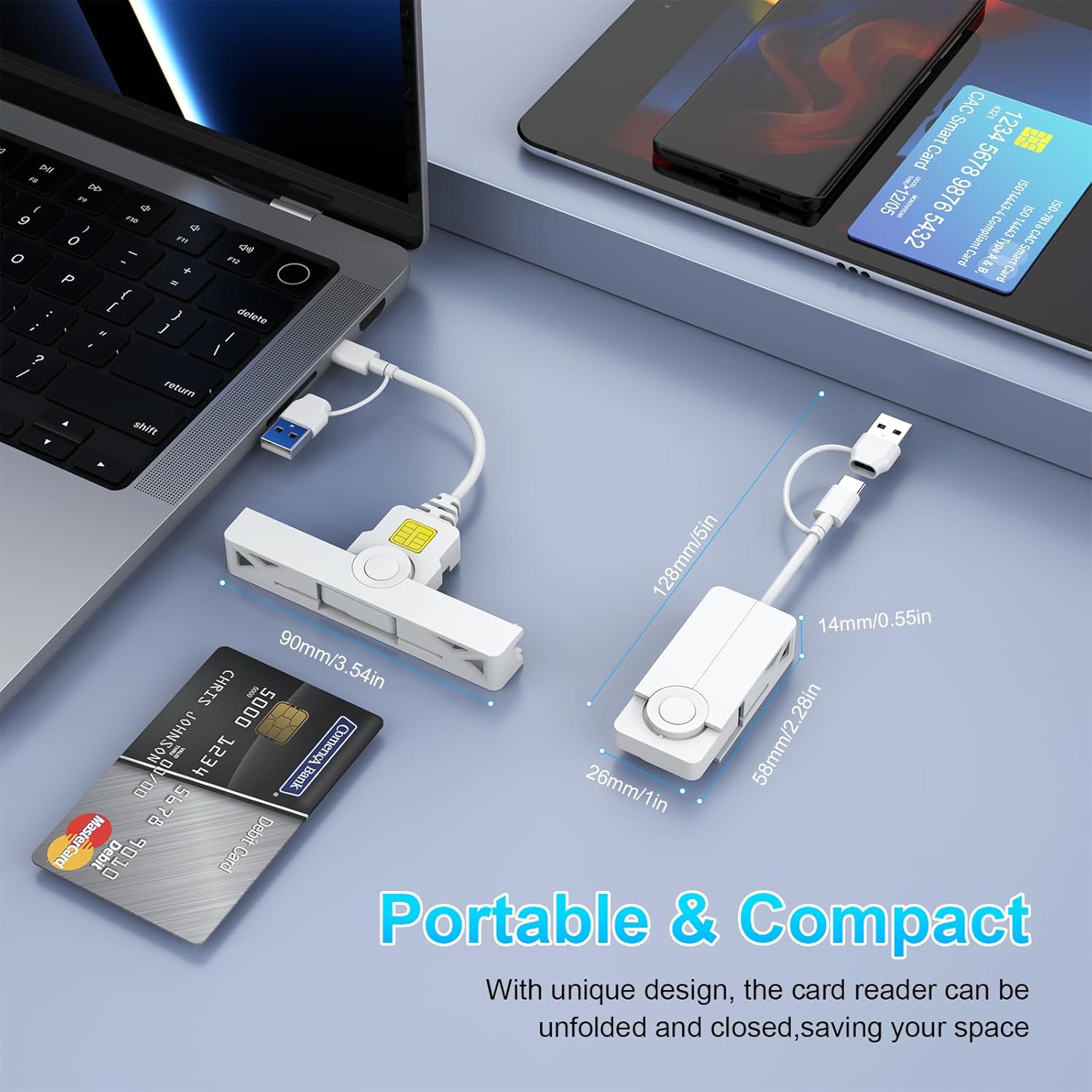

Obraz: kolaż zbliżeń views detailing the card reader's features, including the smart card insertion point, the dual connectors, and its compact, foldable design.

5.2 Korzystanie z czytnika kart

Once the card is inserted and recognized by your system, you can proceed with your desired operation:

• Bezpieczne logowanie: Use with ActivClient, AKO, OWA, DKO, JKO, NKO, BOL, GKO, Marinenet, AF Portal, Pure Edge Viewer, ApproveIt, DCO, DTS, LPS, Disa Enterprise Email for secure access.
• Online Banking/Payment: Facilitates secure online transactions.
• Podpis cyfrowy: Supports applications requiring digital signatures.

5.3 Wyjmowanie karty inteligentnej

Gently pull the smart card out of the slot when you are finished with your operation. Ensure any active processes using the card are completed before removal.

6. Zgodność

The Rocketek CAC Card Reader offers broad compatibility with various operating systems and devices.

• Systemy operacyjne: Windows (10/8/7/Vista/XP), Mac OS, Android.
• Urządzenia: Laptops (e.g., Macbook, AirRetina, Lenovo Yoga, ThinkPad), Desktop PCs, Android Phones, Surface, IdeaPad.

Obraz: Ponadview of the card reader's extensive compatibility, displaying various laptops, smartphones, and operating system logos it supports.

6.1 Port Design for Convenience

The compact and foldable design of the Rocketek card reader ensures it does not block neighboring USB ports on your device, allowing for simultaneous use of other peripherals.

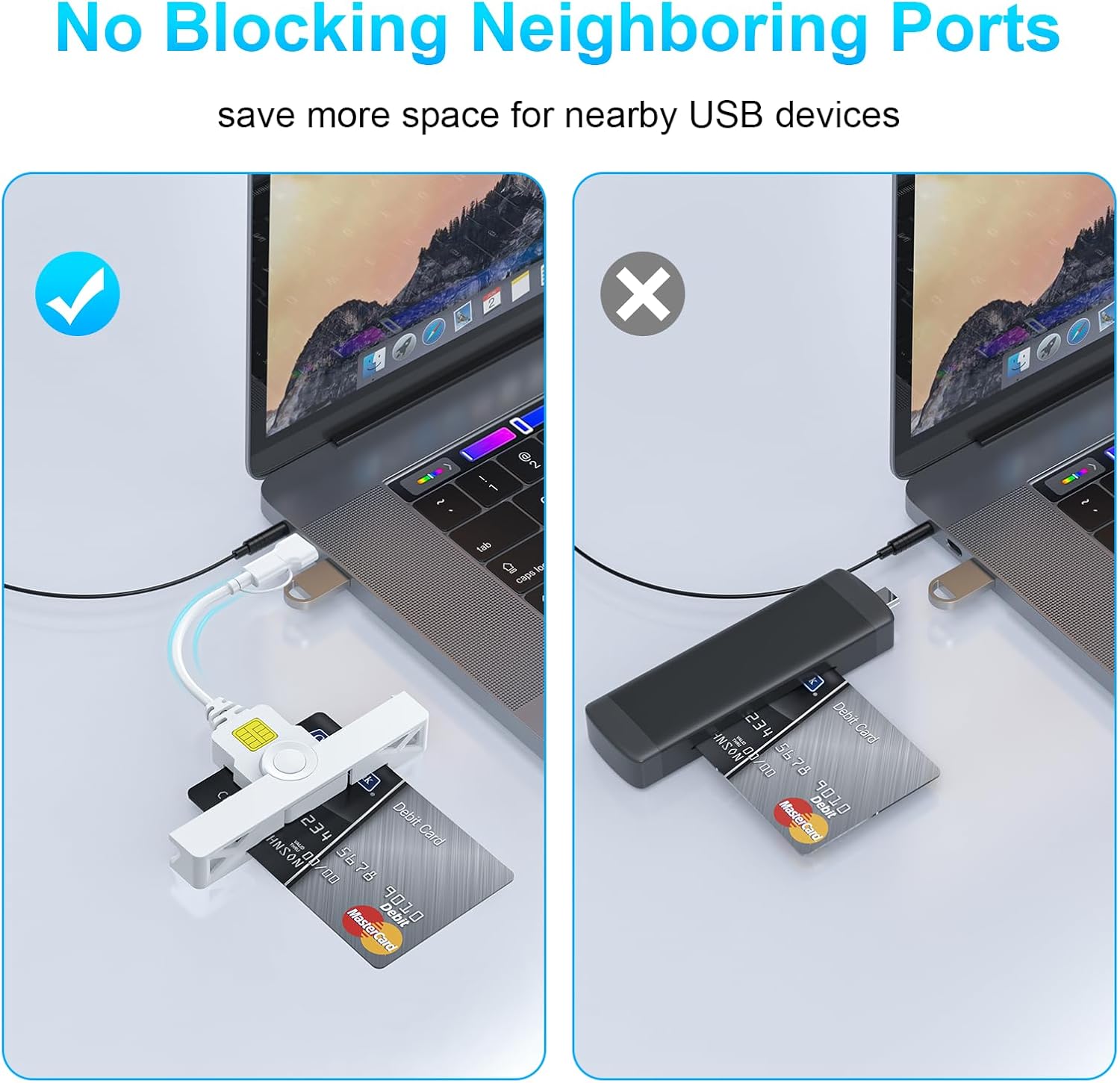

Image: A visual comparison demonstrating how the Rocketek reader's slim profile prevents it from obstructing adjacent USB ports, unlike bulkier alternatives.

7. Konserwacja

To ensure the longevity and optimal performance of your Rocketek CAC Card Reader, follow these simple maintenance guidelines:

• Utrzymuj urządzenie w czystości, bez kurzu i zanieczyszczeń. Do czyszczenia używaj miękkiej, suchej ściereczki.
• Unikaj wystawiania czytnika na działanie ekstremalnych temperatur, wilgoci lub bezpośredniego światła słonecznego.
• Nie należy podejmować prób demontażu lub modyfikacji urządzenia, gdyż spowoduje to utratę gwarancji.
• Store the reader in a safe place when not in use, ideally in its folded, compact form to protect the connectors.

8. Rozwiązywanie Problemów

If you encounter issues with your Rocketek CAC Card Reader, please refer to the following common solutions:

• Reader Not Detected:
  • Ensure the reader is firmly plugged into a working USB-A or Type-C port.
  • Wypróbuj inny port USB na swoim komputerze.
  • Uruchom ponownie komputer.
  • For Mac OS, verify that Java is installed and up to date.
• Karta nie została rozpoznana:
  • Ensure the smart card is inserted correctly with the chip facing upwards.
  • Check if the card is damaged or dirty. Clean the chip gently if necessary.
  • Verify that you have the necessary third-party software (e.g., CAC Enabler for DOD/USG users) installed and configured correctly.
  • Ensure the card type is supported by the reader (ISO7816 Class A, B, C).
• Problemy ze sterownikiem:
  • For Windows, check Device Manager for any yellow exclamation marks next to the card reader device. If found, try updating the driver or uninstalling and reinstalling the device.
  • Odwiedzać www.rocketek.hk for the latest drivers and troubleshooting guides.

9. Specyfikacje

10. Gwarancja i wsparcie

Rocketek stands behind the quality of its products.

• Gwarancja producenta: This product comes with an 18-month manufacturer's warranty.
• Zasady wymiany: Hassle-free replacement is available for eligible issues.
• Wsparcie techniczne: Enjoy free lifetime technical support for your Rocketek CAC Card Reader.

For warranty claims, technical assistance, or further inquiries, please visit the official Rocketek webodwiedź witrynę lub skontaktuj się z ich kanałami obsługi klienta.

Urzędnik Webstrona: www.rocketek.hk
