Captiva Designs 27-inch Flat Top Griddle Grill

Wstęp

Welcome to the world of outdoor cooking with your new Captiva Designs 27-inch Flat Top Griddle Grill. This versatile 3-burner propane gas griddle is engineered for exceptional performance, offering a large cooking surface and innovative features designed to enhance your culinary adventures. Its ceramic-coated cast iron pan ensures non-stick cooking and effortless cleanup, while its adaptable design allows for both free-standing and tabletop use. Please read this manual thoroughly before assembly and operation to ensure safe and optimal performance of your griddle.

The Captiva Designs 27-inch Flat Top Griddle Grill, ready for outdoor cooking.

Ważne informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: Wyłącznie do użytku na zewnątrz. Nie przechowywać ani nie używać benzyny ani innych łatwopalnych oparów i cieczy w pobliżu tego ani żadnego innego urządzenia.

• Always operate the griddle in a well-ventilated area.
• Podczas pracy płyty grillowej należy trzymać dzieci i zwierzęta z dala od niej.
• Przed zapaleniem upewnij się, że wszystkie przyłącza gazowe są solidne i szczelne.
• Nigdy nie pozostawiaj patelni grillowej bez nadzoru podczas jej użytkowania.
• Allow the griddle to cool completely before cleaning or moving.
• This item is subject to hazardous materials regulations for transportation and is non-returnable once opened.

Zawarte komponenty

Please ensure all parts are present before beginning assembly:

• Instrukcja obsługi
• Uchwyt na narzędzia
• Pokrywa
• Wąż adaptera
• Pan (Ceramic Coated Cast Iron)

Montaż

Assembly of your Captiva Designs griddle is required. While specific steps are detailed in the included User Manual, the general process involves attaching the main griddle unit to the stand, securing side shelves, and connecting the propane hose. Ensure all screws and fasteners are tightened securely for stability.

For visual guidance on unboxing and initial setup, refer to the video below:

Konfiguracja początkowa

Before first use, ensure your griddle is placed on a stable, level surface outdoors, away from any combustible materials. Connect the adapter hose to a standard propane tank. The ceramic-coated cast iron pan is designed to be non-stick and does not require traditional seasoning before first use, unlike many other griddles. However, a light coat of cooking oil is recommended for optimal cooking performance.

Control knobs for precise temperature adjustment.

Instrukcja obsługi

Zapalanie griddle

1. Sprawdź, czy zawór zbiornika propanu jest całkowicie otwarty.
2. Push and turn a control knob to the HIGH position. The automatic igniter will spark.
3. Jeżeli palnik nie zapali się w ciągu 5 sekund, należy ustawić pokrętło w pozycji OFF, odczekać 5 minut i powtórzyć proces.
4. Once lit, adjust the knob to your desired temperature setting (LOW, MEDIUM, HIGH).

Gotowanie na patelni

The 3-burner system provides even heat distribution across the 450 square inch cooking surface, allowing you to cook various foods simultaneously at different temperatures. The ceramic-coated cast iron pan ensures food slides off easily, making cooking and flipping a breeze.

The spacious griddle surface accommodates a variety of foods for simultaneous cooking.

Preparing fried rice and shrimp on the griddle, showcasinze względu na swoją wszechstronność.

Główne cechy

Ceramic Coated Cast Iron Pan

The griddle features a premium ceramic-coated cast iron pan. This coating provides a superior non-stick surface, ensuring healthier cooking with minimal oil and making cleanup remarkably easy. It also promotes even heat distribution for consistently cooked meals and is crafted without harmful chemicals.

The ceramic coating offers non-stick properties, anti-rust benefits, and eliminates the need for seasoning.

Adaptable Tabletop Design

This griddle is designed for ultimate adaptability. The main cooking unit can be easily detached from its free-standing base, transforming into a portable tabletop griddle. This feature makes it ideal for various outdoor settings, from backyard parties to campwycieczki.

The griddle can be used as a free-standing unit or converted to a tabletop model.

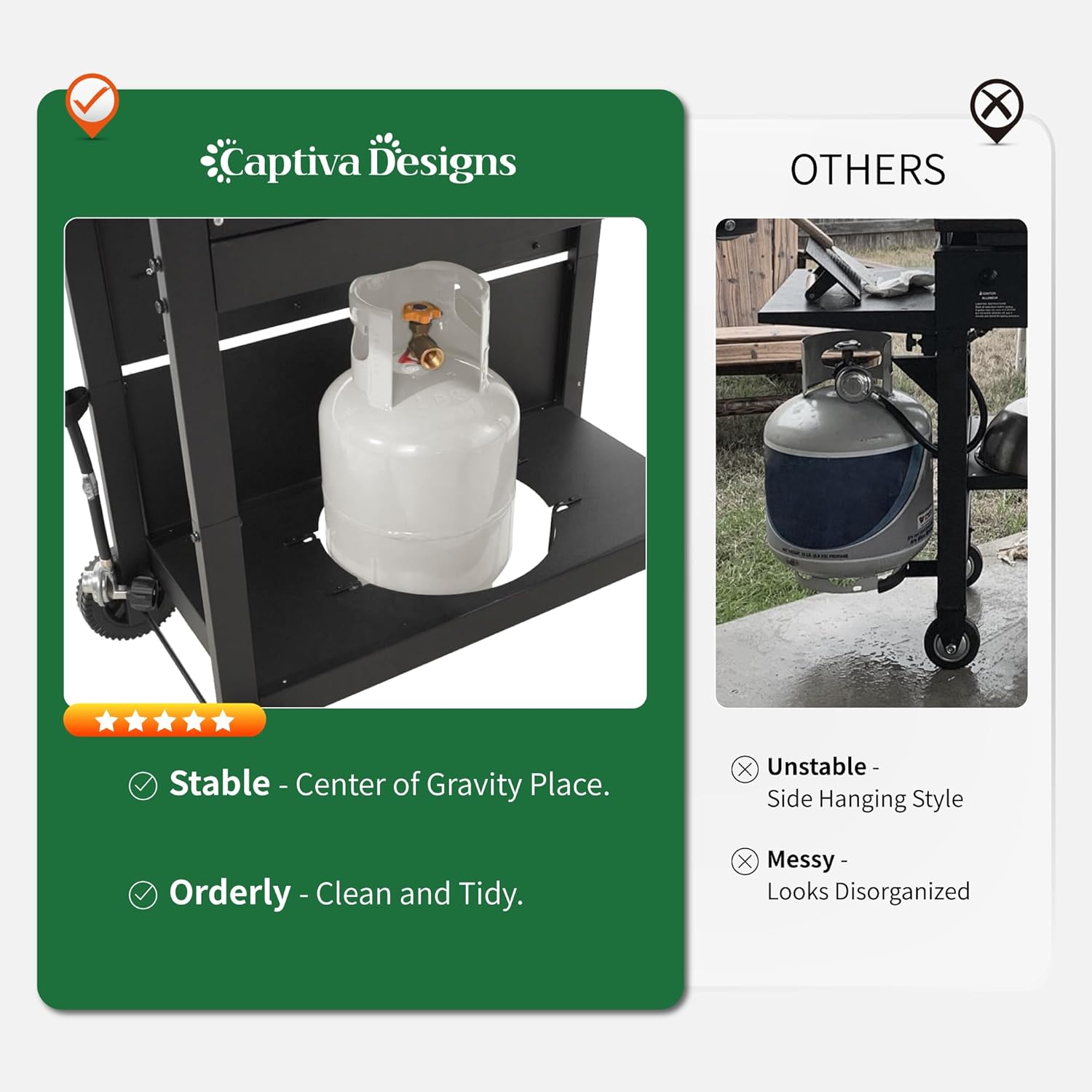

Safe Cylinder Placement

The griddle's design includes central gas cylinder storage within the base. This provides a low center of gravity, enhancing stability during use and ensuring a tidy, clean appearance by concealing the propane tank.

Secure and stable central placement for your propane cylinder.

Convenient Storage and Portability

Integrated side shelves provide convenient space for tools and ingredients, while the durable wheels allow for easy movement of the free-standing unit. The compact nature of the tabletop unit further enhances portability.

Side shelf provides practical storage for cooking accessories.

Konserwacja

Cleaning the Griddle Pan

The ceramic-coated pan is exceptionally easy to clean. After cooking, allow the griddle to cool slightly. Use a griddle scraper to remove any food remnants, then wipe the surface clean with a paper towel or soft cloth. The non-stick surface simplifies this process significantly.

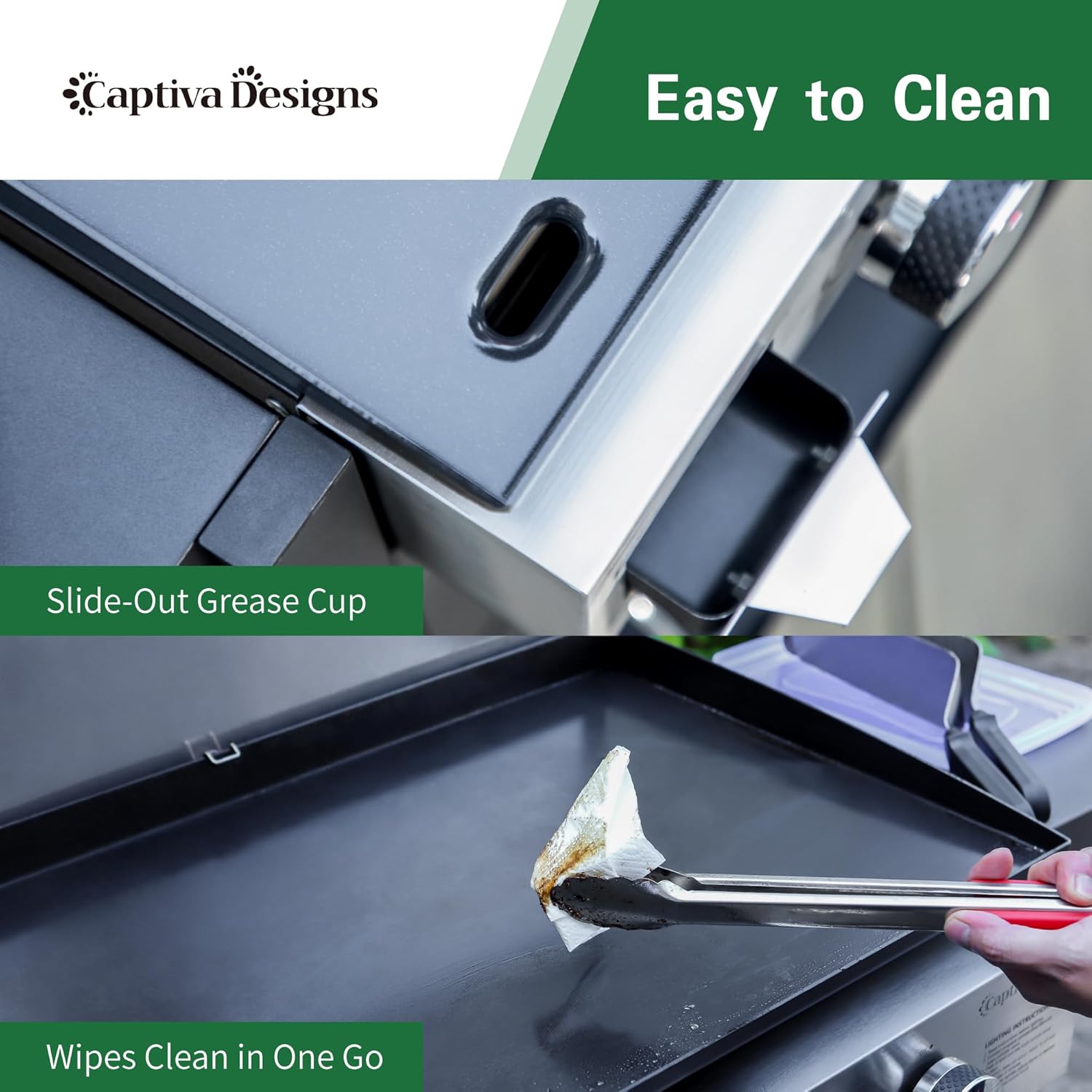

The slide-out grease cup and non-stick surface make cleaning effortless.

The removable slide-out grease cup for easy disposal of cooking oil and food remnants.

Zarządzanie smarem

The integrated slide-out grease cup collects excess oil and food particles, making disposal quick and hygienic. Regularly empty and clean the grease cup to prevent buildup.

Rozwiązywanie problemów

If you encounter issues with your griddle, consider the following common solutions:

• Palnik nie zapala się: Check propane tank level. Ensure the tank valve is fully open and the hose connection is secure. Verify igniter is sparking.
• Nierównomierne ogrzewanie: Ensure the griddle is level. Allow sufficient preheating time for the entire surface to reach temperature.
• Niski płomień: Check for kinks in the gas hose. Ensure the propane tank is not low.

For persistent issues, please contact customer service.

Specyfikacje

Detailed dimensions of the Captiva Designs griddle.

Gwarancja i wsparcie

Captiva Designs is committed to providing professional customer service both before and after your purchase. If you have any questions, concerns, or require assistance with your griddle, please do not hesitate to contact our support team. We aim to resolve any issues within 24 hours, ensuring your investment is protected and you can enjoy your product with confidence.
