Wstęp
Thank you for choosing the Signature Hardware Berwyn Pressure Balanced Valve Trim. This manual provides essential information for the safe installation, operation, and maintenance of your new shower valve trim. Please read these instructions thoroughly before beginning installation and keep them for future reference. This product is designed to deliver a consistent water temperature and pressure for a comfortable showering experience.
Informacje dotyczące bezpieczeństwa
OSTRZEŻENIE: Improper installation or use of this product can result in injury or property damage. Always follow local plumbing and building codes.
- Przed instalacją należy upewnić się, że główne dopływ wody jest zamknięty.
- Należy nosić odpowiedni sprzęt ochrony osobistej (PPE), taki jak okulary ochronne i rękawice.
- Jeśli masz wątpliwości co do jakiegokolwiek etapu instalacji, skonsultuj się z wykwalifikowanym hydraulikiem.
- Do not use harsh chemicals or abrasive cleaners on the trim finish.
Zawartość opakowania
Verify that all components are present before beginning installation. This package contains the valve trim only; the rough-in valve is sold separately.
- Berwyn Pressure Balanced Valve Trim (Escutcheon, Handle, Screws)
- Sprzęt instalacyjny

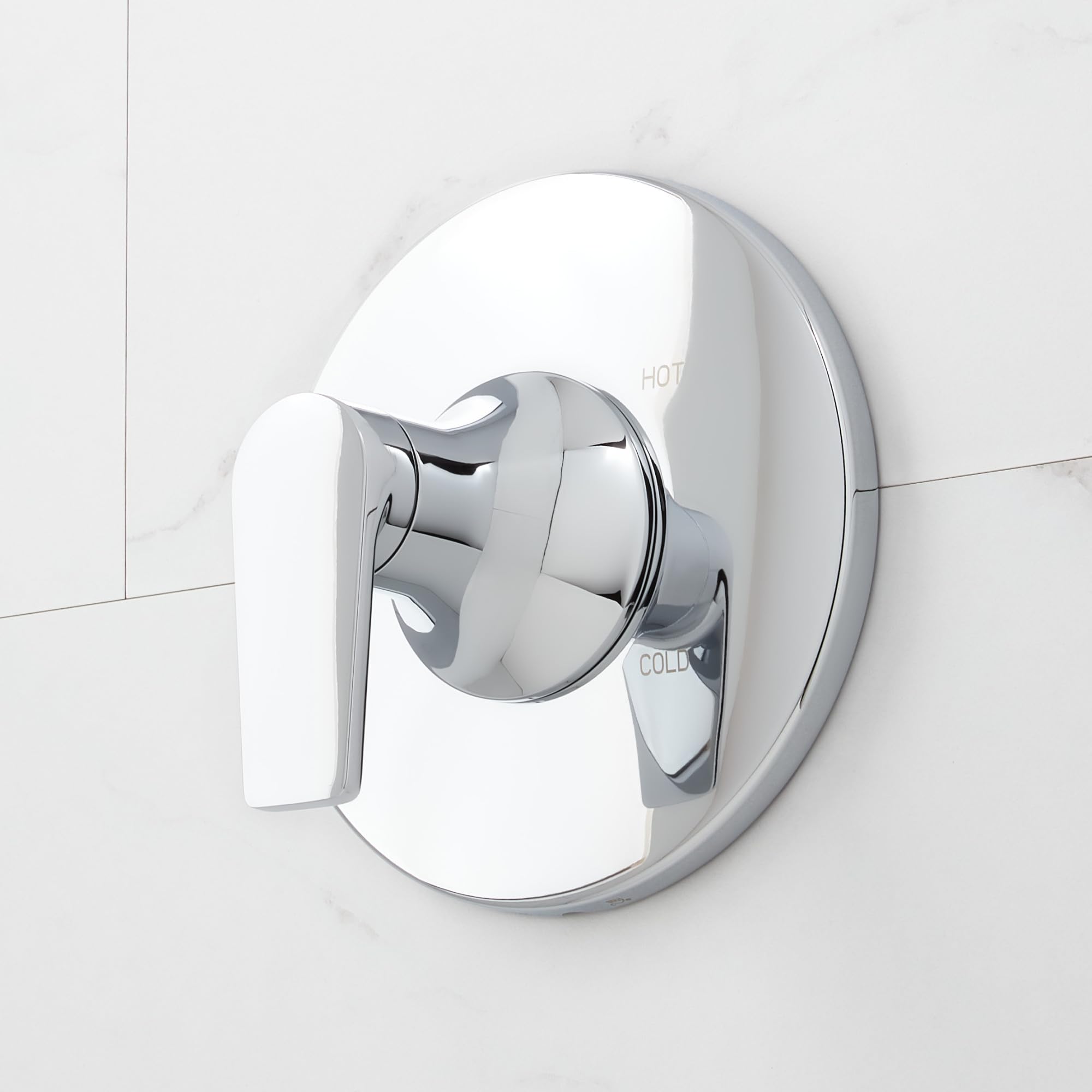

Image: Signature Hardware Berwyn Pressure Balanced Valve Trim in a chrome finish, featuring its round escutcheon and single lever handle. This image illustrates the primary components of the trim kit.
Konfiguracja i instalacja
This section outlines the general steps for installing the Berwyn Pressure Balanced Valve Trim. Ensure you have the compatible Signature Hardware rough-in valve installed according to its specific instructions before proceeding with trim installation.
- Przygotuj obszar: Ensure the water supply to the shower is completely shut off. Clear the work area and have all necessary tools ready.
- Install the Escutcheon: Position the escutcheon (cover plate) over the rough-in valve body. Secure it to the wall using the provided screws. Ensure it is level and flush against the wall.
- Install the Handle Assembly: Attach the handle assembly to the valve stem. The single lever handle controls both water flow and temperature. Secure the handle with the set screw, typically located on the underside of the handle.
- Test szczelności: Slowly turn the main water supply back on. Check all connections for leaks. Operate the handle to ensure proper function and temperature control.
- Ostateczne poprawki: If necessary, adjust the temperature limit stop on the rough-in valve (refer to the rough-in valve manual for specific instructions) to prevent scalding.
Notatka: Professional installation is recommended for optimal performance and to ensure compliance with all local plumbing codes.
Instrukcja obsługi
The Berwyn Pressure Balanced Valve Trim features a single lever for intuitive control of your shower.
- Włączanie/wyłączanie: Rotate the handle away from the wall to turn on the water. Rotate it back towards the wall to turn off the water.
- Regulacja temperatury: Rotate the handle counter-clockwise for warmer water and clockwise for cooler water. The pressure-balanced cartridge maintains a consistent temperature, minimizing fluctuations caused by changes in hot or cold water supply pressure.
- Regulacja przepływu: The flow rate is typically controlled by the degree to which the handle is pulled away from the wall.
Konserwacja
Proper care will ensure the longevity and appearance of your Berwyn Valve Trim.
- Czyszczenie: Regularnie czyść listwy wykończeniowe miękką,amp Ściereczką. W przypadku uporczywych plam użyj łagodnego roztworu mydła i wody. Dokładnie spłucz i osusz miękką ściereczką, aby zapobiec powstawaniu plam wodnych.
- Unikaj silnych środków czyszczących: Do not use abrasive cleaners, ammonia-based cleaners, bleach, or cleaners containing alcohol or other harsh chemicals, as these can damage the finish.
- Sprawdzać: Periodically check the handle and escutcheon for any looseness and tighten screws if necessary.
Rozwiązywanie problemów
If you encounter issues with your valve trim, refer to the following common solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Niski przepływ wody | Partially closed shut-off valves; debris in the cartridge; clogged showerhead. | Ensure shut-off valves are fully open. Clean or replace the cartridge (refer to rough-in valve manual). Clean or replace the showerhead. |
| Niezmienna temperatura wody | Temperature limit stop incorrectly set; issues with hot/cold water supply. | Adjust the temperature limit stop on the rough-in valve. Check hot and cold water supply lines for blockages or pressure issues. |
| Leaking from Handle/Escutcheon | Luźne połączenia; zużyte pierścienie uszczelniające lub wkład. | Tighten mounting screws. Inspect and replace O-rings or the cartridge if damaged (refer to rough-in valve manual). |
If these solutions do not resolve the issue, please contact Signature Hardware customer support or a qualified plumber.
Specyfikacje
- Numer modelu: SHBW80102CP
- Numer części: SHBW80102CP
- Tworzywo: Metal
- Skończyć: Chrom
- Styl: Berwyn
- Valve Trim Height: 6-3/4 cala
- Valve Trim Width: 6-3/4 cala
- Typ wkładu: Zrównoważony ciśnieniowo
- Typ uchwytu: Pojedyncza dźwignia
Informacje o gwarancji
This Signature Hardware Berwyn Pressure Balanced Valve Trim is covered under Signature Hardware's 25-roczna ograniczona gwarancja. This warranty covers defects in material and workmanship under normal use and service. For full warranty details and terms, please visit the official Signature Hardware webodwiedź witrynę lub skontaktuj się z działem obsługi klienta.
Obsługa klienta
For further assistance, technical support, or to inquire about replacement parts, please contact Signature Hardware customer service or visit their official webstrona:
Signature Hardware Official Webstrona: www.signaturehardware.com
Sklep firmowy Amazon: Visit Signature Hardware Store on Amazon
