Renogy 1000W/2000W Pure Sine Wave Power Inverter

1. Wprowadzenie

This manual provides essential information for the safe and efficient operation of your Renogy 1000W/2000W Pure Sine Wave Power Inverter. Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to the unit or connected devices. This inverter converts 12V DC power from batteries into 230V AC power, suitable for a wide range of household appliances and sensitive electronics.

2. Koniec produktuview

The Renogy 1000W Pure Sine Wave Inverter is designed to deliver stable and clean AC power, mimicking grid-quality electricity. It is an ideal solution for off-grid systems, RVs, and backup power applications, allowing you to power various electronic devices and appliances reliably.

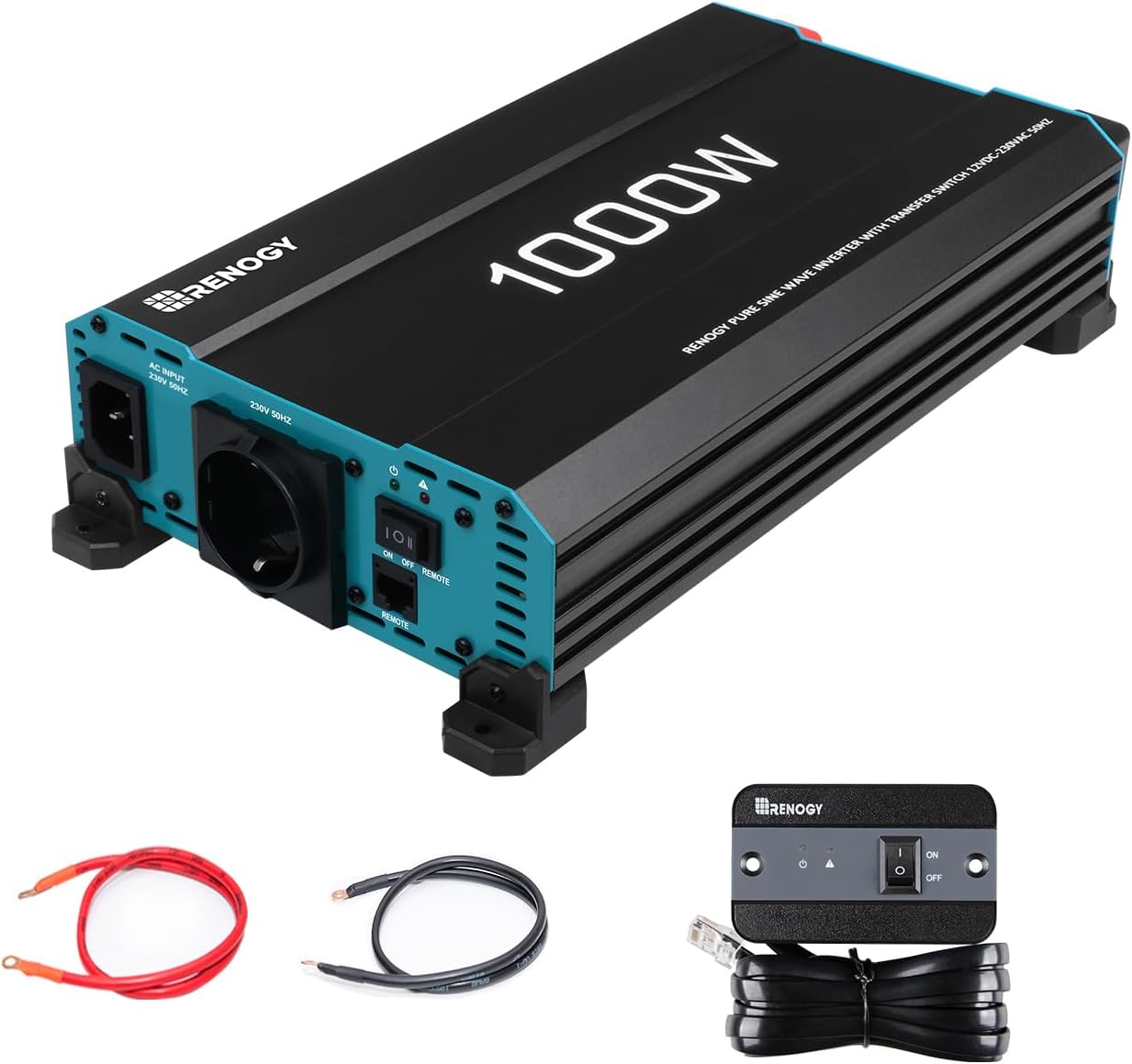

Image: The Renogy 1000W Pure Sine Wave Power Inverter, showcasing its main unit, battery connection cables (red and black), and the wired remote control unit.

3. Główne cechy

• Powerful DC-AC Conversion: Provides 1000W continuous DC to AC power with a 2000W peak surge capacity, converting 12V DC to 230V AC with up to 95% conversion efficiency.
• Technologia czystej fali sinusoidalnej: Delivers stable and consistent power, safe for all AC devices, including sensitive electronics, protecting and extending their lifespan.

Image: A graphical representation of a pure sine wave, demonstrating the clean and stable power output characteristic of the Renogy inverter.
• Kompleksowy system ochrony: Equipped with LED indicators for undervoltage, surge, overheating, overload, and short circuit protection, ensuring complete safety and automatic fault detection.


Image: An illustration detailing the six electronic protection features: over-temperature protection, short circuit indication, GFCI switch, undervoltage ochrona, przepięcietage protection, and overload protection.

• Integrated Network Priority Circuit: Automatically switches between shore power and UPS power, ensuring continuous 230V supply to connected electronics without interruption.
• Wide Application & Adaptability: Suitable for various household devices including PCs, mobile phones, tablets, and fans. Operates efficiently across a wide temperature range from -20°C to 40°C.

Image: The Renogy inverter shown with indicators for its operational temperature range, highlighting its adaptability to harsh environments from -20°C to 40°C.
• Funkcjonalność zdalnego sterowania: Includes a wired remote control for convenient operation, especially when the inverter is installed in a hard-to-reach location.


Image: The wired remote control unit for the Renogy inverter, mounted on a wall inside a vehicle, demonstrating its ease of use and accessibility.

• Efficient & Quiet Operation: Features low energy consumption in idle mode to extend battery life and high-speed cooling fans that operate with minimal noise.


Image: A visual representation indicating the Renogy inverter's low energy consumption during idle mode, contributing to extended battery life.


Image: The Renogy inverter depicted in a quiet setting, emphasizing its low noise heat dissipation due to automatically controlled fans.

4. Zawartość opakowania

Po rozpakowaniu należy sprawdzić, czy wszystkie wymienione poniżej elementy są obecne i nieuszkodzone:

• Renogy 1000W Pure Sine Wave Power Inverter Unit
• Kable przyłączeniowe akumulatora (czerwony i czarny)
• Wired Remote Control with Cable (approx. 3 meters)

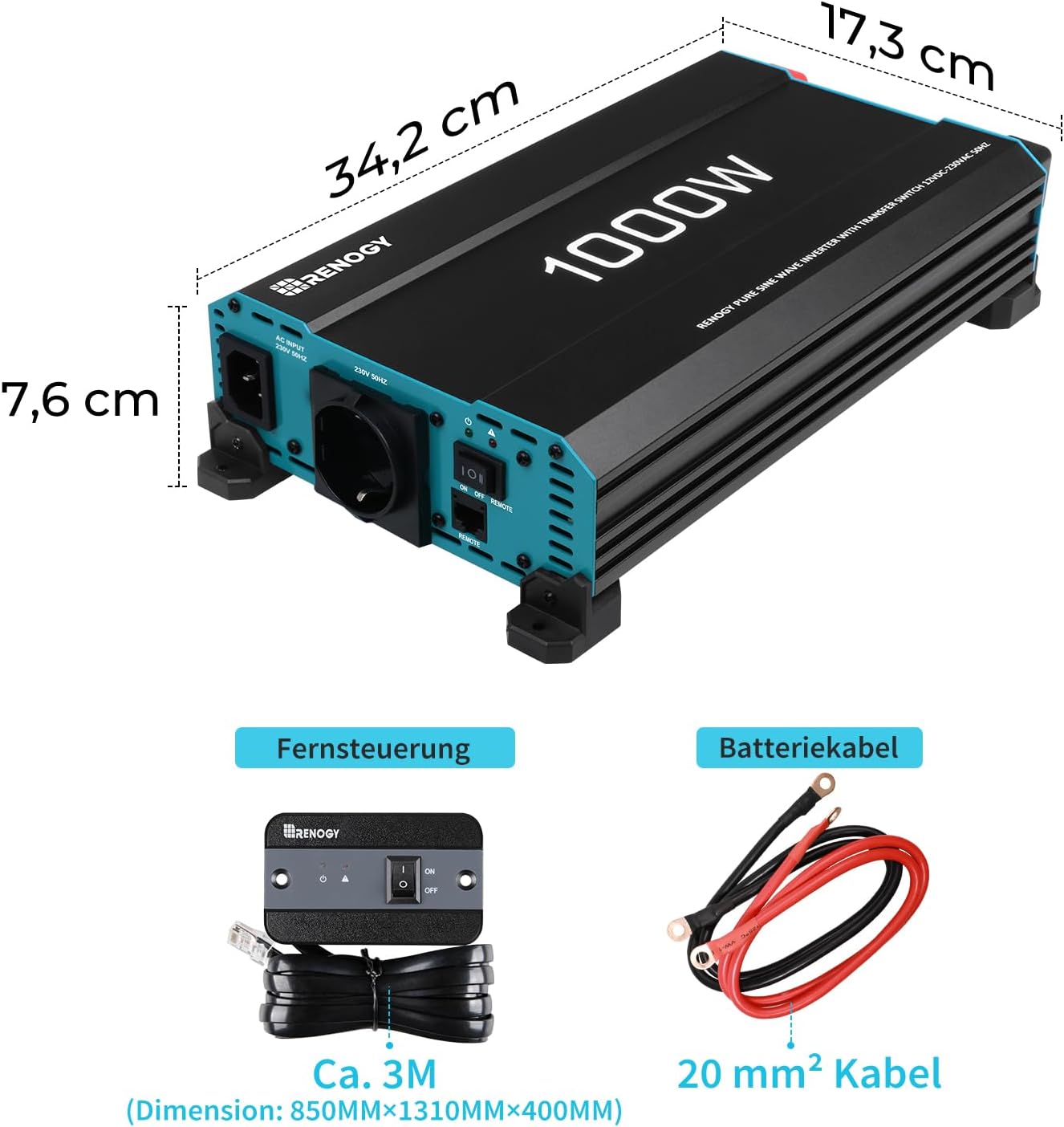

Obraz: szczegółowy view of the included accessories: the wired remote control with its approximately 3-meter cable, and the 20 mm² battery connection cables.

5. Konfiguracja i instalacja

Proper installation is crucial for the safe and efficient operation of your inverter. Ensure the installation area is well-ventilated, dry, and free from flammable materials. Connect the inverter directly to a deep cycle battery.

5.1 Kompatybilność baterii

The inverter is compatible with various 12V battery types. Ensure your battery system can provide the necessary current for your applications.

Image: An illustration showing the Renogy inverter's compatibility with different battery chemistries, including Lithium (LI), Sealed Lead-Acid (SLD), Gel, Flooded (FLD), and Absorbed Glass Mat (AGM) batteries.

5.2 Instrukcje dotyczące podłączania

1. Ensure the inverter is turned OFF before making any connections.
2. Connect the positive (+) battery cable (red) to the positive (+) terminal of the inverter and the positive (+) terminal of your 12V battery.
3. Connect the negative (-) battery cable (black) to the negative (-) terminal of the inverter and the negative (-) terminal of your 12V battery.
4. Sprawdź, czy wszystkie połączenia są dobrze dokręcone i zabezpieczone, aby zapobiec poluzowaniu się połączeń i przegrzaniu.
5. Connect the remote control cable to the designated port on the inverter, if desired.

6. Instrukcja obsługi

6.1 Włączanie/wyłączanie

• To turn the inverter ON, press the power button on the inverter unit or the remote control. The indicator light will illuminate.
• To turn the inverter OFF, press the power button again. The indicator light will turn off.

6.2 Korzystanie z pilota zdalnego sterowania

The wired remote control allows you to conveniently switch the inverter on or off from a distance, which is particularly useful if the inverter is installed in an inaccessible location.

6.3 Zrozumienie wskaźników LED

The inverter features LED indicators that provide status updates and alert you to potential issues such as undervoltage, przettage, overload, overheating, or short circuits. Refer to the troubleshooting section for specific indicator meanings.

7. Konserwacja

Regularna konserwacja zapewnia długowieczność i optymalną wydajność falownika.

• Czyszczenie: Periodically clean the exterior of the inverter with a dry, soft cloth. Do not use liquid cleaners.
• Wentylacja: Ensure that the cooling fans and ventilation openings are clear of dust and debris to allow for proper airflow.
• Znajomości: Regularly check all electrical connections to ensure they are tight and free from corrosion.
• Działanie wentylatora: The internal cooling fans activate automatically when the inverter reaches a certain temperature or load. This is normal operation.

8. Rozwiązywanie Problemów

This section outlines common issues and their potential solutions. If the problem persists, contact customer support.

9. Specyfikacje

10. Gwarancja i pomoc techniczna

The Renogy 1000W Pure Sine Wave Power Inverter comes with a 1-letnia gwarancja on materials and manufacturing defects. For technical support, warranty claims, or any questions regarding your product, please contact Renogy customer service through their official channels. Ensure you have your product model number and purchase details ready when contacting support.
