Dukers DSM-41R Commercial Merchandiser Refrigerator Instruction Manual

1. Koniec produktuview

The Dukers DSM-41R is a 41 cu.ft capacity commercial merchandiser refrigerator designed for displaying beverages and other refrigerated items. It features two glass swing doors, automatic defrost, and LED interior lighting. This unit is built for commercial use and operates within a temperature range of 33°F to 41°F.

Rycina 1: Przód view of the Dukers DSM-41R refrigerator, highlighting its two glass doors and interior shelving.

Rysunek 2: Kąt view of the refrigerator, illustrating its depth and the casters for mobility.

2. Konfiguracja i instalacja

2.1 Rozpakowanie

Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage to the carrier immediately. Retain all packaging materials for potential future shipping or returns.

2.2 Umieszczenie

• Place the refrigerator on a strong, level surface capable of supporting its weight (approximately 380 lbs empty, plus contents).
• Ensure adequate ventilation around the unit. Maintain a minimum of 4 inches (10 cm) clearance from walls and other obstructions on all sides and top for proper airflow and heat dissipation.
• Avoid direct sunlight or proximity to heat-generating appliances.

2.3 Montaż kółek

The unit comes with 4 casters. Carefully tilt the unit and attach the casters to the designated points at the bottom of the refrigerator. Ensure all casters are securely fastened before returning the unit to an upright position.

2.4 Podłączenie elektryczne

• Connect the refrigerator to a dedicated 115V/60Hz, 8.8 Amps electrical outlet. The unit is equipped with a NEMA 5-15P plug and a 9 ft power cord.
• Nie używaj przedłużaczy ani wtyczek przejściowych.
• Ensure the electrical circuit is properly grounded.

2.5 Czyszczenie początkowe

Przed pierwszym użyciem należy umyć powierzchnie wewnętrzne i zewnętrzne łagodnym detergentem i ciepłą wodą. Dokładnie spłukać i całkowicie wysuszyć.

3. Instrukcja obsługi

3.1 Włączanie/wyłączanie

Once connected to power, the unit will automatically begin cooling. To turn off the unit, disconnect it from the power supply.

3.2 Kontrola temperatury

The refrigerator features digital temperature controls with an LED display for precise adjustment. The factory preset temperature range is 33°F to 41°F. Refer to the control panel instructions (usually located near the display) for specific steps on how to adjust the temperature settings.

3.3 Regulacja półek

The unit includes 10 adjustable and removable wire shelves (5 on each side). To adjust, remove items from the shelf, lift the shelf, and reposition the shelf clips to the desired height. Ensure shelves are level and securely seated before loading products.

3.4 Załadunek lodówki

Load products evenly on the shelves. Do not block the internal air vents, as this can impede proper cooling and air circulation. Avoid overloading shelves beyond their weight capacity.

3.5 Automatyczne odszranianie

This unit is equipped with an automatic defrost system. This system periodically melts away any frost buildup on the evaporator coil, eliminating the need for manual defrosting. During the defrost cycle, the internal temperature may temporarily rise slightly, which is normal.

3.6 Oświetlenie wewnętrzne LED

The refrigerator features LED interior lighting to illuminate products. The lighting can typically be controlled via a switch on the control panel or near the light fixture.

4. Konserwacja

4.1 Regularne czyszczenie

• Wnętrze: Clean the interior regularly with a mild, non-abrasive detergent and warm water. Rinse with clean water and dry thoroughly. Remove shelves for easier cleaning.
• Zewnętrzny: Wipe down the exterior surfaces with a soft cloth and mild detergent. Avoid harsh chemicals or abrasive cleaners.
• Szklane drzwi: Use a glass cleaner specifically designed for glass surfaces to maintain clarity.

4.2 Czyszczenie wężownicy skraplacza

The condenser coil, located at the bottom of the unit, should be cleaned periodically (e.g., every 3 months) to ensure efficient operation. Disconnect power before cleaning. Use a brush or vacuum cleaner to remove dust and debris from the coil fins.

4.3 Kontrola uszczelki drzwi

Regularly inspect the door gaskets for cracks, tears, or signs of wear. Damaged gaskets can lead to air leaks and reduced cooling efficiency. Replace worn gaskets promptly.

5. Rozwiązywanie Problemów

Przed skontaktowaniem się z serwisem należy wykonać następujące czynności kontrolne:

6. Specyfikacje

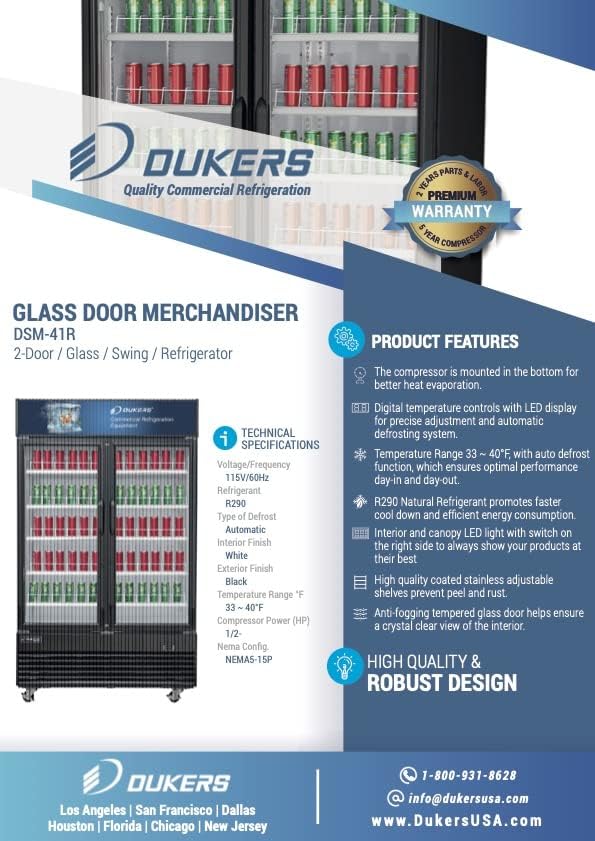

Figure 3: Product features overview.

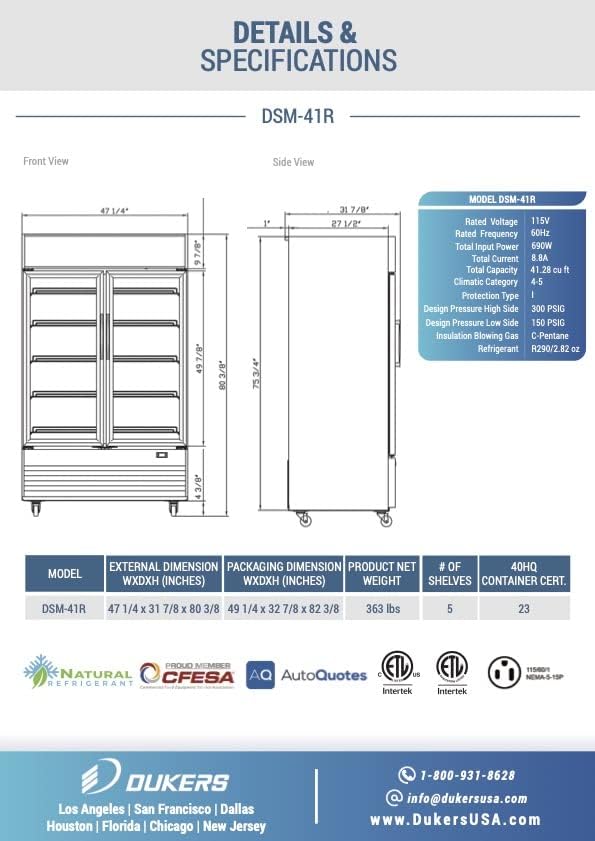

Rysunek 4: Szczegółowe wymiary i specyfikacje.

7. Informacje o gwarancji

This Dukers DSM-41R Commercial Merchandiser Refrigerator comes with a manufacturer's warranty valid for commercial use only:

• Roczna gwarancja na części i robociznę
• 5-letnia gwarancja na sprężarkę

Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or contact Dukers customer support.

8. Wsparcie i kontakt

For technical assistance, parts, or warranty inquiries, please contact Dukers customer support. Refer to the contact information provided in your product packaging or on the official Dukers webstrona.
