Instrukcja obsługi samochodu terenowego HIMOTO NASCADA 4WD z napędem elektrycznym szczotkowym w skali 1/10

1. Informacje dotyczące bezpieczeństwa

Please read this manual thoroughly before operating your HIMOTO NASCADA RC car. Failure to follow instructions may result in damage to the product, personal injury, or property damage. This product is not a toy and should be operated with caution.

• Zawsze używaj samochodu zdalnie sterowanego na otwartej przestrzeni, z dala od ludzi, zwierząt i przeszkód.
• Never operate near public roads, power lines, or water.
• Trzymaj palce, włosy i luźne elementy odzieży z dala od ruchomych części.
• Nie dotykaj silnika bezpośrednio po użyciu, gdyż może być gorący.
• Ensure batteries are charged safely and correctly. Do not overcharge.
• Store the RC car and its components in a dry, cool place.
• W przypadku użytkowników poniżej 14 roku życia zaleca się nadzór osoby dorosłej.

2. Zawartość opakowania

Sprawdź, czy wszystkie wymienione poniżej elementy znajdują się w Twojej paczce. Jeśli brakuje któregokolwiek z nich lub jest on uszkodzony, skontaktuj się ze sprzedawcą.

• HIMOTO NASCADA 1/10 Scale 4WD Electric Brushed RC On-Road Car (with chosen body shell)
• 2.4 GHz Radio Transmitter
• 2.4 GHz Receiver (installed in vehicle)
• RC-540 Brushed Electric Motor (installed in vehicle)
• Ni-MH 2000 mAh 7.2V Battery Pack
• Ładowarka baterii

Obraz 2.1: Koniecview of the HIMOTO NASCADA RC car and its included components.

3. Koniec produktuview

The HIMOTO NASCADA is a 1/10 scale 4WD electric brushed on-road RC car designed for performance and durability. It features a powerful RC-540 brushed motor and a reliable 2.4 GHz radio system.

3.1 Nadwozie pojazdu

Image 3.1: The HIMOTO NASCADA RC car with a red and white body shell. Note that body shell designs may vary.

3.2 Chassis and Electronics

The robust chassis houses the motor, battery, receiver, and steering servo, providing a stable platform for on-road driving.

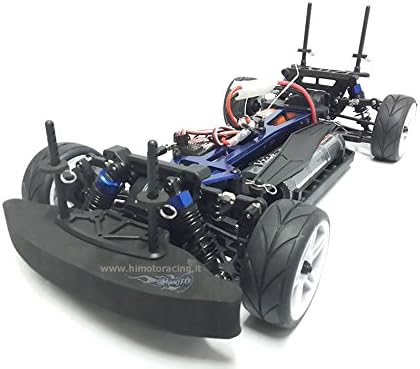

Obraz 3.2: Przód view of the NASCADA chassis, revealing the suspension and internal layout.

Obraz 3.3: Tył view of the NASCADA chassis, highlighting the motor and rear suspension.

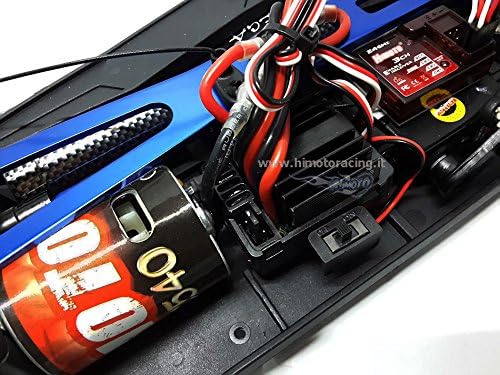

Rysunek 3.4: Szczegółowy view of the RC-540 brushed motor and associated electronics.

3.3 2.4 GHz Radio System

The 2.4 GHz radio system provides reliable control with extended range and minimal interference.

Image 3.5: The 2.4 GHz radio transmitter and receiver.

4. Konfiguracja

4.1 Ładowanie akumulatora

1. Connect the Ni-MH 7.2V 2000 mAh battery pack to the included charger.
2. Podłącz ładowarkę do odpowiedniego gniazdka elektrycznego.
3. Observe the charger's indicator light (refer to charger manual for specific light patterns).
4. Once charging is complete, disconnect the battery from the charger. Do not leave batteries charging unattended.

4.2 Instalowanie baterii w nadajniku

1. Open the battery compartment on the bottom of the transmitter.
2. Insert the required number of AA batteries (not included), ensuring correct polarity.
3. Dokładnie zamknij komorę baterii.

4.3 Montaż akumulatora pojazdu

1. Remove the body shell from the RC car by detaching the body clips.
2. Locate the battery compartment or tray on the chassis.
3. Place the charged Ni-MH battery pack into the compartment.
4. Connect the battery connector to the Electronic Speed Controller (ESC) connector. Ensure a secure connection.
5. Secure the battery in place using any provided straps or clips.
6. Reattach the body shell.

5. Instrukcja obsługi

5.1 Włączanie

1. Turn on the transmitter first. The indicator light should illuminate.
2. Turn on the RC car by flipping the power switch on the ESC.
3. The transmitter and receiver should automatically bind. If not, refer to the binding procedure in your radio system's specific manual.

5.2 Podstawowe sterowanie

• Spust przepustnicy: Pull the trigger towards you to accelerate forward. Push the trigger away from you for reverse and braking.
• Kierownica: Turn the wheel left to steer the car left, and right to steer the car right.

5.3 Wskazówki dotyczące jazdy

• Start with gentle throttle and steering inputs to get accustomed to the car's response.
• Practice in a large, open area free of obstacles.
• Avoid driving on wet surfaces or through puddles, as this can damage electronics.
• Monitor battery life. When the car's speed noticeably decreases, it's time to recharge the battery.

5.4 Wyłączanie

1. Turn off the RC car first by flipping the power switch on the ESC.
2. Wyłącz nadajnik.

6. Konserwacja

Regular maintenance will extend the life and performance of your HIMOTO NASCADA RC car.

• Czyszczenie: After each use, clean the car to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using water directly on electronics.
• Pielęgnacja baterii: Always fully charge and discharge Ni-MH batteries periodically to maintain their capacity. Store batteries in a cool, dry place.
• Kontrola silnika: Periodically check the RC-540 brushed motor for signs of wear or damage. Ensure the motor wires are securely connected.
• Siatka przekładni: Check the gear mesh between the pinion gear and spur gear. It should have a small amount of play. Adjust if necessary.
• Dokręcenie śrub: Regularly check all screws and fasteners for tightness. Re-tighten as needed.
• Zawieszenie: Inspect the shocks and suspension arms for damage or binding. Ensure smooth movement.

7. Rozwiązywanie Problemów

If you encounter issues with your HIMOTO NASCADA, refer to the following common problems and solutions:

8. Specyfikacje

9. Gwarancja i wsparcie

HIMOTO products are manufactured to high-quality standards. For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support, please reach out to the HIMOTO customer service department or your authorized dealer.

Zachowaj dowód zakupu na wypadek ewentualnych roszczeń gwarancyjnych.
