Instrukcja obsługi roweru miejskiego dla dorosłych Btwin Original-7 w kolorze szarym

1. Koniec produktuview

The Btwin Original-7- Adult City Bike is designed for regular touring and journeys on roads and paths, offering exceptional comfort. Its design incorporates a telescopic fork and a full suspension frame to ensure a smooth riding experience.

Główne cechy:

• Kompozycja: 6061 Aluminium frame, providing a lightweight yet durable structure.
• widelec: Suntour Odessa AC T890 Spinner elastomer/spring suspension fork with preload adjustment, enhancing ride comfort and control.
• Adjustable Fork: Allows for customization to suit different terrain types, ensuring versatility.

Image 1.1: The Btwin Original-7 City Bike, showcasing its overall design and grey color.

2. Instalacja i montaż

Your Btwin Original-7- bike may require some assembly upon arrival. Follow these general steps for proper setup. For detailed instructions, refer to the specific assembly guide provided with your bicycle.

2.1 Rozpakowanie i kontrola

• Ostrożnie wyjąć wszystkie elementy z opakowania.
• Inspect all parts for any signs of damage during transit. Contact customer support if any damage is found.
• Ensure all listed components are present: frame, wheels, handlebars, seat post, saddle, pedals, and any included tools.

2.2 Montaż kierownicy

1. Loosen the stem bolts on the fork.
2. Insert the handlebar stem into the fork steerer tube. Ensure the stem is aligned with the front wheel.
3. Dokręć mocno śruby trzonu.

2.3 Montaż sztycy i siodełka

1. Włóż sztycę siodełka do rury podsiodłowej ramy.
2. Adjust the saddle height to a comfortable riding position (your heel should just touch the pedal when the leg is fully extended at the bottom of the stroke).
3. Secure the seat post with the quick-release lever or bolt.

2.4 Instalacja pedałów

• Zidentyfikuj lewy (L) i prawy (R) pedał.
• The right pedal (R) threads clockwise into the right crank arm.
• The left pedal (L) threads counter-clockwise into the left crank arm.
• Dokręć pedały mocno za pomocą klucza do pedałów.

Image 2.1: Close-up of the crankset and pedals, illustrating the components involved in pedal installation.

3. Operating Your Bicycle

3.1 Pre-Ride Check

• Opony: Sprawdź ciśnienie w oponach przed każdą jazdą. Zalecane ciśnienie jest zazwyczaj podane na boku opony.
• Hamulce: Ensure both front and rear brakes engage firmly and smoothly.
• Koła zębate: Verify that gears shift smoothly through all ranges.
• Szybkie wydania: Confirm all quick-release levers (wheels, seat post) are securely closed.

3.2 Zmiana biegów

The Btwin Original-7- features a 7-speed gearing system. Shift gears smoothly by pedaling lightly while operating the shifters. Downshift for climbing hills and upshift for flat terrain or descents.

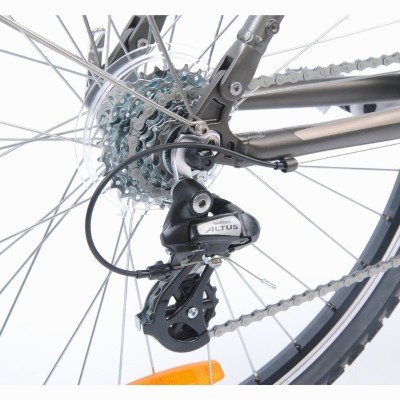

Obraz 3.1: View of the rear derailleur and cassette, illustrating the gear mechanism.

3.3 Hamowanie

Your bike is equipped with rim brakes. Apply both front and rear brakes simultaneously for effective stopping. Use the front brake (typically right lever) for stronger stopping power and the rear brake (typically left lever) for stability and control. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.

4. Konserwacja i pielęgnacja

Regular maintenance ensures the longevity and safe operation of your Btwin Original-7- bike.

4.1 Czyszczenie

• Regularnie czyść rower łagodnym mydłem i wodą. Unikaj mycia łożysk myjkami wysokociśnieniowymi.
• Po umyciu dokładnie osusz rower, aby zapobiec rdzewieniu.

4.2 Smarowanie

• Lubricate the chain regularly, especially after riding in wet conditions. Use a bicycle-specific chain lubricant.
• Apply a small amount of grease to pivot points on brakes and derailleurs as needed.

4.3 Pielęgnacja opon

• Utrzymuj prawidłowe ciśnienie w oponach, zgodnie ze wskazaniem na ich boku.
• Inspect tires for cuts, cracks, or embedded debris regularly.

4.4 Regulacja hamulców i przełożeń

• Check brake pad wear and replace them when necessary.
• Ensure brake cables are taut and provide firm braking.
• Adjust gear cables if shifting becomes imprecise. For complex adjustments, consult a professional bike mechanic.

5. Rozwiązywanie typowych problemów

6. Specyfikacje produktu

7. Gwarancja i wsparcie

For information regarding the warranty of your Btwin Original-7- Adult City Bike, please refer to the warranty documentation provided with your purchase or visit the official Btwin website. For technical support or service inquiries, contact Btwin customer service directly.

Producent: Bliźniak

Model: Original-7

ASIN: B00I0MRV7U
