Series
M.2 SSD Enclosure
User Manual
Thank you for choosing ORICO products!
Please read this user manual carefully before using it.
About this product
This SSD enclosure is specially designed for M.2 SSD, with superior material, high transmission speed, and high thermal performance provided by an internal thermal fin, bringing you an easy and convenient storage experience. Satisfy diversified storage demands, no matter whether working or entertaining.
Feature
- Compatible with M.2 NVMe or SATA SSD of 2230, 2242, 2260, and 2280.
- Tool-free installation ensures fast installation and exchange.
- The 10-minute auto-sleep setting helps to prolong the service life of your hard drive.
- Applicable to PC, smartphone, laptop, smart TV, PS4, etc.
- Compatible with Windows / Mac OS / Linux / Android systems.
What’s in the box
1 x M.2 SSD Enclosure
1 x Thermal Pad
1 x Data Cable
1 x Thermal Fin
1 x Silicone Screw
1 x User Manual
Specifications
| Name | M.2 SSD Enclosure | |
| Model | H M2C3 | HM2-G2 |
| Color | Black | |
| Dimensions | 105 x 41.5 x 15mm | |
| Compatible SSD | M.2 SATA SSD | M.2 NVMe SSD |
| Input Port | B-Key/B&M-Key | M-Key/B&M-Key |
| Output Port | Type-C | |
| Transfer Rate | 6Gbps | 10Gbps |
| System Supported | Windows, Mac OS, Linux, Android | |
How to use
The illustration is only for your reference.

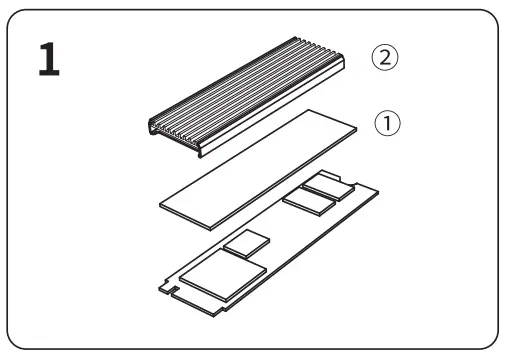

| Paste the thermal pad and fin to the SSD. | Slide the cover open. |
 |  |
| Put the SSD in. | Fasten the silicone screw to fix the SSD |
 |  |
| Slide the cover back gently. | Connect computer or phone. |
 |  |
Always remove devices safely Please make sure the computer has finished saving and stop accessing before removing. Removing a drive while it’s still transferring or saving data may cause damage to your drive or its data inside.
Notice
- The hard drive is delicate. Please read the manual carefully before use and install it correctly by following the manual.
- A new hard drive needs to be initialized before use, or it cannot be recognized. 3
- Please do not hit, throw, or puncture the product, and avoid dropping, squeezing, or bending the product.
- Avoid placing the product in a high-temperature, low-temperature, humid, or dust environment.
- Please do not place this product in a corrosive environment, and do not use other chemical solutions to clean the product.
- Avoid placing the product or accessories in devices with strong electromagnetic fields and keep the product away from magnetic equipment
- Keep the product and accessories away from children. Do not allow children to use the product without supervision.
- Do not disassemble or repair the product and accessories by yourself. Please contact the authorized support center for help.
Declaration
ORICO Technologies Co., Ltd., all rights reserved. Thank you so much for purchasing the ORICO product. Please refer to this manual when using orico products or experiencing issues. Additionally, please kindly contact the ORICO customer care team if any concerns. ORICO® is a registered trademark of ORICO Technologies Co., Ltd. Any other product, trademark, service, or company mentioned herein is a trademark or registered trademark of the respective owners. This manual is for reference only and it’s not a guarantee. ORICO Technologies Co., Ltd. reserve all rights of for maintenance to this manual and shall not be liable for any loss or damage resulting from this manual. Please kindly contact the orico customer care teams when any concerns. ORICO Technologies Co., Ltd shall not liable for compensation and maintenance of the following conditions.
- Any special, incidental, indirect, and secondary loss or damage.
- Profit and revenue lost or damaged.
- Files, data, drives, and devices lost or damaged.
Note: Compensation for loss or damage resulting from This manual or orico product shall not exceed the payment of your purchase of this product.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
HM Series-MUG-R0
Manufactured by ORICO Technologies Co., Ltd.
Hotline: 400-6696298
Tel: 86-755-25196059
E-mail: supports@orico.com.cn
www.orico.com.cn
Official Website: www.orico.cc
Company Add: 1903-1904, 14A, Zhonghaixin Innovation Industrial Park, no.12, Gan Lee Sixth Road, Gankeng Community, Jihua Street, Shenzhen, China
Factory Add: Block F, Internet & Creativity Industrial Park, No.24 Tangjiao Rd, Changping Town, Dongguan, China
