1. Introduksjon
Takk for kjøpetasing the uuffoo Patio Umbrella Light with Speaker. This device combines LED lighting with a Bluetooth speaker, designed for outdoor use. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.
Bilde 1.1: The uuffoo Patio Umbrella Light with Speaker in various usage scenarios.
Pakkeinnhold:
- 1 x uuffoo LED Umbrella Light with Speaker
- 1 x brukerhåndbok
- 1 x ladekabel
- 1 x Fargeboks (emballasje)
2. Sikkerhetsinformasjon
To prevent damage or injury, observe the following safety precautions:
- Ikke demonter, reparer eller modifiser enheten.
- Hold enheten unna ekstreme temperaturer, direkte sollys og fuktige miljøer.
- Bruk kun den medfølgende ladekabelen eller en tilsvarende sertifisert kabel.
- Avoid prolonged charging beyond the recommended time (4-8 hours) to prevent overheating and potential damage to the battery.
- Oppbevares utilgjengelig for barn.
- Ensure the device is securely clamped to the umbrella pole to prevent it from falling.
3. Produktet er overview
Familiarize yourself with the components and controls of your umbrella light.
Bilde 3.1: Detaljert view of the control panel and internal components.
- PÅ/AV-knapp: Controls power and music playback.
- LED -lysknapp: Sykler gjennom lysmoduser.
- USB-port: For power bank output (charging external devices).
- DC 5V-port: For charging the umbrella light itself.
- Høyttalere: Two diagonal speakers for audio output.
- Clamping-mekanisme: Internal adjustable clip for securing to umbrella poles.
4. Oppsett
Første lading:
Before first use, fully charge the umbrella light. Connect the provided charging cable to the DC 5V port on the device and to a compatible USB power adapter (not included). Charging typically takes 4-8 hours. Do not overcharge.
Installation on Umbrella Pole:
Bilde 4.1: Umbrella light installed on a patio umbrella pole.
- Open the umbrella light by gently separating its two halves.
- Position the open light around the umbrella pole at the desired height.
- Close the two halves of the light, ensuring the internal adjustable clip securely grips the pole. The wireless design requires no tools for installation.
- Verify the light is stable and will not slide down the pole.
5. Bruksanvisning
Slå på/av og musikkavspilling:
- For å slå på: Trykk lenge på PÅ/AV knappen til enheten slås på.
- Slik slår du av: Trykk lenge på PÅ/AV button again until the device powers off.
- For å spille av/pause musikk: Trykk kort på PÅ/AV knappen mens musikk spilles av.
LED -lyskontroll:

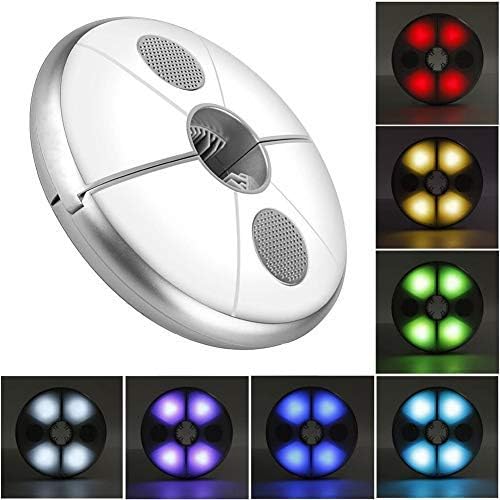

Bilde 5.1: Various LED light color options.
- To Change Light Mode: Trykk kort på LED lys button to cycle through modes: LED light (white), RGB light (color changing), Light off.
Bluetooth-tilkobling:
- Ensure the umbrella light is powered on. It will automatically enter Bluetooth pairing mode.
- On your mobile device (smartphone, tablet, etc.), go to the Bluetooth settings.
- Søk etter tilgjengelige enheter og velg "IJOY VIBE" to connect.
- Once connected, you can play audio through the umbrella light's speaker.
The Bluetooth operating distance is approximately 10 meters (32.8 feet).
6. Charging Functionality
Charging the Umbrella Light:
Use the provided charging cable and connect it to the DC 5V input port. A full charge takes approximately 4-8 hours. The device features a built-in 2600mAh rechargeable lithium-ion battery.
Bruk som en Power Bank:
Bilde 6.1: Emergency charging for cellphones or tablets.
The USB port on the device functions as a power bank output (DC 5V). You can use this port to provide emergency charging for mobile phones, tablets, or other small USB-powered devices.
7. Vedlikehold
Rengjøring:
Tørk av enheten med en myk, damp cloth. Do not use abrasive cleaners or immerse the device in water. While the product is waterproof, it is designed for daily outdoor use and not for submersion.
Lagring:
When not in use for extended periods, store the umbrella light in a cool, dry place. It is recommended to charge the battery every 3 months to maintain its health.
8. Feilsøking
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Enheten slås ikke på. | Lavt batteri. | Lad enheten helt. |
| Kan ikke koble til via Bluetooth. | Bluetooth not enabled on device; device too far; incorrect pairing. | Ensure Bluetooth is on. Move closer to the umbrella light. Re-attempt pairing with "IJOY VIBE". |
| Lysene fungerer ikke. | Light mode is off or battery is low. | Short press the LED Light button to cycle modes. Charge the device. |
| Device slides down the umbrella pole. | Uriktig clamping or pole is too narrow/smooth. | Sørg for at clamping mechanism is fully closed and secure. If the pole is too narrow, consider adding a non-slip material around the pole where the clamp grep. |
9. Spesifikasjoner
| Modell: | Moderne |
| Lyskilde: | 48 LED Lamp Perler |
| Bluetooth-versjon: | 5.0 |
| Bluetooth-driftsavstand: | 10 m (32.8 fot) |
| Frekvensrespons: | 20HZ-20KHZ |
| Forvrengning: | ≤1 % |
| Batteri: | 2600mAh Rechargeable Lithium-ion |
| Working Time (Music Only): | Opptil 6 timer |
| Working Time (Music & Lighting): | Opptil 3 timer |
| Power Bank-utgang: | DC 5V (via USB port) |
| Ladeinngang: | DC 5V (via DC 5V port) |
| Materiale: | Akrylnitrilbutadienstyren (ABS) |
| Dimensjoner: | 7.87 cm L x 7.87 cm B x 1.18 cm H |
| Vekt: | 1.23 pund |
| Wattage: | 3 watt |
| Voltage: | 5 volt |

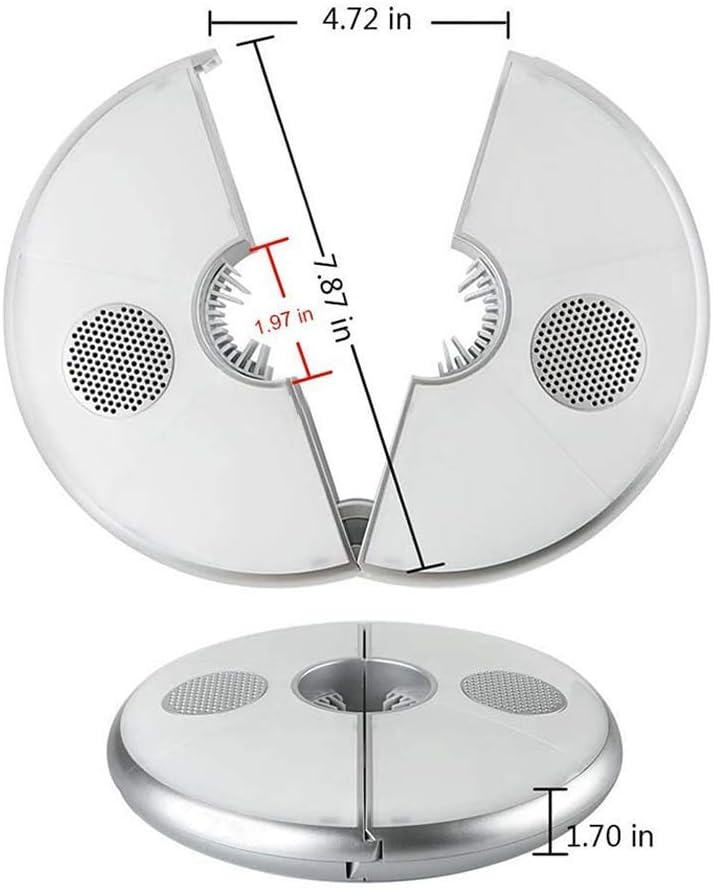

Bilde 9.1: Produktdimensjoner.
10. Garanti og støtte
Spesifikk garantiinformasjon for dette produktet finnes ikke i den tilgjengelige dokumentasjonen. For støtte- eller garantiforespørsler, vennligst kontakt forhandleren eller produsenten direkte ved hjelp av kontaktinformasjonen som ble oppgitt ved kjøp.
