Canon XA65 Pro Camcorder User Manual

परिचय

This manual provides essential instructions for the safe and effective operation of your Canon XA65 Pro Camcorder. Please read this manual thoroughly before using the camcorder and retain it for future reference. The Canon XA65 is designed for professional video capture, offering 4K UHD recording, advanced optical zoom, and versatile connectivity options.

Figure 1: Canon XA65 Pro Camcorder Overview

बक्समा के छ

तल सूचीबद्ध सबै वस्तुहरू तपाईंको प्याकेजमा समावेश छन् भनी प्रमाणित गर्नुहोस्:

• XA65 Body
• लेन्स क्याप
• लेन्स ब्यारियर भएको लेन्स हुड
• Microphone Holder Unit
• ह्यान्डल युनिट
• BP-820 ब्याट्री प्याक
• PD-E1 USB Power Adapter

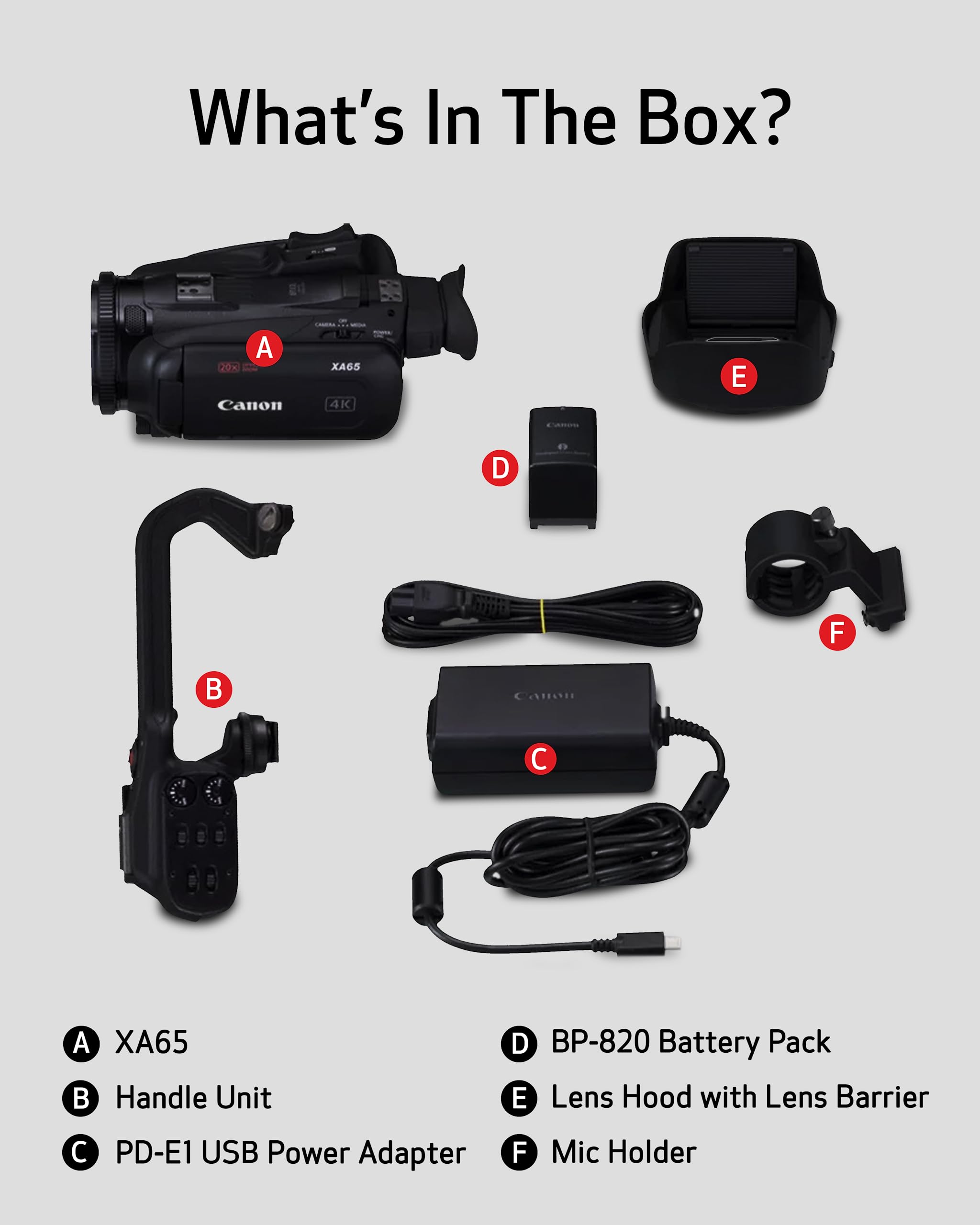

चित्र १: प्याकेज सामग्री

सेटअप

४.१. ह्यान्डल युनिट जोड्ने

Align the handle unit with the mounting shoe on top of the camcorder body and slide it forward until it clicks into place. Secure it with the locking screw. The handle unit provides additional controls and XLR audio inputs.

2. ब्याट्री प्याक स्थापना गर्दै

1. सुनिश्चित गर्नुहोस् कि क्यामकोर्डर बन्द छ।
2. ब्याट्री कम्पार्टमेन्ट कभर खोल्नुहोस्।
3. Insert the BP-820 battery pack into the compartment, ensuring the contacts align. Push until it locks.
4. ब्याट्री कम्पार्टमेन्ट कभर बन्द गर्नुहोस्।

२.३. SD कार्डहरू घुसाउने

The XA65 features dual SD card slots for flexible recording. Open the SD card slot cover on the side of the camcorder. Insert SD cards into slots A and B until they click. Close the cover. For optimal performance, use high-speed SD cards (UHS-I or faster) for 4K recording.

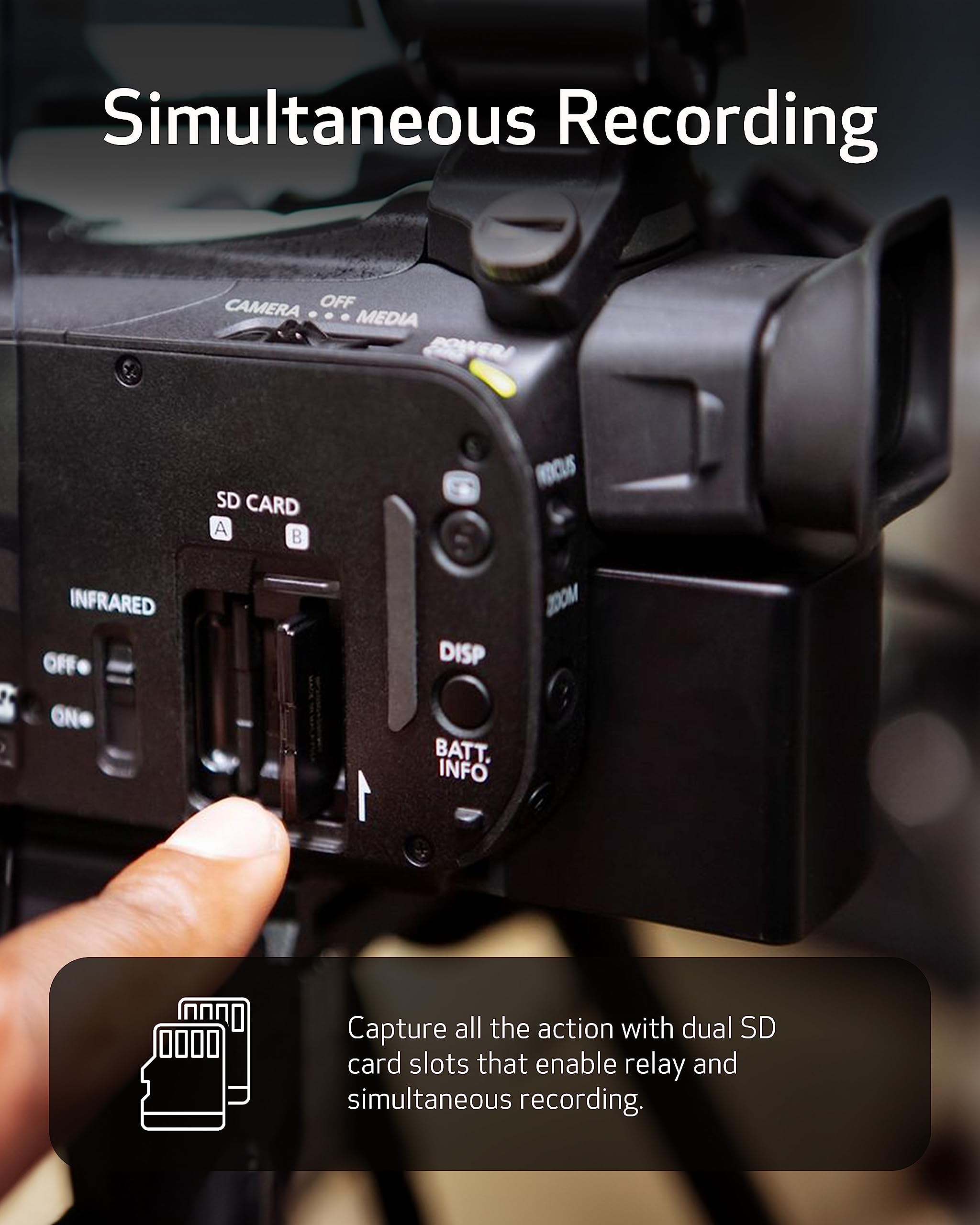

Figure 3: Inserting SD Cards

4. Attaching the Lens Hood and Microphone Holder

Attach the lens hood to the front of the lens by aligning the marks and twisting until it locks. This helps prevent glare. The microphone holder can be attached to the handle unit if an external microphone is used.

क्यामकोर्डर सञ्चालन गर्दै

पावर अन/अफ

To power on the camcorder, slide the POWER switch to the ON position. To power off, slide it to OFF.

भिडियो रेकर्डिङ

The XA65 supports 4K UHD and Full HD recording in XF-AVC and MP4 formats. Select your desired recording format and resolution via the menu system. Press the REC button to start and stop recording.

Figure 4: Recording in 4K UHD

जुम सञ्चालन

Utilize the 20x optical zoom lens for clear magnification. The camcorder also features an 800x digital zoom for extended reach. Control zoom using the zoom rocker on the handle or the lens ring.

Figure 5: 20x Optical Zoom Capability

छवि स्थिरीकरण

The Canon XA65 incorporates Dynamic IS 5-axis image stabilization to minimize camera shake, ensuring steady and clear footage even in dynamic shooting conditions. This feature is particularly useful when shooting handheld or at maximum zoom.

Figure 6: 5-Axis Image Stabilization

अडियो रेकर्डिङ

Professional audio control is available through two XLR terminals on the detachable handle. The camcorder supports 4-channel linear PCM audio, providing high-quality sound capture. Adjust audio levels using the dedicated controls.

प्रदर्शन र Viewखोजकर्ता

Frame and monitor your shots using the 3.5" touchscreen LCD or the tiltable OLED EVF (Electronic Viewfinder). The touchscreen allows for intuitive menu navigation and focus adjustments.

Figure 7: Touchscreen LCD Display

Connectivity and Live Streaming

The XA65 offers mini-HDMI and 3G-SDI outputs for connecting to external monitors or professional broadcasting equipment. For live streaming, connect the camcorder to a PC or Mac via the USB Type-C output, which supports UVC (USB Video Class).

Figure 8: USB Type-C Connectivity

Figure 9: UVC Support for Live Streaming

समय सेन्टamp रेकर्डिङ

Utilize the On-Screen Display (OSD) Time Stamp recording feature to embed data such as date, time, and timecode directly into your video footage. This is particularly useful for documentation purposes.

Figure 10: OSD Time Stamp रेकर्डिङ

Slow and Fast Motion Recording

The camcorder supports both slow and fast motion recording modes, allowing for creative effects and capturing events in a unique way. Adjust the frame rate settings in the menu to achieve desired playback speeds.

Figure 11: Slow and Fast Motion Recording Exampलेस

मर्मतसम्भार

क्यामकोर्डर सफा गर्दै

• क्यामकोर्डर बडी सफा गर्न नरम, सुख्खा कपडा प्रयोग गर्नुहोस्।
• For the lens, use a lens brush or blower to remove dust, then gently wipe with a lens cleaning cloth and lens cleaning solution if necessary.
• बलियो घोलक वा घर्षण गर्ने क्लीनरहरू प्रयोग नगर्नुहोस्।

भण्डारण

When not in use, store the camcorder in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery pack if storing for an extended period.

समस्या निवारण

If you encounter issues with your Canon XA65, refer to the following common solutions:

• क्यामकोर्डर सक्रिय हुँदैन: Ensure the battery is fully charged and correctly inserted, or connect the power adapter.
• No image on screen/viewखोजकर्ता: Check if the lens cap is removed. Adjust brightness settings.
• रेकर्डिङ समस्याहरू: Verify that an SD card is inserted and has sufficient free space. Check recording format settings.
• अस्थिर footage: Ensure Image Stabilization is enabled in the menu.
• अडियो समस्याहरू: Check microphone connections and audio input levels.

For more complex issues, consult the full Canon XA65 service manual or contact Canon customer support.

निर्दिष्टीकरणहरू

Below are the key technical specifications for the Canon XA65 Pro Camcorder:

For a detailed comparison with other models, refer to the specification tables provided by Canon:

Figure 12: Detailed Specifications Table (Part 1)

Figure 13: Detailed Specifications Table (Part 2)

वारेन्टी र समर्थन

For information regarding the product warranty, please refer to the warranty card included with your camcorder or visit the official Canon website. For technical support, service, or additional inquiries, please contact Canon customer service through their official channels.

तपाईंले थप जानकारी र समर्थन स्रोतहरू मा पाउन सक्नुहुन्छ अमेजनमा क्यानन स्टोर.
