LEZYNE E-BIKE POWER HB STVZO E550 Headlight Instruction Manual

1. ကုန်ပစ္စည်းကျော်view

The LEZYNE E-BIKE POWER HB STVZO E550 is a high-performance e-bike headlight designed for optimal visibility and safety. It features a German StVZO optimized lens, providing both flood and long-range high and low beams. The durable, heat-dissipating CNC-machined aluminum construction ensures longevity and efficient operation.

This headlight is compatible with 6-12V e-bike systems, drawing 8W of power, and can be easily integrated with batteries from major manufacturers such as Bosch, Shimano, and Yamaha. An integrated USB port allows for convenient charging of external accessories.

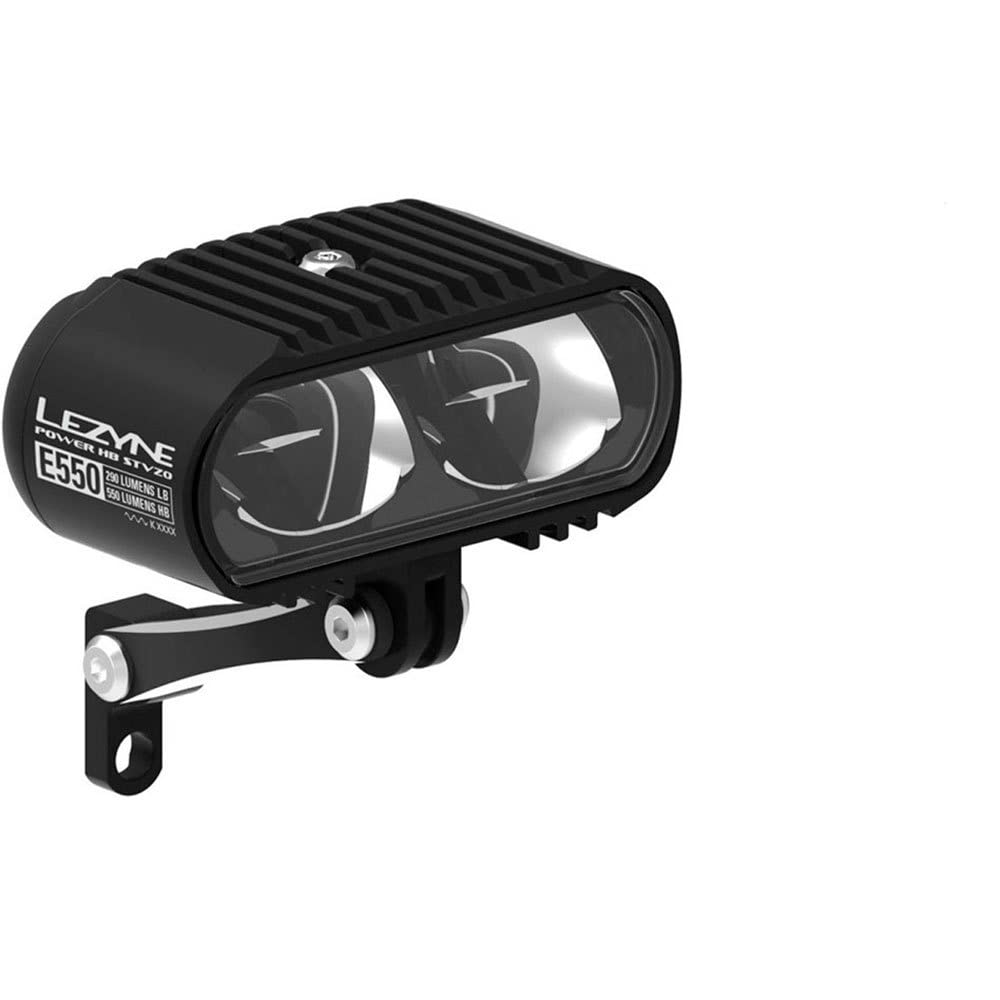

ပုံ- အရှေ့ view of the LEZYNE E-BIKE POWER HB STVZO E550 Headlight with its mounting bracket.

2. အထုပ်အကြောင်းအရာများ

သင့်ပက်ကေ့ဂျ်တွင် အစိတ်အပိုင်းအားလုံးပါဝင်ကြောင်း အတည်ပြုပါ-

• LEZYNE E-BIKE POWER HB STVZO E550 Headlight
• X-Lock Stem Mount
• CNC-Machined Aluminum Fork Mount
• 130cm ပါဝါကြိုး

Image: Included mounting accessories and hardware.

3. တပ်ဆင်ခြင်းနှင့် တပ်ဆင်ခြင်း။

The E-Bike Power HB StVZO E550 headlight is designed to be powered directly by your e-bike's motor. Installation requires careful attention to your e-bike's electrical system.

ရှေ့မီးတပ်ဆင်ခြင်း-

1. Choose your preferred mounting option: the X-Lock stem mount or the CNC-machined aluminum fork mount.
2. Securely attach the chosen mount to your e-bike's handlebar stem or fork, ensuring it is stable and positioned to provide optimal light coverage.
3. Attach the E550 headlight to the installed mount.

လျှပ်စစ်ချိတ်ဆက်မှု-

Connecting the headlight to your e-bike's motor requires electrical wiring. This process may involve some disassembly of your bike and motor, depending on the specific make and model and battery type.

• Refer to your e-bike or motor manufacturer's instructions for detailed wiring diagrams and connection procedures.
• It is highly recommended to have a trained e-bike professional install your lights to ensure correct and safe electrical integration.

ပုံ- ဘေးဘက် view of the headlight, illustrating the mounting arm.

4. လုပ်ငန်းဆောင်ရွက်မှုညွှန်ကြားချက်များ

The E-Bike Power HB StVZO E550 headlight offers two primary light settings: a low beam and a high beam.

အလင်းမုဒ်များ-

• အလင်းတန်းနိမ့်- Delivers 290 lumens, suitable for general riding and maintaining visibility without dazzling oncoming traffic.
• အလင်းတန်းမြင့် Provides 550 lumens for enhanced illumination during night riding or in low-light conditions where maximum visibility is required.

The specific method for switching between low and high beam modes will depend on your e-bike's control system. Consult your e-bike's user manual for instructions on operating integrated accessories.

USB အားသွင်းကြိုး:

The headlight includes a built-in USB port. This port can be used to charge external accessories such as smartphones or GPS devices while riding.

ပုံ- အရှေ့ view of the headlight, showing the dual LED design.

5. ပြုပြင်ထိန်းသိမ်းမှု

Regular maintenance ensures the longevity and optimal performance of your LEZYNE E-BIKE POWER HB STVZO E550 headlight.

• သန့်ရှင်းရေး- Wipe the lens and housing with a soft, damp cloth to remove dirt and debris. Avoid abrasive cleaners that could scratch the lens.
• ချိတ်ဆက်မှုများ- လျှပ်စစ်ချိတ်ဆက်မှုအားလုံး ခိုင်ခံ့ပြီး သံချေးတက်ခြင်းမှ ကင်းဝေးကြောင်း သေချာစေရန်အတွက် အခါအားလျော်စွာ စစ်ဆေးပါ။
• ရေထိတွေ့မှု- While the product has an IPX5 rating, indicating resistance to water jets, it is ရေစိုခံလုံးဝမဟုတ်ပါ. Avoid submerging the light or exposing it to heavy, prolonged rainfall to prevent potential damage.
• သိုလှောင်မှု- When not in use for extended periods, store the headlight in a cool, dry place.

၃

If you encounter issues with your headlight, consider the following troubleshooting steps:

• မီးမဖွင့်ပါ
  • Verify that the e-bike's power system is active and supplying power to the headlight.
  • Check all electrical connections for looseness or damage.
  • Ensure the headlight is correctly switched on via your e-bike's controls.
• ဆက်တိုက်လုပ်ဆောင်မှု-
  • Inspect wiring for any signs of fraying or poor contact.
  • Ensure the mounting is secure and not causing stress on the wiring.
• မှိန်သောအလင်းအထွက်-
  • Clean the lens to remove any dirt or film that might be obstructing the light.
  • Confirm that the e-bike's power output is stable and sufficient for the headlight.

For persistent issues, it is recommended to consult with a trained e-bike professional or contact LEZYNE customer support.

7. သတ်မှတ်ချက်များ

8. အာမခံနှင့် ပံ့ပိုးမှု

For information regarding product warranty, returns, or technical support, please refer to the official LEZYNE website or contact your authorized LEZYNE dealer. Keep your proof of purchase for any warranty claims.
