HOLDLAMP ZQ10145

HOLDLAMP Fog Smoke Machine with Lights 500W, Model ZQ10145 - User Manual

1. Introduzzjoni

This manual provides essential information for the safe and effective operation of your HOLDLAMP Fog Smoke Machine with Lights (Model ZQ10145). Please read these instructions thoroughly before initial use and retain for future reference.

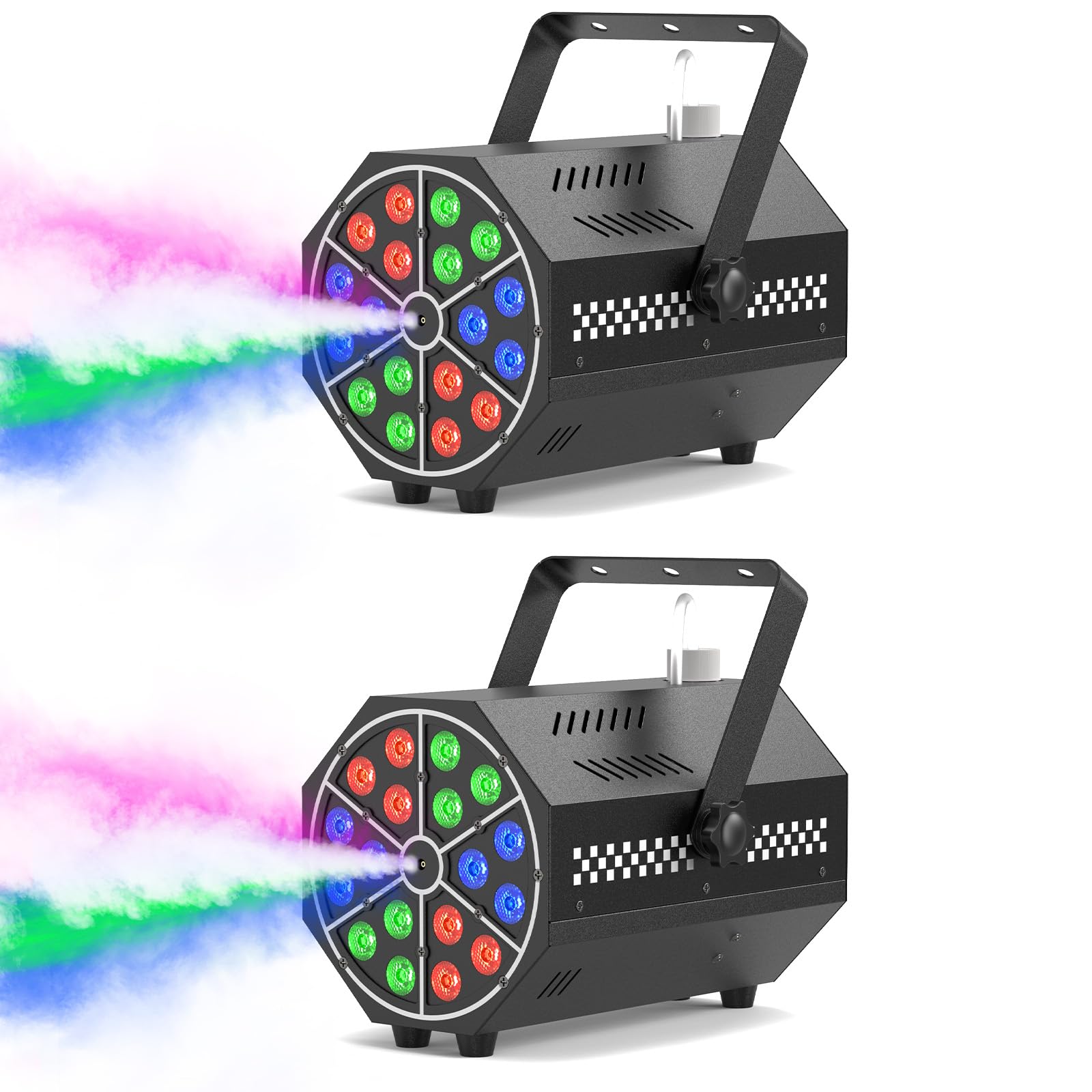

HOLDLAMP Fog Smoke Machine with Lights 500W

Figure 1: HOLDLAMP Fog Smoke Machine with Lights 500W.

2. Informazzjoni dwar is-Sigurtà

  • TWISSIJA: Skonnettja l-enerġija qabel ma tibdel il-fjus.
  • L-ebda partijiet li jistgħu jintużaw mill-utent ġewwa.
  • Uża biss b'superviżjoni ta 'adult.
  • Toperax mingħajr likwidu.
  • Indoor use only. Keep dry.
  • Do not direct the fog machine towards people.
  • ATTENZJONI: Biex tnaqqas ir-riskju ta 'nar, ibdel biss bl-istess daqs u tip ta' fjus.

3. X'hemm fil-Kaxxa

  • Fog Machine *2
  • Korda tal-enerġija *1
  • Knob Screw *2
  • Siegla * 2
  • Kontroll mill-bogħod *1
  • Handle Bracket *1
  • Manwal ta' Istruzzjoni *1
Contents of the HOLDLAMP Fog Smoke Machine package

Figure 2: Packaging list for the fog smoke machine.

4. Istruzzjonijiet ta' Setup

  1. Imla t-Tank: Open the tank and fill with water-based fog fluid to approximately 2/3 capacity. Do not overfill.
  2. Connect Power & Preheat: Connect the power cord to the fog machine, switch it on, and allow 3-5 minutes for initial preheating. Subsequent cycles typically require only 20-40 seconds.
  3. Control Fog Output: After heating, the fog machine can be controlled by the remote to emit smoke, with adjustable built-in lighting effects.
Step-by-step guide on how to use the fog smoke machine

Figure 3: Visual guide for filling the tank, connecting power, and operating the machine.

Għażliet ta 'Immuntar

The machine is suitable for both floor-standing and truss-mounted applications, offering flexibility for various event setups.

Fog machine mounted on a truss and placed on the ground for different effects

Figura 4: Eżamples of freestanding and truss-mounted setups.

5. Istruzzjonijiet Operattivi

The included wireless remote controller allows for easy adjustment of fog output and color settings from a distance. The machine features 18 vibrant LED lights with multiple effect modes.

Funzjonijiet tal-Kontroll mill-bogħod:

  • FOG ON/OFF: Start/Stop Smoke Generation
  • URI: LED Auto-Chasing Mode
  • AQBEŻ: Modalità Aqbeż
  • FLASH: Modalità Strobe
  • IMPULS: Modalità Pulse
  • FADE: Modalità gradjent
  • 7 Static Colors: Red, Green, Blue, White, Orange, Purple, Yellow
  • Dawl mitfi: Turns off all lights.

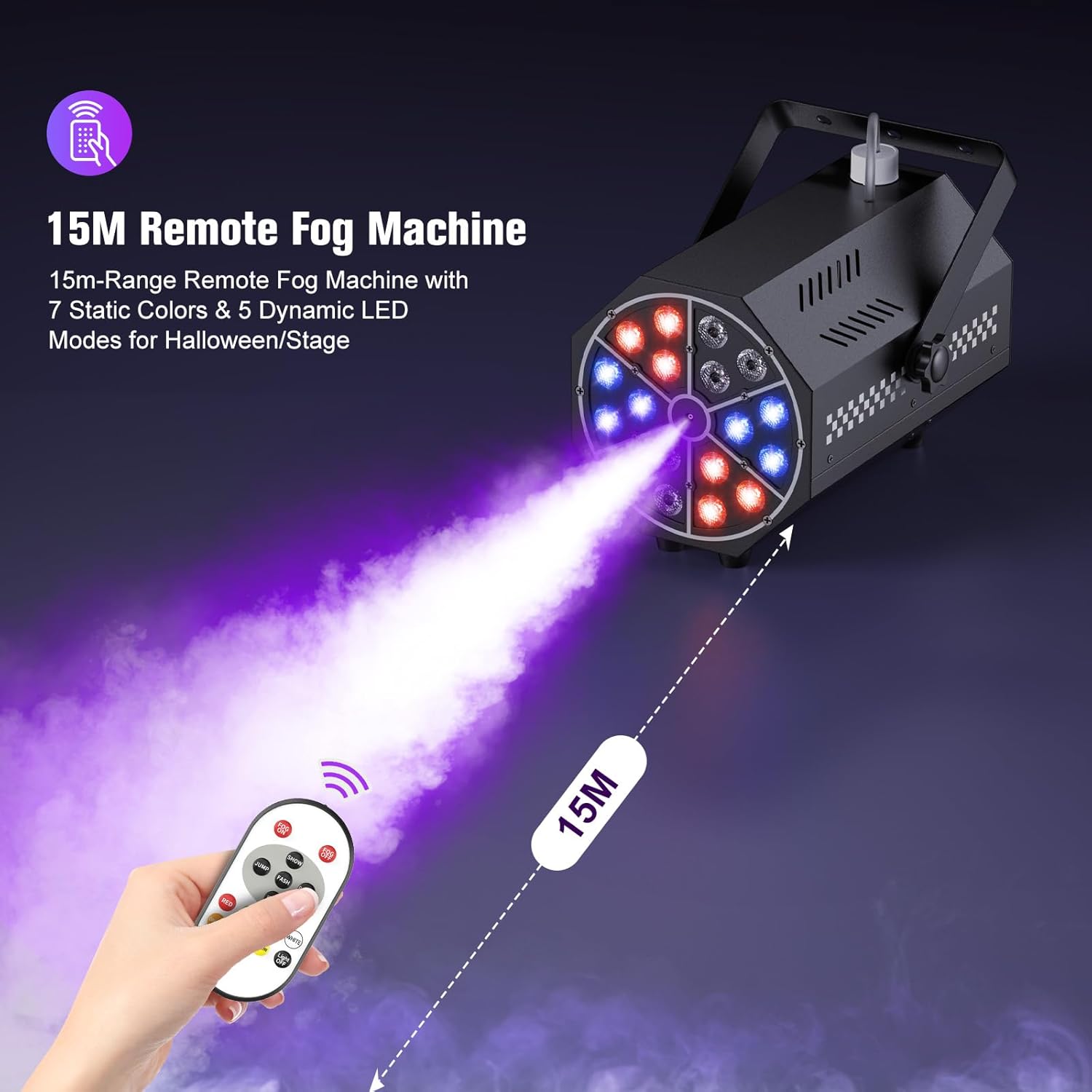

Remote control for the fog machine, showing buttons for fog, light modes, and static colors.

Figure 5: Remote control for adjusting fog and light settings.

Effetti tad-Dawl:

The 18 LED lights create stunning multi-colored effects with red, green, blue, and mixed color combinations. Choose from 7 static color modes and various dynamic patterns like Jump, Fade, Flash, Pulse, and Auto for versatile lighting displays.

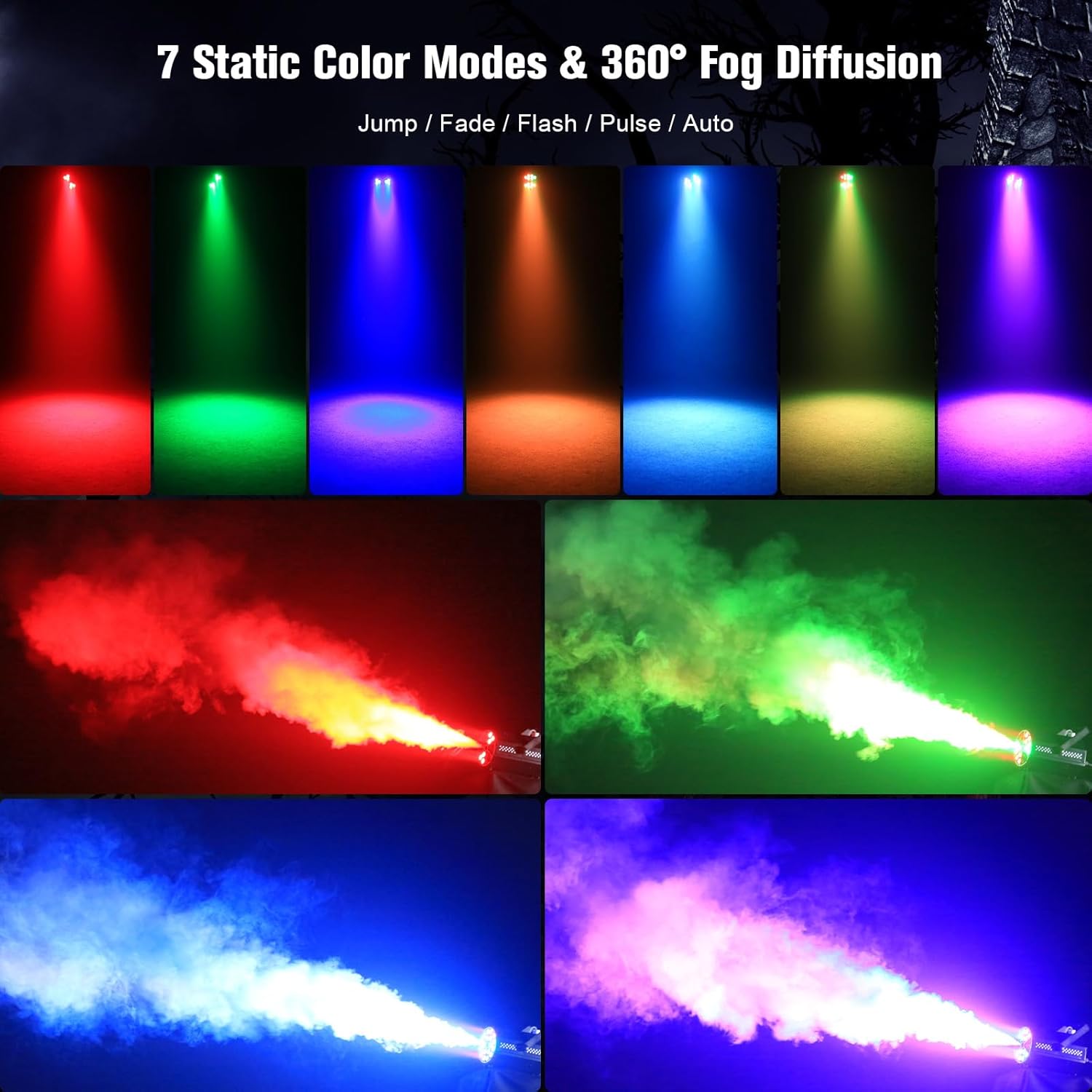

Demonstration of 7 static color modes and fog diffusion with different colored lights.

Figure 6: Various static color modes and fog effects.

Video Demonstration: Fog Smoke Machine with Lights 500W

Video 1: A demonstration of the HOLDLAMP Fog Smoke Machine with Lights 500W in operation, showcasing its fog output and various lighting effects.

Video Demonstration: Honest Review of Fog Smoke Machine with Light

Vidjo 2: Reazzjoni onestaview and demonstration of the fog smoke machine, highlighting its ease of use and light features.

6. Speċifikazzjonijiet

VoltageAC110V/220V 50/60Hz
Qawwa500W
Sors tad-Dawl18-LED (6R/6G/6B)
MaterjalĦadid
Ħin tat-Tisħin3-5 min (Initial); 20-40s (Cycle)
Smoke Duration25-30s per cycle
Output2000 CFM
Kapaċità tat-Tank300mL (Runtime: 80 min)
Medda ta' Projezzjoni3M
Temp operattiv-20°C ~ 40°C
Dimensjonijiet tal-Prodott8.9"T x 5.8"W x 5.8"Għ
Piż tal-oġġett4.4 liri
Detailed product parameters table for the fog smoke machine

Figure 7: Comprehensive product specifications.

7. Manutenzjoni

To ensure optimal performance and longevity of your fog machine, regular maintenance is recommended:

  • Always use high-quality, water-based fog fluid. Using other types of fluid can damage the machine.
  • Naddaf il-parti ta' barra tal-magna perjodikament b'ċarruta ratba u niexfa.
  • Ensure the fluid tank is clean and free of debris.
  • Aħżen il-magna f'post niexef u frisk meta ma tkunx qed tużaha.

8 Issolvi l-problemi

If you encounter issues with your fog machine, consider the following:

  • Ebda Qawwa: Check the power cord connection and ensure the machine is switched ON. Verify the fuse is intact and replace if necessary (refer to safety warnings for fuse replacement).
  • No Fog Output: Ensure the fluid tank has sufficient fog liquid. Allow adequate preheating time (3-5 minutes initially, 20-40 seconds for subsequent cycles).
  • Weak Fog Output: Check the fluid level. Ensure the nozzle is not obstructed.
  • Remote Mhux Jirrispondi: Check the remote control's battery. Ensure there are no obstructions between the remote and the machine's sensor.

9. Garanzija u Appoġġ

Għal informazzjoni dwar il-garanzija, appoġġ tekniku, jew mistoqsijiet dwar is-servizz, jekk jogħġbok irreferi għall-indirizz uffiċjali tal-manifattur. webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
